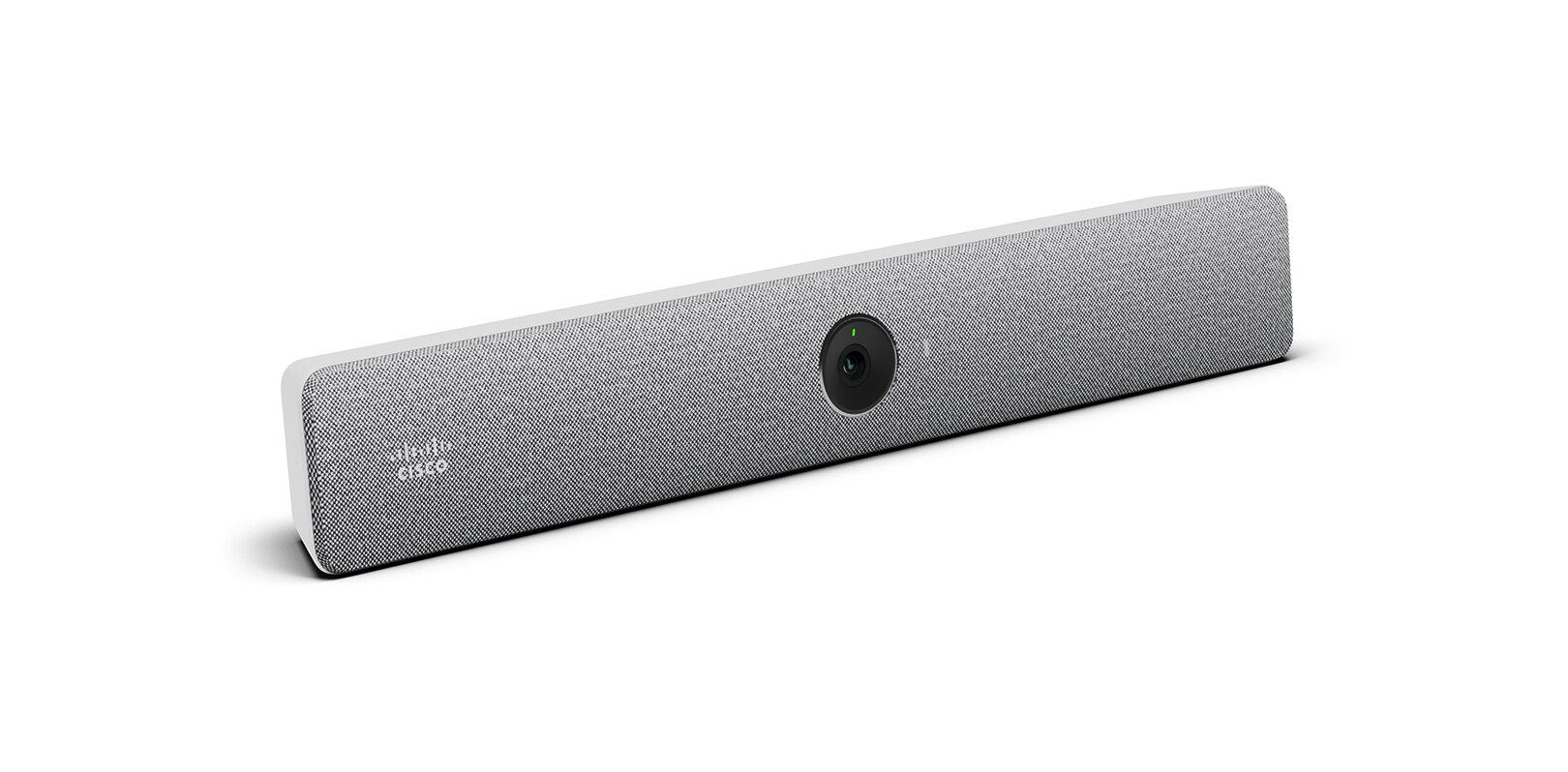

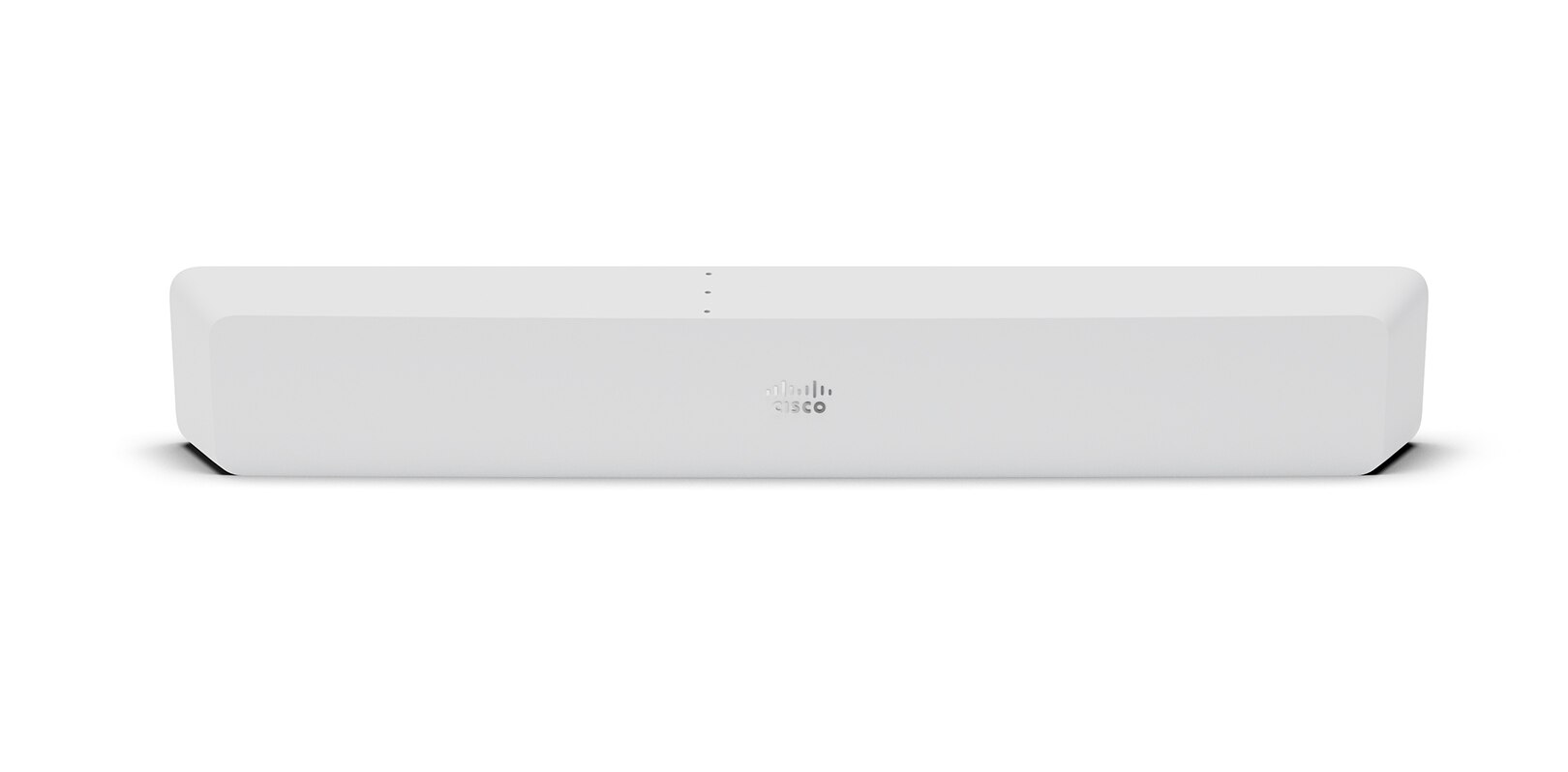

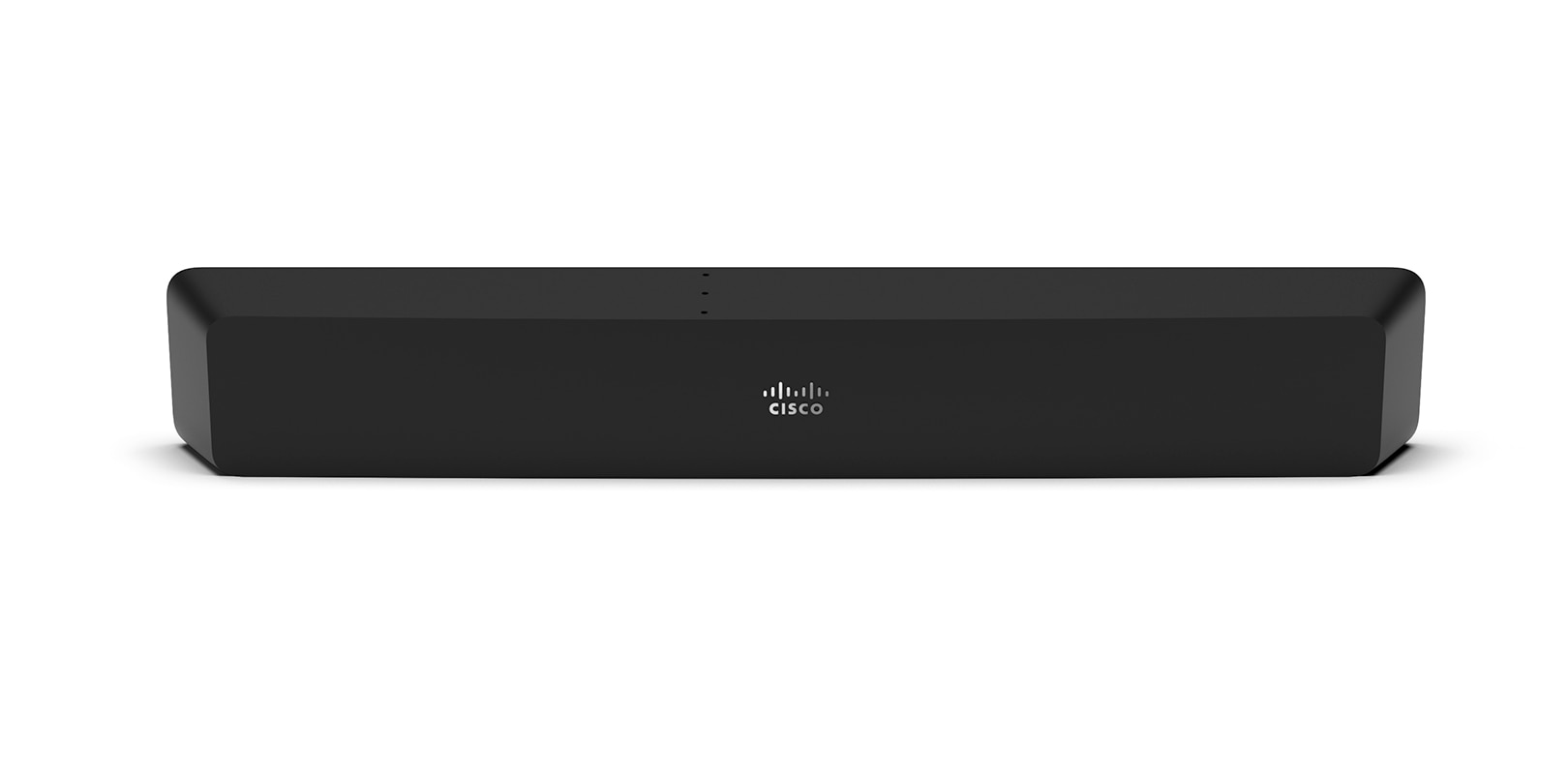

Cisco Room Bar
Boundless collaboration for hybrid workspaces.
Room Bar is an all-in-one video conferencing bar that does it all—from native, laptop-free video collaboration to seamless BYOD experiences via USB passthrough. Transform your meetings with a room device that integrates a 4K camera, a powerful codec, built-in microphones, stereo speakers and an array of connectivity options — supporting the displays of your choice.
Thousands of details. One immersive experience.
Your front-row seat at the table.

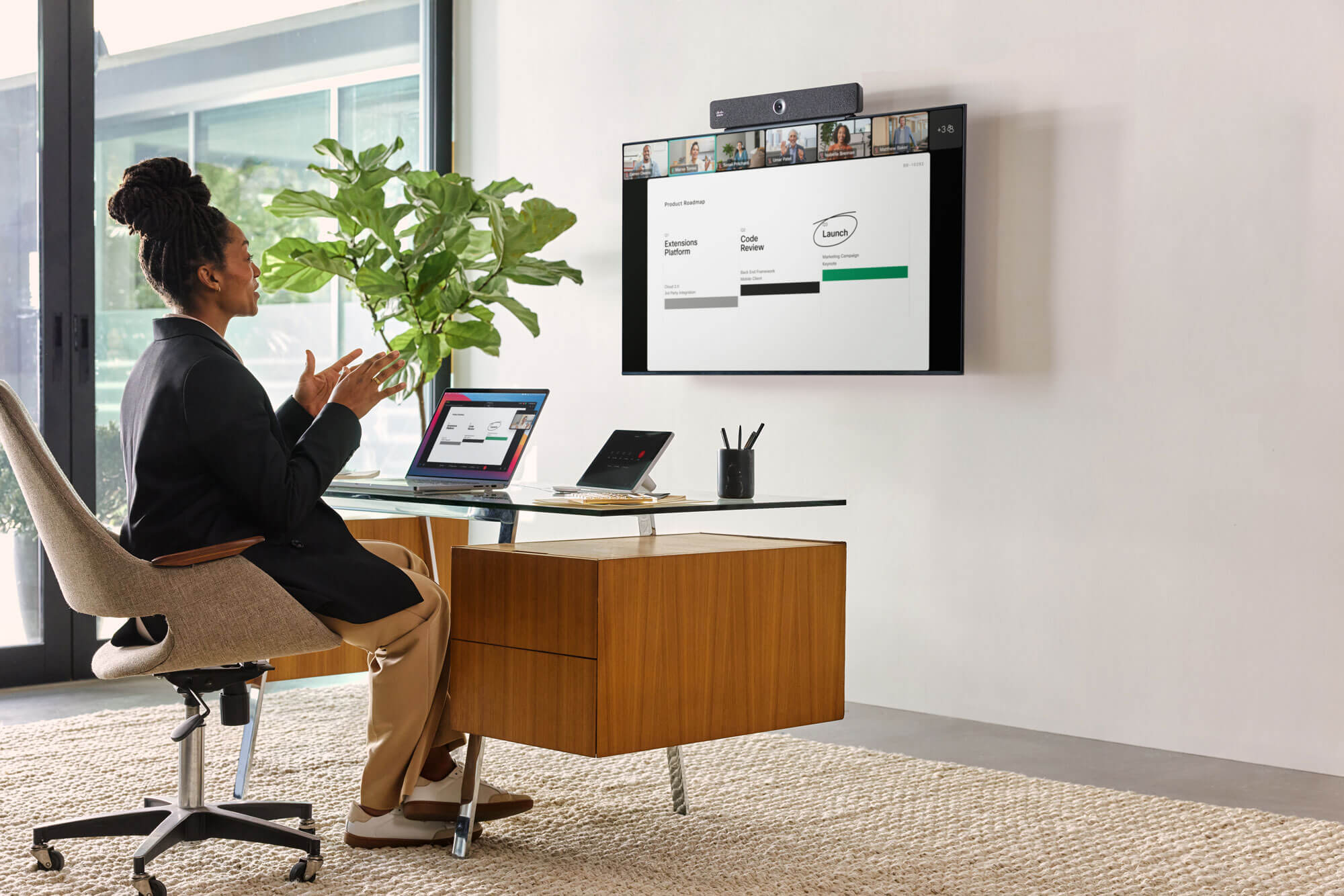

Transform meeting rooms with immersive experiences.
Hear everything.
Sound your best.
Join any meeting, anytime.
With the Room Bar, you can experience exceptional video conferencing and content sharing on the meeting platform of your choice.
Webex
MIcrosoft Teams
Zoom
Google Meet

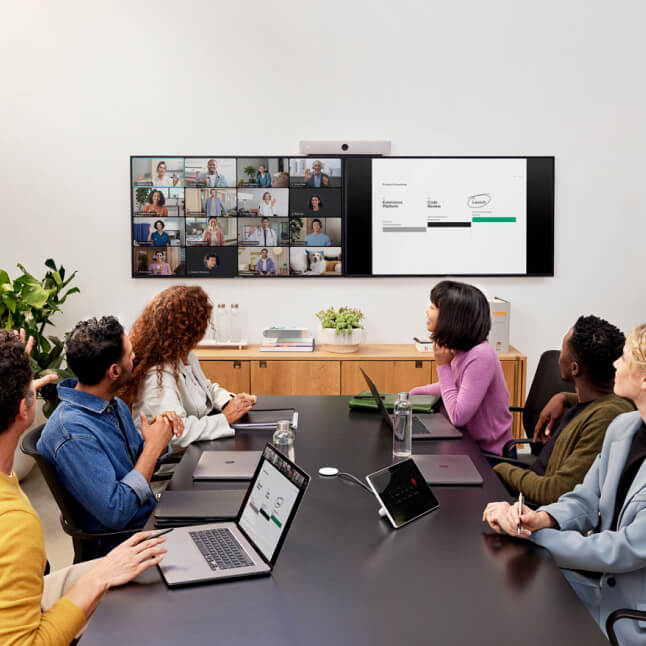

Welcome to the intelligent workplace.
Designed for connection.
Seamless BYOD mode
Extent your laptop to 4K displays via a single USB-C cable for instant content sharing and video meetings on any platform.
4K content sharing
Take your presentation to the next level by sharing crisp content via Webex, Cisco Proximity, Miracast and Apple AirPlay.
Room controls
Control your video conference, book the meeting room, manage room peripherals, and use third-party apps with an intuitive, 10-inch touch panel.
Better collaboration with Cisco.
The goal is to make the experience for those who are remote as good or even better than being in person. We rigged the meeting rooms with Webex Room Kits from Cisco—and we got extremely good feedback on how these devices help include people from different countries and with different languages. We want to expand on that.
[Unlike other multi-vendor solutions], Webex offered a competitively priced, complete solution for schools that met all our criteria. In addition, we were long-time Cisco customers for our telephony and networking equipment, so we trusted the reliability and longevity of Cisco.
Great learning only happens when the social and emotional side of a student's life is in balance. We needed a technology where the whole purpose was to engage students and learners.
Control your meeting space.
Technical specifications.
The difference is in the details.
Default components

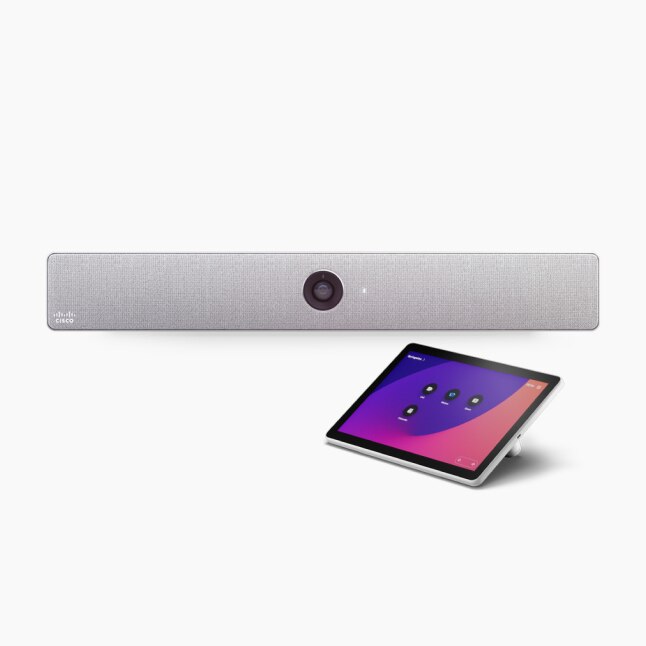

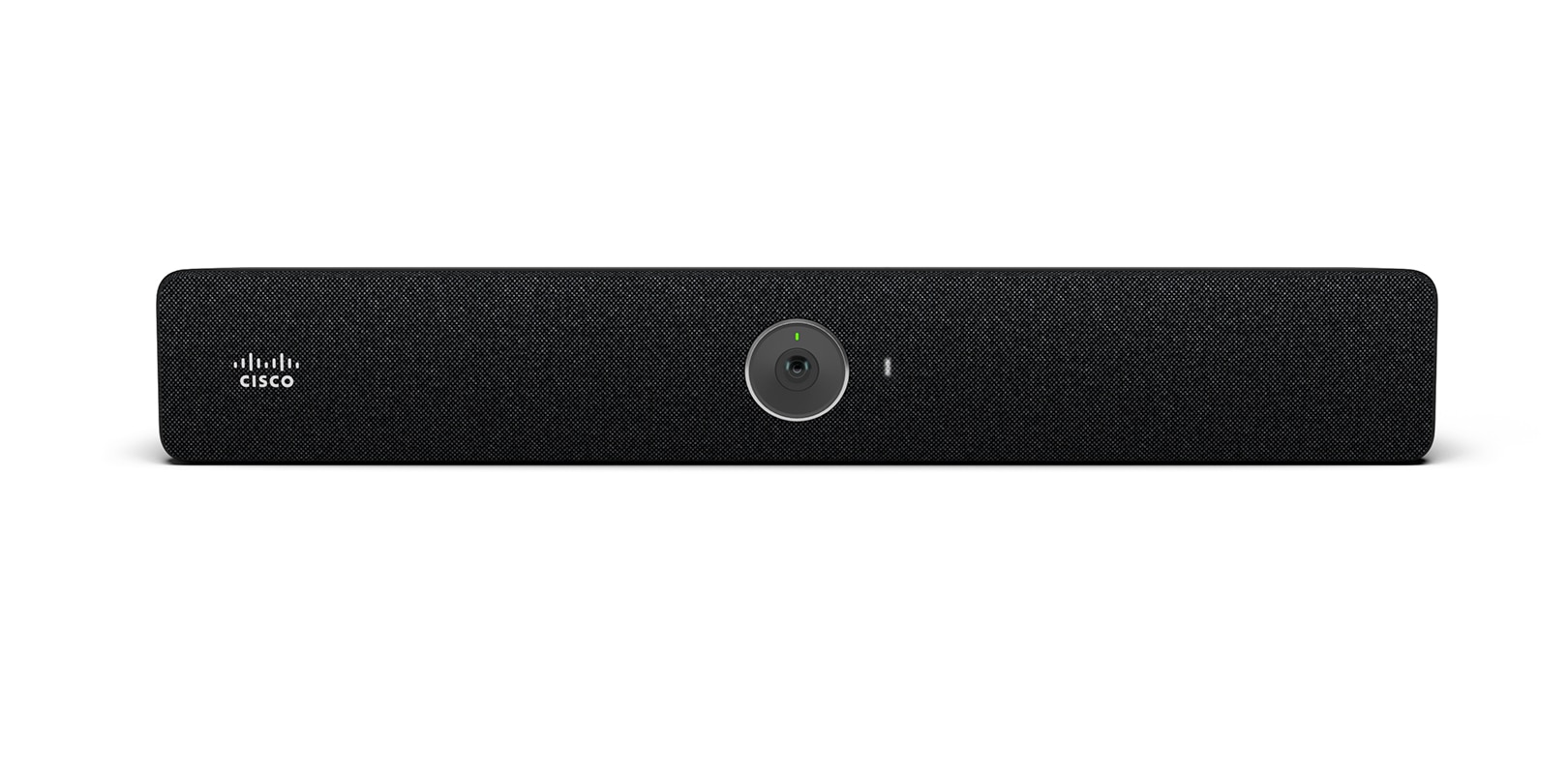

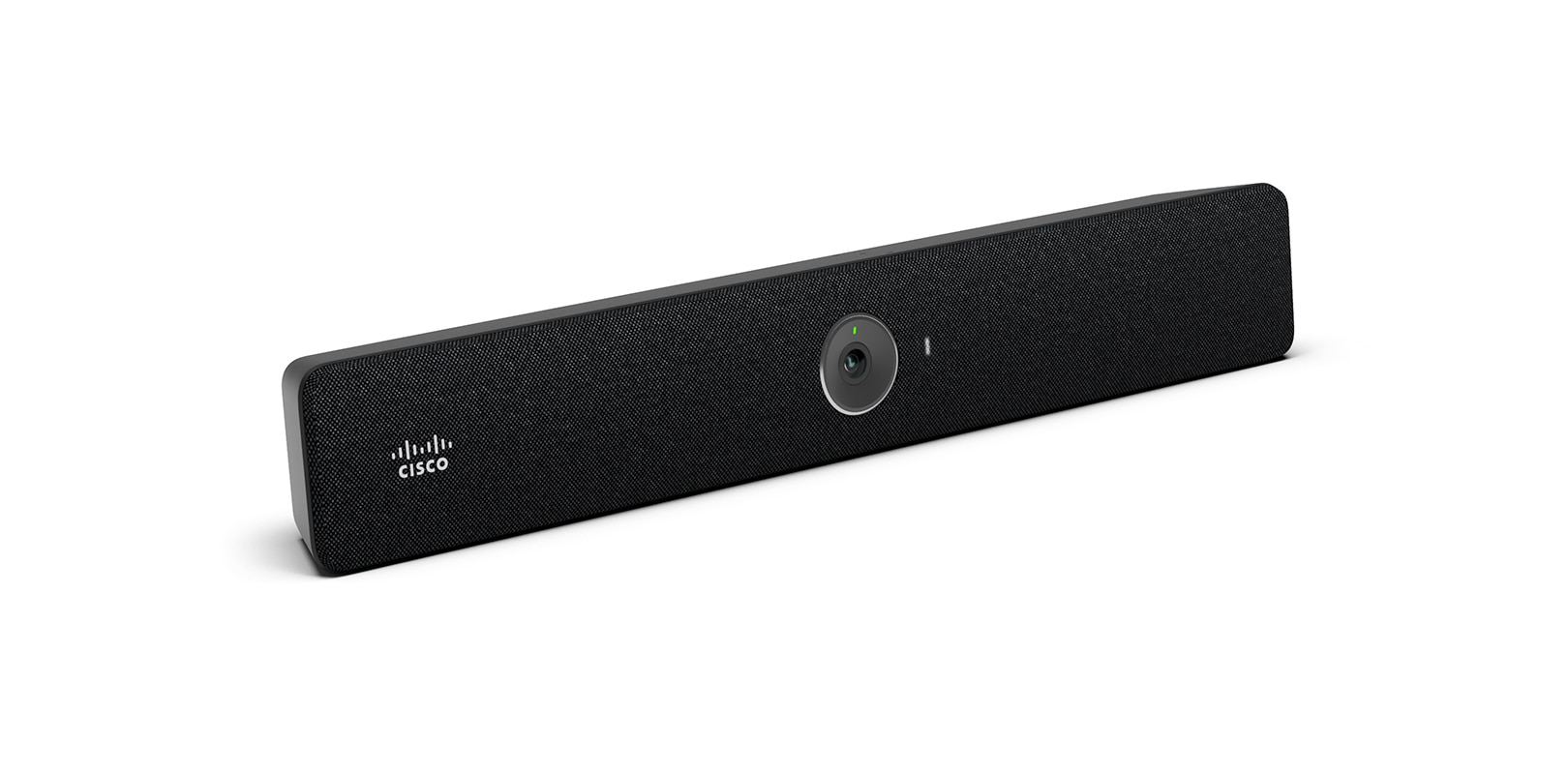

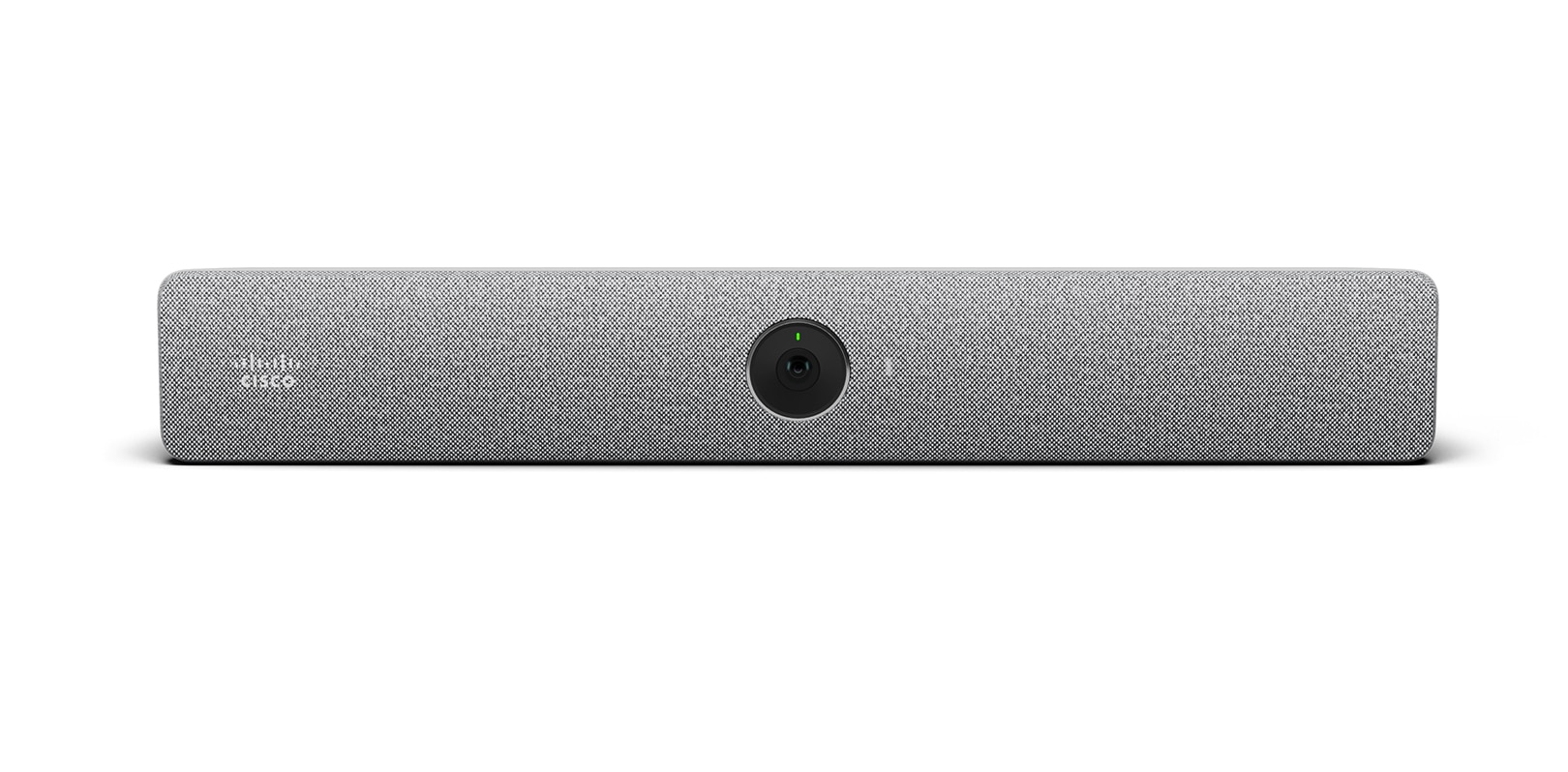

- Video bar unit (First Light or Carbon) with built-in codec, camera, speakers and microphones
- Power adapter
- Network cable
- HDMI cable
- Mounting unit (supporting screen and wall)

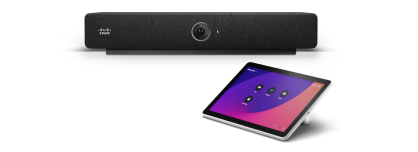

- Cisco Room Navigator touch controller
- Ethernet cable
- Privacy cover
Camera overview
- 12MP camera
- 30 frames per second
- 1/2.3’’ CMOS
- 5x digital zoom
- f/2.5 aperture
- 120° horizontal field of view
- 95° vertical field of view
- Auto framing (face detect)
- Speaker tracking
- Frames intelligent people framing
- Auto brightness and white balance
- Fixed focus lens
- Automatic image rotation when mounted upside down
Video features
- Main video resolution up to 1920 x 1080 at 30 fps
- Two HDMI outputs supporting formats up to 3840 x 2160 at 60 fps
- Live video resolutions (encode and decode) up to 1920 x 1080 at 30 fps and 60 fps
- One HDMI input supports up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps
- One USB-C input supports up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps
- Support for H.263, H.264 video standard
- Supporting available Webex video stream layouts and meeting features, including people focus, grid, prominent, stack and overlay.
- Seamless, single-tap meeting to join to Microsoft Teams (via CVI and WebRTC), Zoom (via Zoom Conference Room Connector) and Google (via WeRTC) meetings" > "When configured for RoomOS, the solution supports seamless meeting join to Microsoft Teams (via CVI and WebRTC), Zoom (via SIP) and Google (via WeRTC) meetings

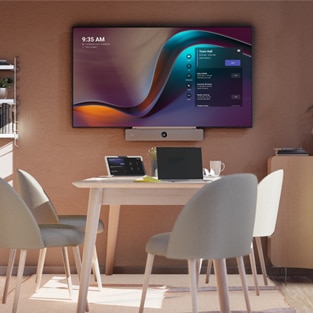

- Native support for Microsoft Teams Rooms (MTR) and the option to join native Webex meetings in MTR mode (coming soon)
Audio features
- Stereo loudspeaker system with 2 high-quality full range drivers, supporting directional audio
- 4-element beamforming microphone array
- 1 extra microphone input for voice pickup extension
- Additional microphone array for speaker tracking
- Acoustic Echo Cancellation (AEC)
- Active Lip Synchronization
- AI-Powered, Adaptive Noise Removal
- Automatic Gain Control (AGC)
- Beamforming Microphones
- De-Reverberation
- Full Duplex
- Full-Band Audio
- Self-Hear
- Spatial Audio
- Ultrasound Technology
Presentations
- Wireless content sharing via the Webex app (up to 3840 x 2160 at 7.5 fps)
- Wireless content sharing via Cisco Intelligent Proximity client (up to 3840 x 2160 at 3 fps)
- Wireless content sharing via Miracast (up to 1920 x 1080 at 30 fps) - Not available on Non-radio version
- Apple AirPlay wireless sharing (up to 1920 x 1080 at 60 fps)
- Supports dual screens for video and content
- Supports dual content sources for local meetings
- View whiteboard content and annotations shared from a Cisco Board, Cisco Desk Pro, or the Webex app
- 4K wireless content sharing (up to 3840 x 2160 at 15 fps)
- 4K wired (USB-C and HDMI) passthrough content sharing
Room intelligence

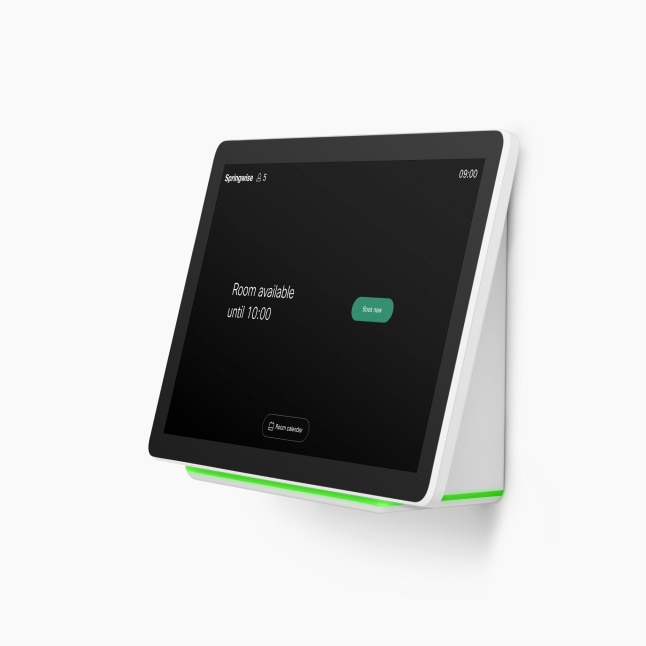

- Control with Cisco Room Navigator touch panel (wall-mount or table-stand) for access to conference controls, room booking, room controls and workplace applications.
- Metrics: Counts people in the room via smart presence detection, enabling analytics for better resource planning
- Automatic screen/display integration through HDMI CEC
- Supports Wi-Fi 5 and Bluetooth® **
- Control peripherals such as lights and blinds through the Cisco Room Navigator
- Environmental sensors when connected to the touch device to measure humidity, temperature, noise levels and air quality
- System “wakes up” when someone walks into the room, and recognizes them through their mobile device
- Webex Assistant enables conference controls via voice commands and other touchless workflows
- Customizations via macros for digital signage and other workspace applications
- Simplified meeting-join experience with One Button to Push (OBTP) or via voice commands using Webex Assistant
Security features
- Secure management using HTTPS and SSH protocols
- End-to-end encryption for calls and meetings on Webex
- Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
- Password protection to access administration available on Room Navigator controller
- Network settings protection
- Privacy cover

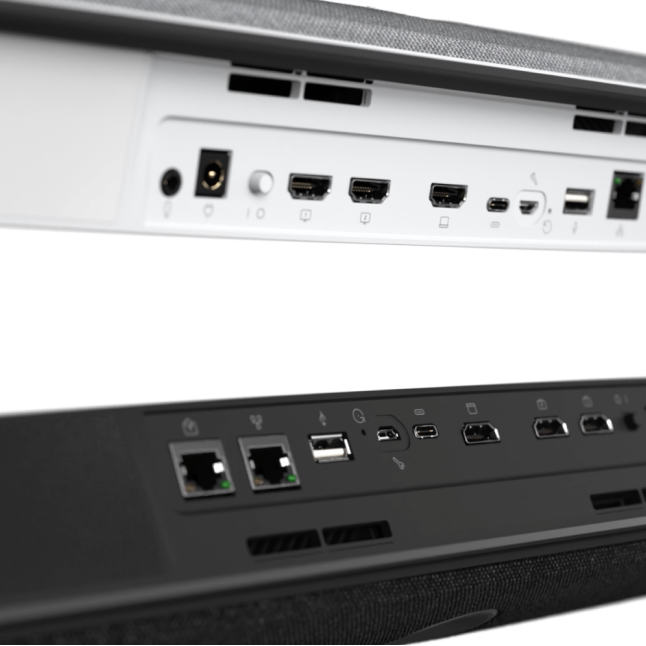

Interfaces
- 1x 3.5mm Jack analog audio input
- 1x HDMI video input
- 1x USB-C input
- 2x HDMI video outputs
- 1 USB-A input
- 1x Ethernet (RJ-45) 10/100/1000 for LAN
- 1x Ethernet (PoE) (RJ-45) for Cisco Room Navigator direct pairing" > 1x Ethernet (PoE) (RJ-45) for Room Navigator touch controller direct pairing
- 1 microUSB port
- Power adapter port
- Factory reset pinhole
Dimensions
- Width: 21 in. (53.4 cm)
- Height: 3.2 in. (8.2 cm)
- Depth: 2.5 in. (6.4 cm)
- Weight: 4 lb. (1.5 kg)
Device management
- For cloud deployments, the device is managed in the Control Hub, providing a single pane of glass of system status, activation, configuration, metrics, workspace insights, and troubleshooting
- For on-premises deployments, the following management and call control options apply:
- Native registration with Cisco Unified Communications Manager (Unified CM) - requires Unified CM version 12.5(1) or later with device pack for Room Bar
- Native registration with Cisco Expressway
- TelePresence Management System 15.13.4 or later supports Cisco Room Bar
- Webex Service
- Third-party H.323 gatekeepers and standards-based SIP proxies
- In case of a hybrid deployment, Webex Edge for Devices allows for linking your on-premises Cisco devices to the Webex Cloud and benefits from specific cloud features such as device management, monitoring, and analytics via Control Hub.
* Coming soon
** The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Cisco Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners.
Designed for a sustainable future.

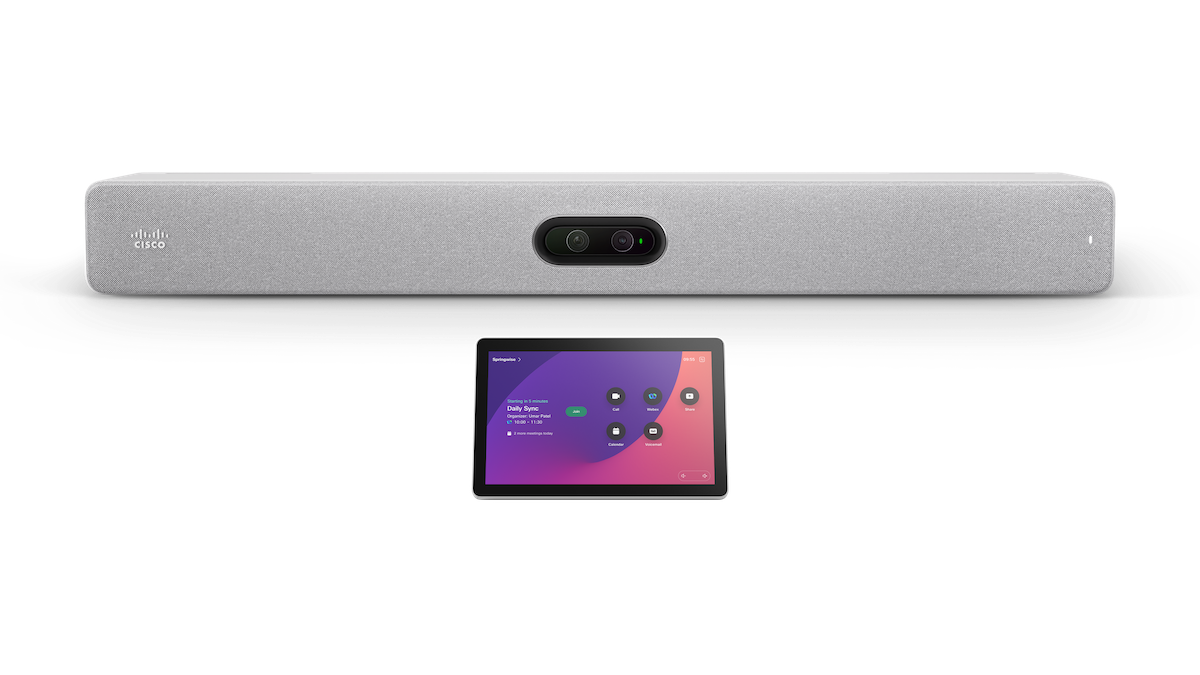

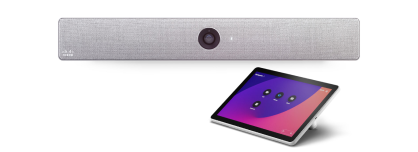

Compare Cisco video bars and room kits.
Small huddle and meeting roomsWorkspace |
Small huddle and meeting roomsWorkspace |
Medium meeting roomsWorkspace |
NoCodec |
YesCodec |
YesCodec |
RoomOSPlatform Support |
RoomOS for native Webex experience and video interop; Microsoft Teams Rooms (coming soon)Platform Support |
RoomOS for native Webex meetings and video interoperabilityPlatform Support |
Yes, USB-A and HDMI for passthrough and screen extensionUSB passthrough |
Yes, single USB-C for passthrough and screen sharingUSB passthrough |
No native USB passthroughUSB passthrough |
120° horizontal field of viewCamera field of view |
120° horizontal field of viewCamera field of view |
83° horizontal field of viewCamera field of view |
5x zoomZoom |
5x zoomZoom |
3x zoomZoom |
YesBest overview |
YesBest overview |
YesBest overview |
NoSpeaker tracking |
YesSpeaker tracking |
YesSpeaker tracking |
Yes, internal microphonesMicrophones |
Yes, 4-point microphone array, audio port for microphone extensionMicrophones |
Yes, 6-point microphone array, 2 audio ports for microphone extensionMicrophones |
YesNoise suppression |
YesNoise suppression |
YesNoise suppression |
NoAudio input |
Yes, 1x 3.5mm JackAudio input |
Yes, 2x 3.5mm JackAudio input |
Mono speakersLoud speakers |
Dual stereo speakers supporting spatial audioLoud speakers |
Mono speaker systemLoud speakers |
NoDual-screen support |
YesDual-screen support |
YesDual-screen support |
YesWireless content sharing |
YesWireless content sharing |
YesWireless content sharing |
Separate mounting unit for screen and wallMounting |
Single mounting for screen and wallMounting |
Separate mounting unit for screen and wallMounting |
No, only basic remote controlTouch panel |
Yes, comes with Room Navigator (table-stand or wall-mount)Touch panel |
Yes, comes with table-stand Room NavigatorrTouch panel |
Control Hub when cloud-registeredManagement |
Control Hub when cloud-registeredManagement |
Control Hub when cloud-registeredManagement |
Depth: 7.7cm; Width: 50cm; Weight: 2kg |
Depth: 6.5cm; Width: 53.4cm; Weight: 1.5kg |
Depth: 8.8cm; Width: 70cm; Weight: 3.2kg |
Reimagine your workspace.
Jump into an immersive workspace experience and tour the latest innovations powering hybrid work.

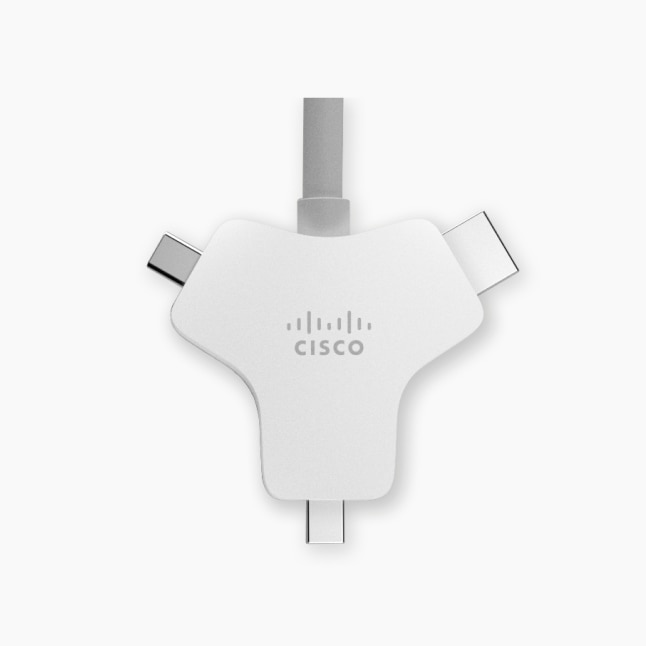

More from Cisco.
