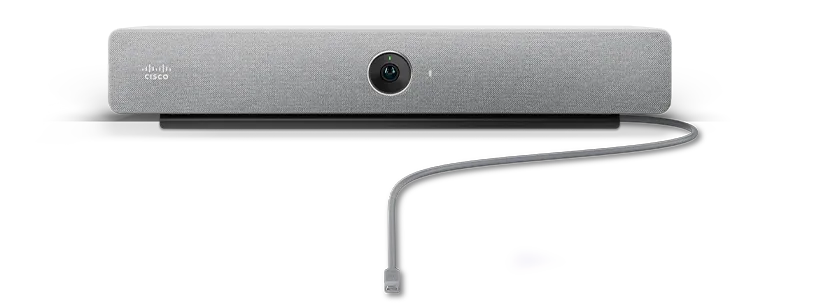

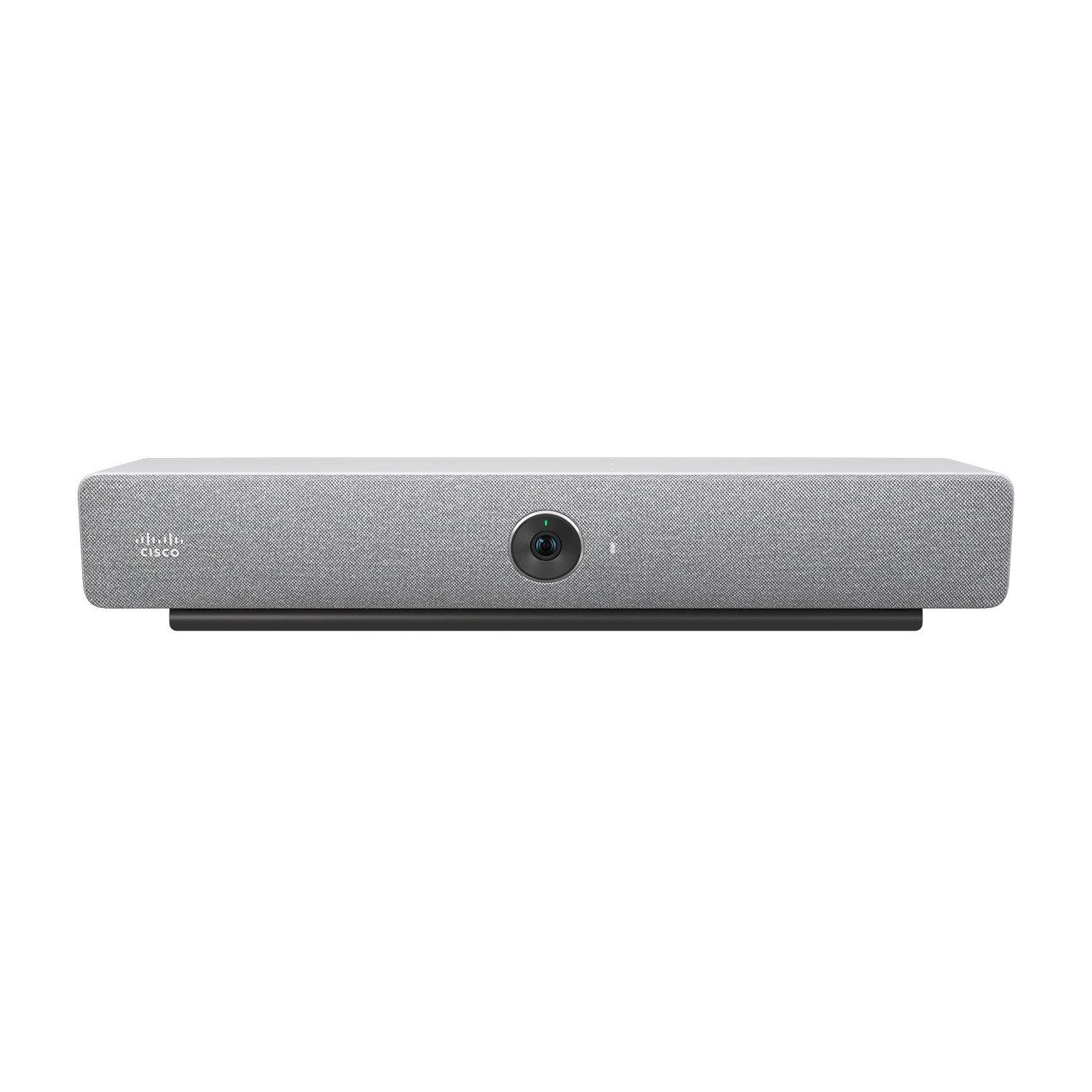

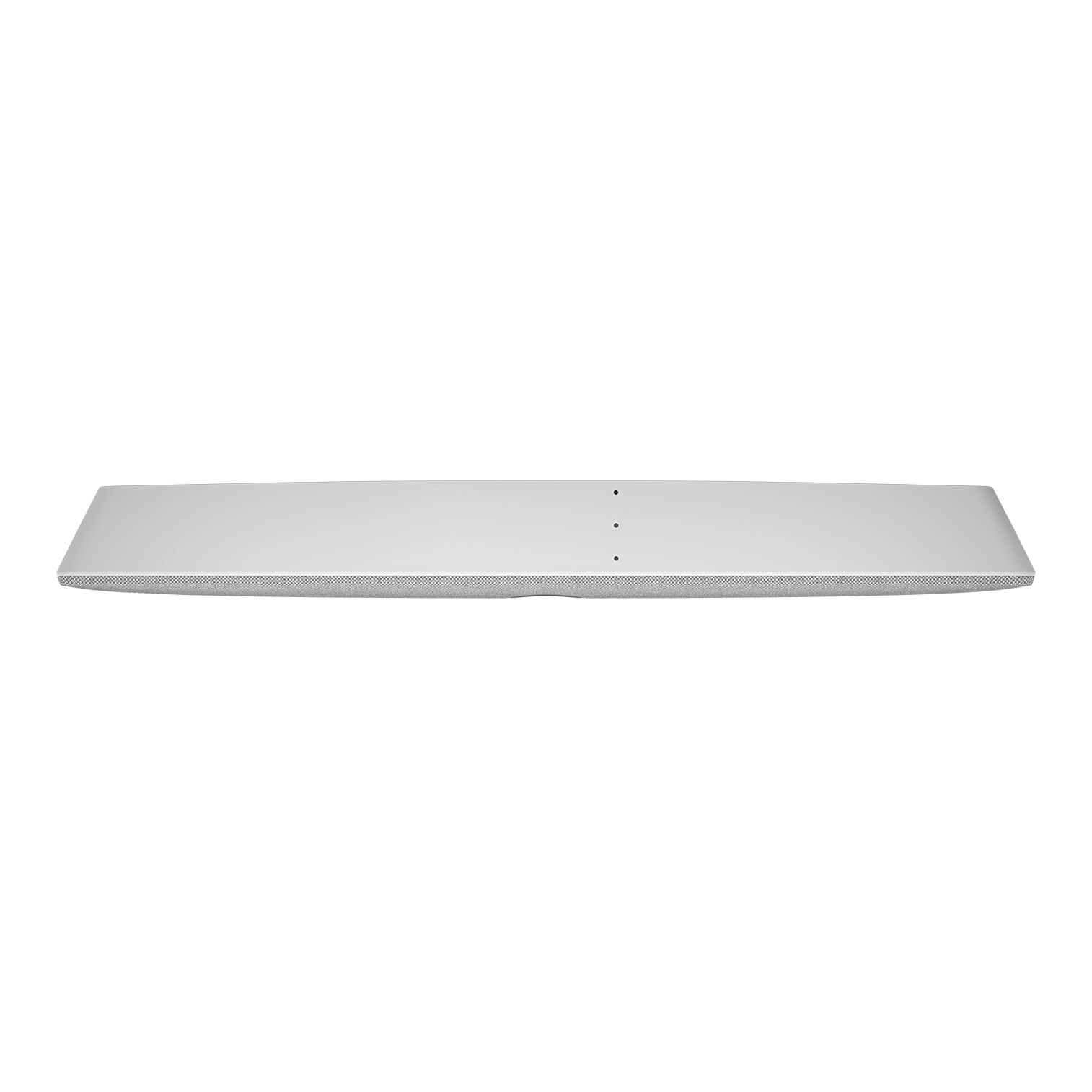

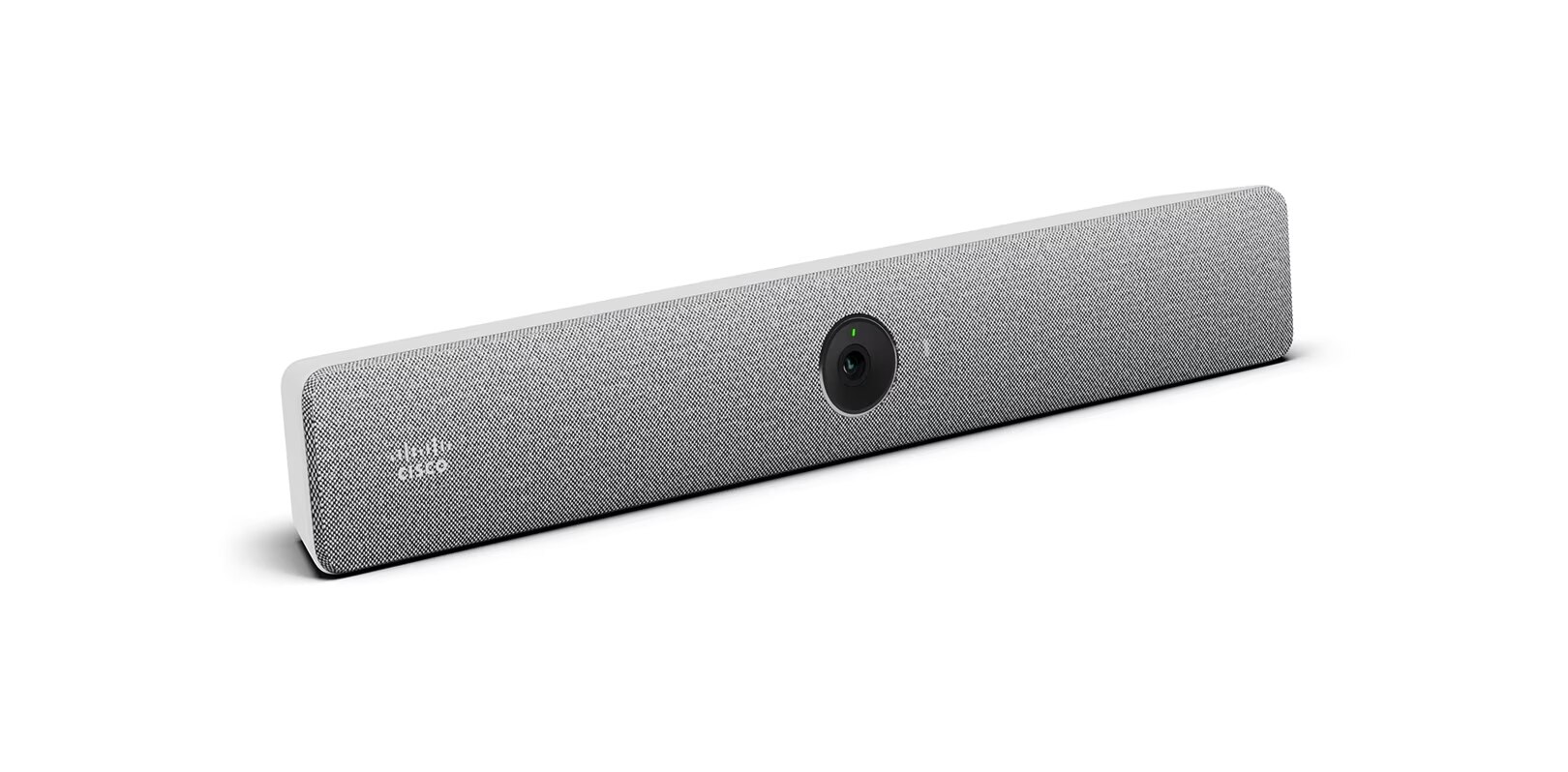

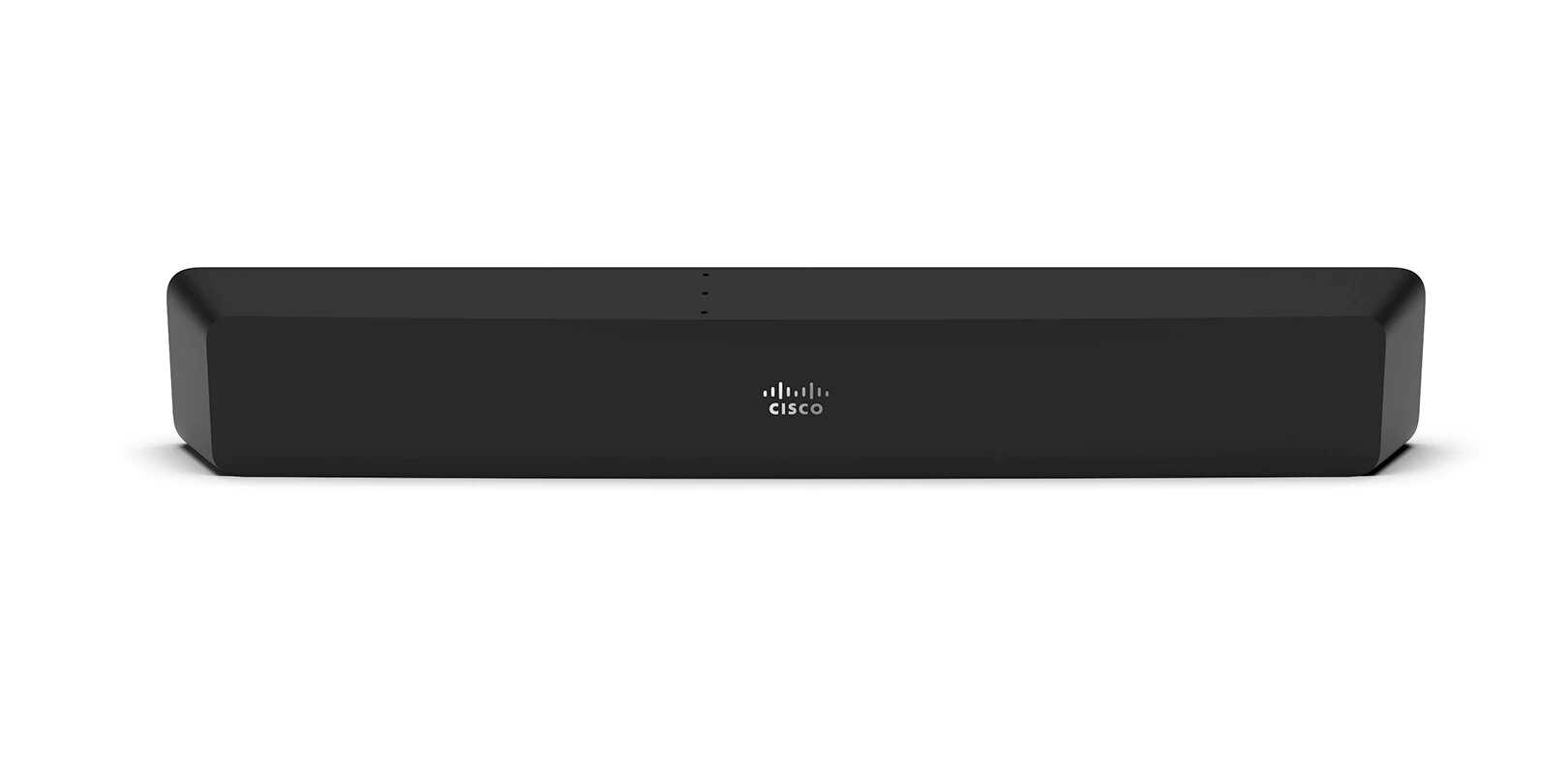

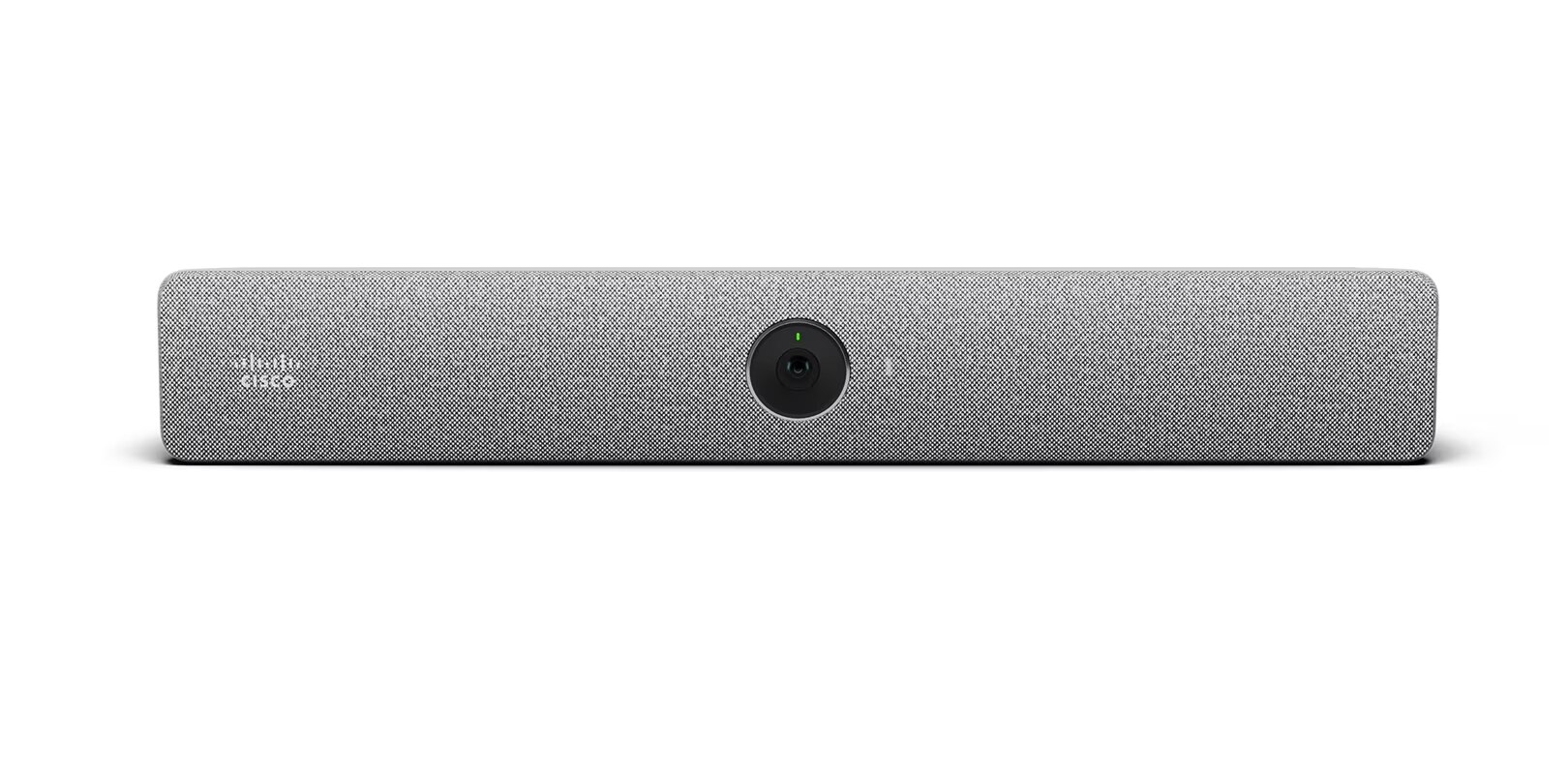

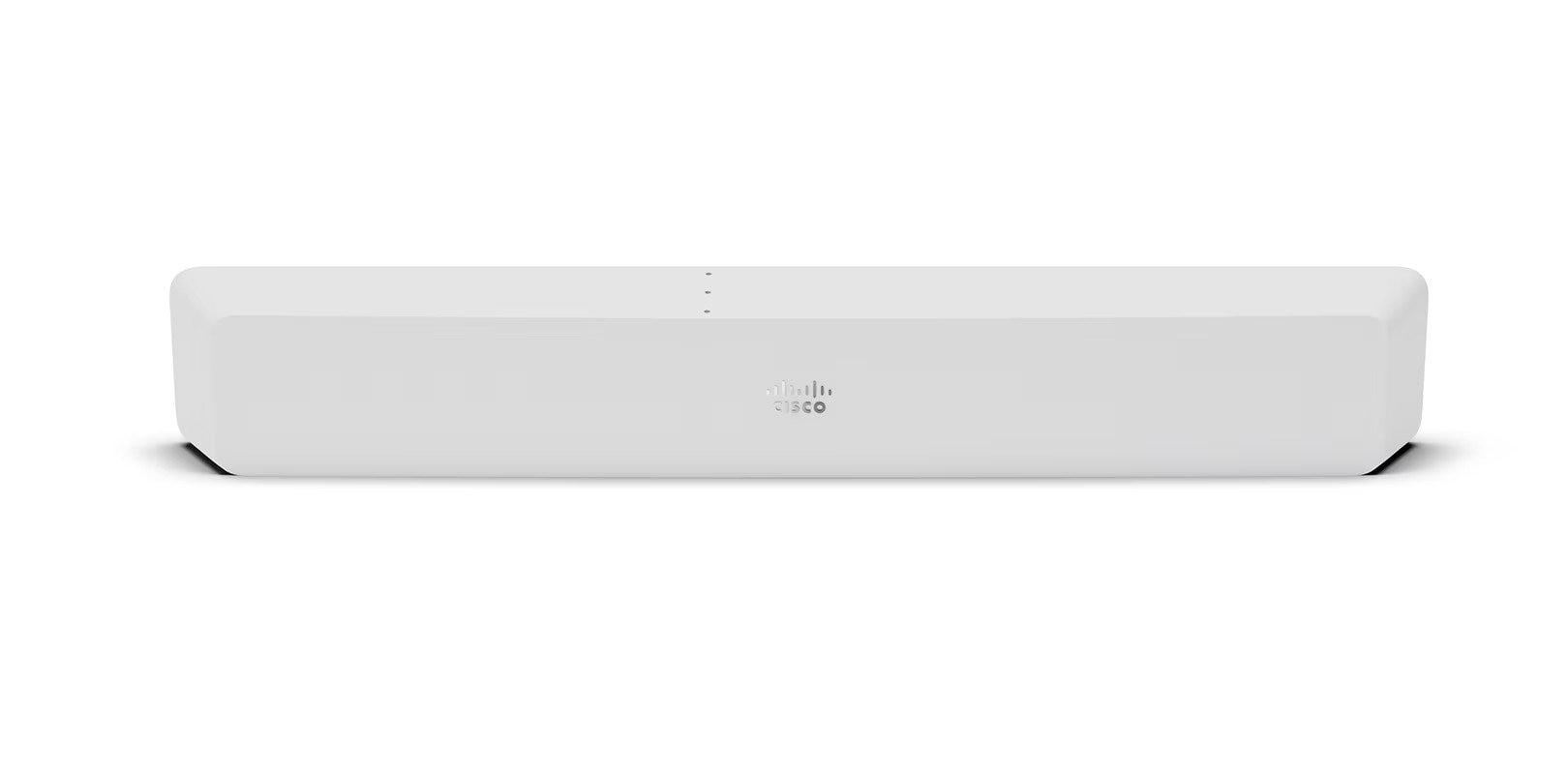

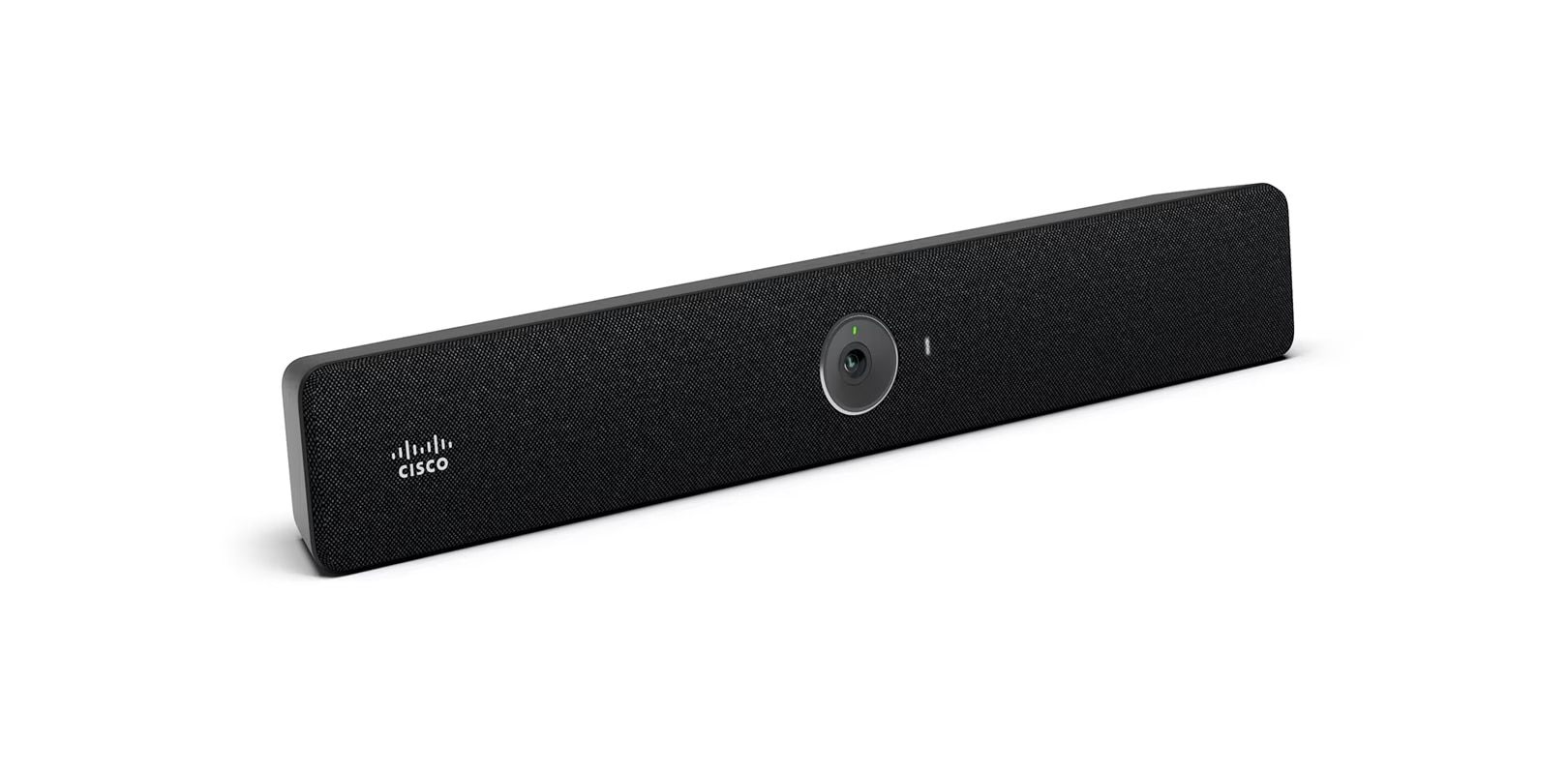

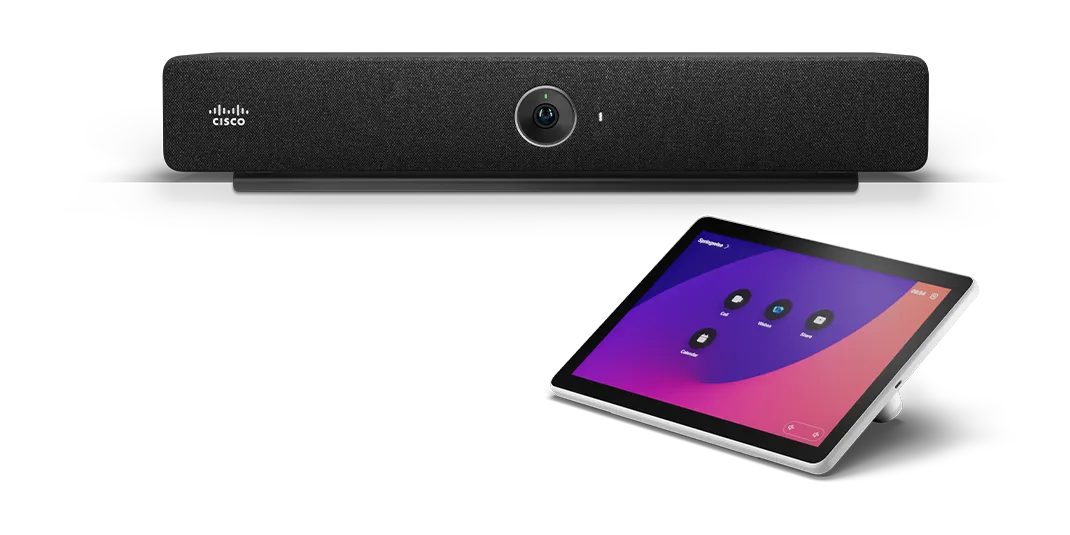

Cisco Room Bar
Setting a new bar for video meetings.
US $3,795*
  • image

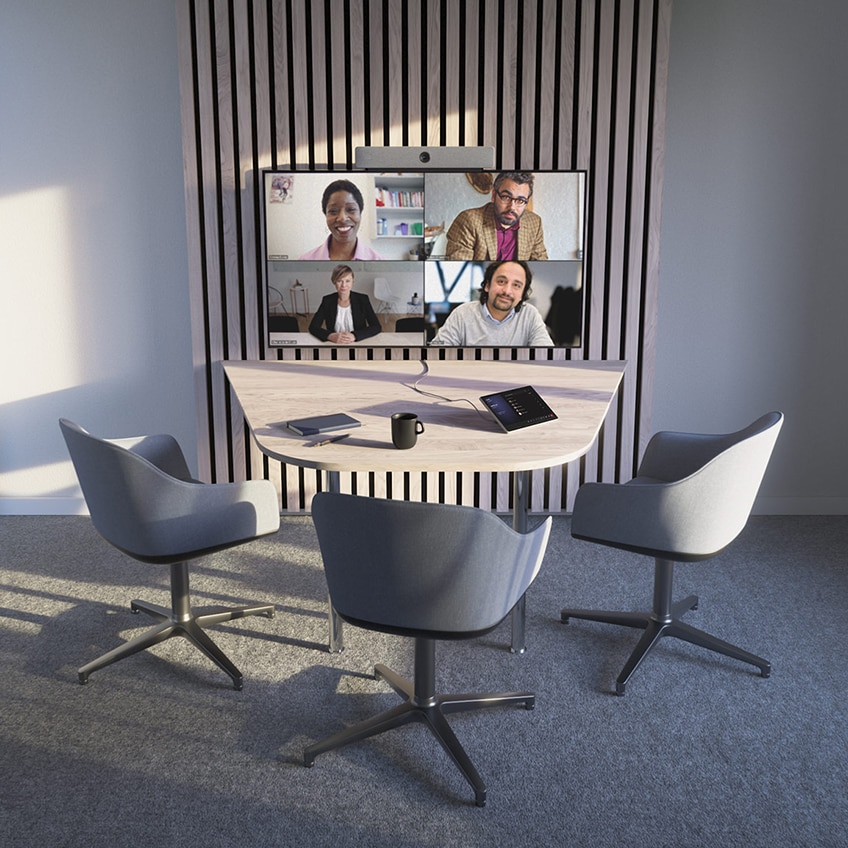

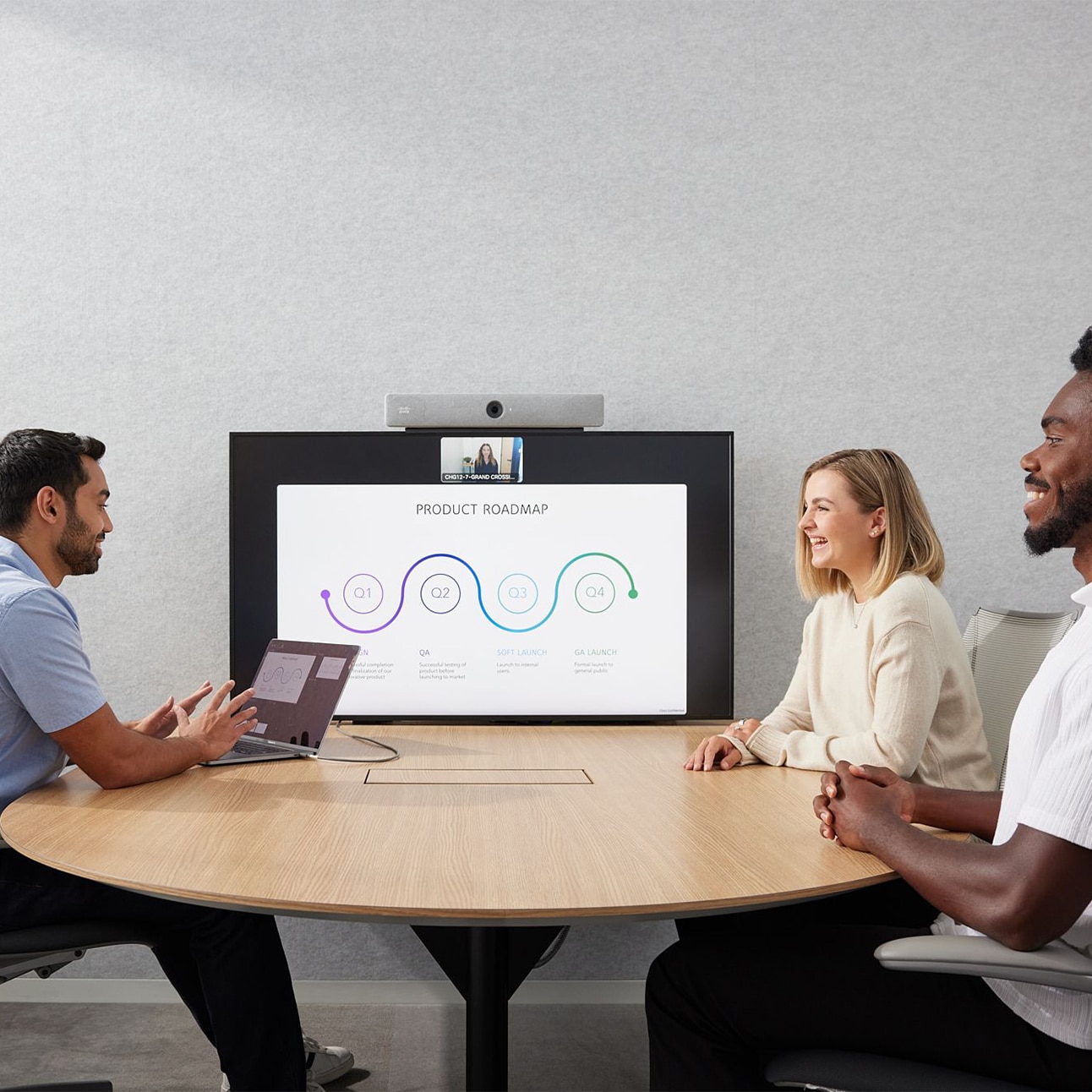

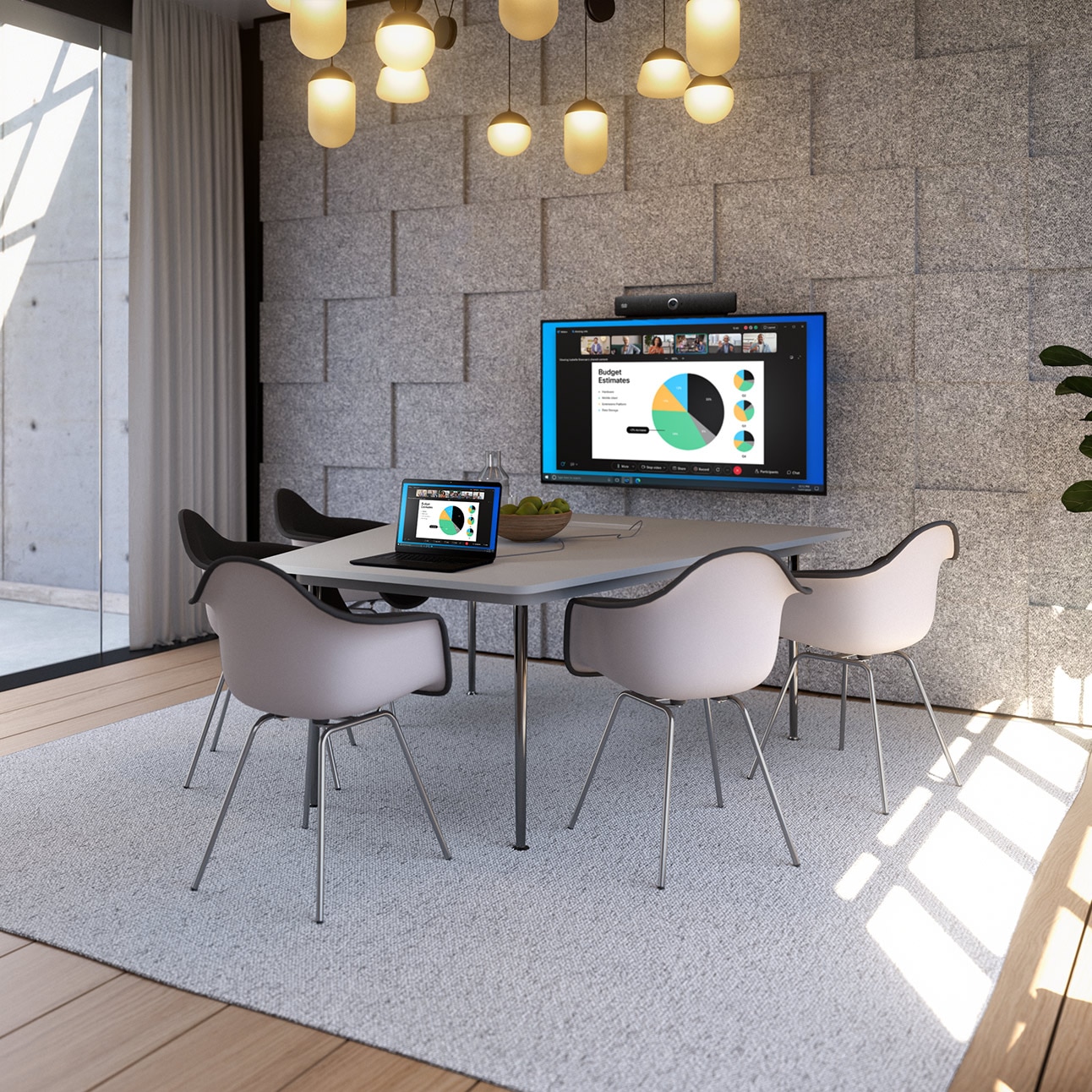

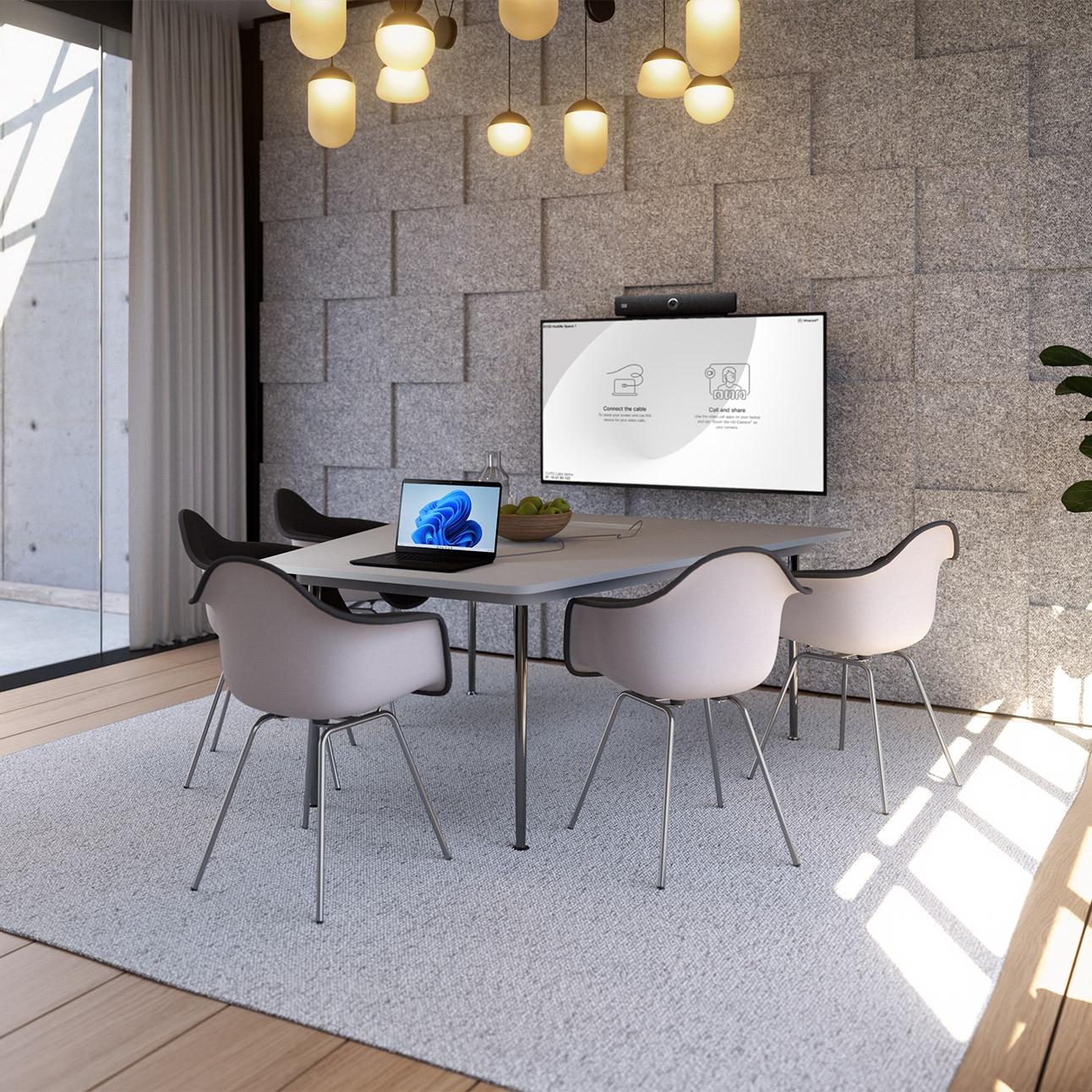

    Bring big ideas to small spaces

    Stunning video, intelligent meeting experiences, and boundless flexibility for your small huddle and meeting rooms.

  • image

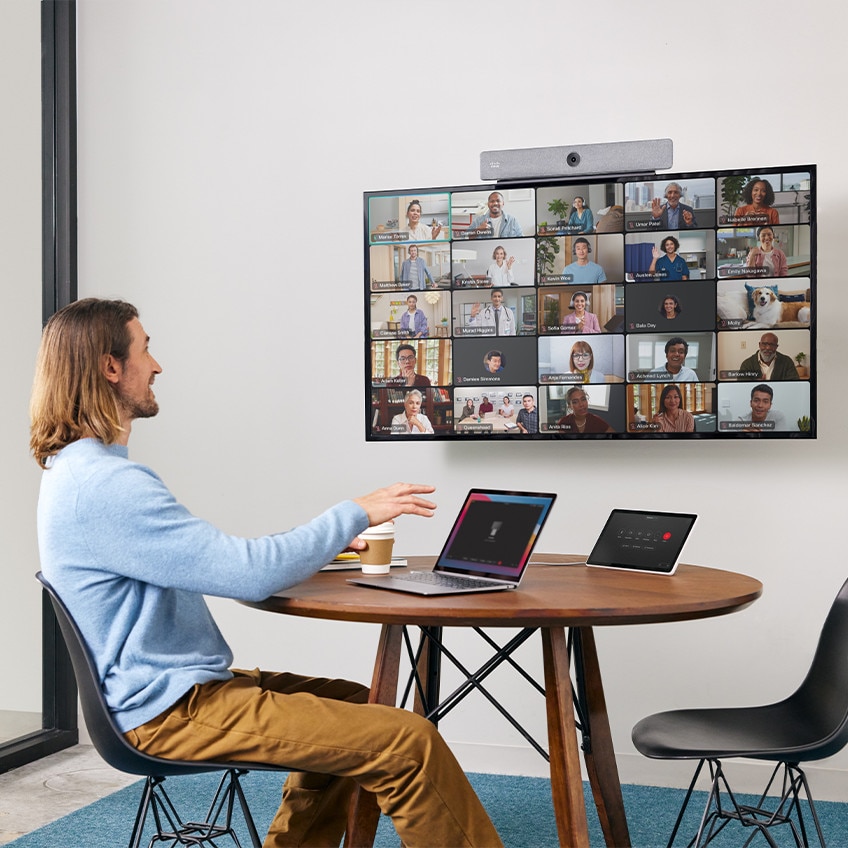

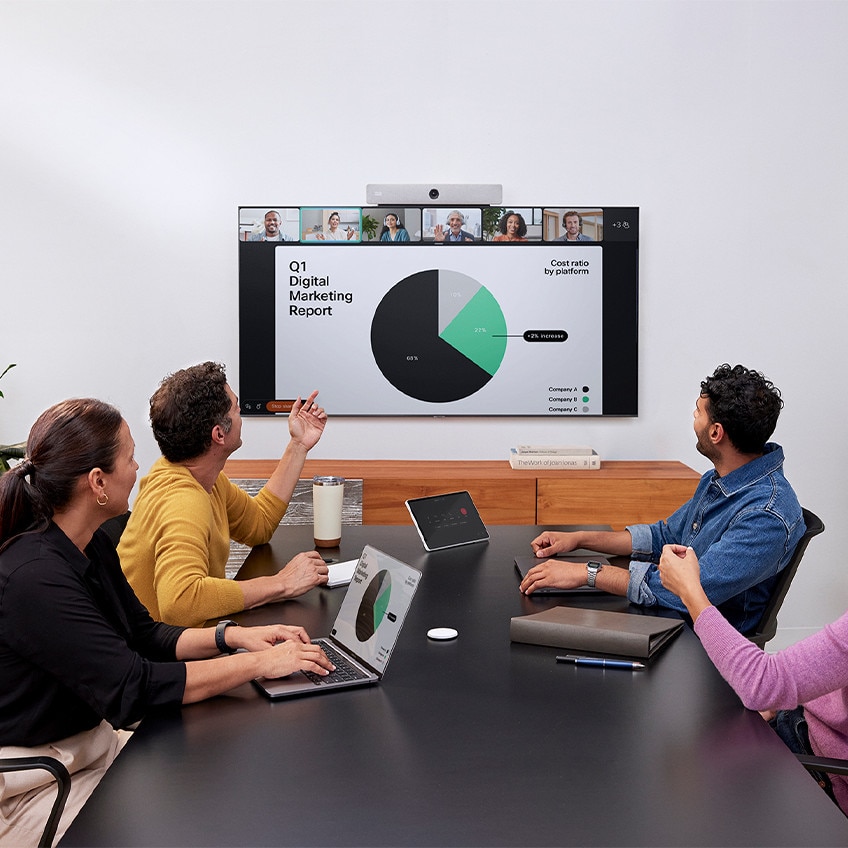

    A video bar crafted for connection

    A combination of pleasing aesthetics and human-centric design creates easy and elegant collaboration experiences.

  • image

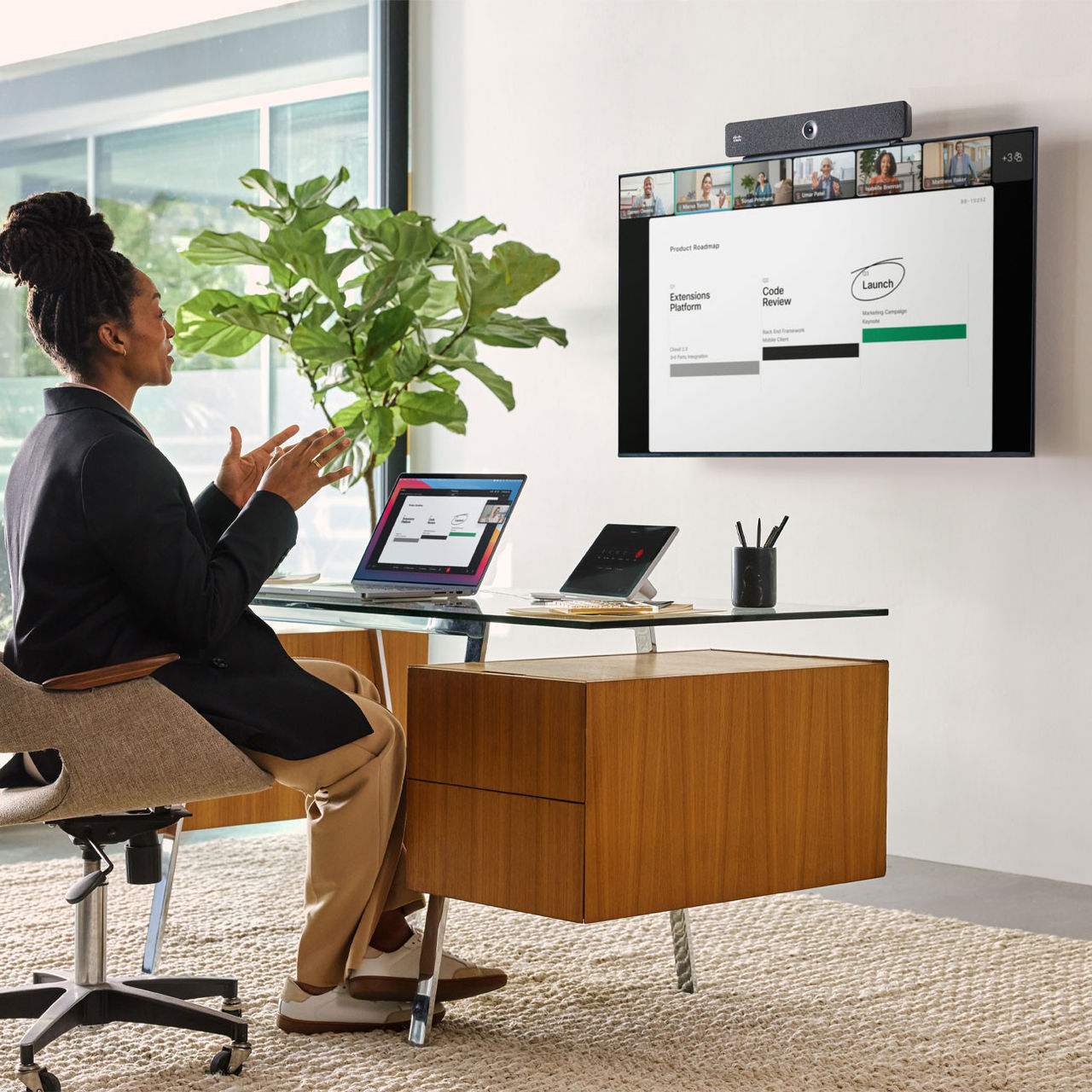

    Deploy at scale

    Scalable and simple to manage so you can bring great video conferencing to any space—from a single room to an entire campus.

  • 5x
    digital zoom
    directional sound
    dual-screen support
    12 MP
    wide-lens camera

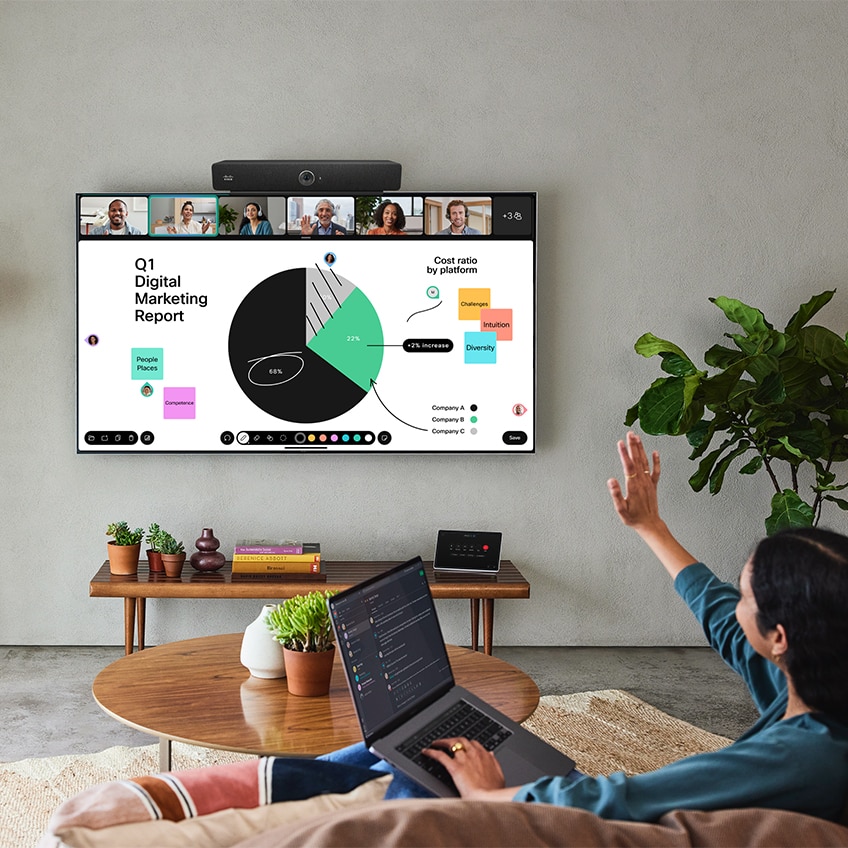

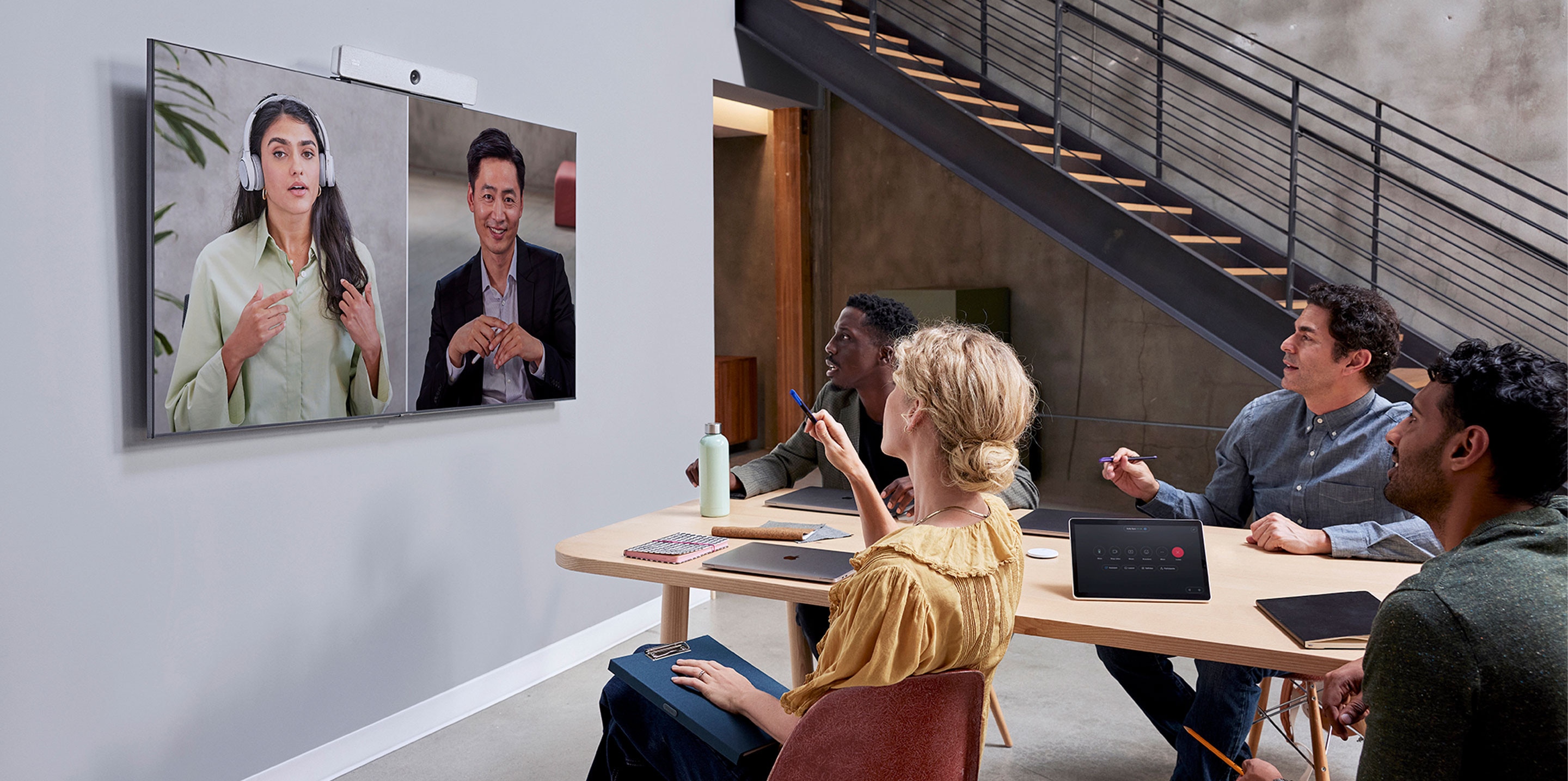

    Boundless collaboration for hybrid workspaces.

    Room Bar is an all-in-one video conferencing bar that does it all—from native, laptop-free video collaboration to seamless BYOD experiences via USB passthrough. Transform your meetings with a room device that integrates a 4K camera, a powerful codec, built-in microphones, stereo speakers and an array of connectivity options — supporting the displays of your choice.

    Thousands of details. One immersive experience.

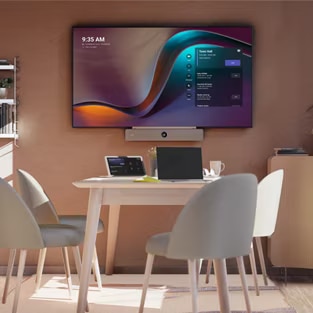

    Room Bar is certified for Microsoft Teams Rooms.

    Enjoy the native Microsoft Teams experience on certified Cisco collaboration devices designed for hybrid work.

    Your front-row seat at the table.
    Intelligent people framing and image cropping allows every participant to have an equitable view in the meeting.
    Smart speaker tracking helps ensure the active speaker is always in view.
    120° field-of-view captures everyone, including those at the farthest edges of the room.

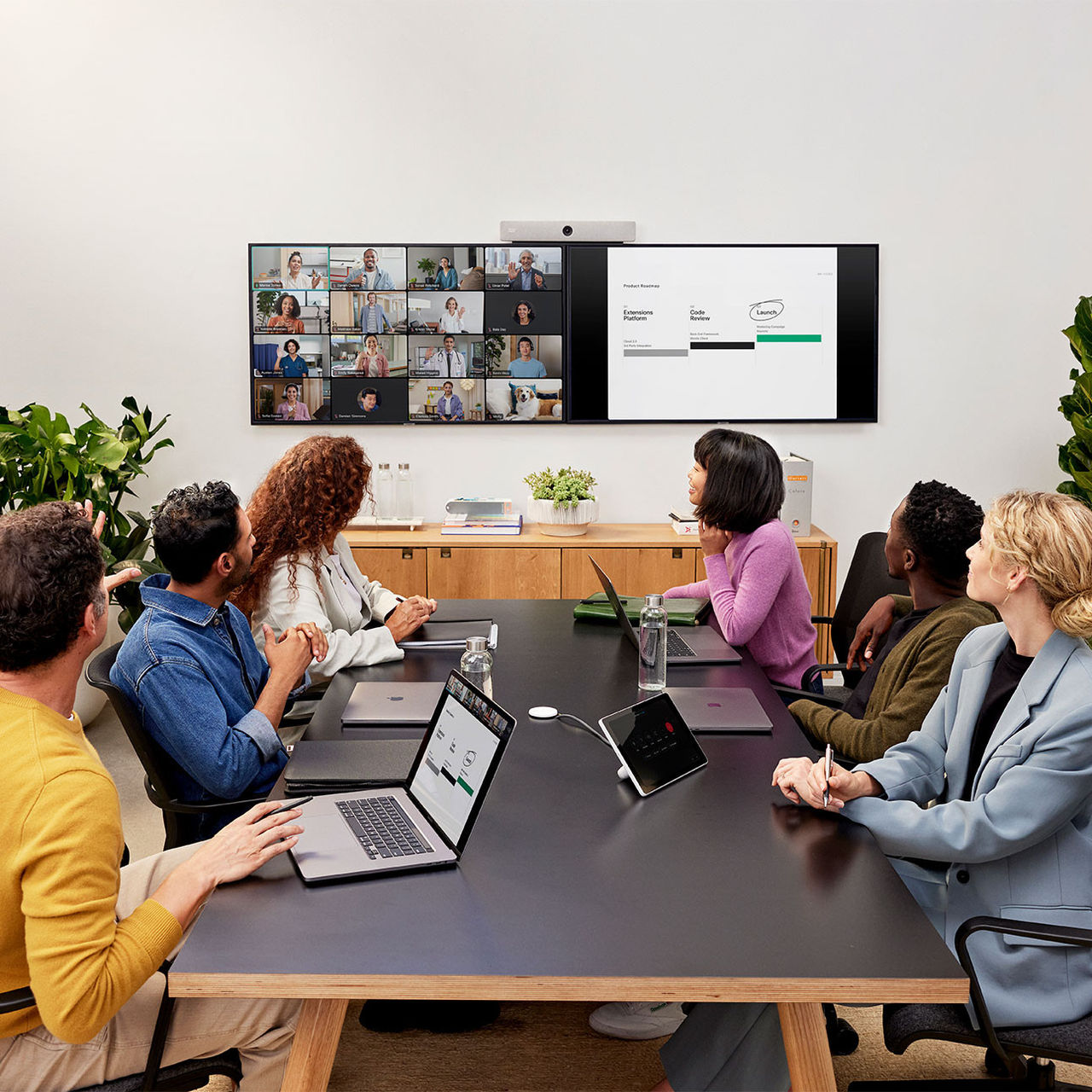

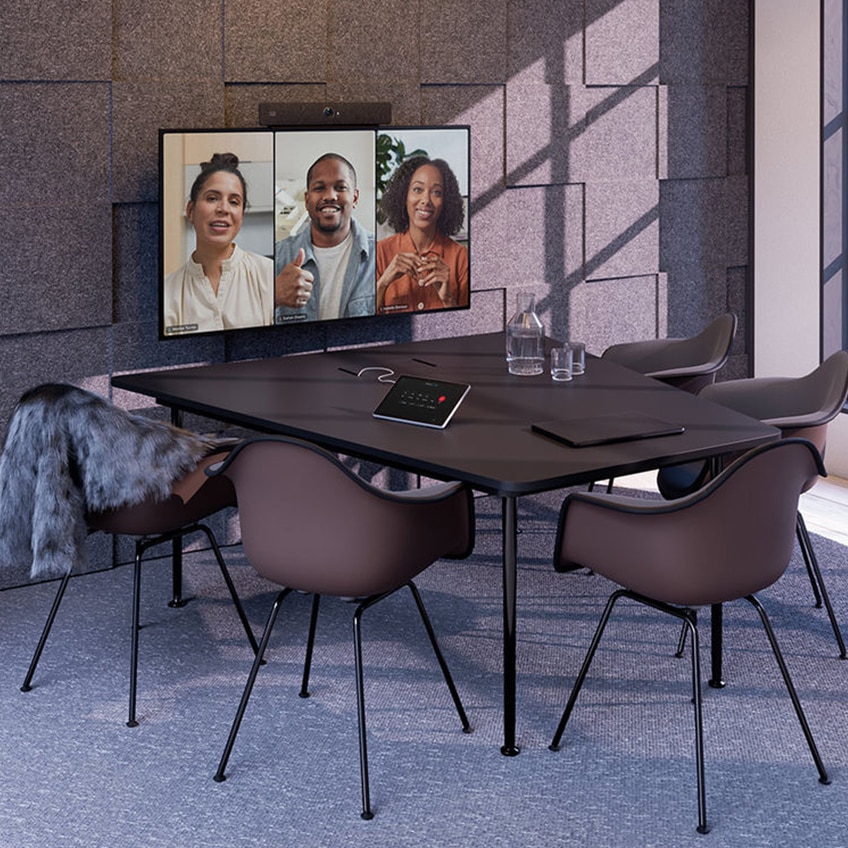

    Transform meeting rooms with immersive experiences.

    Enjoy more productive meetings and incredible video conferencing experiences on any meeting platform with a smart video bar which integrated with single and dual displays

    Hear everything. Sound your best.
  • image
    Built-in microphone array

    Block out distractions with the noise-cancelling microphone array and AI-based noise removal so everyone is heard loud and clear.

  • image

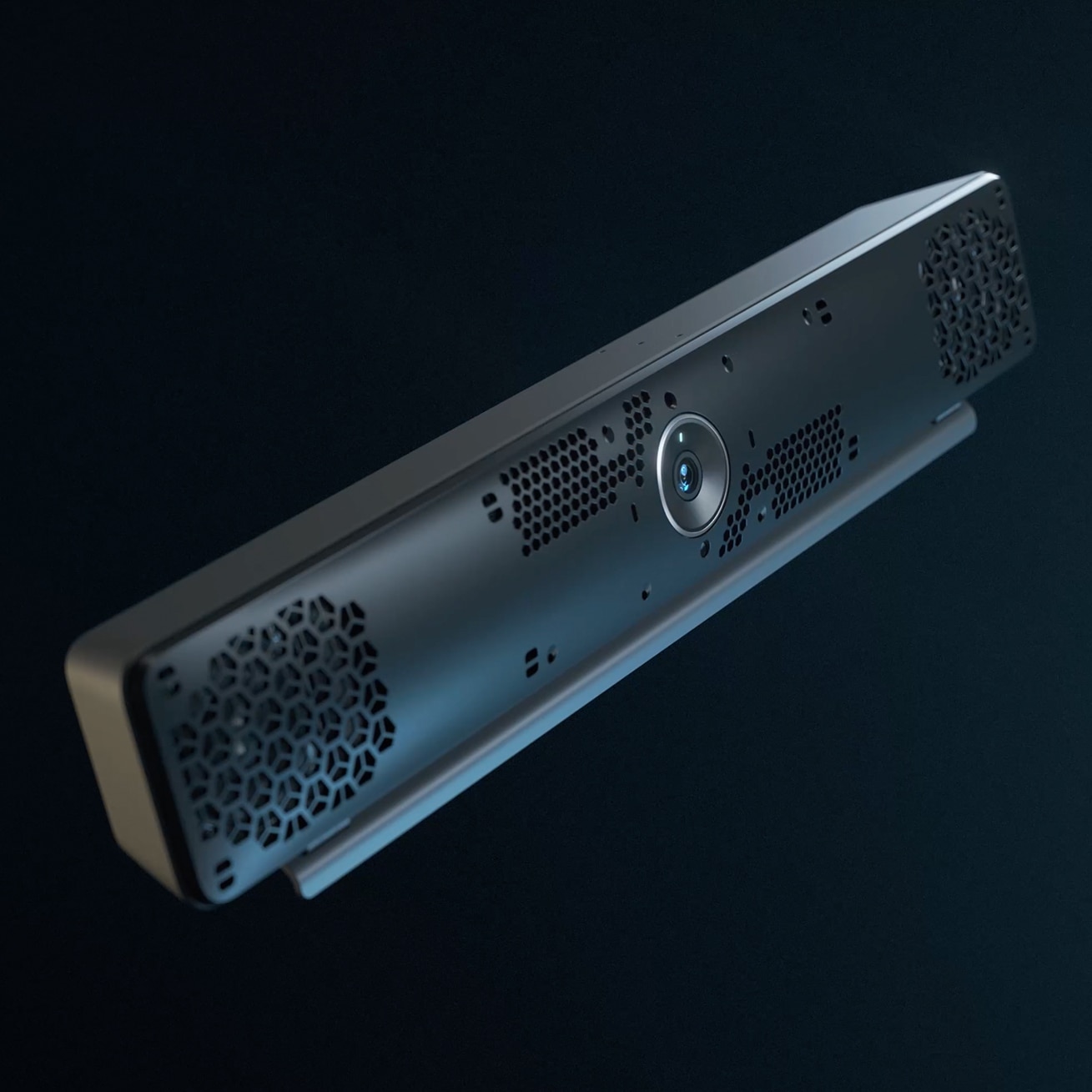

    High-performing stereo loudspeakers

    Benefit from spatial audio powered by dual stereo speakers just as if everyone was in the same room.

  • image

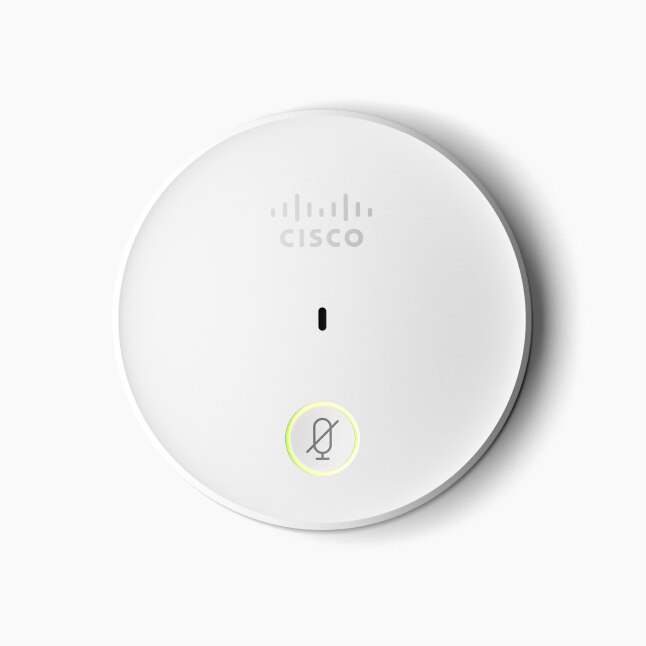

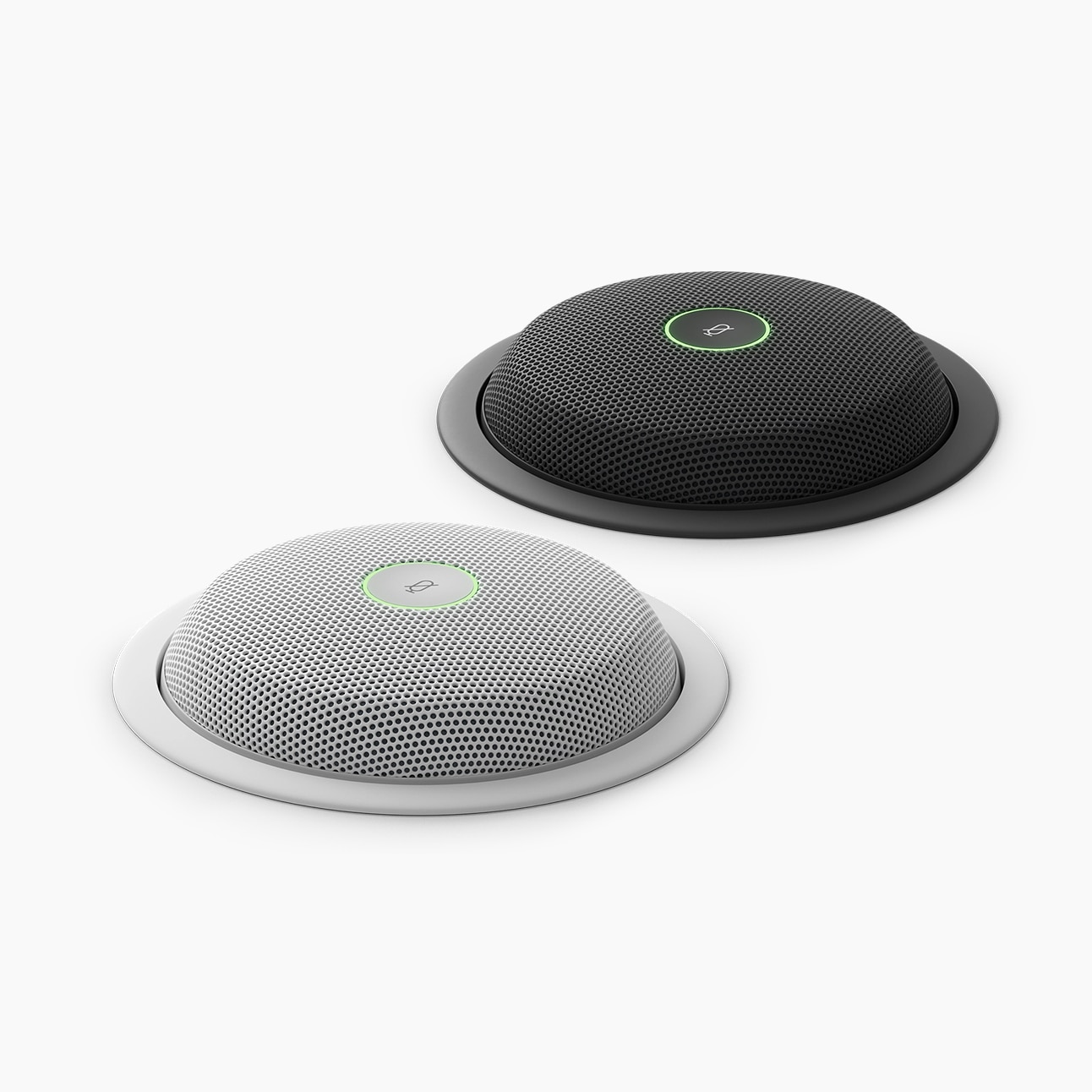

    External microphone extension



    Connect the Room Bar with an external microphone so even the far-end of the table comes across crisp and clear in extended workspaces.

  • Welcome to the intelligent workplace.

    The Cisco Room Bar is a smart video bar that automatically wakes up as you enter the room, and you can join your meeting in seconds with a tap or a simple voice command. Use AI-powered face recognition to identify meeting participants and ultrasound technology to provide real-time metrics for workspace optimization and in-office wellbeing.

    Better collaboration with Cisco.

    The goal is to make the experience for those who are remote as good or even better than being in person. We rigged the meeting rooms with Webex Room Kits from Cisco—and we got extremely good feedback on how these devices help include people from different countries and with different languages. We want to expand on that.

    Peter Jetzel, CEO, Rebel

    Read Story

    [Unlike other multi-vendor solutions], Webex offered a competitively priced, complete solution for schools that met all our criteria. In addition, we were long-time Cisco customers for our telephony and networking equipment, so we trusted the reliability and longevity of Cisco.

    Gautier Gurba, System Administrator, CEFF

    Read Story

    Great learning only happens when the social and emotional side of a student's life is in balance. We needed a technology where the whole purpose was to engage students and learners.

    Jay Scheurle, Head of School, Oak Meadow School

    Watch video
    1/3

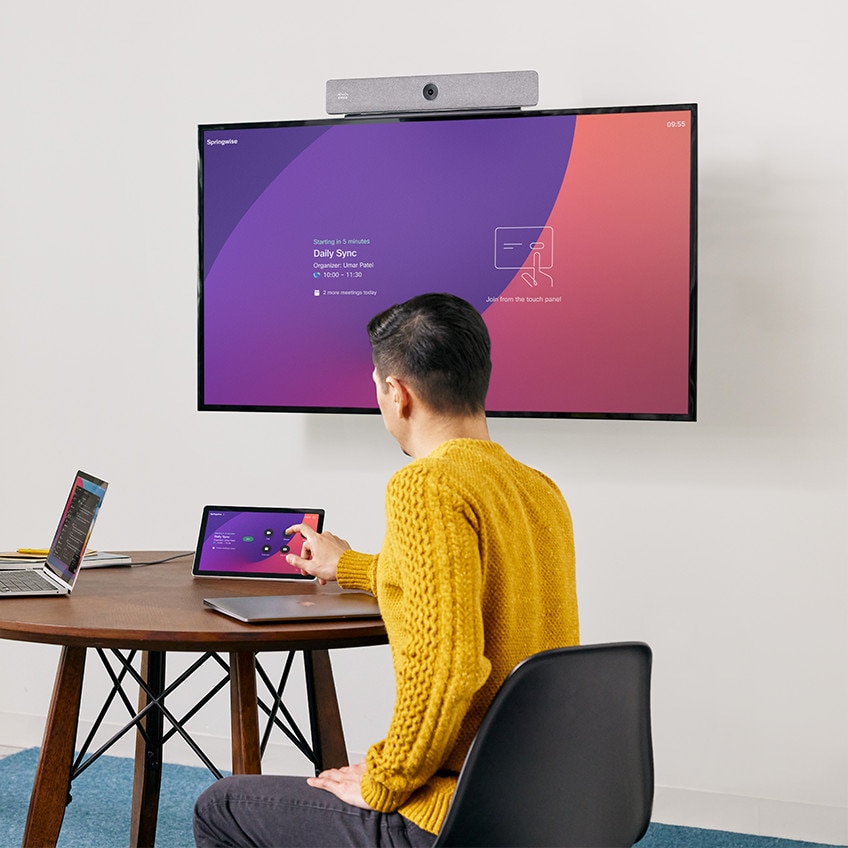

    Control your meeting space.
    Streamlined deployment
    Easy to deploy, scale, and maintain. Get everything you need in a box to take your meeting space to the next level—either in the cloud, on premises, or as a hybrid solution via Webex Edge for Devices.
    Unified cloud management

    Unify cloud admin, device management, analytics and workspace insights in Control Hub to remove IT headaches and improve resource planning.

    Real-time monitoring

    Track environmental conditions and occupancy via smart sensors to create a safer and more productive workplace while enhancing employee wellbeing.

    Technical specifications.

    The difference is in the details.

    Default components

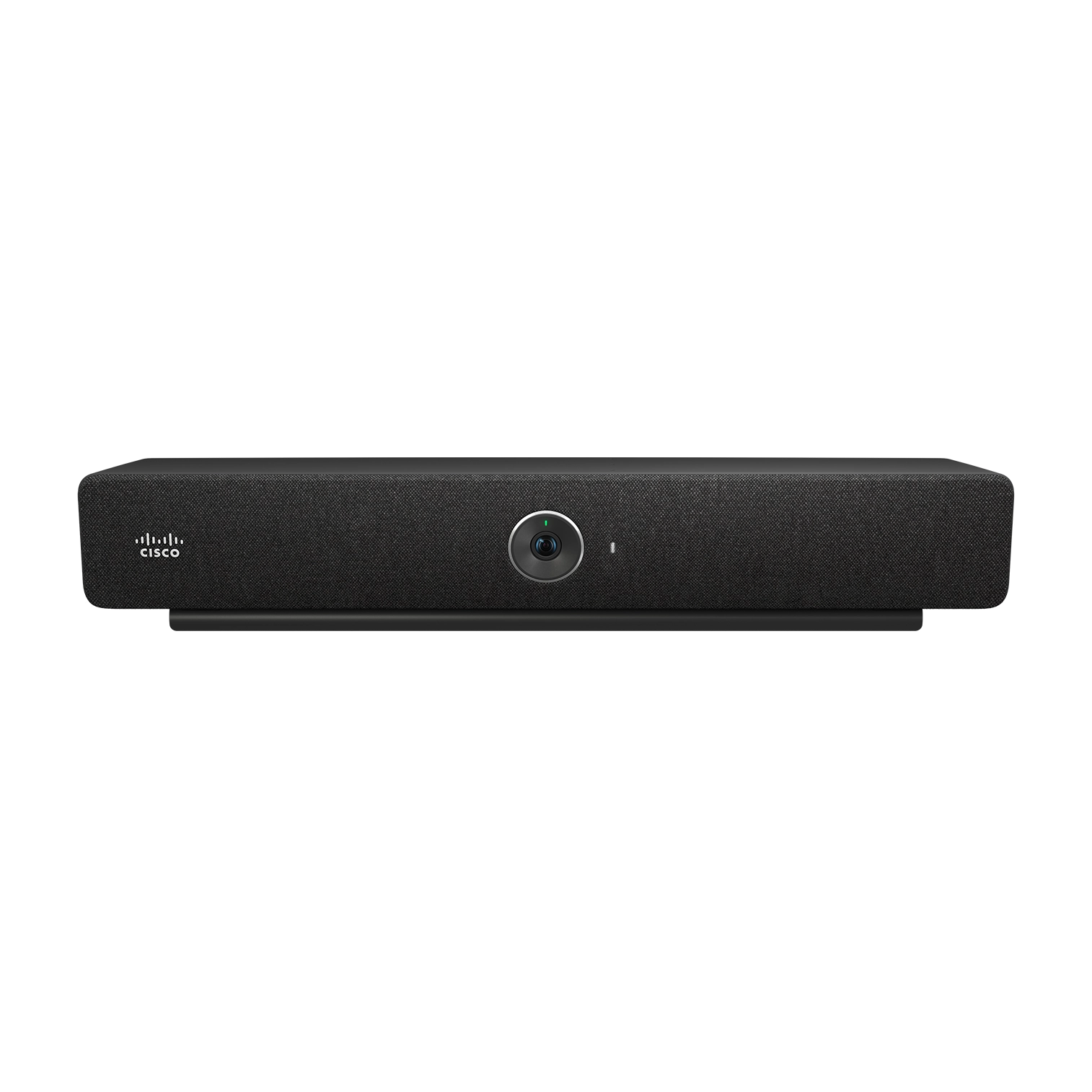

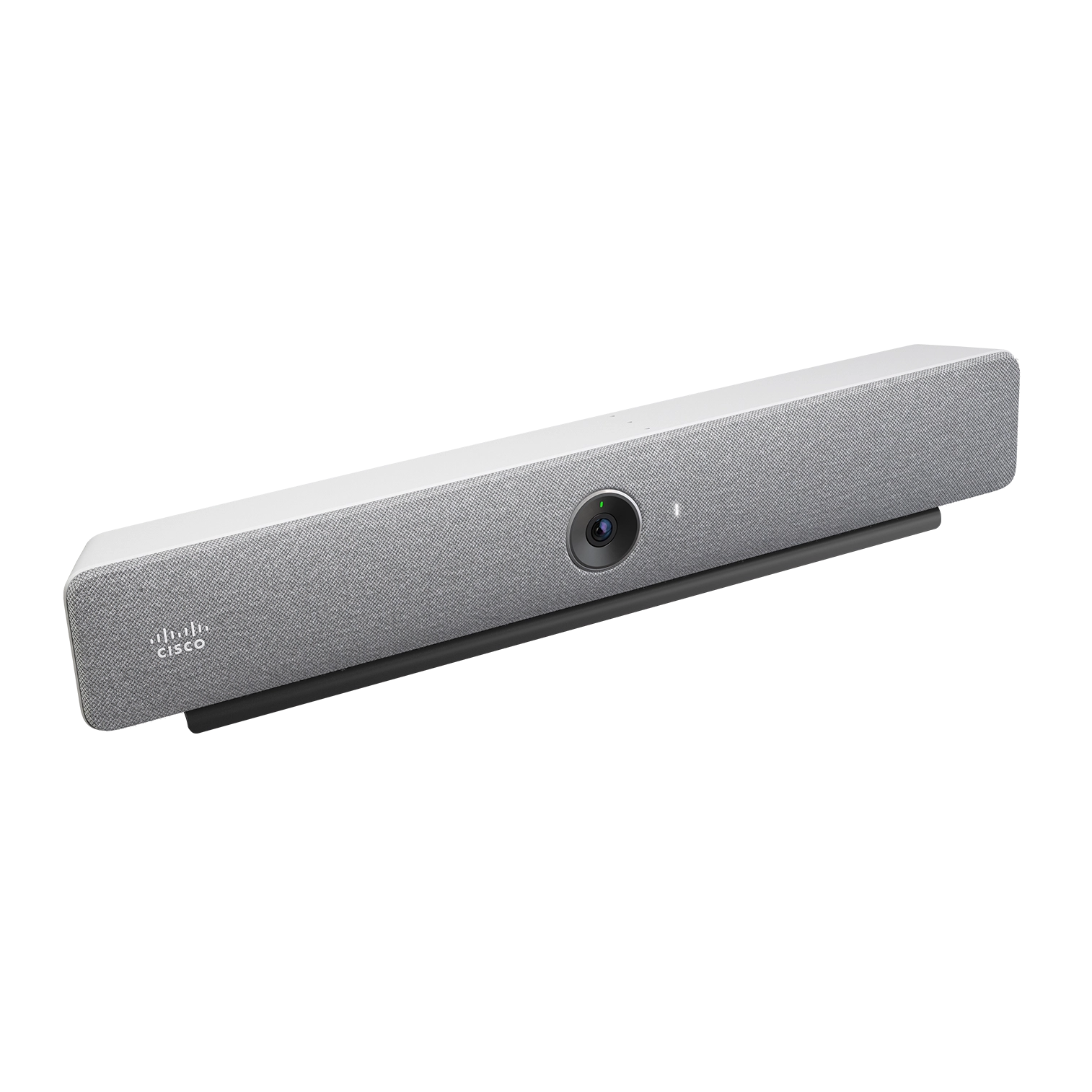

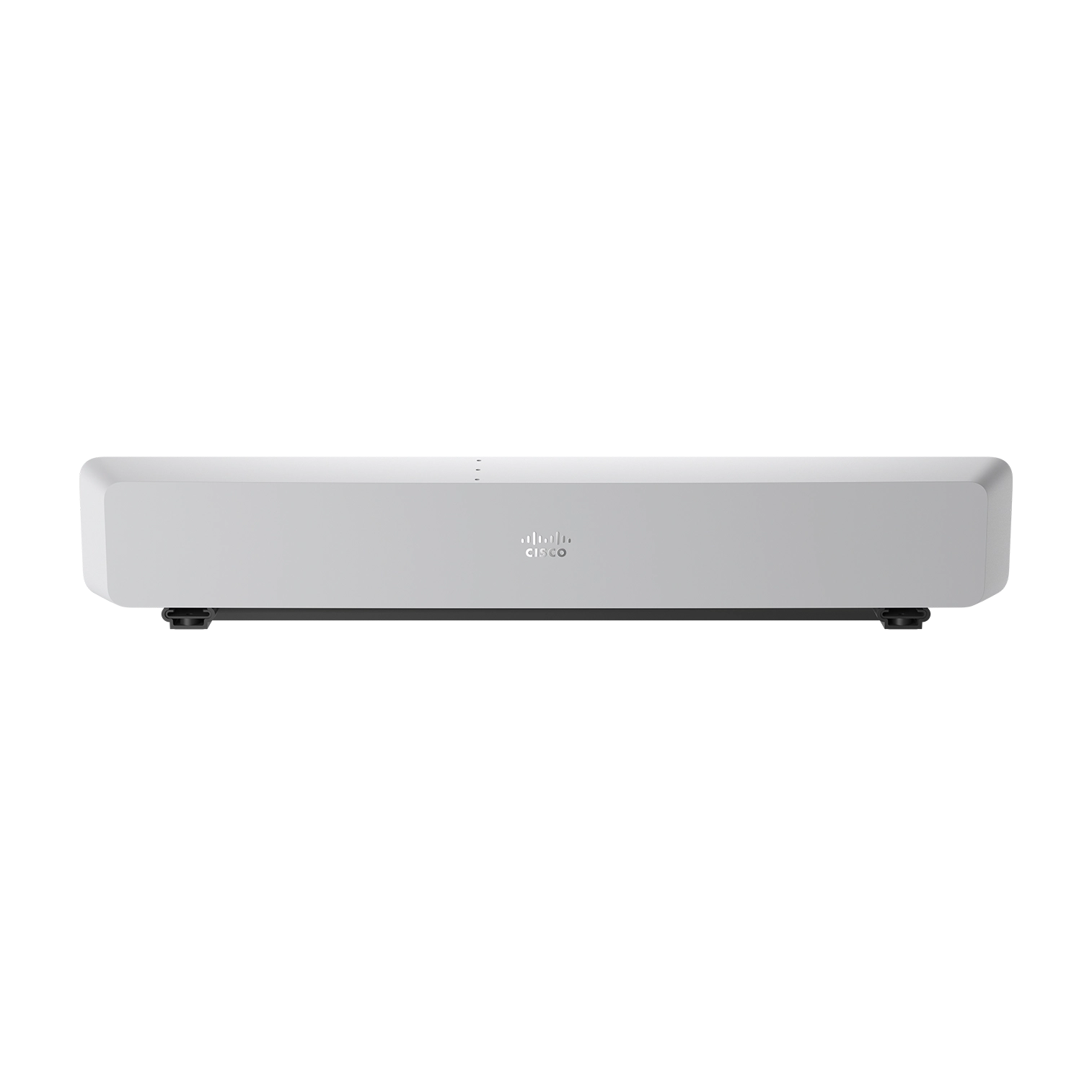

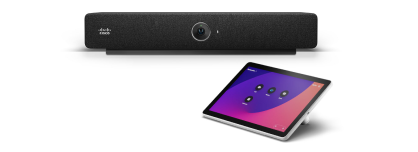

    • Video bar unit (First Light or Carbon) with built-in codec, camera, speakers and microphones
    • Power adapter
    • Network cable
    • HDMI cable
    • Mounting unit (supporting screen and wall)
    • Cisco Room Navigator touch controller
    • Ethernet cable
    • Privacy cover

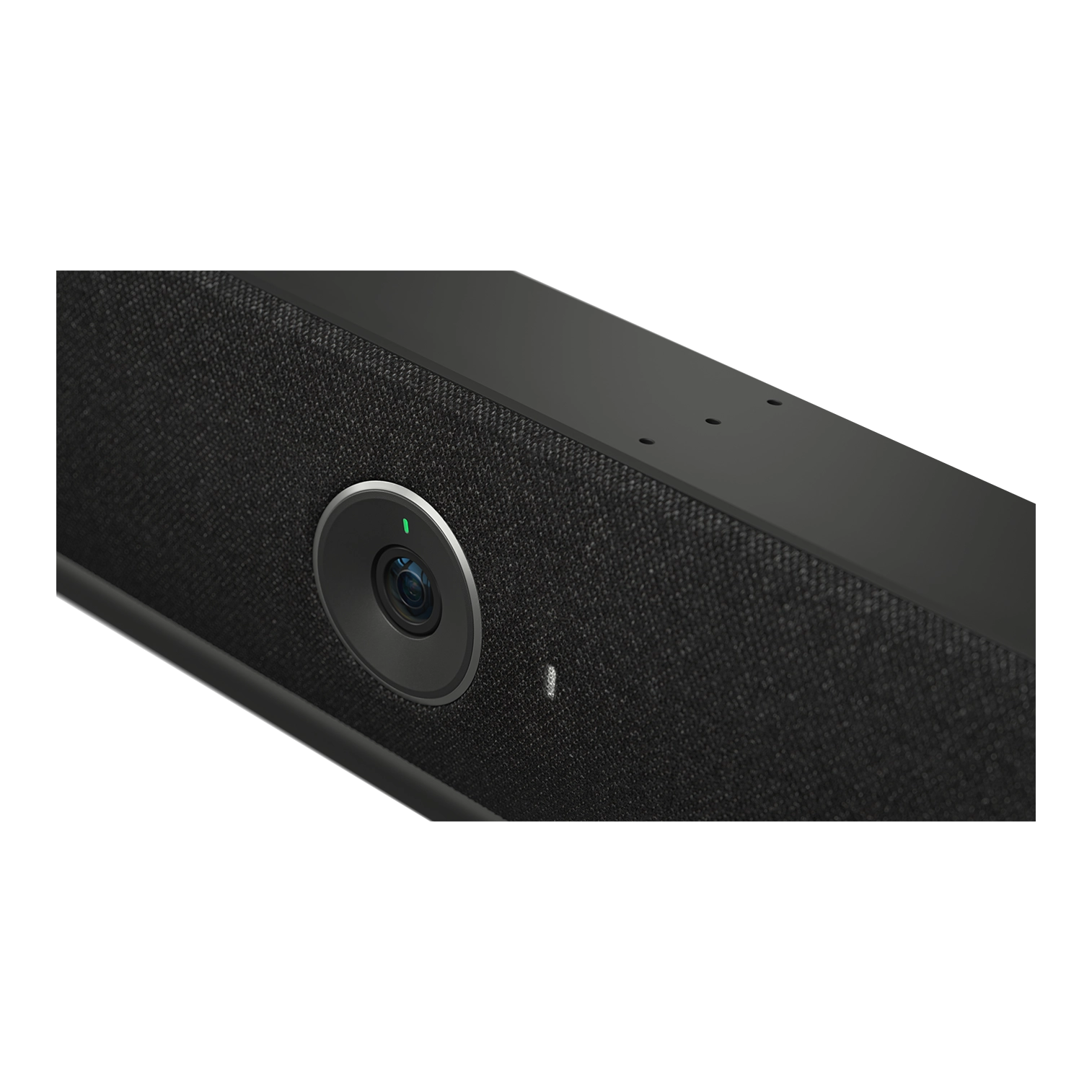

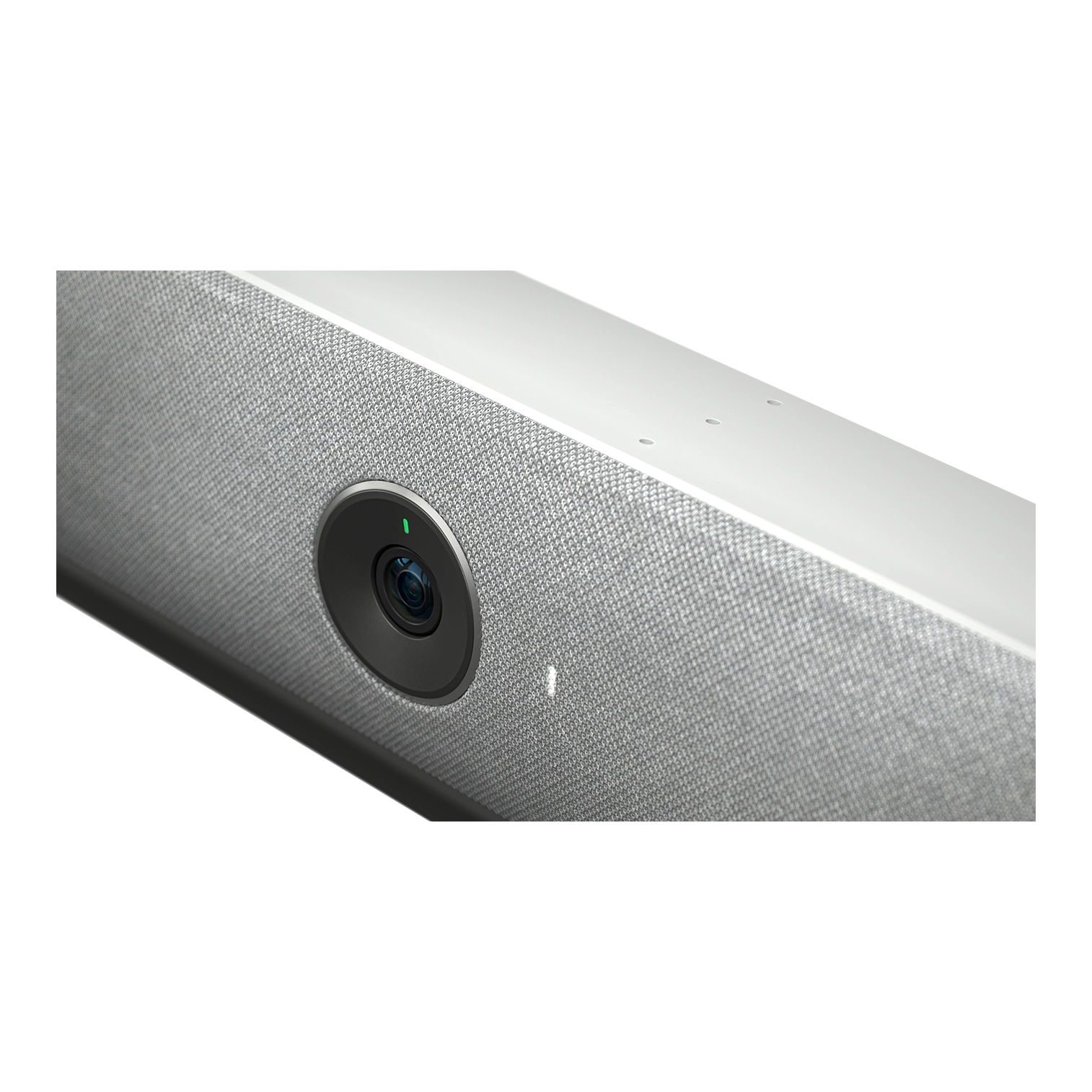

    Camera overview

    • 12MP camera
    • 30 frames per second
    • 1/2.3’’ CMOS
    • 5x digital zoom
    • f/2.5 aperture
    • 120° horizontal field of view
    • 95° vertical field of view
    • Auto framing (face detect)
    • Speaker tracking
    • Frames intelligent people framing
    • Auto brightness and white balance
    • Fixed focus lens
    • Automatic image rotation when mounted upside down

    Video features

    • Main video resolution up to 1920 x 1080 at 30 fps
    • Two HDMI outputs supporting formats up to 3840 x 2160 at 60 fps
    • Connectivity with one touchscreen using HDMI out and USB-A*
    • Live video resolutions (encode and decode) up to 1920 x 1080 at 30 fps and 60 fps
    • One HDMI input supports up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps
    • One USB-C input supports up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps
    • Support for H.263, H.264 video standard
    • Supporting available Webex video stream layouts and meeting features, including people focus, grid, prominent, stack and overlay.
    • Seamless, single-tap meeting to join to Microsoft Teams (via CVI and WebRTC), Zoom (via Zoom Conference Room Connector) and Google (via WeRTC) meetings" > "When configured for RoomOS, the solution supports seamless meeting join to Microsoft Teams (via CVI and WebRTC), Zoom (via SIP) and Google (via WeRTC) meetings
    • Native support for Microsoft Teams Rooms (MTR) and the option to join native Webex meetings in MTR mode

    Audio features

    • Stereo loudspeaker system with 2 high-quality full range drivers, supporting directional audio
    • 4-element beamforming microphone array
    • 1 extra microphone input for voice pickup extension
    • Additional microphone array for speaker tracking
    • Acoustic Echo Cancellation (AEC)
    • Active Lip Synchronization
    • AI-Powered, Adaptive Noise Removal
    • Automatic Gain Control (AGC)
    • Beamforming Microphones
    • De-Reverberation
    • Full Duplex
    • Full-Band Audio
    • Self-Hear
    • Spatial Audio
    • Ultrasound Technology

    Presentations

    • Wireless content sharing via the Webex app (up to 3840 x 2160 at 7.5 fps)
    • Wireless content sharing via Cisco Intelligent Proximity client (up to 3840 x 2160 at 3 fps)
    • Wireless content sharing via Miracast (up to 1920 x 1080 at 30 fps) - Not available on Non-radio version
    • Apple AirPlay wireless sharing (up to 1920 x 1080 at 60 fps)
    • Supports dual screens for video and content
    • Supports dual content sources for local meetings
    • View whiteboard content and annotations shared from a Cisco Board, Cisco Desk Pro, or the Webex app
    • 4K wireless content sharing (up to 3840 x 2160 at 15 fps)
    • 4K wired (USB-C and HDMI) passthrough content sharing

    Room intelligence

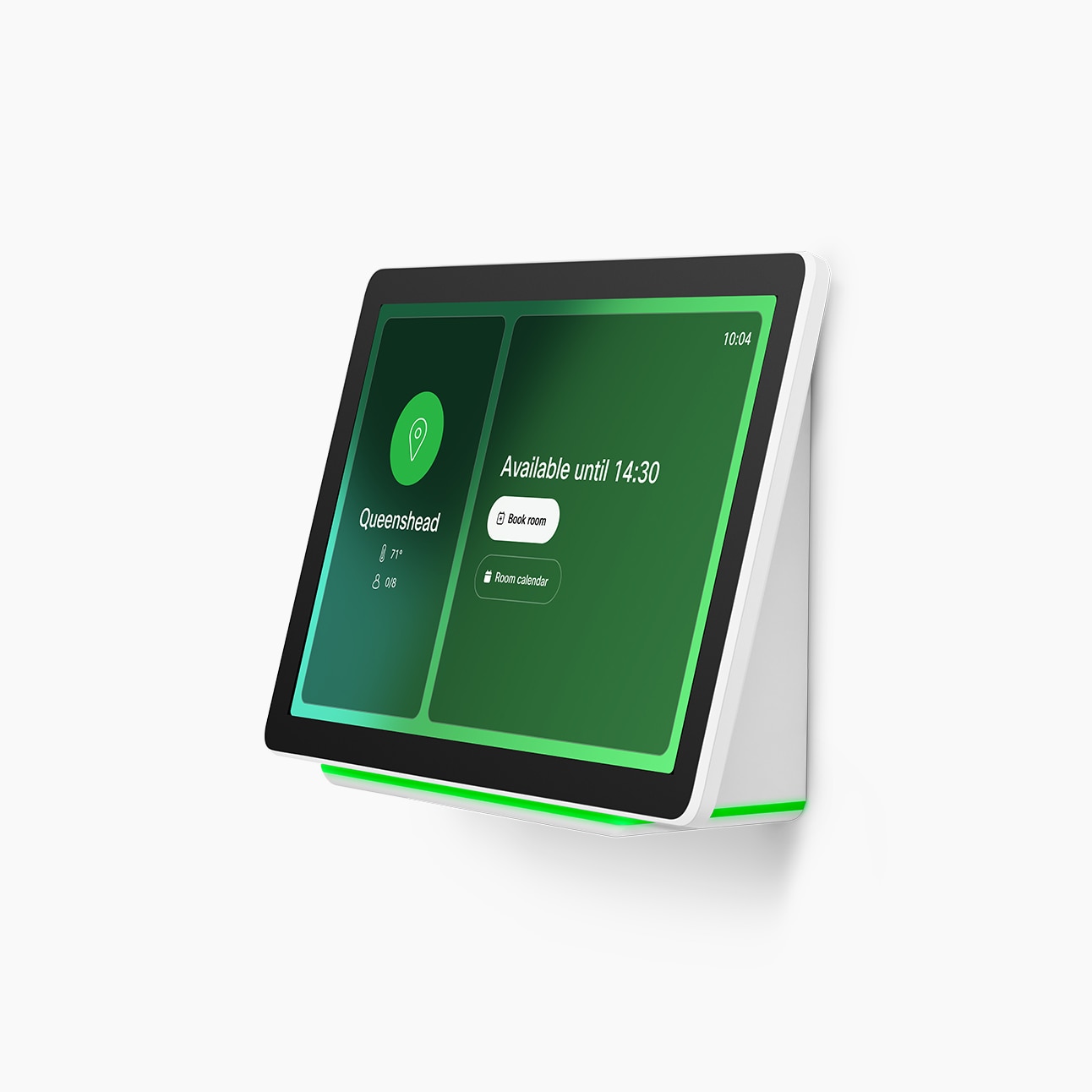

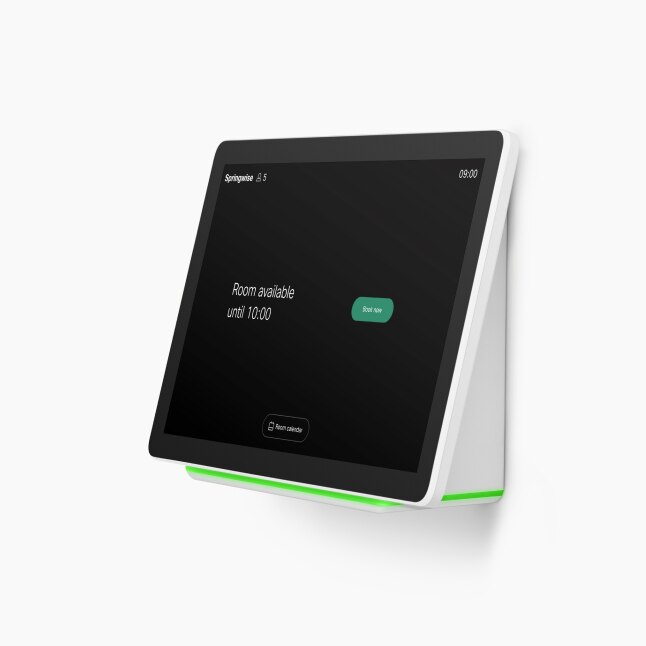

    • Control with Cisco Room Navigator touch panel (wall-mount or table-stand) for access to conference controls, room booking, room controls and workplace applications.
    • Metrics: Counts people in the room via smart presence detection, enabling analytics for better resource planning
    • Automatic screen/display integration through HDMI CEC
    • Supports Wi-Fi 5 and Bluetooth® **
    • Control peripherals such as lights and blinds through the Cisco Room Navigator
    • Environmental sensors when connected to the touch device to measure humidity, temperature, noise levels and air quality
    • System “wakes up” when someone walks into the room, and recognizes them through their mobile device
    • Webex Assistant enables conference controls via voice commands and other touchless workflows
    • Customizations via macros for digital signage and other workspace applications
    • Simplified meeting-join experience with One Button to Push (OBTP) or via voice commands using Webex Assistant

    Security features

    • Secure management using HTTPS and SSH protocols
    • End-to-end encryption for calls and meetings on Webex
    • Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
    • WPA3 ™ and WPA3-Enterprise with CCMP128 Wi-Fi® security
    • Password protection to access administration available on Room Navigator controller
    • Network settings protection
    • Privacy cover

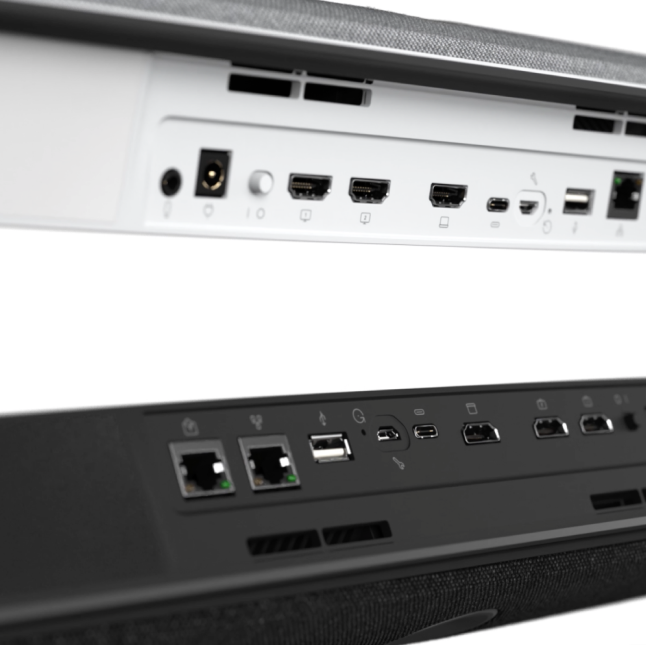

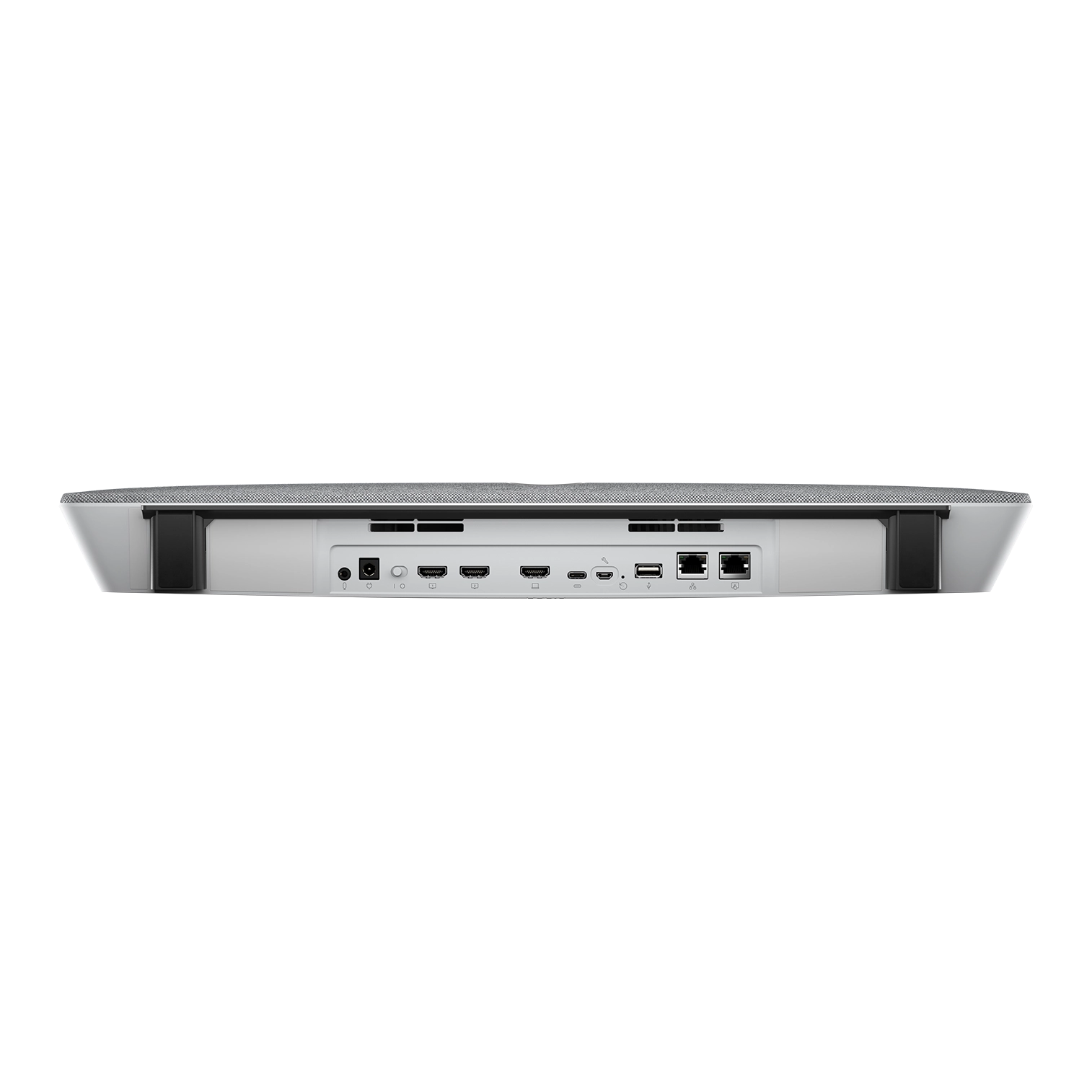

    Interfaces

    • 1x 3.5mm Jack analog audio input
    • 1x HDMI video input
    • 1x USB-C input
    • 2x HDMI video outputs
    • 1 USB-A input
    • 1x Ethernet (RJ-45) 10/100/1000 for LAN
    • 1x Ethernet (PoE) (RJ-45) for Cisco Room Navigator direct pairing" > 1x Ethernet (PoE) (RJ-45) for Room Navigator touch controller direct pairing
    • 1 microUSB port
    • Power adapter port
    • Factory reset pinhole

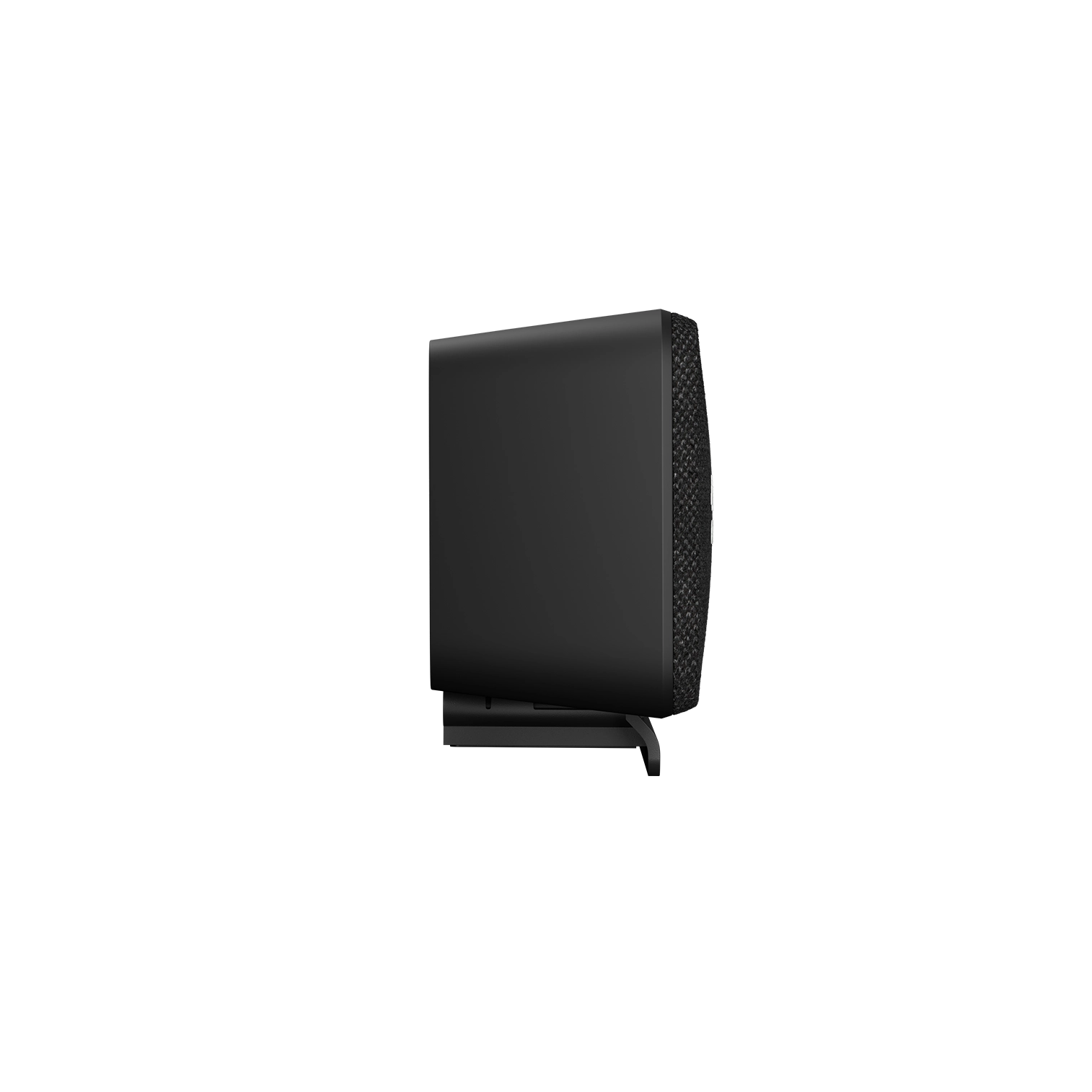

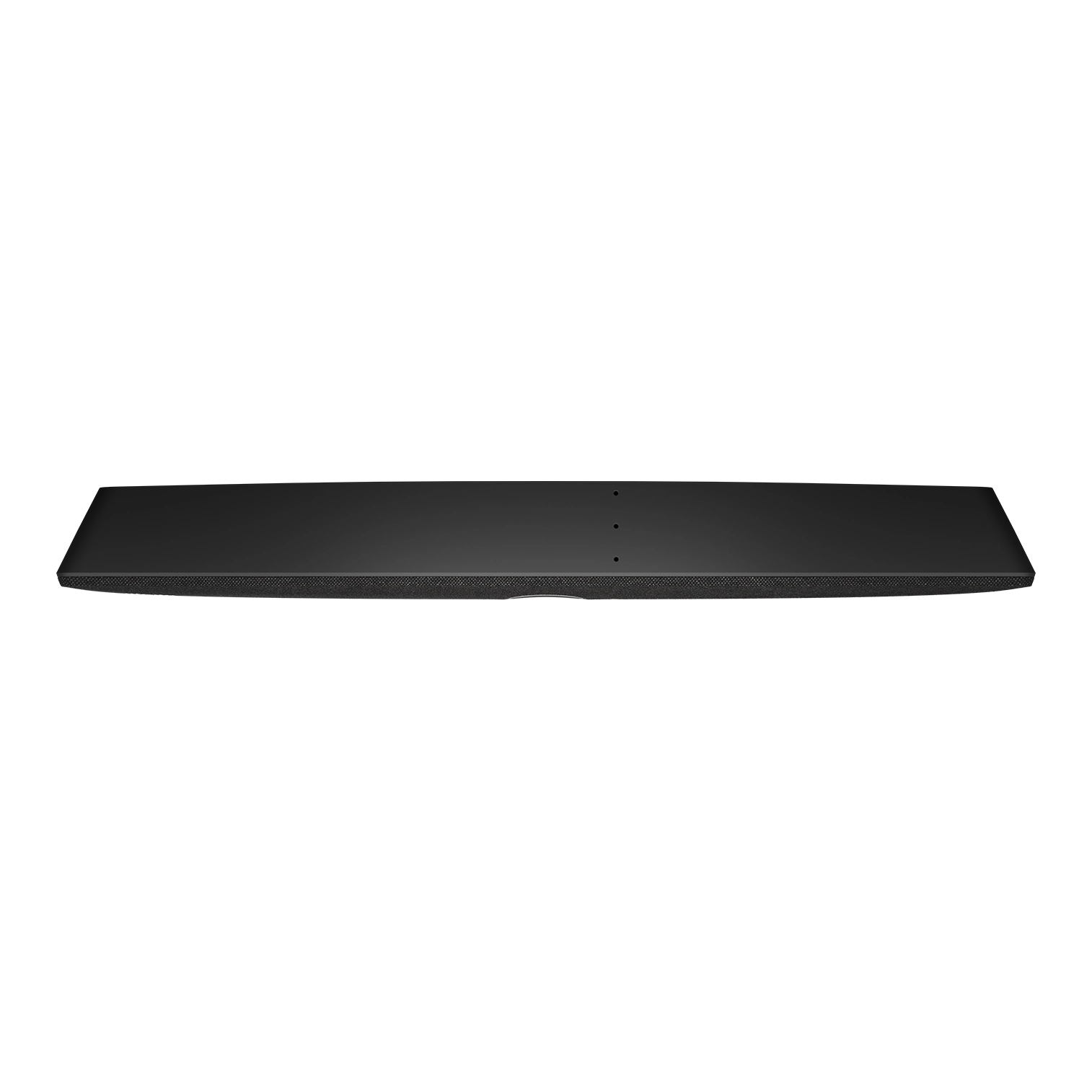

    Dimensions

    • Width: 21 in. (53.4 cm)
    • Height: 3.2 in. (8.2 cm)
    • Depth: 2.5 in. (6.4 cm)
    • Weight: 4 lb. (1.5 kg)

    Device management

    • For cloud deployments, the device is managed in the Control Hub, providing a single pane of glass of system status, activation, configuration, metrics, workspace insights, and troubleshooting
    • For on-premises deployments, the following management and call control options apply:
      • Native registration with Cisco Unified Communications Manager (Unified CM) - requires Unified CM version 12.5(1) or later with device pack for Room Bar
      • Native registration with Cisco Expressway
      • TelePresence Management System 15.13.4 or later supports Cisco Room Bar
      • Webex Service
      • Third-party H.323 gatekeepers and standards-based SIP proxies
    • In case of a hybrid deployment, Webex Edge for Devices allows for linking your on-premises Cisco devices to the Webex Cloud and benefits from specific cloud features such as device management, monitoring, and analytics via Control Hub.


    * Coming soon

    ** The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Cisco Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners.

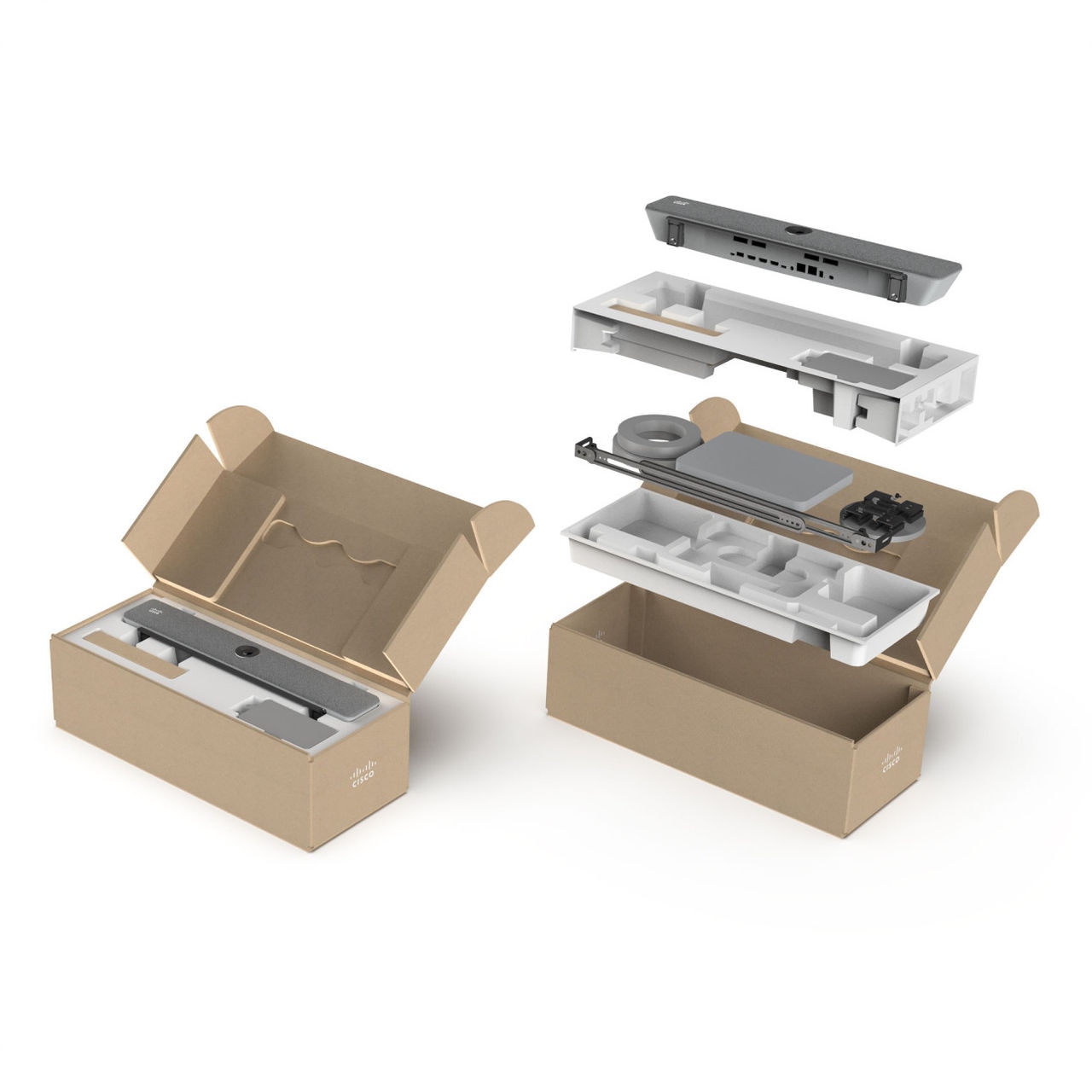

    Designed for a sustainable future.

    We’ve designed the video bar endpoint to support the circular economy. Goodbye to box-in-the-box packaging, plastic containers, and redundant components in the box. Cisco Room Bar comes with post-consumer recycled (PCR) plastic on cosmetic parts and recycled fibre-based trays, and a consolidated mounting unit to reduce the environmental impact of the solution.

    Compare Cisco video bars and room kits.

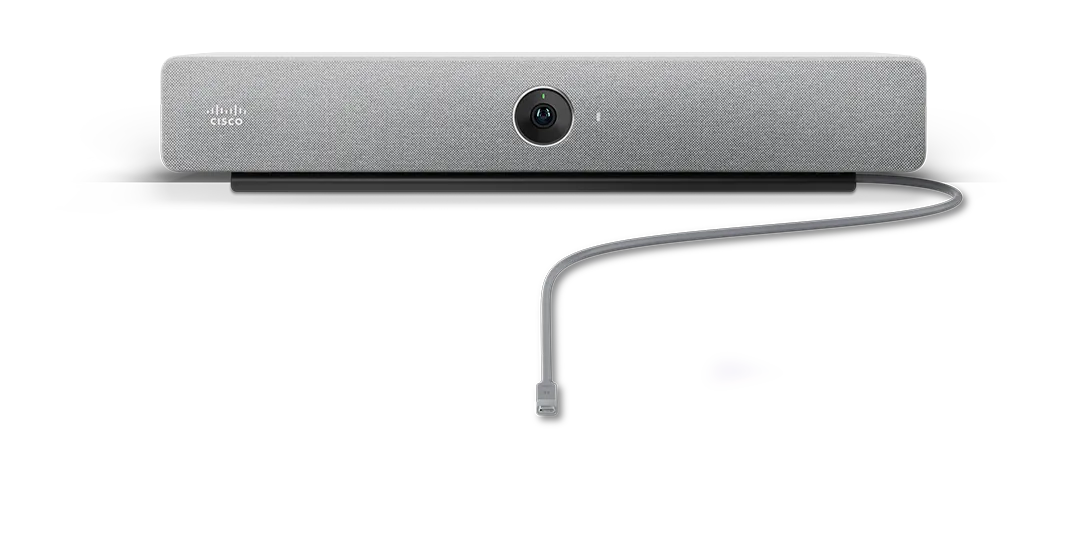

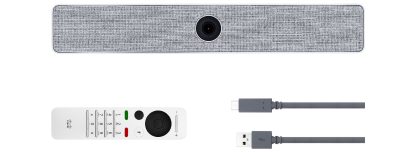

    Room USB
    Room USB
    Room Bar
    Room Bar

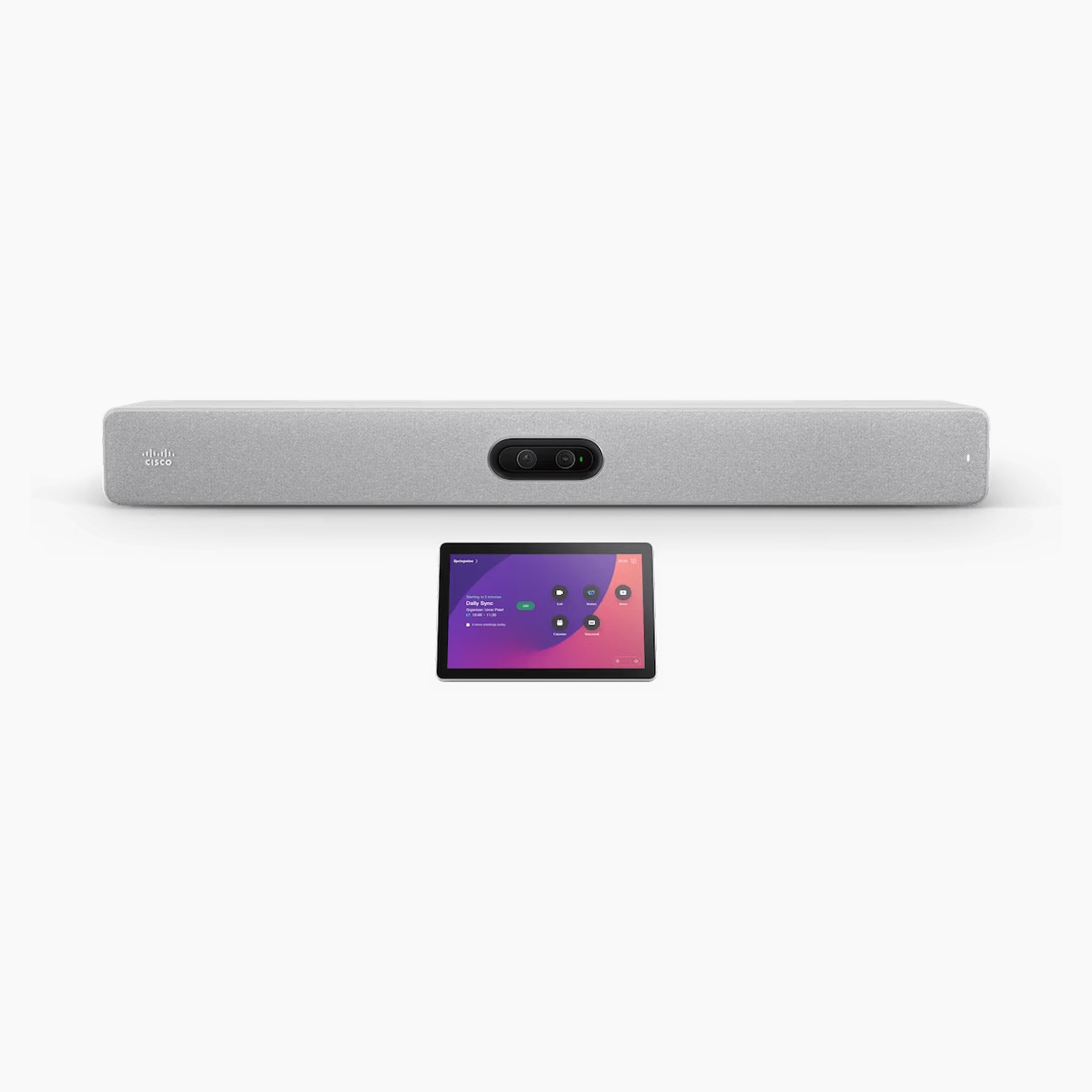

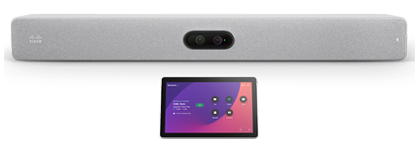

    Room Bar Pro
    Room Bar Pro

    Small huddle and meeting rooms

    Workspace

    Small huddle and meeting rooms

    Workspace

    Medium meeting and training rooms

    Workspace

    No, BYOD peripheral.

    Codec

    Yes, with NVIDIA chipset

    Codec

    Yes, with NVIDIA chipset

    Codec

    RoomOS

    Platform Support

    RoomOS for native Webex meetings and third-party video interop; Microsoft Teams Rooms

    Platform Support

    RoomOS for native Webex meetings and third-party video interop; Microsoft Teams Rooms (coming soon)

    Platform Support

    Yes, USB-A and HDMI for passthrough and screen extension

    USB passthrough

    Yes, single USB-C for passthrough and screen sharing

    USB passthrough

    Yes, single USB-C for passthrough and screen sharing

    USB passthrough

    120° horizontal field of view

    Camera field of view

    120° horizontal field of view

    Camera field of view

    112° and 70° horizontal field of view

    Camera field of view

    5x zoom

    Zoom

    5x zoom

    Zoom

    5x zoom

    Zoom

    Yes

    Frames people cropping

    Yes

    Frames people cropping

    Yes

    Frames people cropping

    Yes, internal microphones

    Microphones

    Yes, 4-point microphone array, audio port for microphone extension

    Microphones

    16-element microphone array for voice pickup and speaker tracking; microphone extension over IP, USB and analog

    Microphones

    Yes, AI noise removal

    Noise suppression

    Yes, AI noise removal

    Noise suppression

    Yes, AI noise removal

    Noise suppression

    No

    Audio input

    Yes, 1x 3.5mm Jack

    Audio input

    2x 3.5mm Jack, 2x USB-A, up to 3x Table Microphone Pro units or third-party microphones via PoE

    Audio input

    Mono speakers

    Loud speakers

    Dual stereo speakers supporting spatial audio

    Loud speakers

    Three-channel, stereo loudspeaker system supporting spatial audio

    Loud speakers

    Connects with one external screen

    Screen support

    Connects with dual screens. Touchscreen support*

    Screen support

    Connects with triple screens. Touchscreen support*

    Screen support

    Yes

    Wireless content sharing

    Yes, via Webex, Miracast and Apple AirPlay

    Wireless content sharing

    Yes, via Webex, Miracast and Apple AirPlay

    Wireless content sharing

    Separate mounting unit for screen and wall

    Mounting

    Single mounting for screen and wall

    Mounting

    Single mounting for screen and wall

    Mounting

      No, only basic remote control

    Touch panel

    Yes, comes with Room Navigator (table-stand or wall-mount)

    Touch panel

    Yes, comes with the table-stand Cisco Room Navigator

    Touch panel

    Control Hub when cloud-registered

    Management

    Control Hub when cloud-registered

    Management

    Control Hub when cloud-registered

    Management

    Depth: 7.7cm; Width: 50cm; Weight:2kg

    Dimensions

    Depth: 6.5cm; Width: 53.4cm; Weight: 1.5kg

    Dimensions

    Width: 37.8 in. (96 cm), Height: 4.3 in. (11 cm), Depth: 3.5 in. (9 cm), Weight: 9.86 lb. (4.47 kg)

    Dimensions
