Cisco Board Pro
The ultimate room device for hybrid teamwork.
24 MP
dual cameras
2
active, magnetic pens
UHD touch display
directional sound
  • image

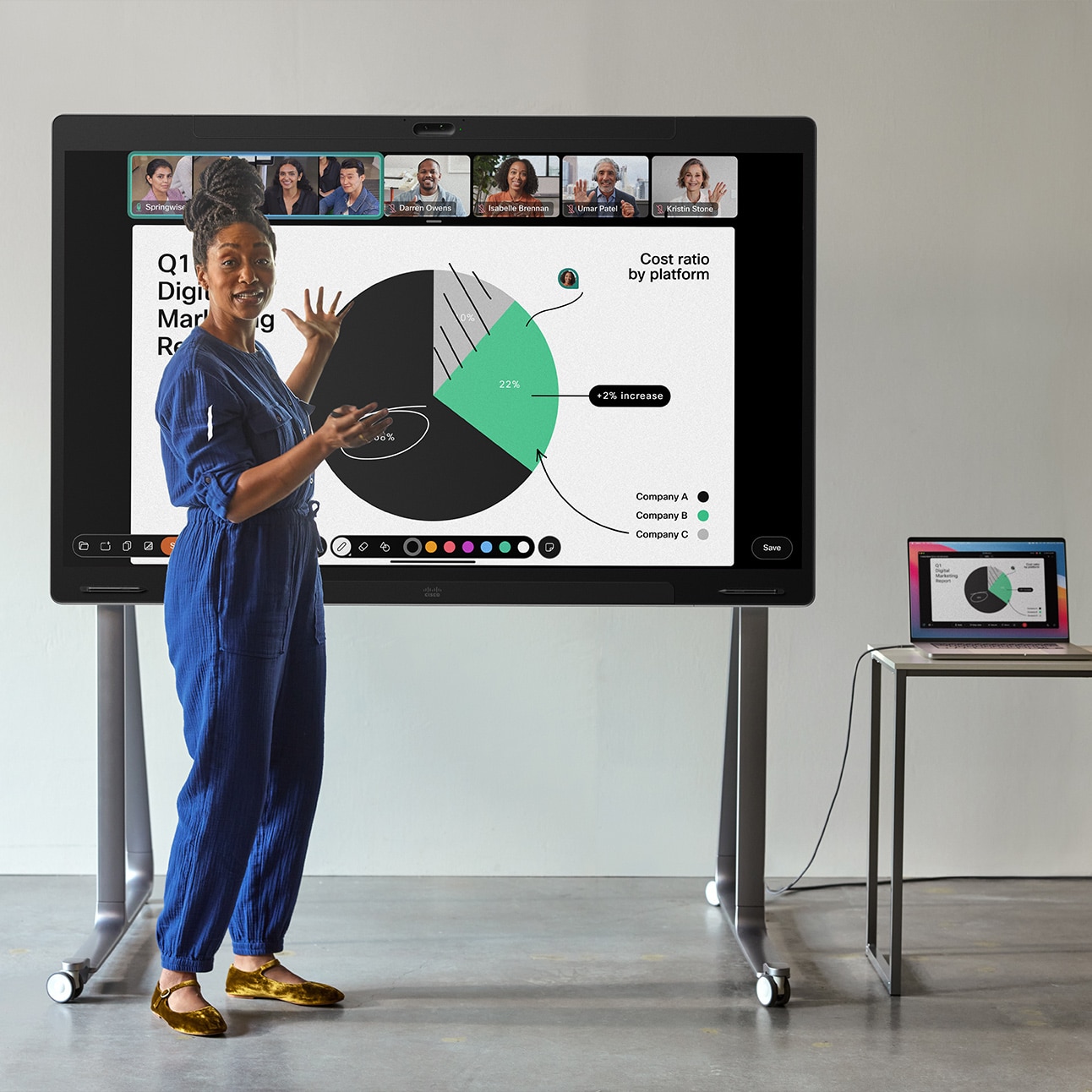

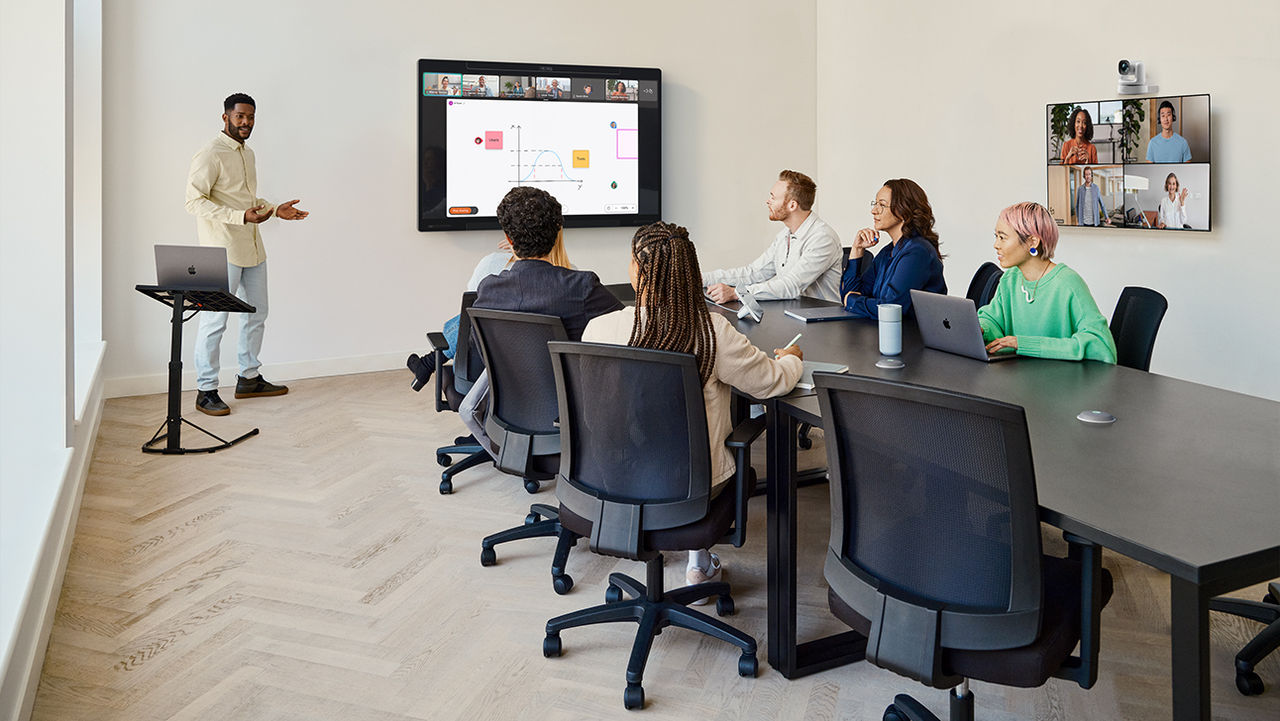

    Meet like a pro

    Bring engaging experiences to your meeting rooms with the all-in-one, touch-enabled device designed for remarkably true-to-life video conferencing.

  • image

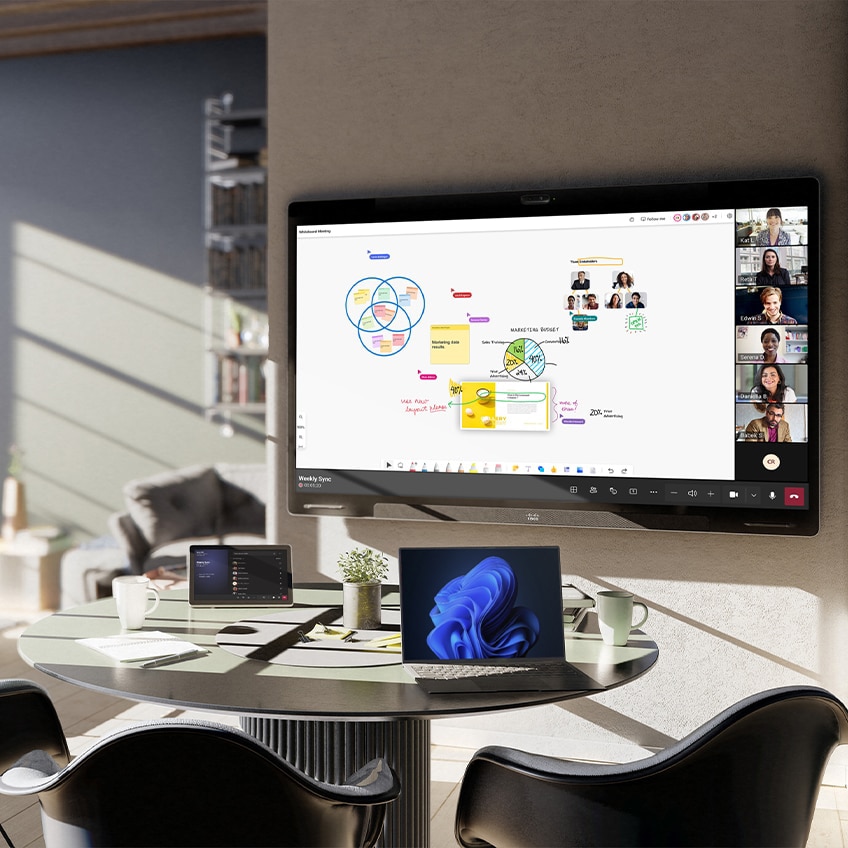

    Create together, everywhere

    Present, brainstorm, share content with ease, and connect your distributed teams through co-creation and infinite whiteboarding.

  • image

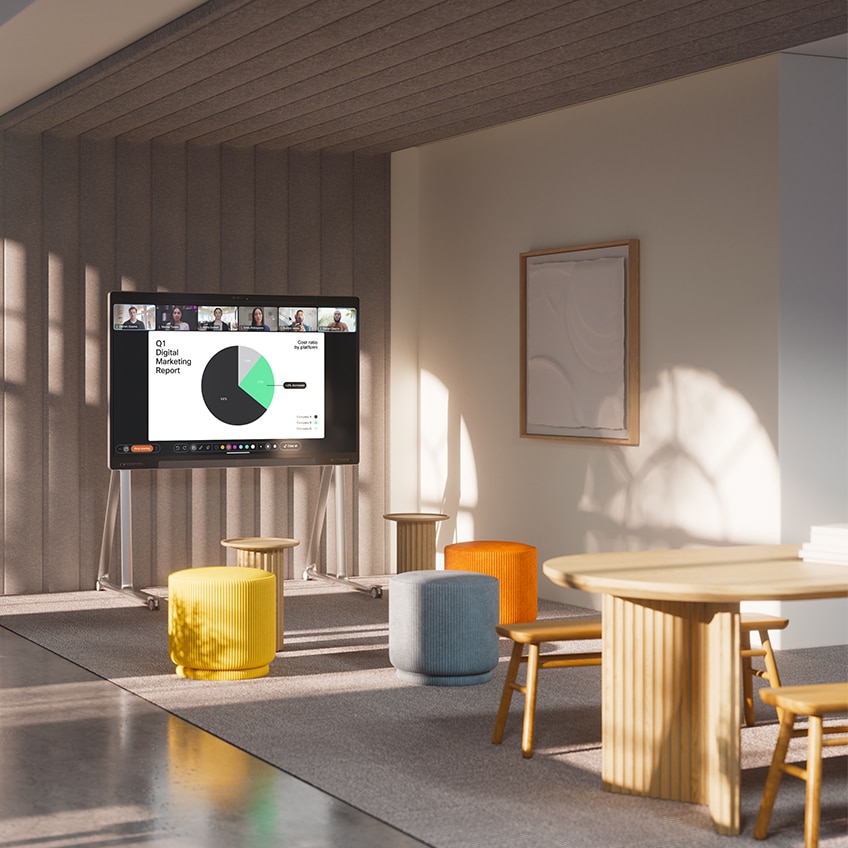

    Elevate your workspace

    Enjoy a blend of award-winning aesthetics, human-centric design, and a fluid user interface that makes collaboration engaging and inclusive.

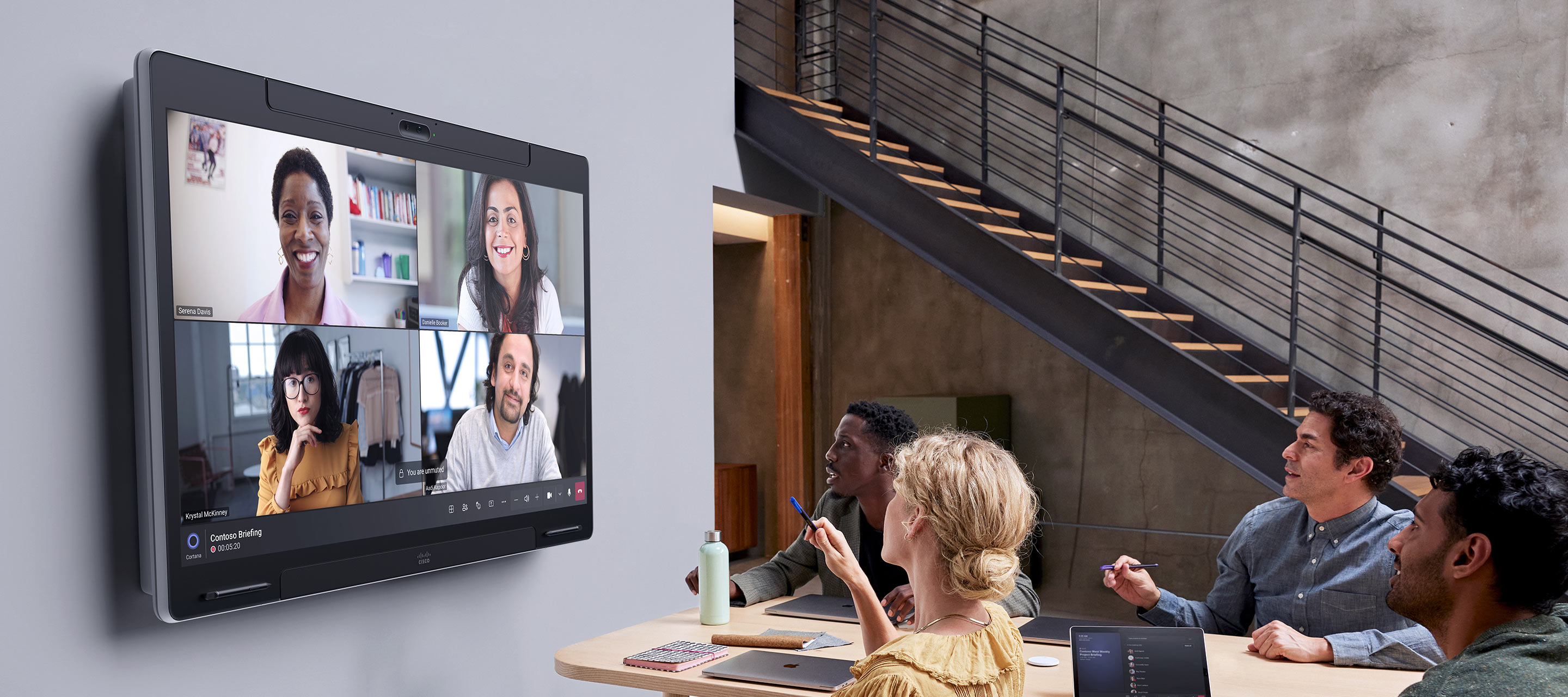

  • Gather around the board.

    Bring exceptional video conferencing and co-creation to your workspaces with the all-in-one room device that features AI-powered chipset, responsive touch screen, speaker-tracking cameras, built-in speakers and microphones, and a versatile set of mounting and peripheral options.

    Board Pro is certified for Microsoft Teams Rooms.

    Enjoy the native Microsoft Teams experience on certified Cisco collaboration devices designed for hybrid work.

    See collaboration in a new light.
  • image

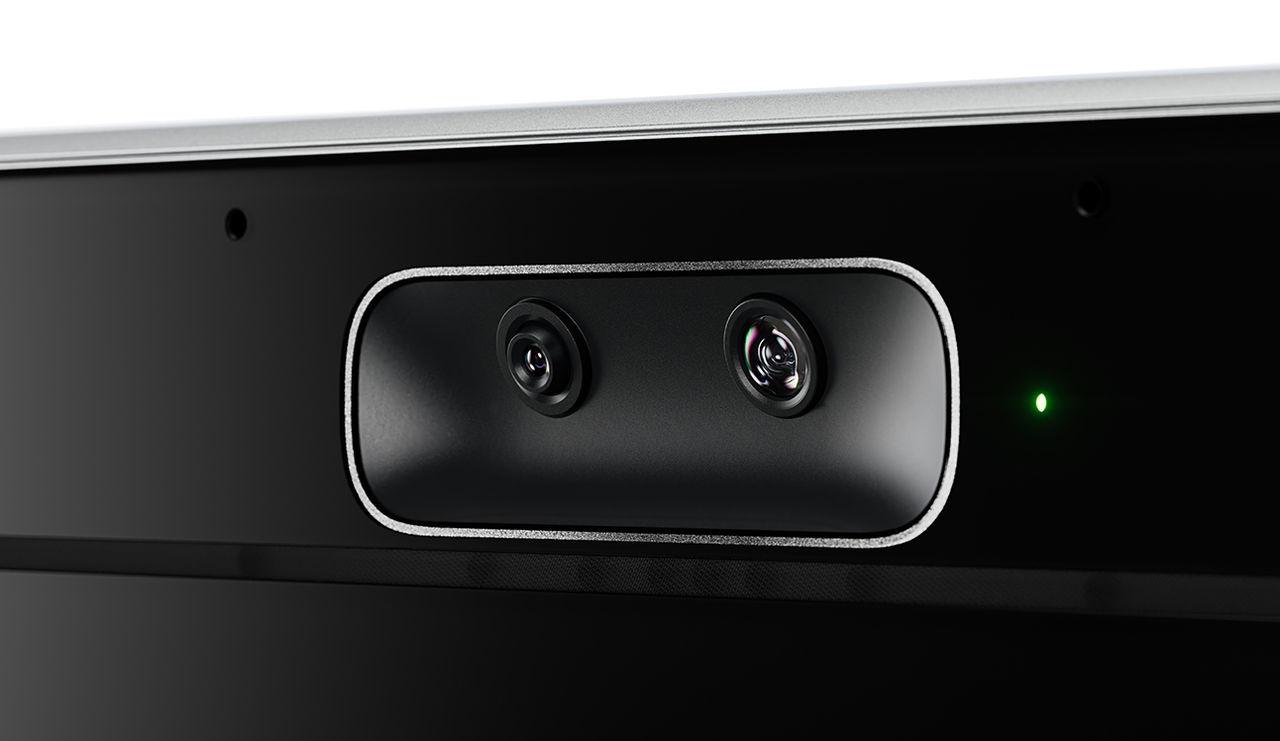

    24 MP dual cameras

    Two wide-angle lens cameras provide the optimal viewing experience whether you’re presenting by the display or sitting at the back of the room.

  • image

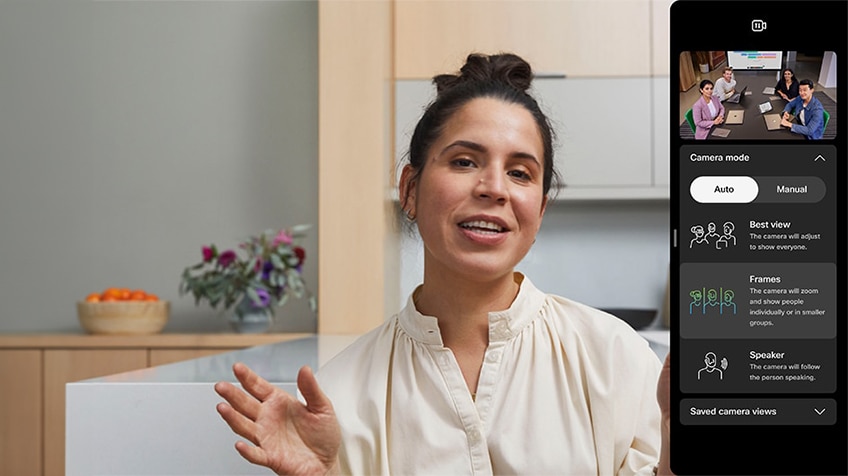

    Smart speaker tracking

    Benefit from multiple camera modes including the option to keep the active speaker in frame.

  • image

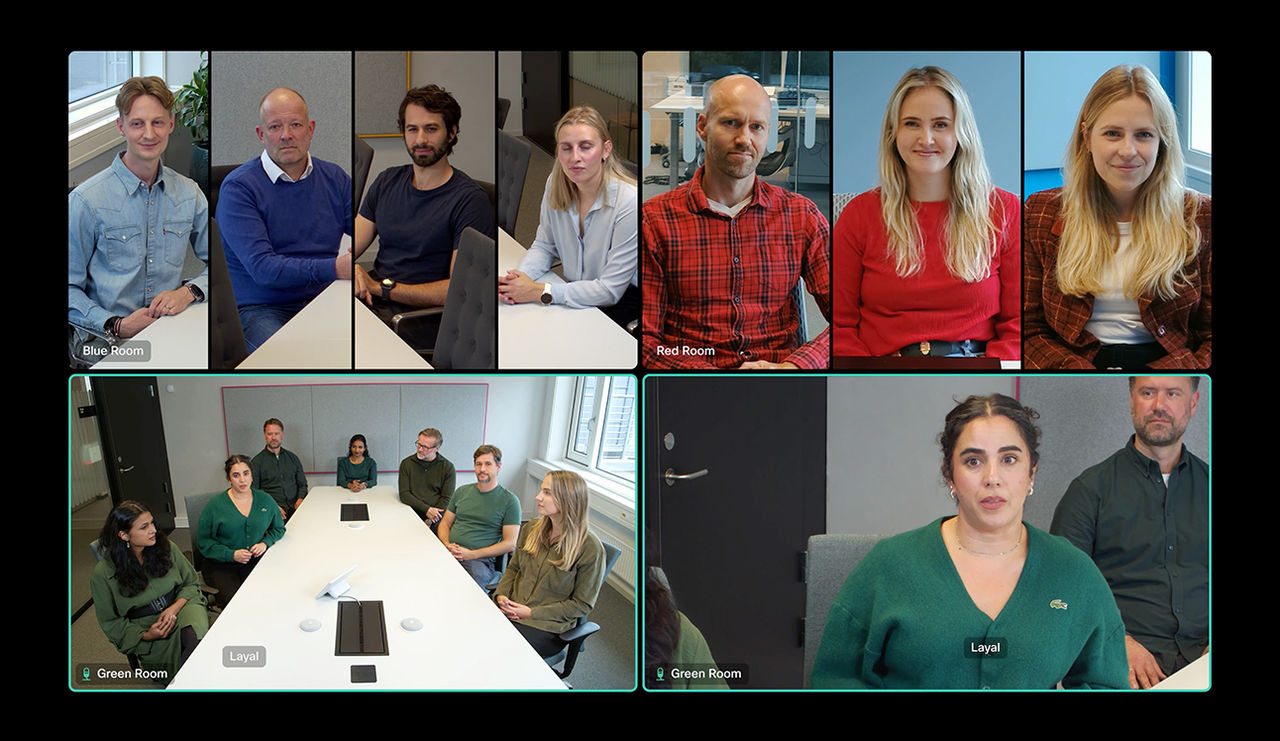

    Inclusive camera views

    Camera intelligence and optimized layouts help ensure each participant is perfectly framed and equally seen.

    Explore Camera Intelligence
  • Empower every workstyle.

    Join any video meeting, whiteboard with your team, use your favorite apps, and share content with ease. Elevate any workspace—from conference and training rooms to flexible, agile workspace configurations and collaborative jump spaces. All of this and more in the Board Pro.

    Play Video

    Time to join your next meeting?

    A single touch on the control panel or a voice command brings you into your session, no matter which meeting platform you’re using. Board Pro is a touch-enabled, feature-rich video conferencing system that provides AI-assisted meetings, powered by RoomOS and supporting Microsoft Teams Rooms.

    Fluid connectivity. Supreme collaboration.

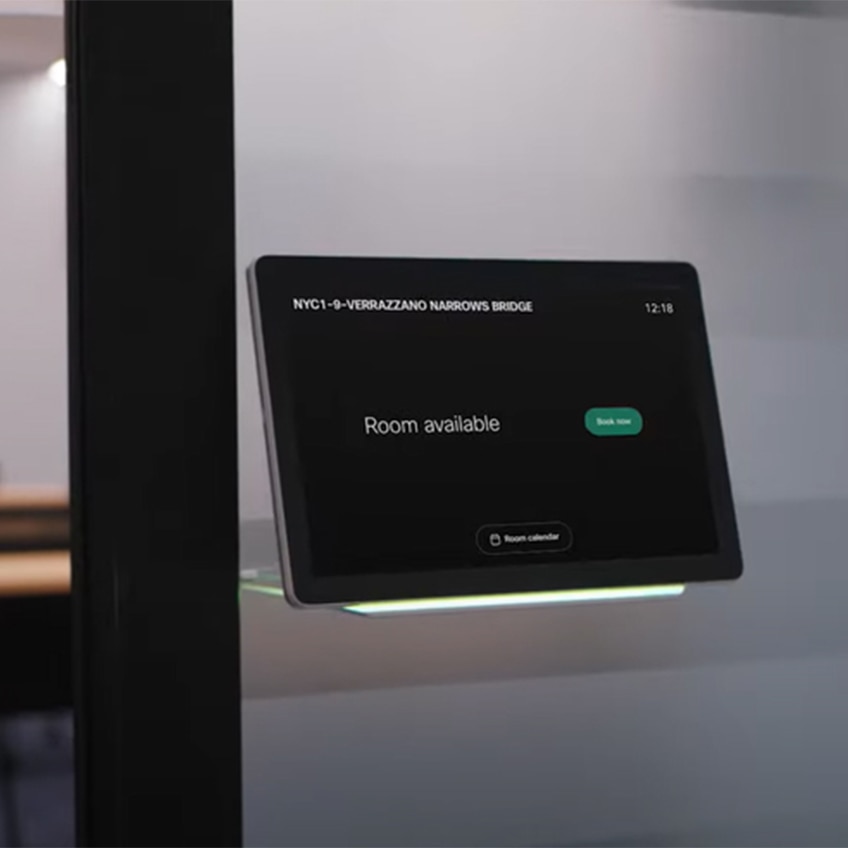

    Connect with the Room Navigator to add room booking, meeting controls, and workspace apps.
    Augment your space with an additional screen, a speaker-tracking camera, or external audio systems.
    Bring single-cable BYOD with touch redirect, multi-platform meetings, and rich content share.
    Spark new ideas. Supercharge creativity.

    Empower your team to brainstorm, work on prototypes, and ideate on an infinite digital whiteboard or shared content.

  • image

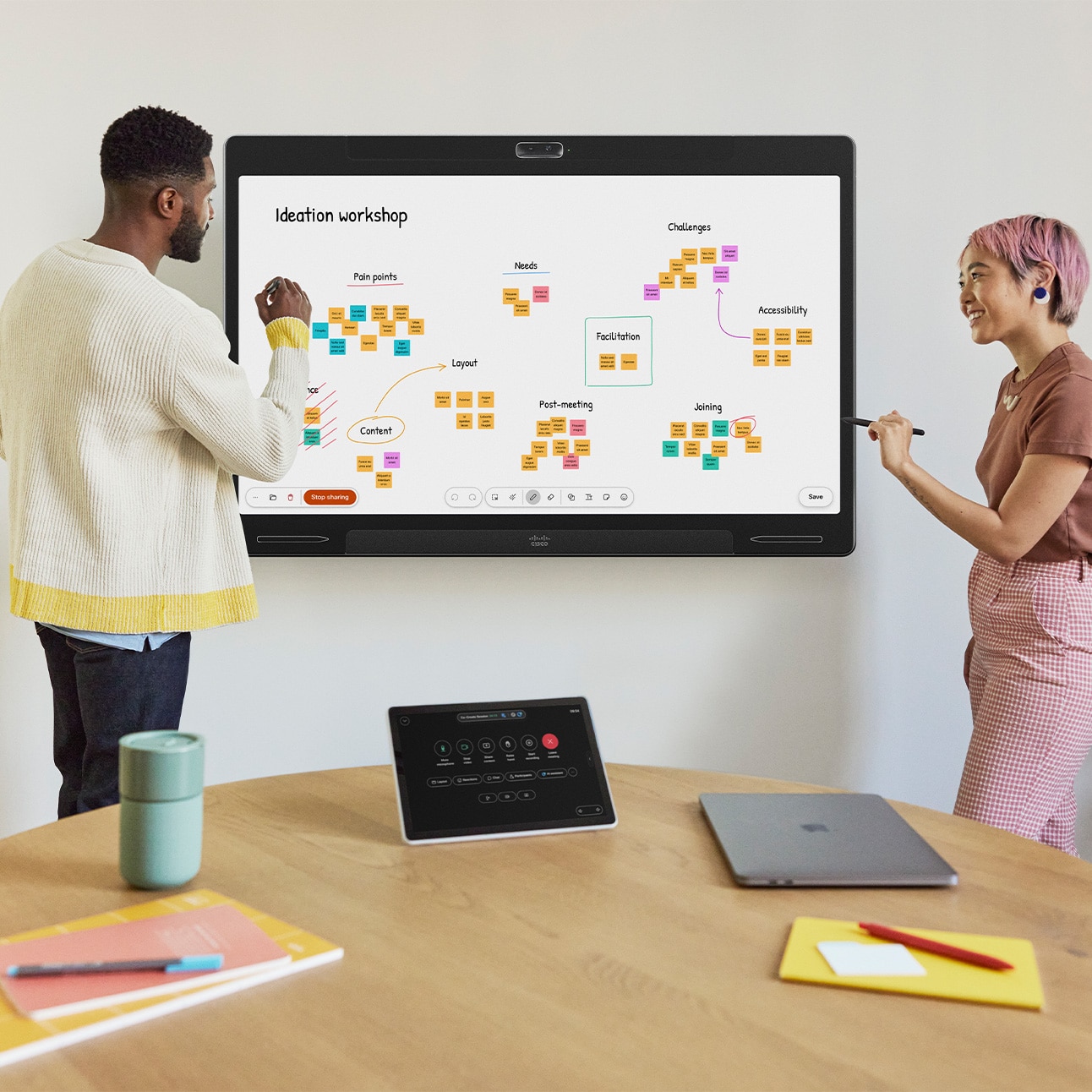

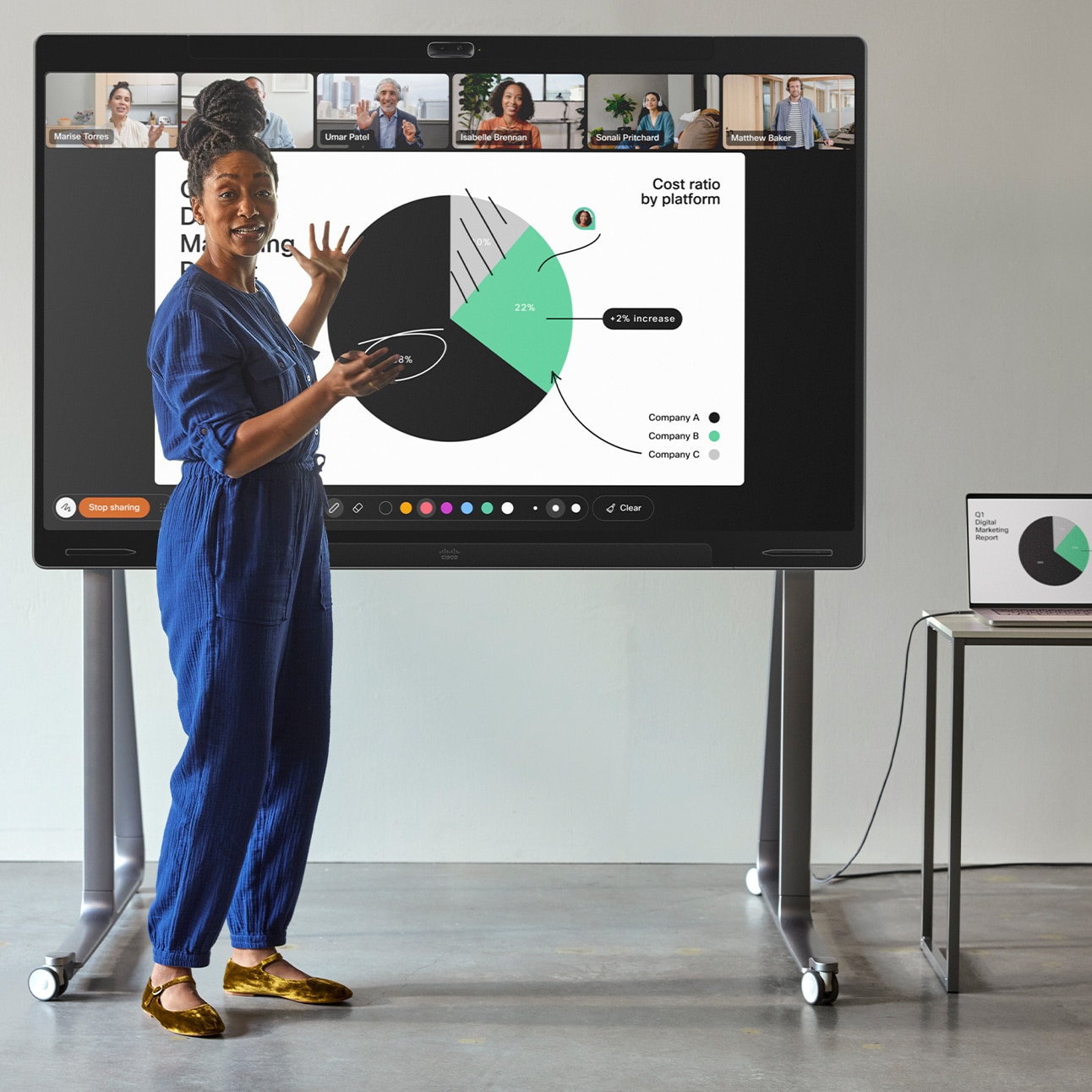

    Not your average touch screen

    Let your team draw, use digital stickies, annotate on content, share feedback, and organize their ideas on the inviting, responsive touch screen.

  • image

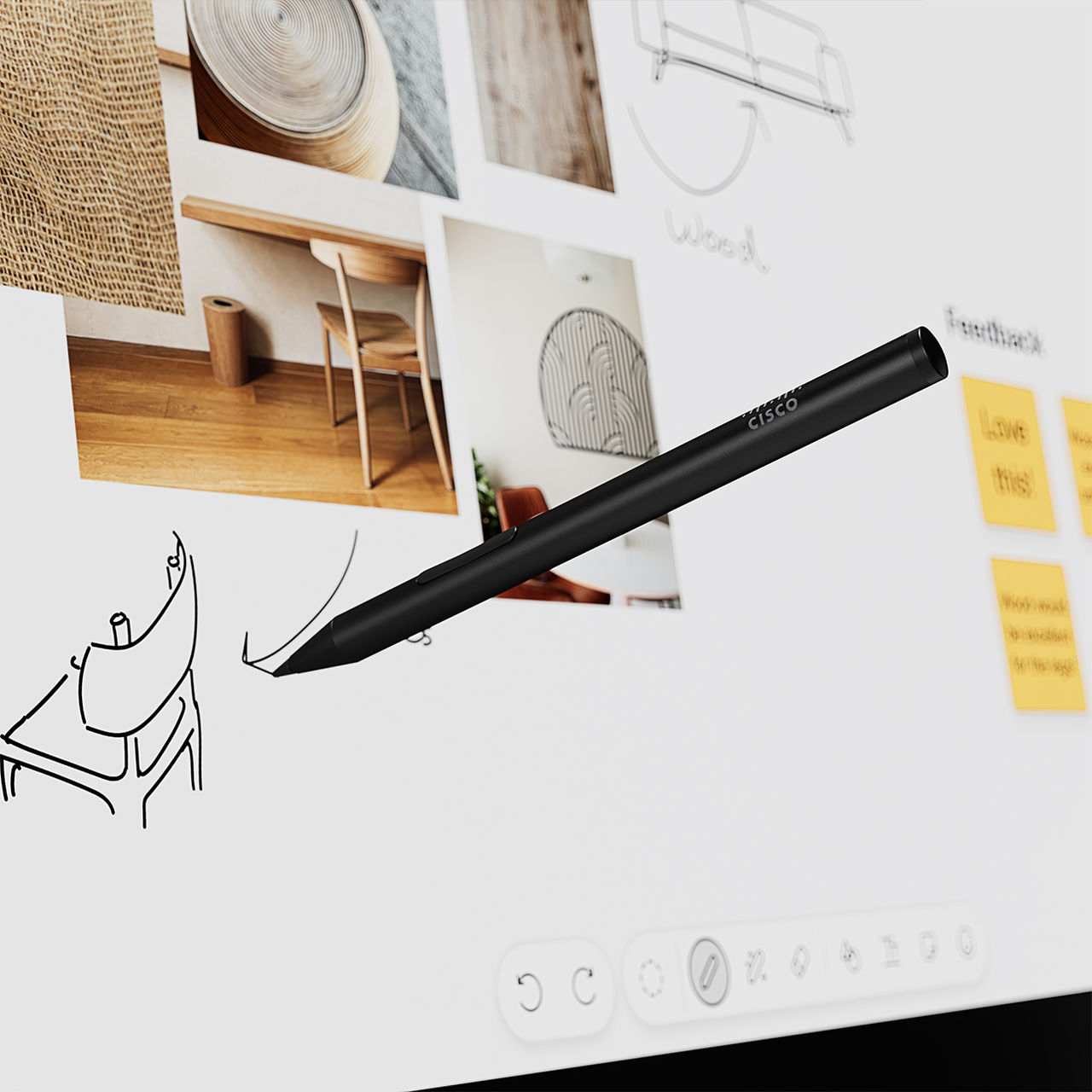

    Active whiteboard stylus

    Two responsive, magnetic pens allow for a seamless multi-ink experience while remote participants can simultaneously contribute.

  • image
    Go-to whiteboarding apps

    Work together on interactive visuals without ever running out of space—with your go-to apps, including Webex Whiteboard, Microsoft Whiteboard, Miro, or Mural.

  • Empower every voice.
    Spatial audio comes from the loudspeakers nearest to the active talker’s video on screen.
    Machine learning-based noise removal transmits nothing but the speaker’s voice.
    Capture voice with the highest fidelity using the built-in mic array and external microphones.

    Better collaboration with the Board Pro.

    From teachers to designers, everyone is empowered by hybrid meetings and smooth, visual co-creation.

    We designed the building around the concept of hybrid work—even before the pandemic. The pandemic only accelerated our thoughts around what we needed to do, and how we wanted to partner with Cisco and Webex to bring it all to life.

    Source: Peter Jetzel, CEO, Rebel

    Read More

    You’ll never want to take a meeting on your laptop again.

    Source: TrustRadius

    Read More Reviews

    Great learning only happens when the social and emotional side of a student's life is in balance. We needed a technology where the whole purpose was to engage students and learners.

    Jay Scheurle, Head of School, Oak Meadow School

    Watch Video

    Our company uses Cisco Board Series throughout our offices for open agile spaces. They are great for ad-hoc whiteboarding, joining meetings... and provide a good way to share content wirelessly to the device. Our employees (including myself) walk up and use these to whiteboard solutions up quickly and share them with our Webex spaces to continue discussions and editing on the go.

    TrustRadius

    Read More

    The Cisco Webex Board Pro features a clean design that elegantly combines stand and monitor. This is complemented by carefully designed surfaces and a pleasant feel. The device fits seamlessly into the given ambience and promotes use in a variety of ways. Equipped with intuitively accessible technology and sophisticated AI, it delivers new possibilities for effective collaboration experiences.

    Source: Red Dot Design Awards Jury, 2022

    Read More
    1/5

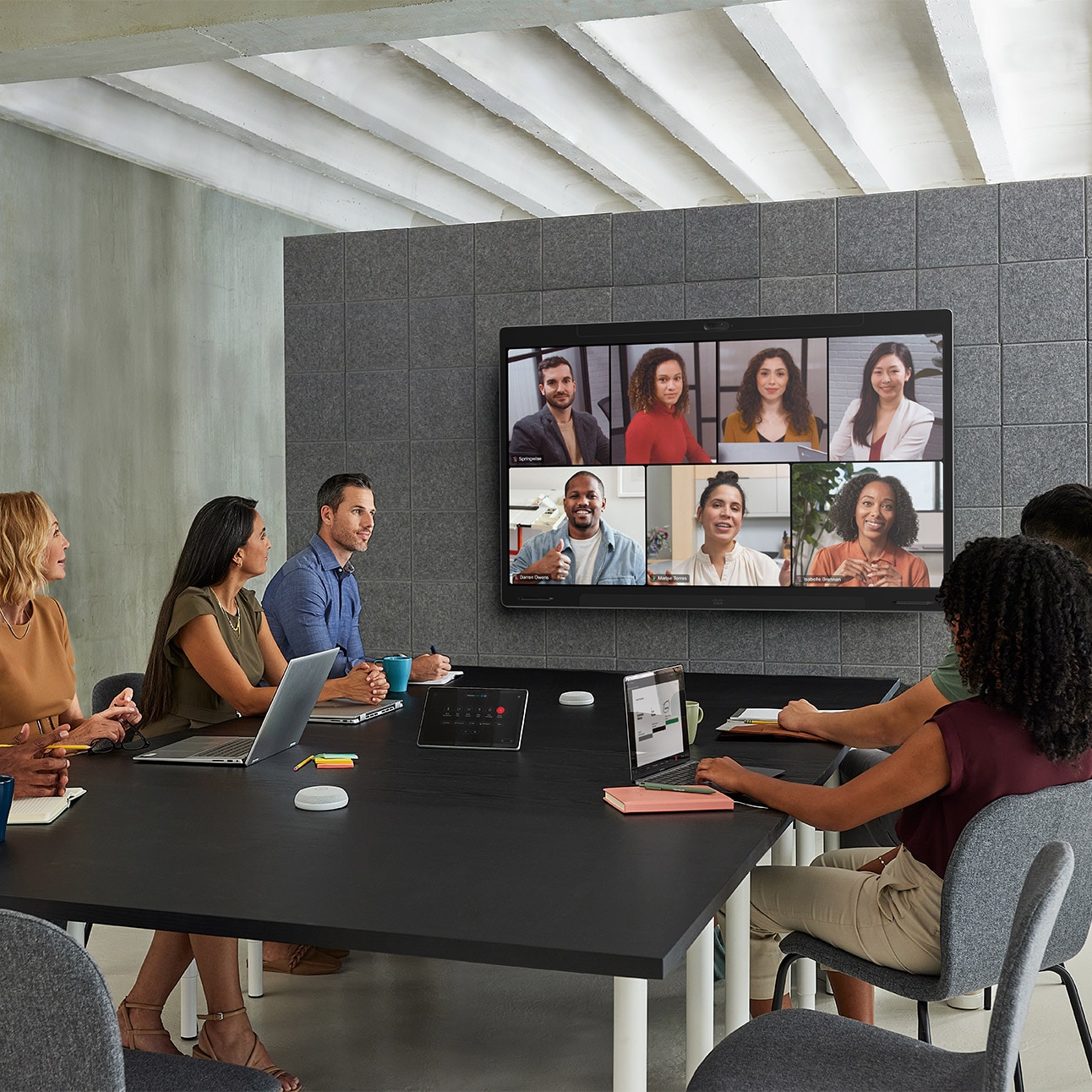

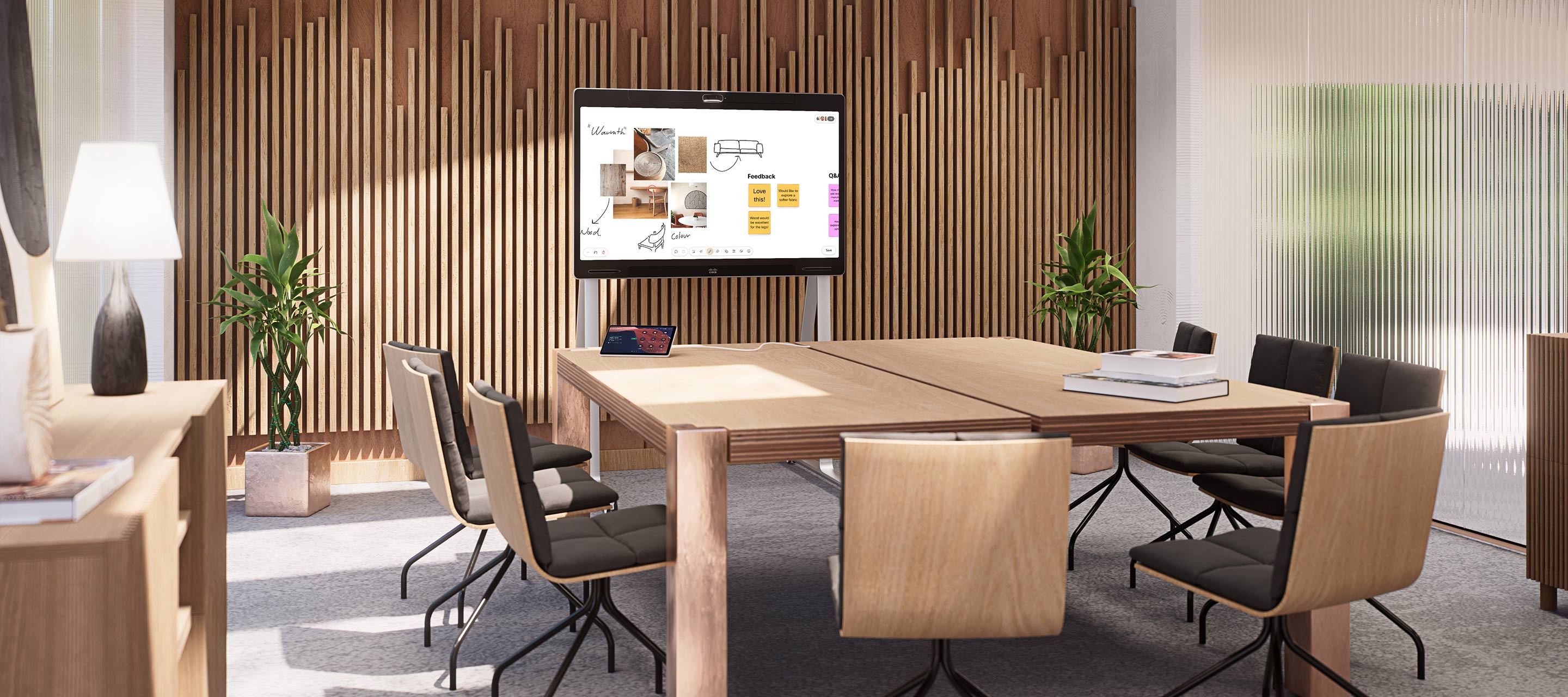

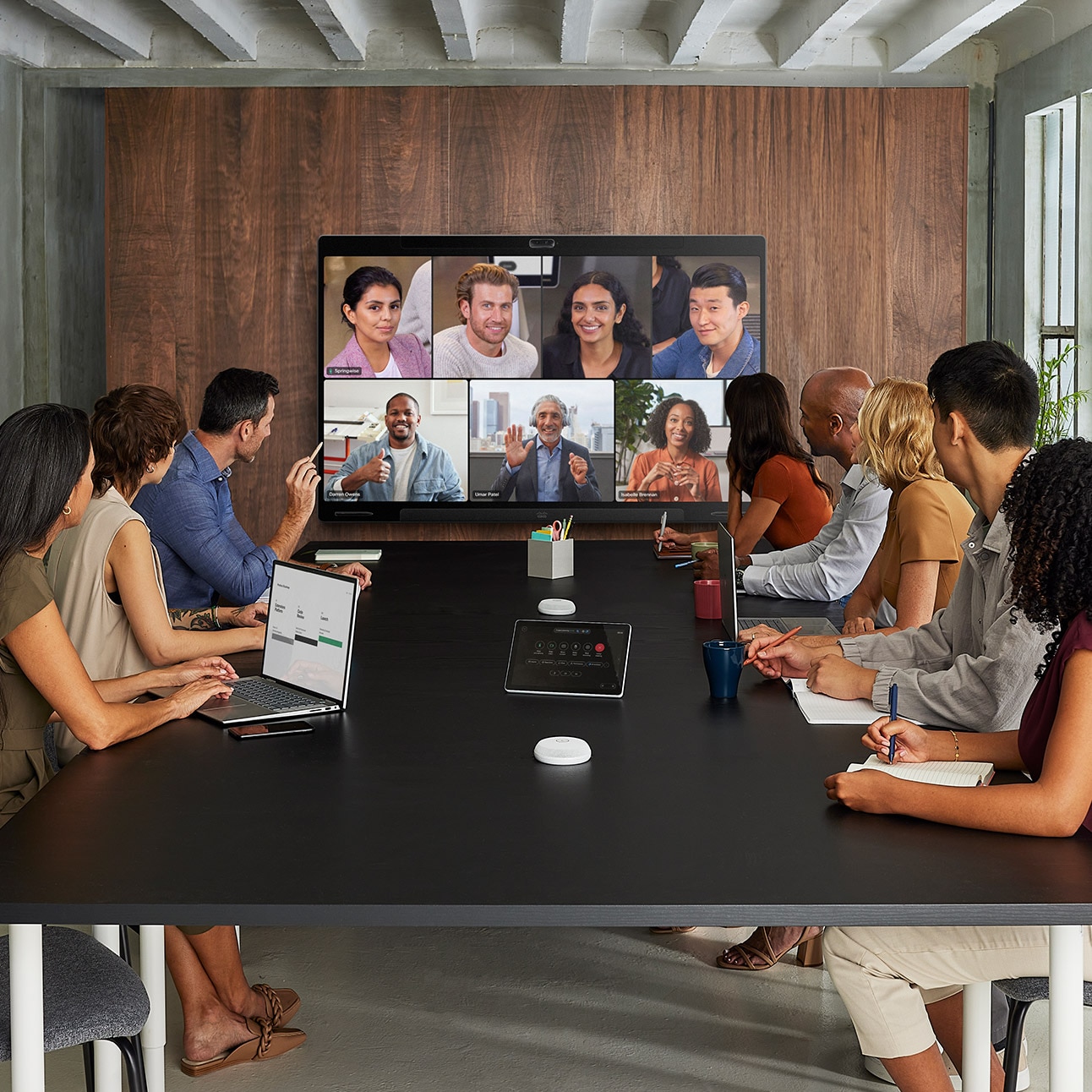

    Reimagine your workspace.

    Jump into an immersive workspace experience and tour the latest innovations powering hybrid work.

    Control your deployment.

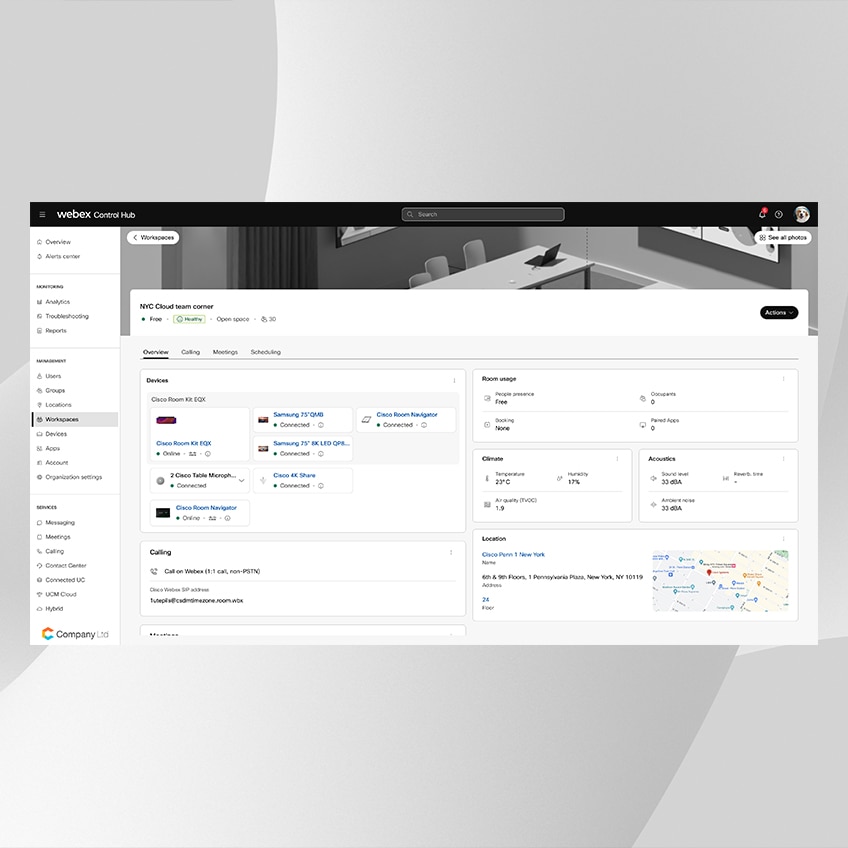

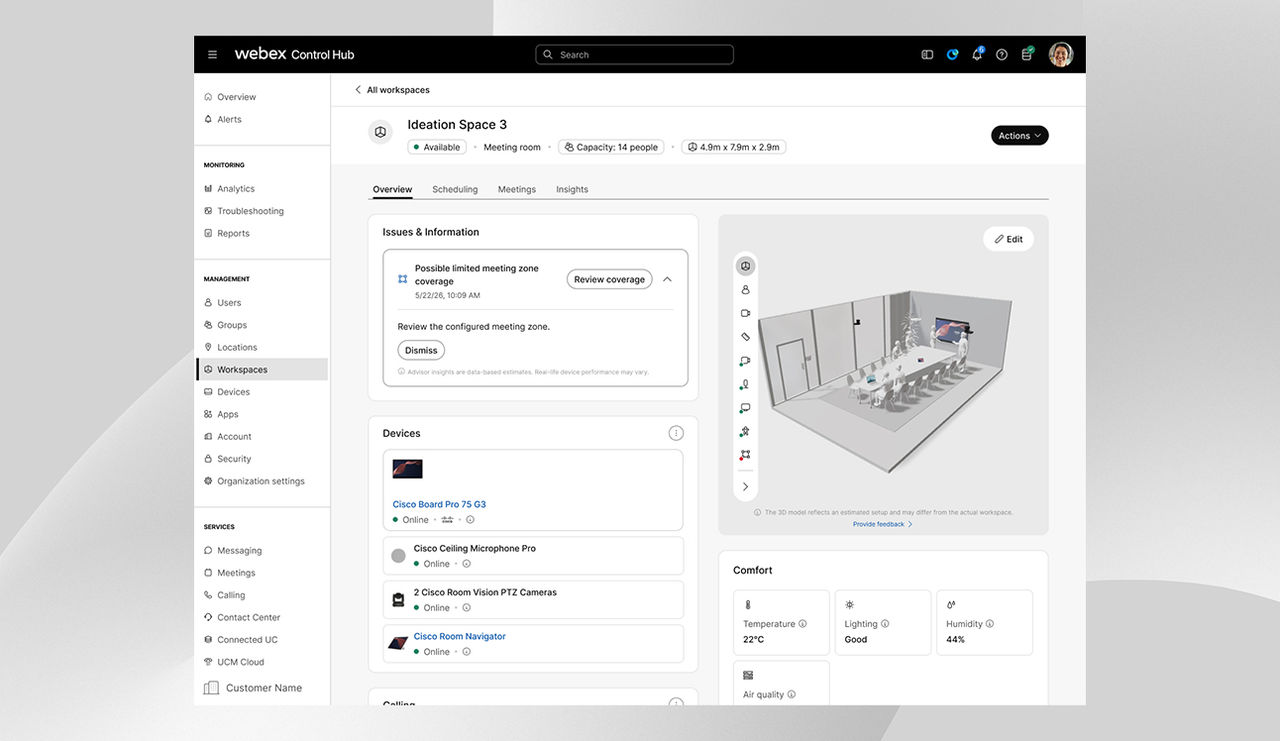

    Board Pro is easy to deploy and maintain with a unified cloud admin experience for management, analytics, and workspace insights via Control Hub.

    Deploy right out of the box
    Configure and manage with ease. Scale effortlessly based on your organization’s needs, whether in the cloud, on premises, or as a hybrid solution.
    Smart customizations
    Enable smart customizations via macros and custom APIs, such as digital signage, visitor management, and occupancy alerts.

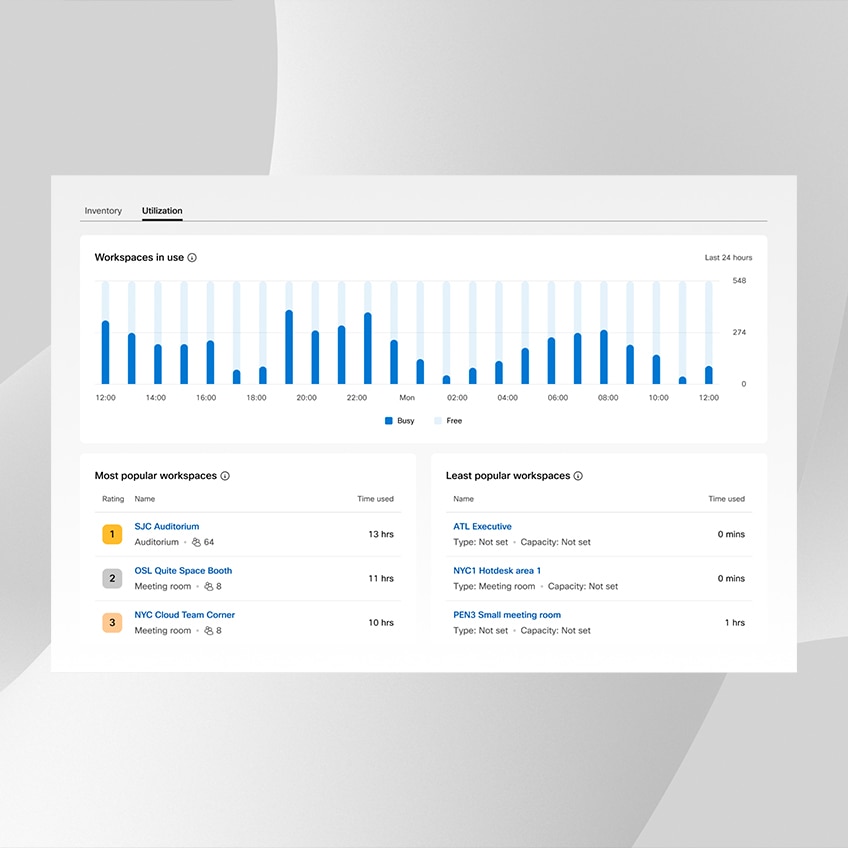

    Workspace intelligence
    Board Pro detects you, self-activates, and tracks occupancy. With Room Navigator, gain seamless room controls and environmental data to support productivity, safety, and well-being.

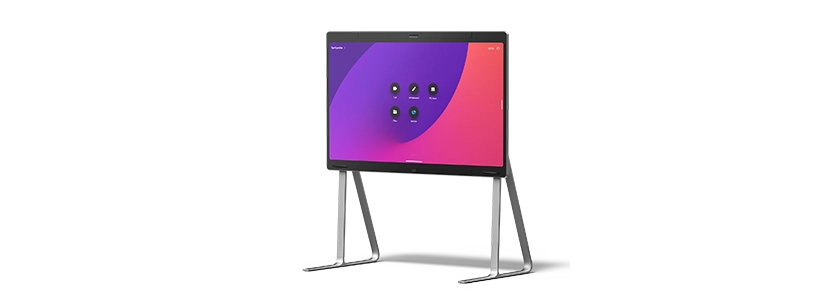

    Compare the Cisco Board Pro room devices.

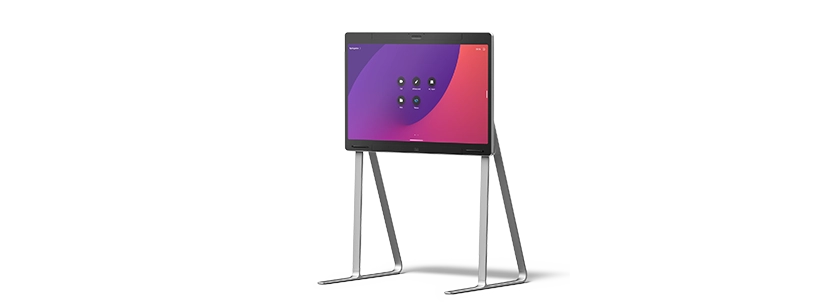

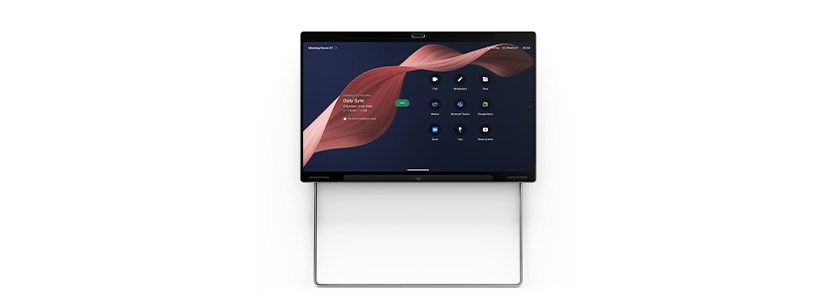

    Cisco Board Pro 55
    Cisco Board Pro 75

    Huddle spaces and small meeting rooms

    Workspace coverage

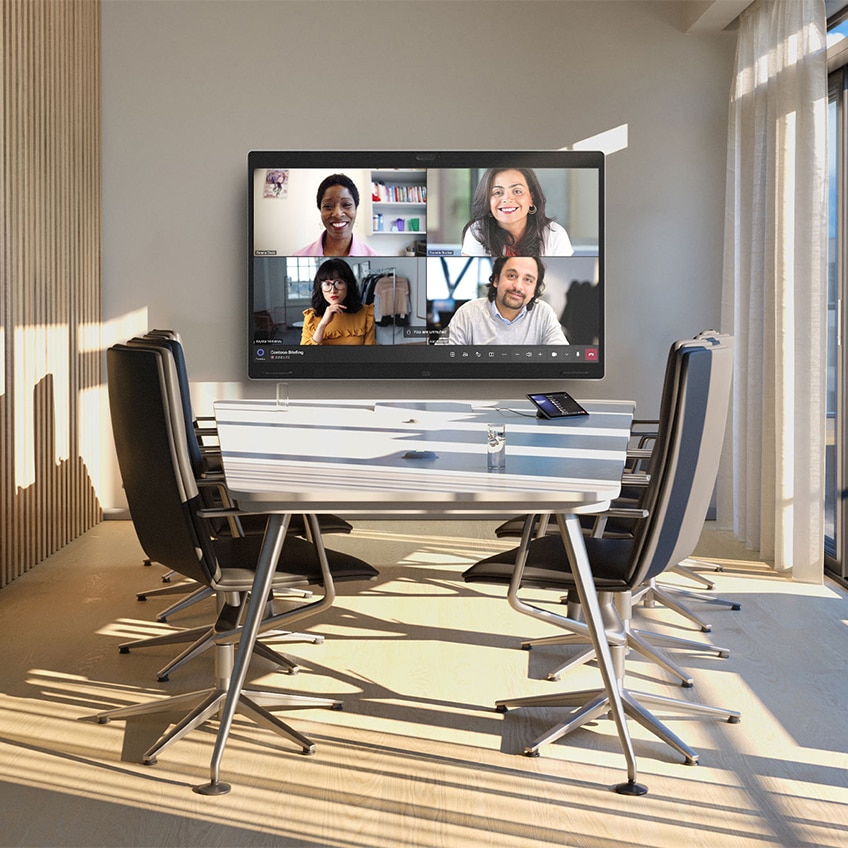

    Small-to-medium meeting rooms,
    training rooms and classrooms

    Workspace coverage

    55"

    Screen size

    75"

    Screen size

    40kg

    Weight of main unit

    72kg

    Weight of main unit

    855 mm x 1278 mm x 80 mm
    (33.7" x 50.3" x 3.15")

    Dimensions of main unit

    1102 mm x 1719 mm x 86 mm
    (43.4" x 67.7" x 3.39")

    Dimensions of main unit

    855 mm x 1278 mm x 92 mm
    (33.7" x 50.3" x 3.62")

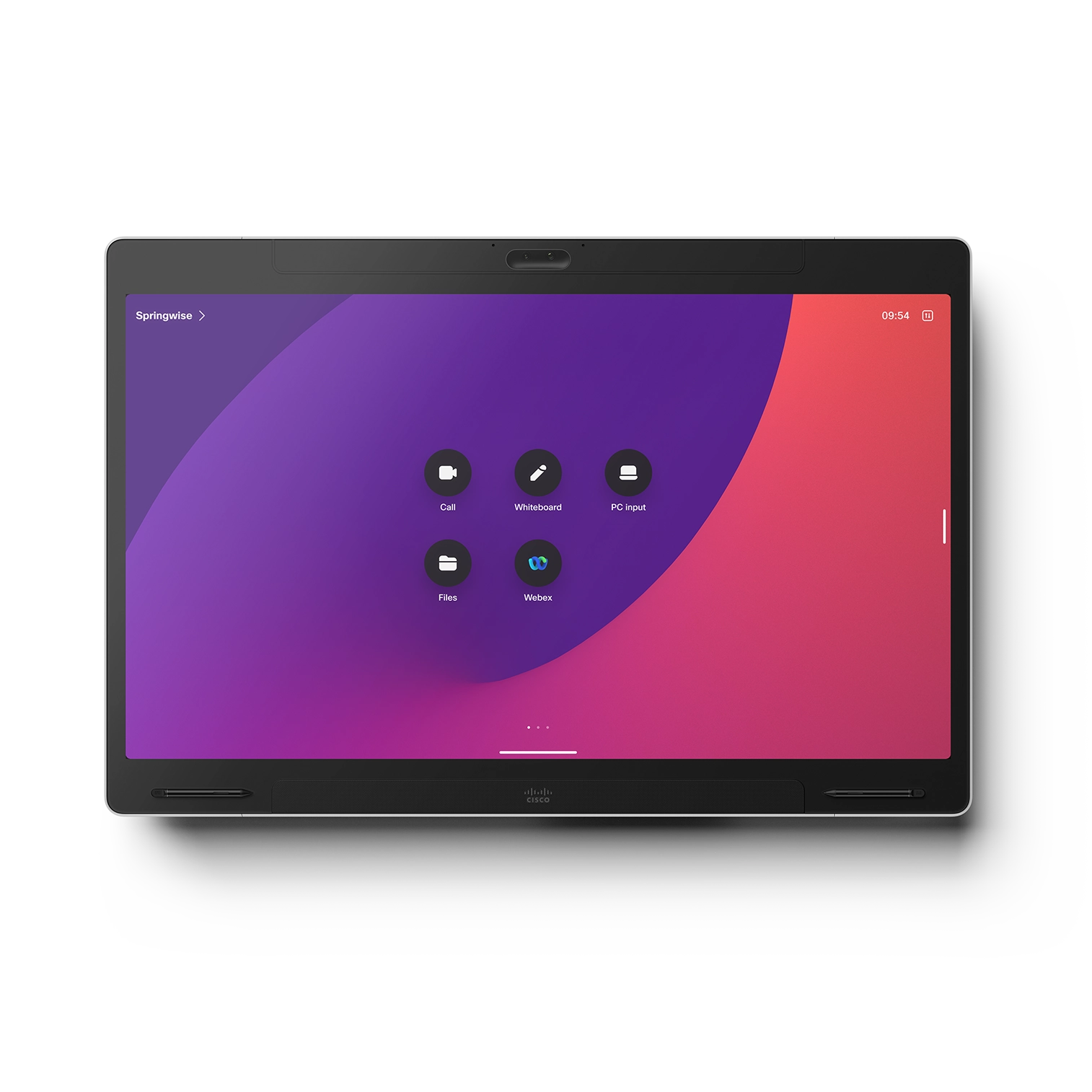

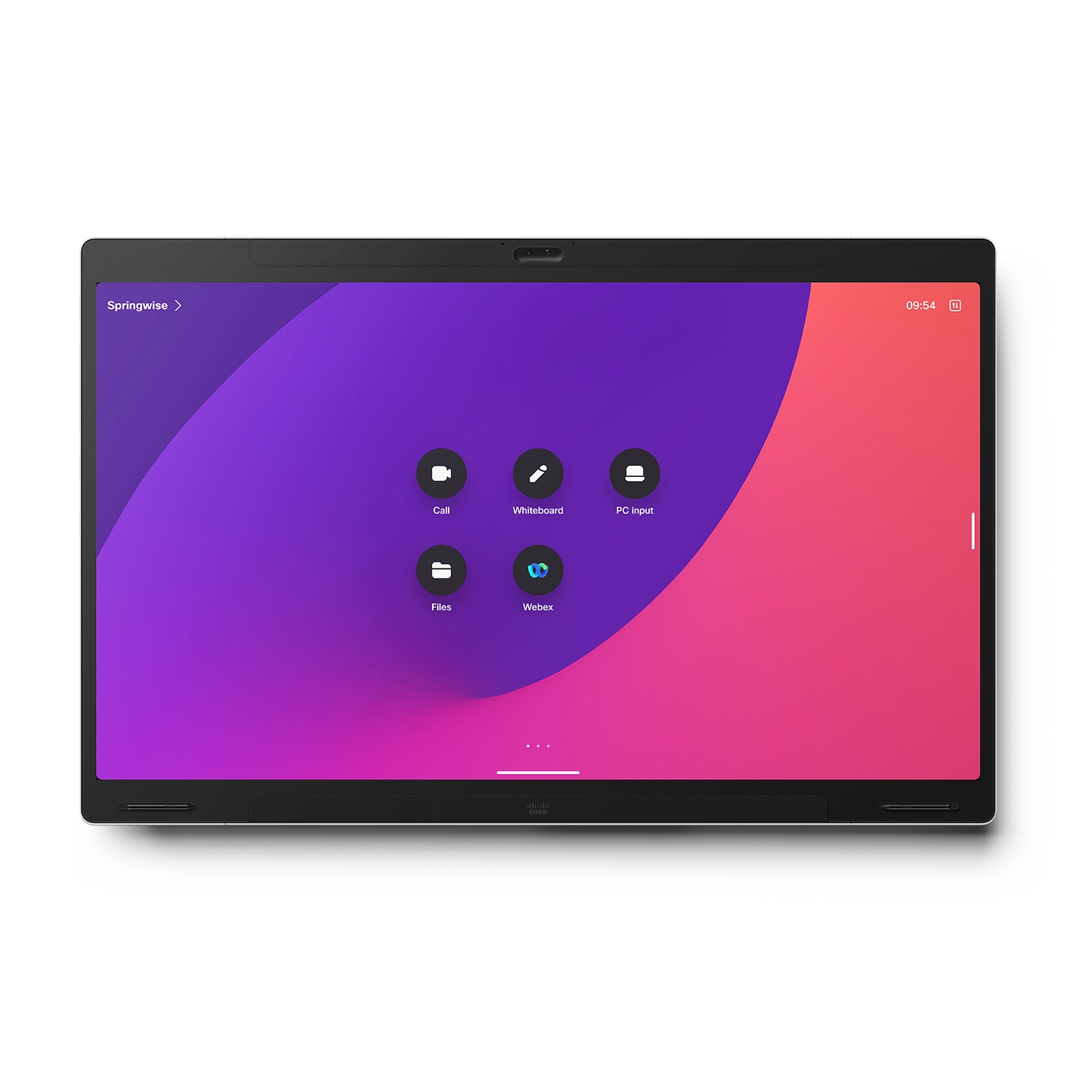

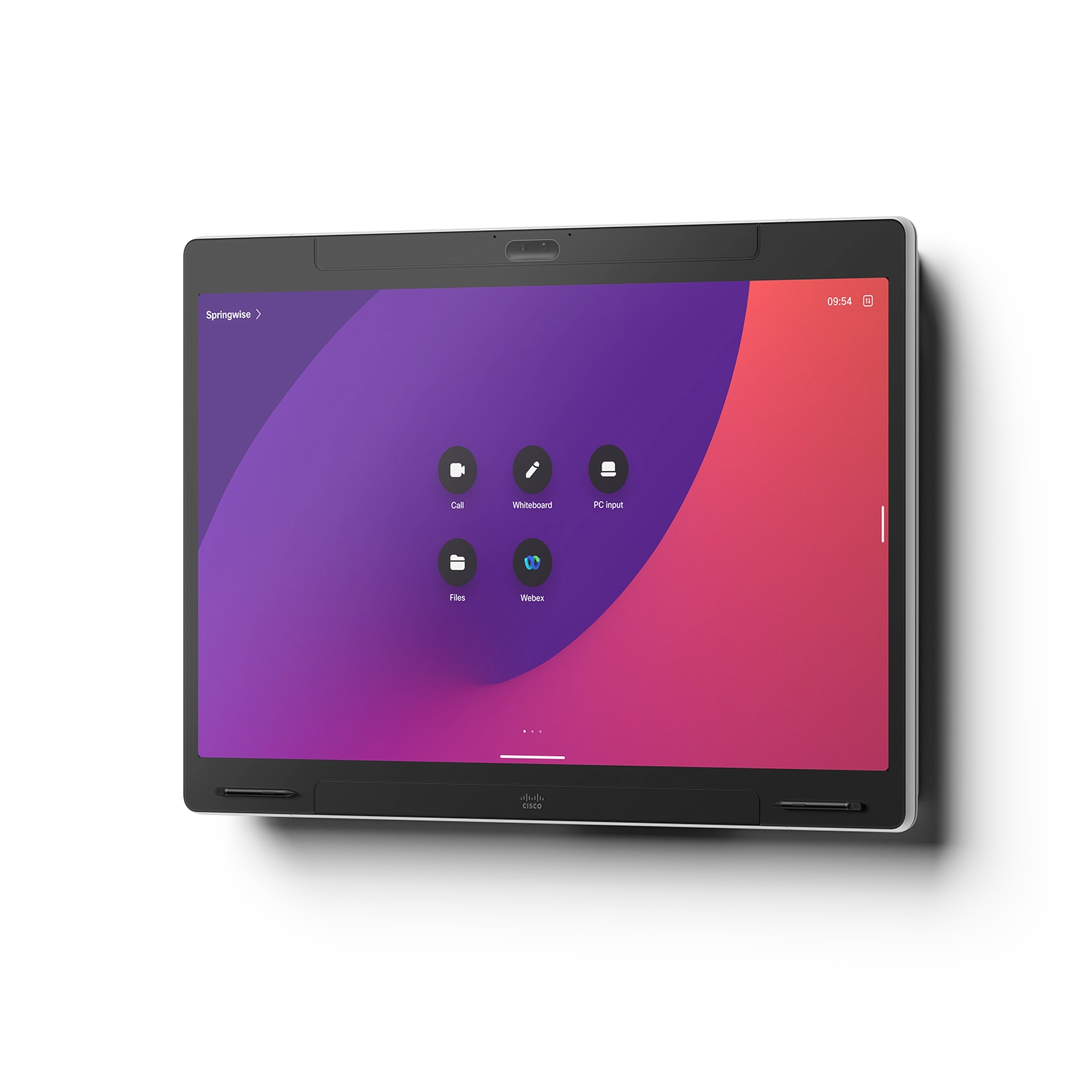

    Dimensions with wall mount

    1102 mm x 1719 mm x 95 mm
    (43.4" x 67.7" x 3.74")

    Dimensions with wall mount

    1778 mm x 1278 mm x 944 mm
    (70" x 50.3" x 37.2")

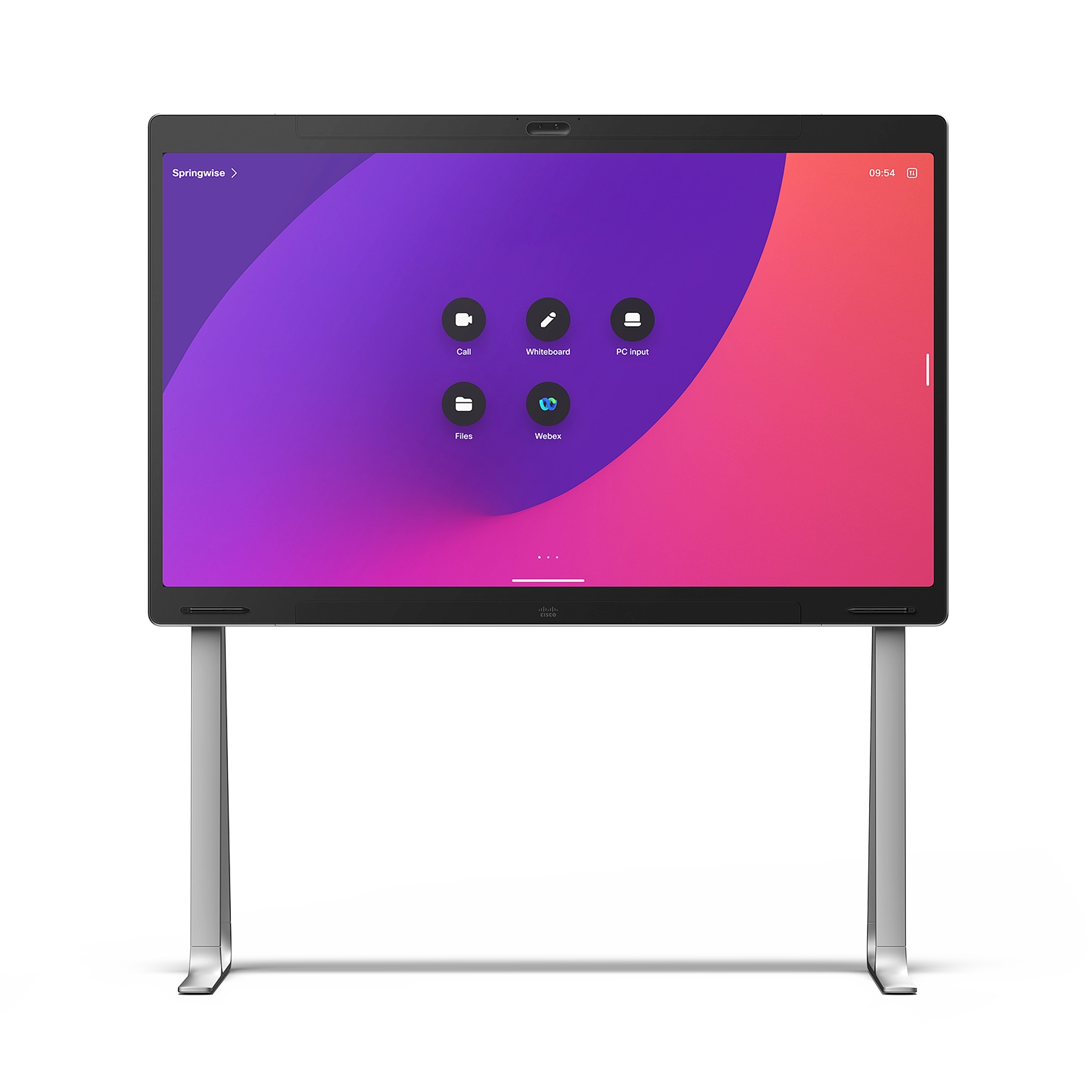

    Dimensions with floor mount

    1866 mm x 1719 mm x 926 mm
    (73.5" x 67.7" x 36.5")

    Dimensions with floor mount

    1819 mm x 1278 mm x 1115 mm
    (71.6" x 50.3" x 43.9")

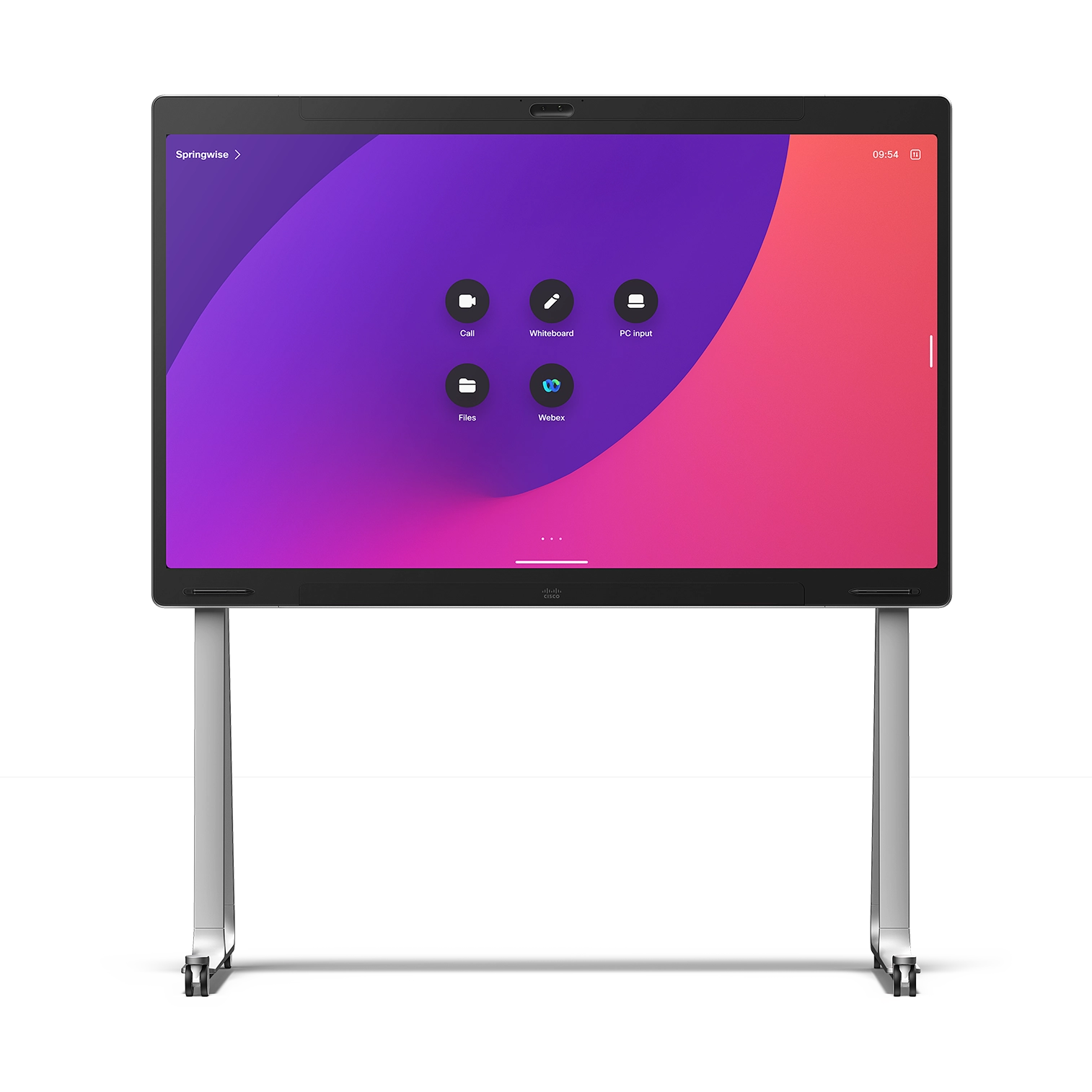

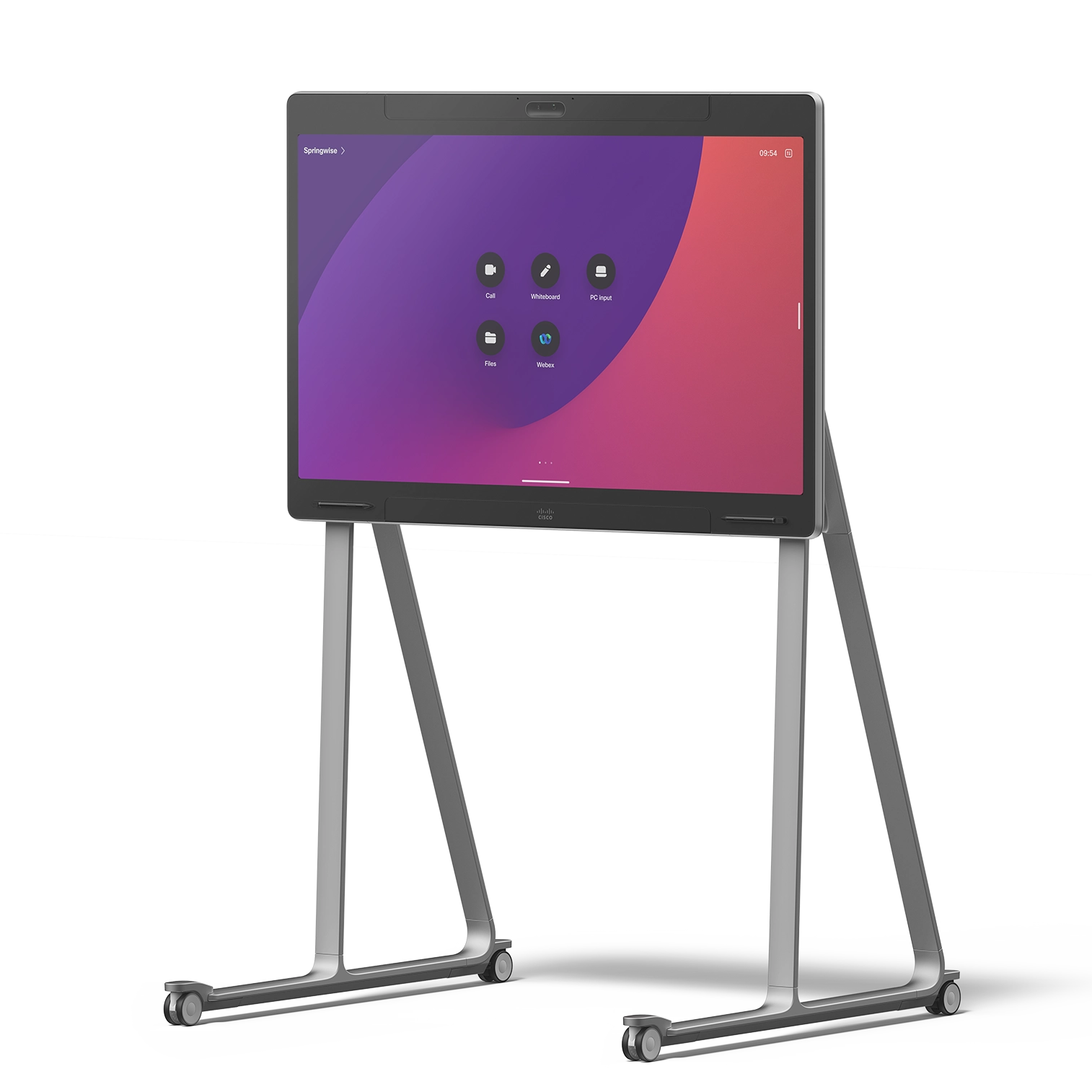

    Dimensions with wheel stand upgrade

    1905 mm x 1719 mm x 1091 mm
    (75" x 67.7" x 43")

    Dimensions with wheel stand upgrade

    Yes

    Dual 4K camera with auto-framing and speaker tracking

    Yes

    Dual 4K camera with auto-framing and speaker tracking

    4Kp60 UHD (3840x2160) /16:9)

    Screen resolution

    4Kp60 UHD (3840x2160) /16:9)

    Screen resolution

    Yes

    Noise-cancelling, beamforming microphone array

    Yes

    Noise-cancelling, beamforming microphone array

    Yes

    Integrated multi-channel speakers and separate woofers for spatial audio

    Yes

    Integrated multi-channel speakers and separate woofers for spatial audio

    Yes

    Capacitive multi-touch LCD screen

    Yes

    Capacitive multi-touch LCD screen

    Yes

    2 active stylus pens

    Yes

    2 active stylus pens

    Yes

    Wheel-stand upgrade

    Yes

    Wheel-stand upgrade

    Yes

    USB passthrough for touch redirect, content share, and BYOD conferencing

    Yes

    USB passthrough for touch redirect, content share, and BYOD conferencing

    Yes, optimized for use with the Cisco Room Navigator

    Touch controller

    Yes, optimized for use with the Cisco Room Navigator

    Touch controller

    RoomOS for native Webex meetings and video interop;
    Microsoft Teams Rooms (coming soon)

    Platform support

    RoomOS for native Webex meetings and video interop;
    Microsoft Teams Rooms (coming soon)

    Platform support

    Yes

    External camera connection

    Yes

    External camera connection

    Yes, in Control Hub when cloud-registered

    Unified cloud management

    Yes, in Control Hub when cloud-registered

    Unified cloud management

    Technical specifications.

    The room device you want.
    The details you need.

    Default components

    • Fully integrated room device including:
      • Multi-touch 55- or 75-inch 4K LCD display
      • Dual 4K conferencing camera
      • 12-element microphone array
      • Integrated speakers and woofer
      • NVIDIA chipset
    • 2 active stylus pens
    • Ethernet cable (16.4 ft / 5 meters)
    • Country-specific power cord

    Optional components

    • Cisco Table Microphone

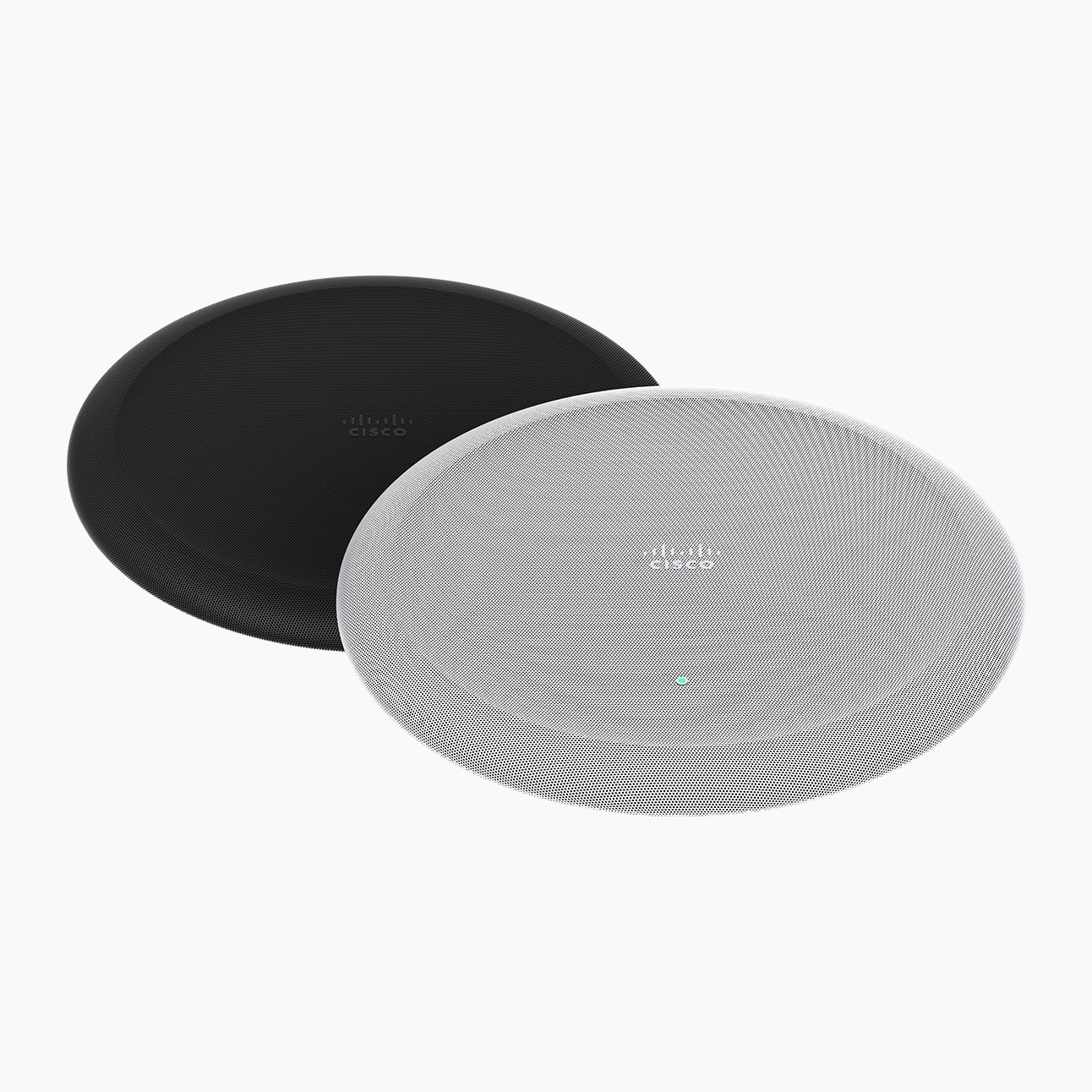

    • Cisco Ceiling Microphone

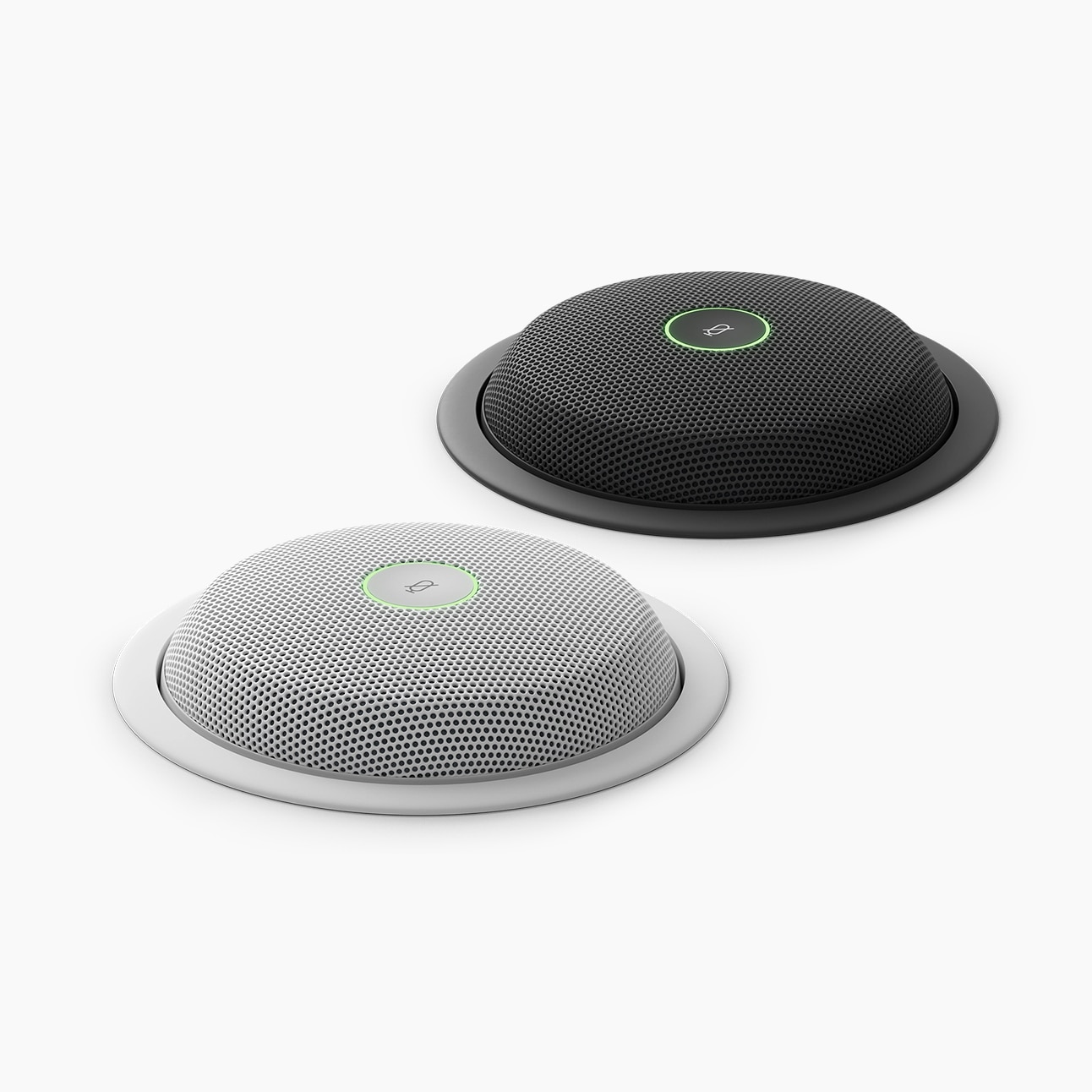

    • Cisco Table Microphone Pro*

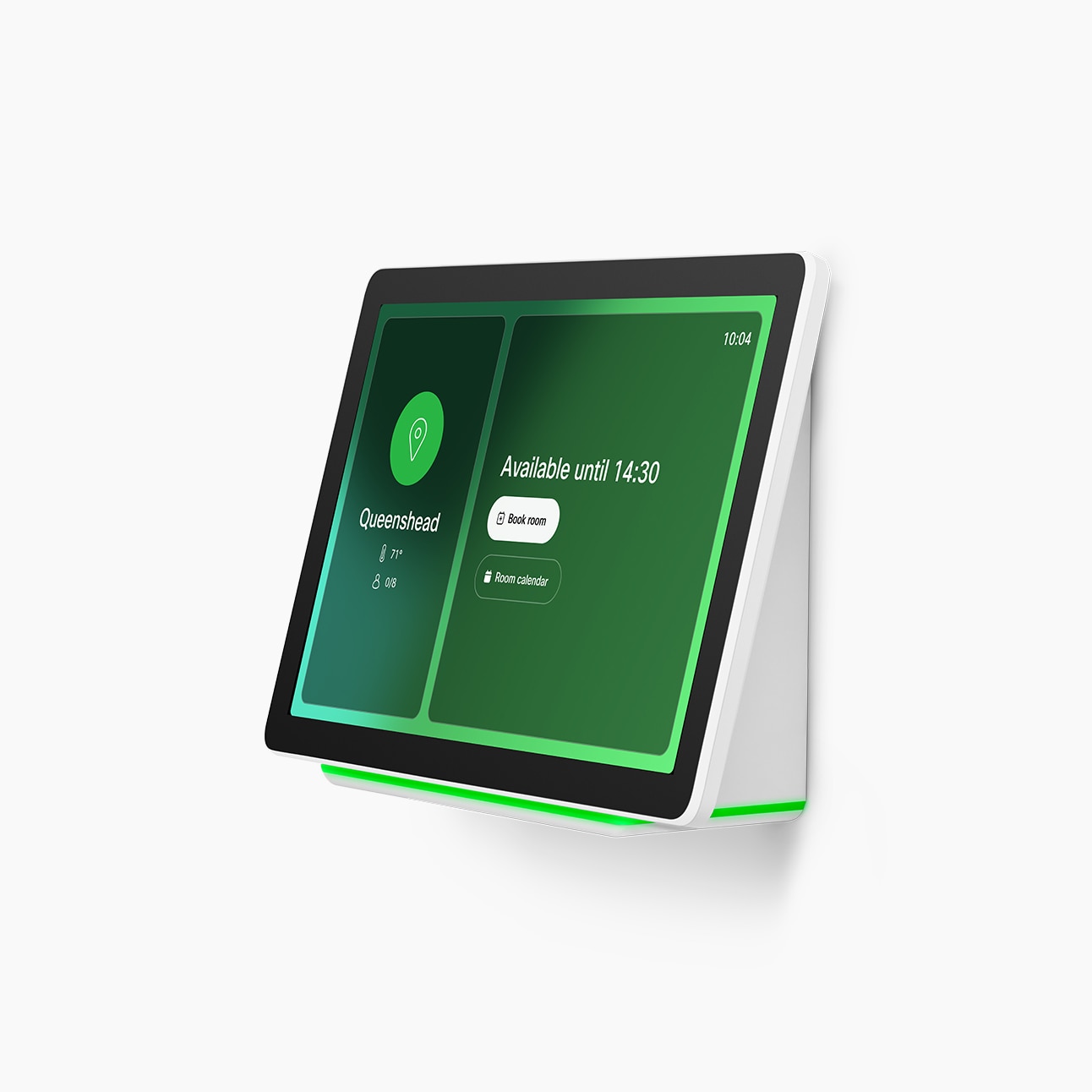

    • Cisco Room Navigator for Table
    • Cisco Room Navigator for Wall
    • HDMI presentation cables
    • Cisco Multi-head Cable, 4K
    • Cisco Active USB-C Cable, 9m, laptop charging

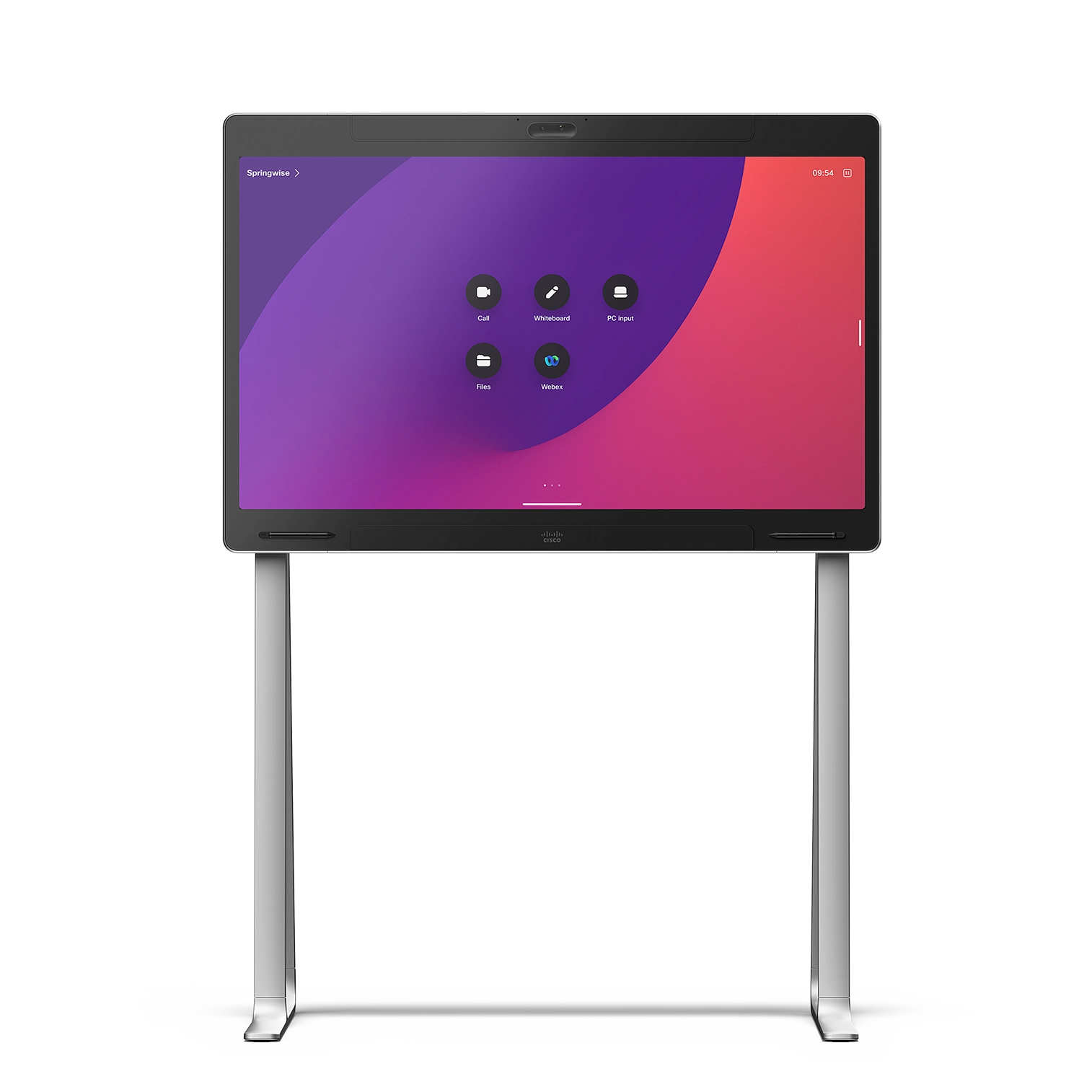

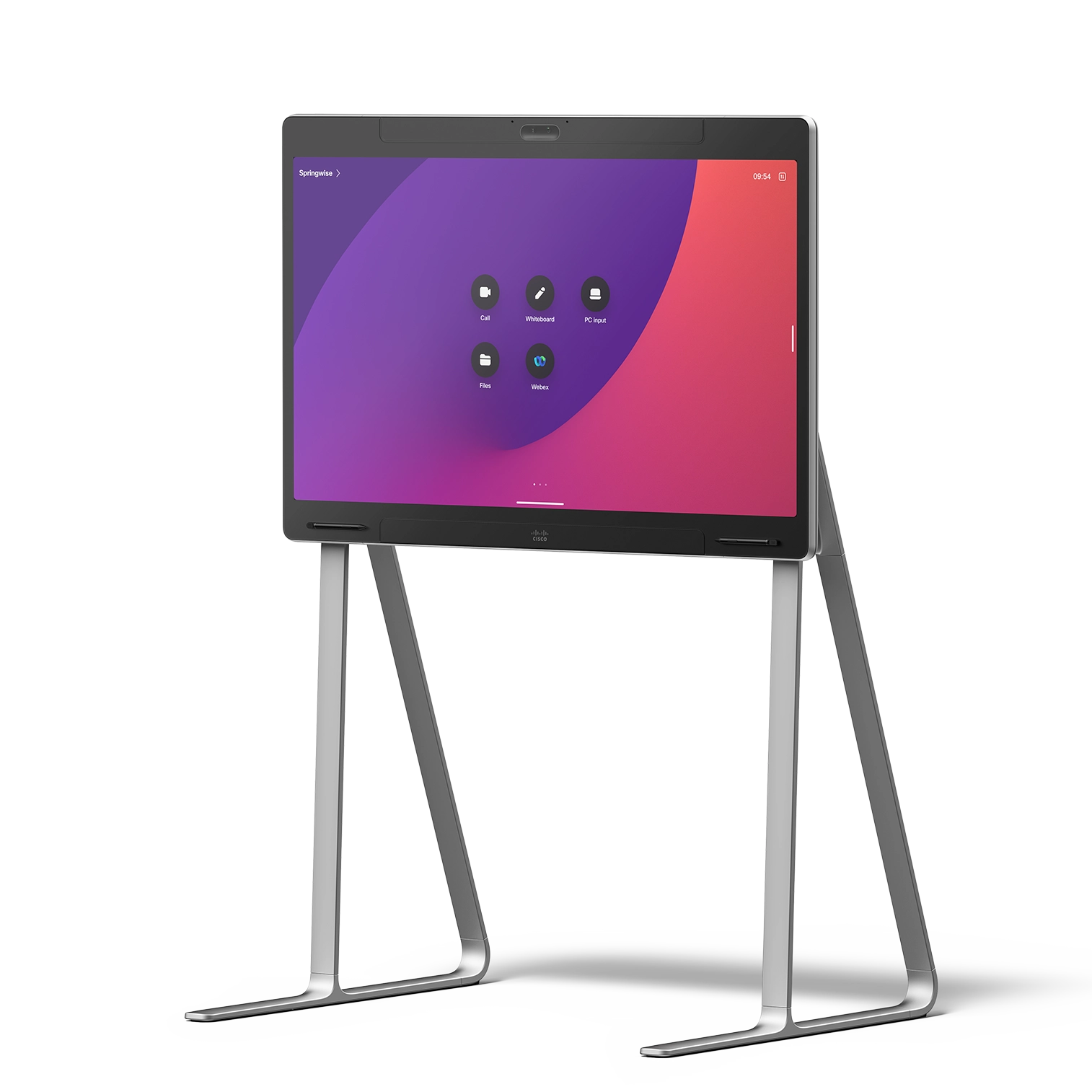

    • Floor stand, 55-inch version

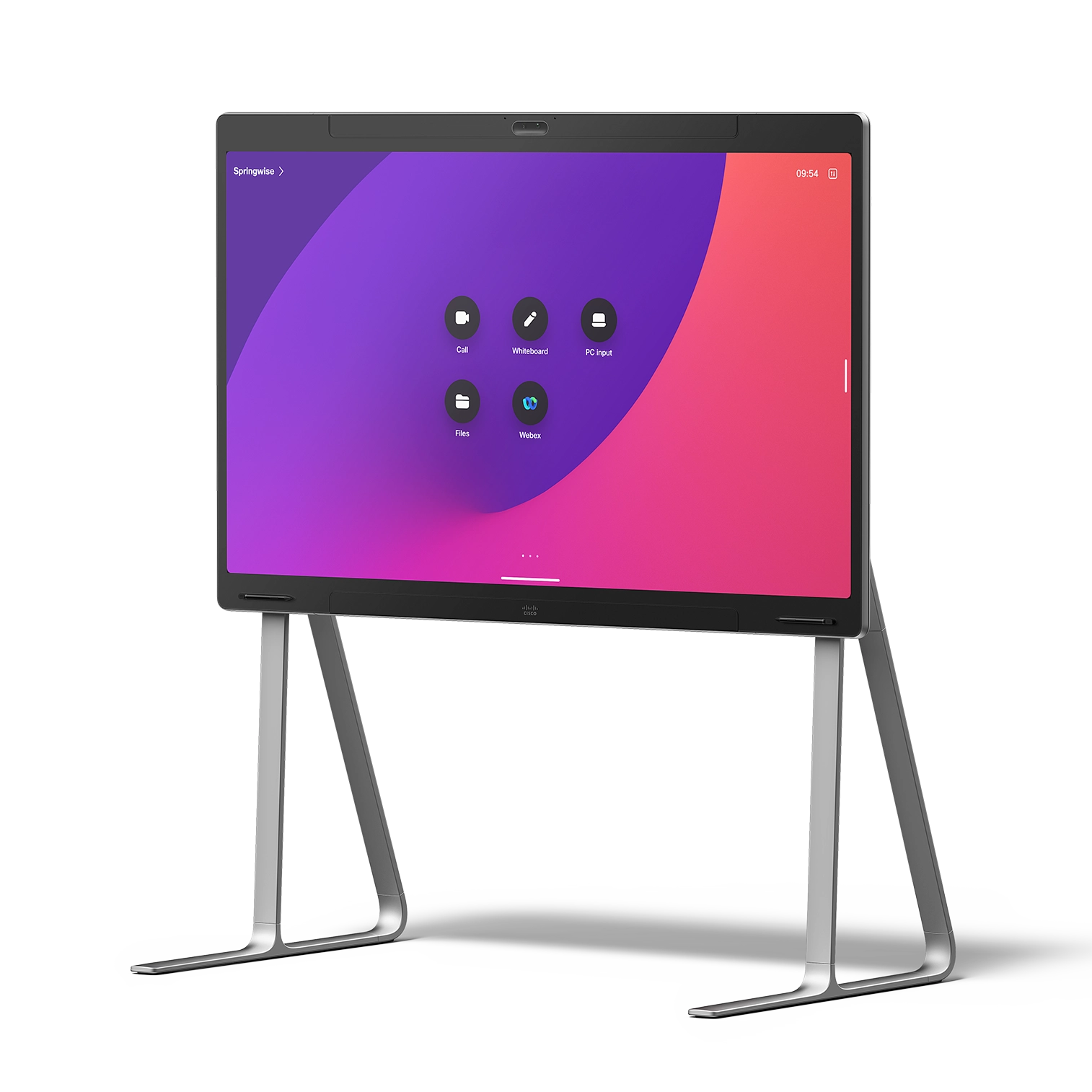

    • Floor stand, 75-inch version

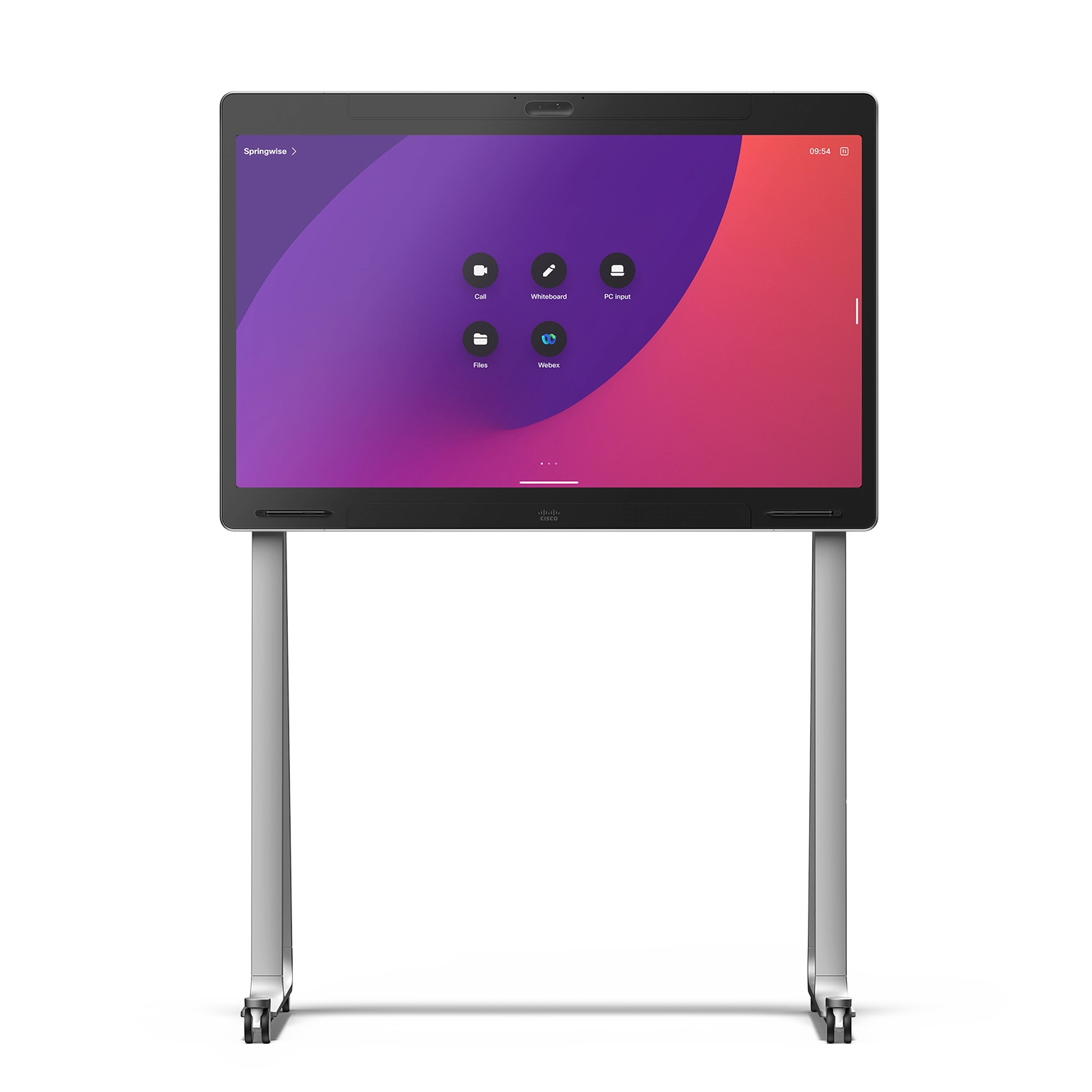

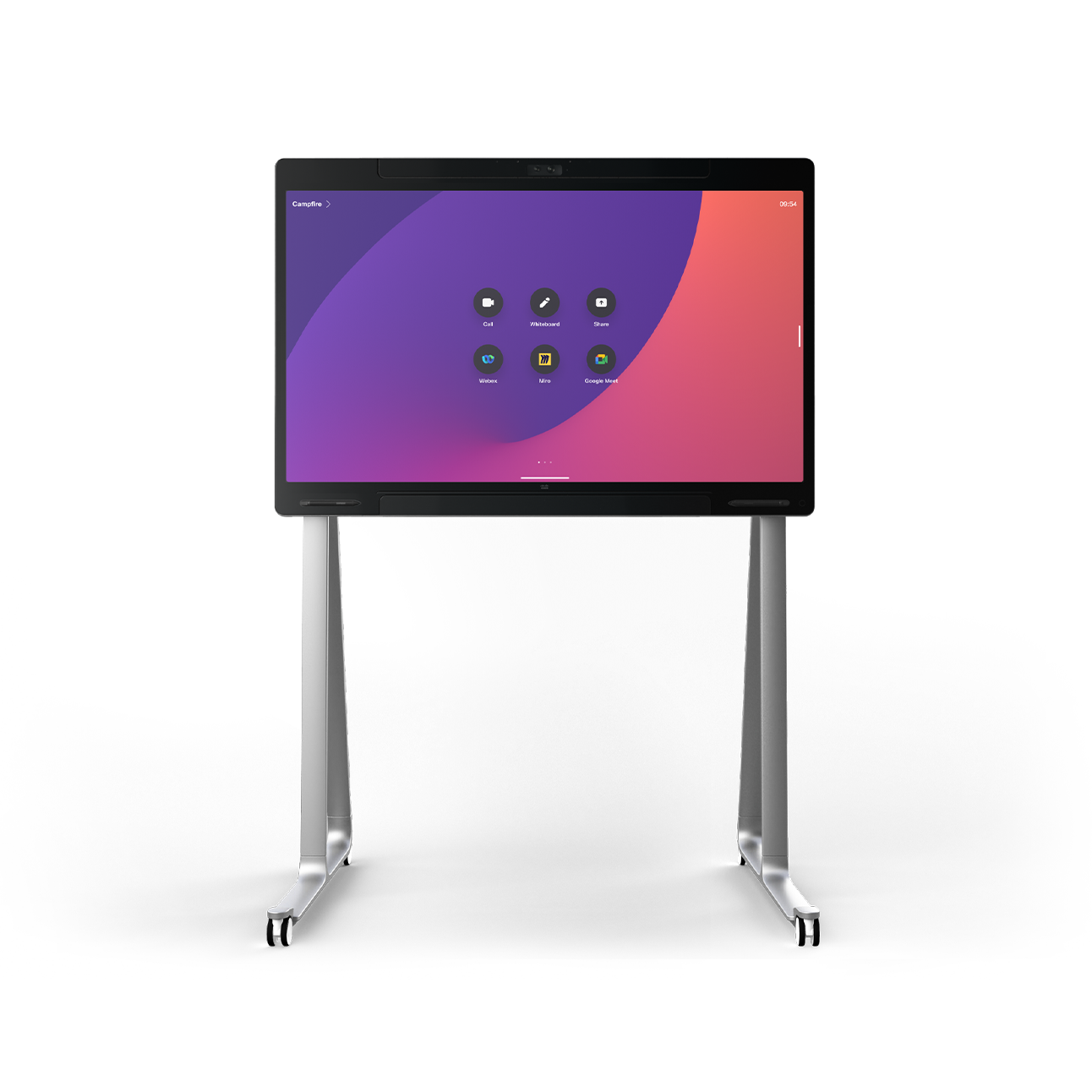

    • Wheel-stand upgrade for floor stand, 55-inch version
    • Wheel-stand upgrade for floor stand, 75-inch version

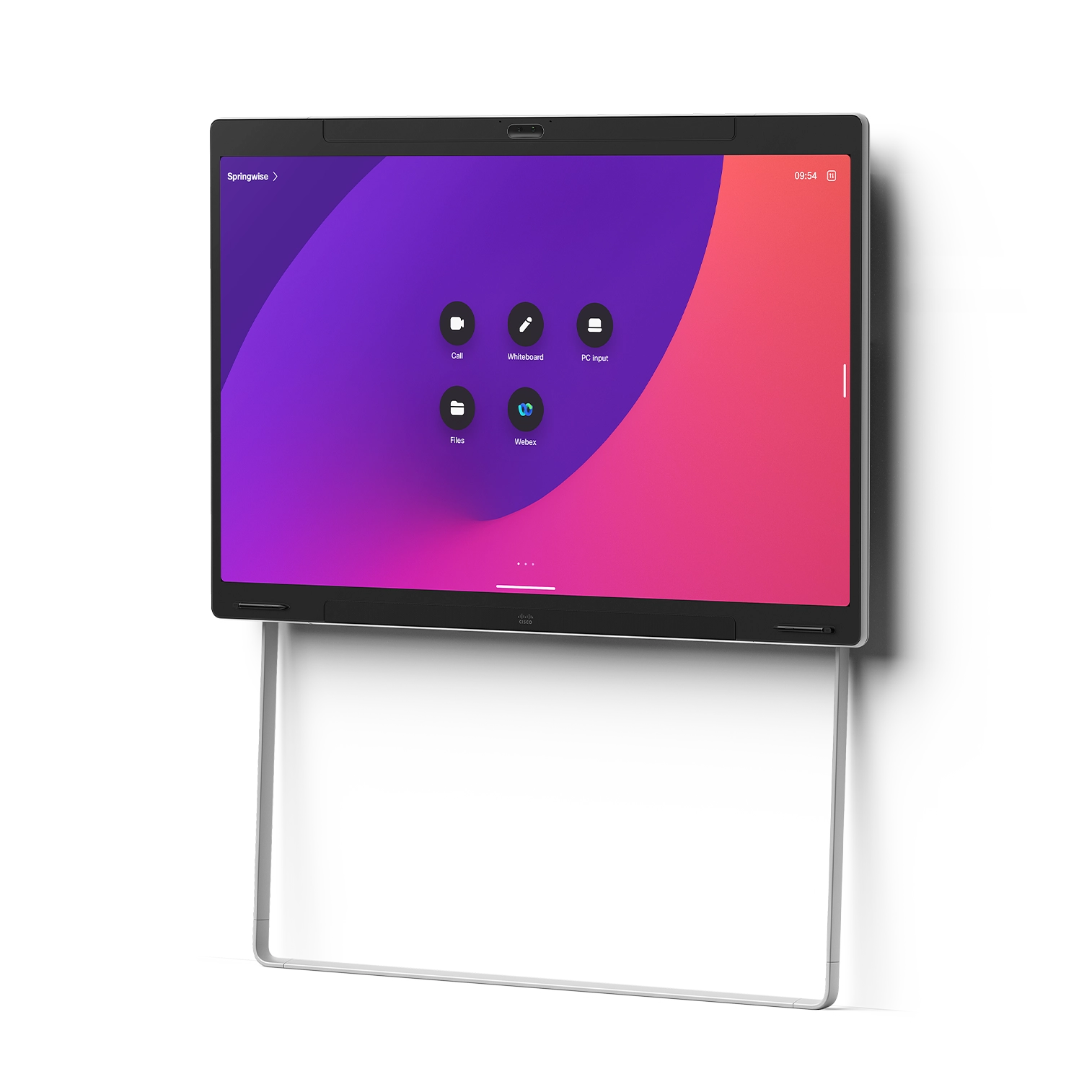

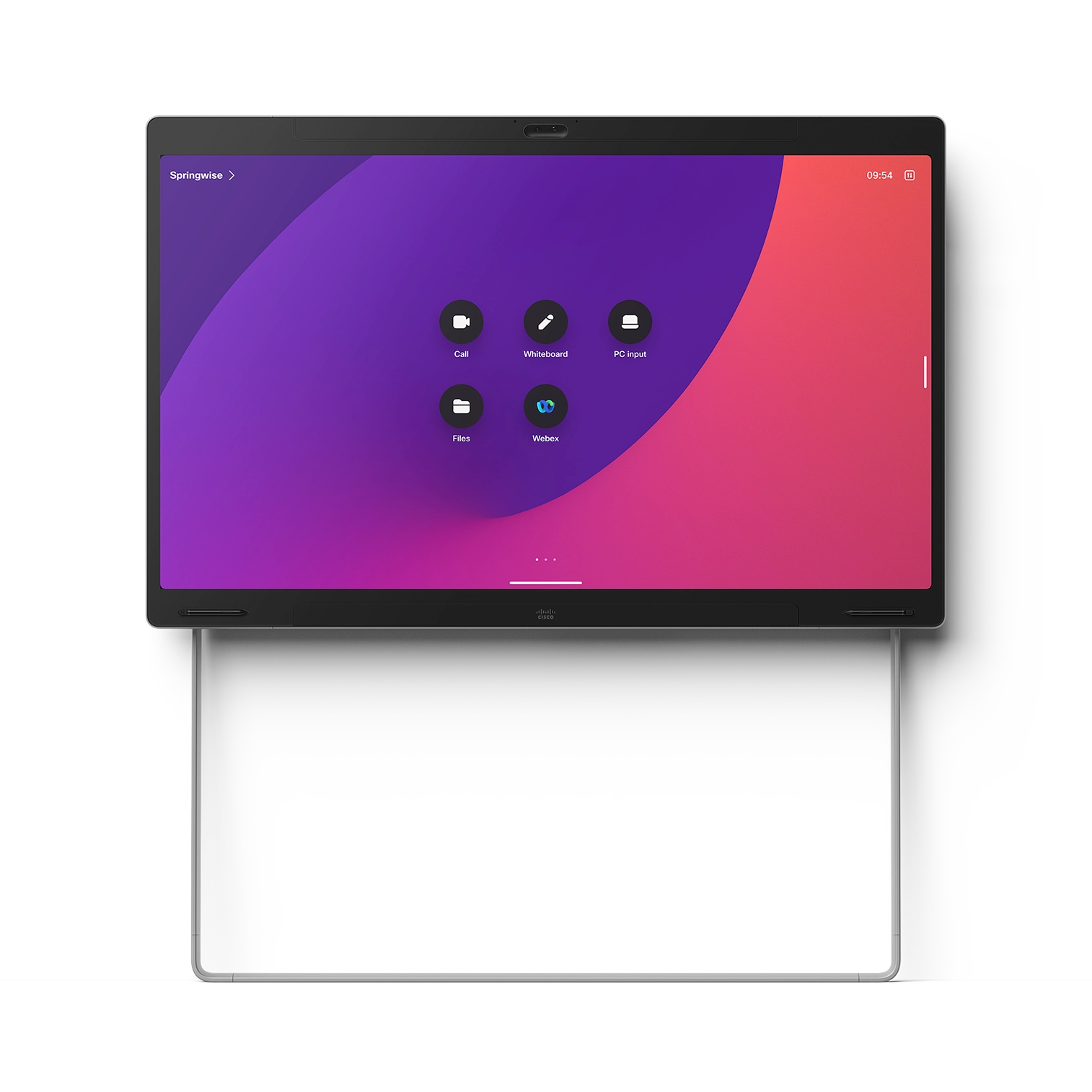

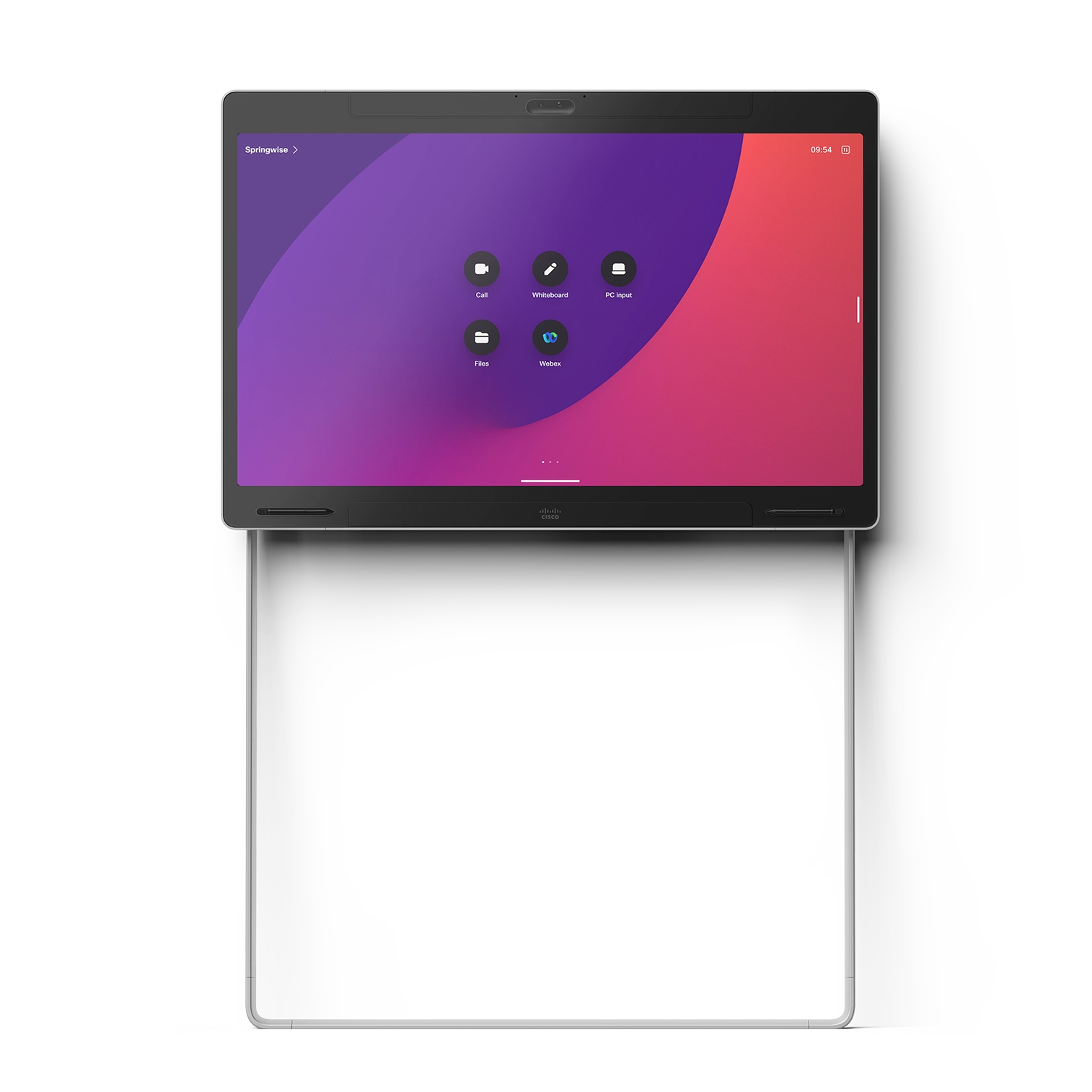

    • Wall stand kit, 55-inch version
    • Wall-stand adapter, 55-inch version
    • Wall-stand adapter, 75-inch version

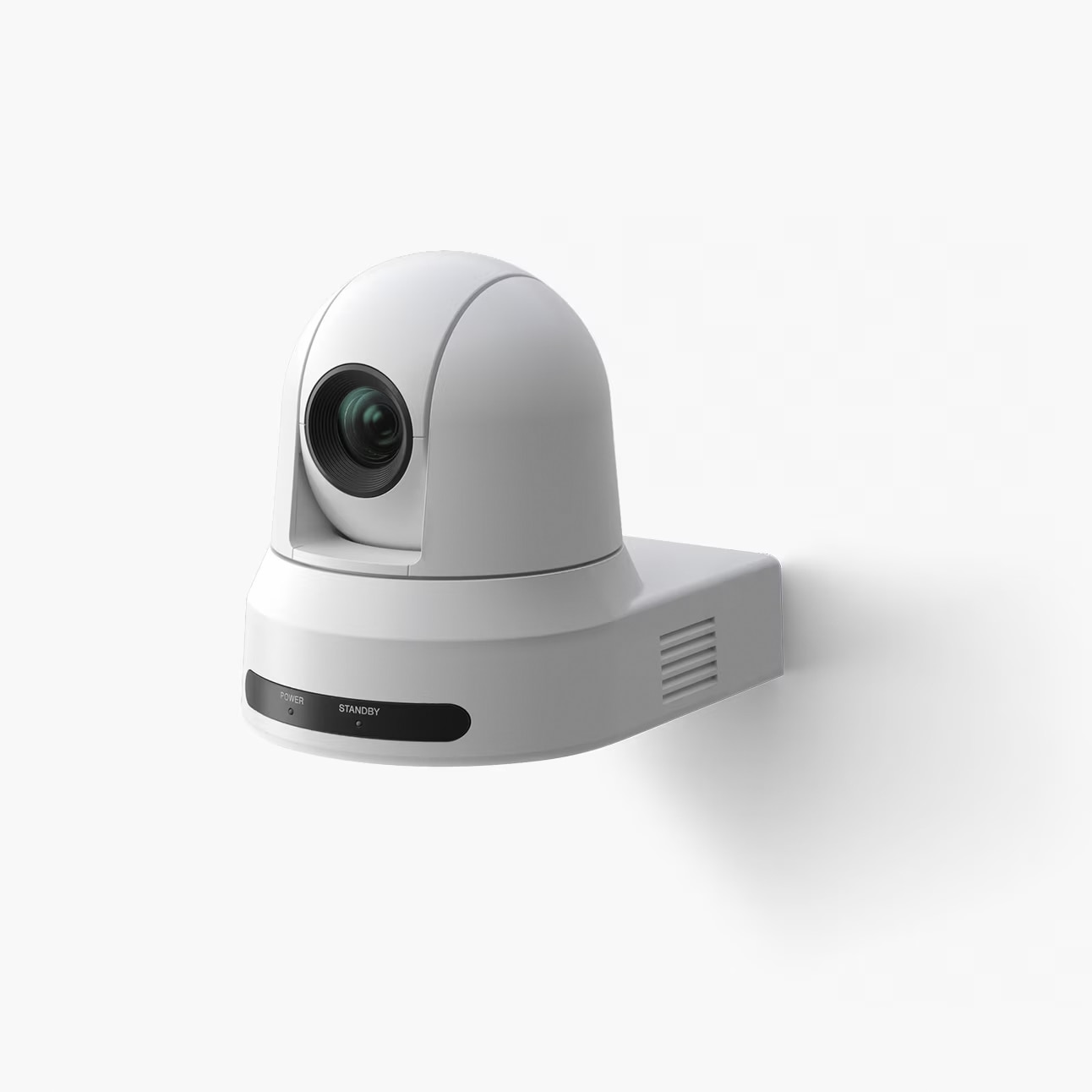

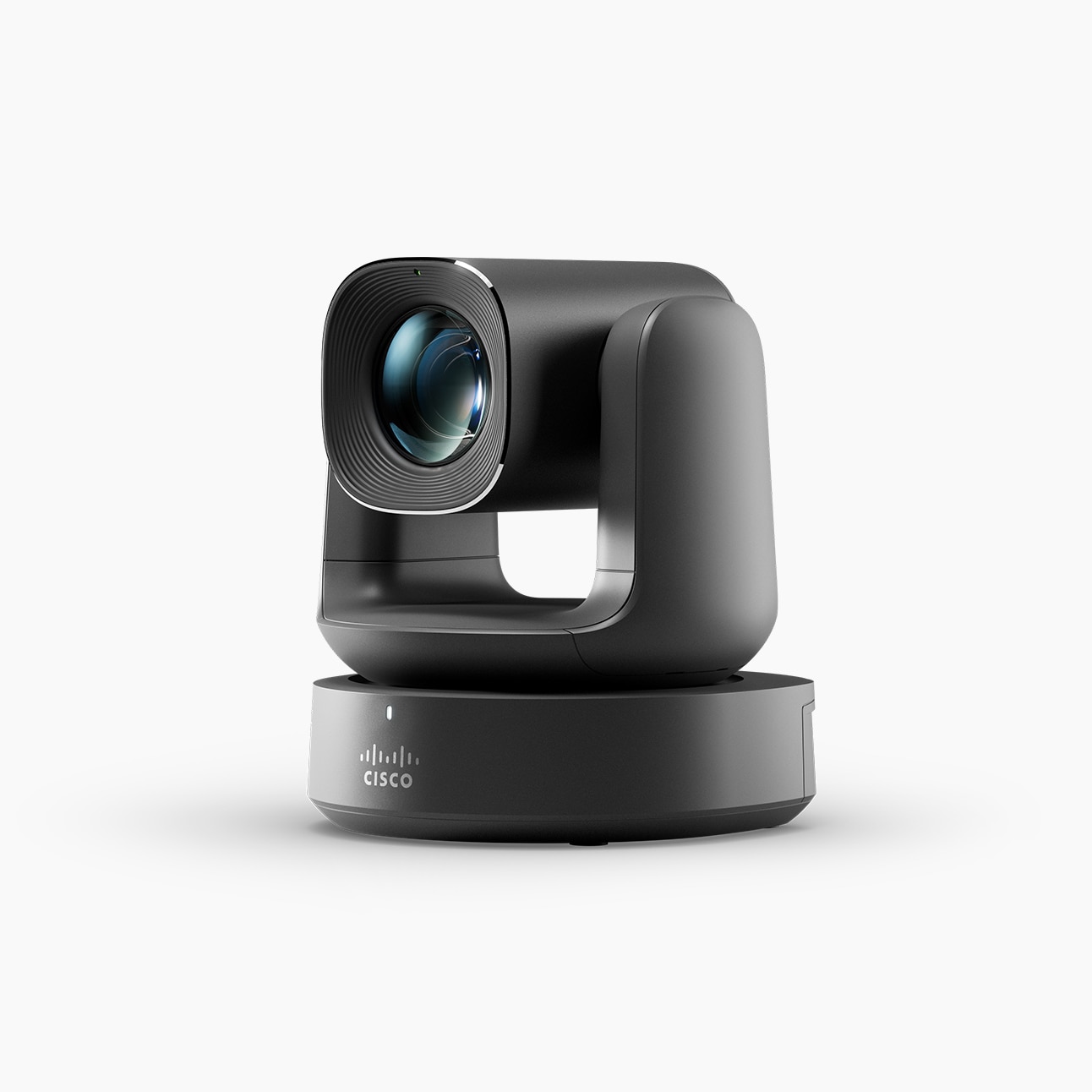

    • Cisco PTZ 4K Camera
    • Wall stand kit, 55-inch version
    • Wall-stand adapter, 55-inch version
    • Wall-stand adapter, 75-inch version

    Camera features

    • Dual 4K, 24 MP camera
    • Automatic Group view, Speaker view and Frames intelligent camera mode for equitable views
    • Automatic brightness and white balance
    • 5x manual zoom
    • 3x digital zoom via SpeakerTrack
    • Main camera:
      • 85° horizontal field of view, 64° vertical field of view
      • Dual f/1.7-f/2.4 aperture
      • 12 MP image sensor, 30 fps
      • Focus distance: 0.8m to infinity
      • 1/2.3" CMOS, PDAF technology
    • Ultra-wide camera:
      • 120° horizontal field of view, 90° vertical field of view
      • f/2.0 aperture
      • 12 MP image sensor, 30 fps
      • Fixed-focus
      • 1/2.3" CMOS

    Display features

    • 55-inch / 75-inch LCD monitor
    • In-cell projected capacitive touch screen
    • Resolution: 4K UHD (3840x2160) /16:9)
    • Display type: IPS LCD
    • Display size in inches: 55" or 75"
    • Luminance: Type 350 cd/m2
    • Viewing angle: +/- 89° (all directions
    • Number of colors: 1.07 billion (10bit)
    • Contrast: 1:1000
    • Response Time: 8ms
    • Active stylus and multi-touch enabled
    • Anti-glare and anti-fingerprint surface
    • Optically bonded cover glass

    Video features

    • USB-C DisplayPort Alternate Mode up to 3840 x 2160 at 60 fps (4Kp60)
    • HDMI 2.0 type A input supports formats up to 3840 x 2160 at 30 fps (4kp30)
    • Compatible with HDCP
    • HDMI 2.0 type A output supports up to 3840 x 2160 at 60 fps (4kp60) for a secondary display*
    • Screen resolution up to 3840 x 2160 at 60 fps (4Kp60)
    • Main video resolution up to 1920 x 1080 at 30 fps
    • Content sharing resolution up to 3840 x 2160 at 15 fps
    • Support for H.264 AVC, H.265 HEVC, H.263 video standards
    • Support for H.323, SIP, Webex, VIMT, and WebRTC protocols
    • Supports available Webex video stream layouts and meeting features, including people focus, grid, prominent, stack, and overlay
    • Supporting Frames intelligent camera control for optimized, equitable people framing on Webex and in third-party meetings
    • When configured for RoomOS, the solution supports meetings natively on Webex, as well as Microsoft Teams, Zoom, and Google Meet via video interoperability
    • Native support for Microsoft Teams Rooms on Android including the option to join native Webex meetings in MTR mode

    Audio features

    • Machine-learning-based noise removal helps block out unwanted background noise not eliminated by standard noise cancellation technologies
    • 12-element, built-in microphone array automatically modulates the active speaker so that clear audio is delivered to far-end participants
    • Advanced speaker tracking system ensures that the cameras always keep the speaker in focus.
    • Directional audio experience with multi-channel loudspeaker system including high-quality full-range drivers and separate force-cancelling woofers
    • 2x analog microphone inputs
    • 1x analog line out (stereo 3.5mm miniJack)
    • Support for G.711, G.722, G.722.1, G.729, AAC-LD, and Opus audio standards and protocols
    • Support for Acoustic Echo Cancellation (AEC), Active Lip Synchronization, Automatic Gain Control (AGC), De-Reverberation, full duplex audio, full-band audio, self-hear, and ultrasound technology
    • Option to extend with the directional Cisco Microphone Array table microphones providing a digital, adaptive voice pickup solution*

    Digital whiteboarding

    • Native support for the Webex Whiteboard app and the option to run third-party visual collaboration and productivity tools, such as Miro and Mural, either as secure web apps or as embedded apps in Webex meetings
    • With the Annotate-All feature, users can immediately write and draw on any content, mark up changes, or iterate on projects
    • Store whiteboards in the cloud in the Webex App, in OneDrive, or share them via email
    • Write with up to two stylus pens at the same time and zoom with your fingers
    • Easily move, add, and delete digital stickies
    • Active stylus allows selection, erase, and other advanced features on canvas
    • Button on the stylus pen allows to activate the contextual menu to pick colors, eraser and other option while interacting with the touch screen
    • Digital whiteboarding functionality available for local brainstorming and in video meetings, without having to leave the active call

    Presentations

    • Direct wireless sharing technologies supported:
      • Webex app (up to 3840 x 2160 at 5 fps)
      • Cisco Intelligent Proximity client (up to 3840 x 2160 at 15 fps)
      • Miracast (up to 1920 x 1080 at 60 fps) – Not available on Non radio version.
      • Apple AirPlay (up to 1920 x 1080 at 60 fps)
    • HDMI and USB-C video and content input for 4K presentations (HDMI input supports HDCP)
    • HDMI output to share content on any projector or secondary screen
    • Touch redirect connection with the Board Pro via USB-C transforms your PC into a board-size tablet
    • Content stream resolution up to 3840 x 2160 at 15 fps
    • External camera extension option with the Cisco PTZ 4K Camera to solve presenter tracking

    Room intelligence

    • Cisco Room Navigator touch panel (wall-mount or table-stand) for access to conference controls, room booking, room controls and workplace applications.
    • Powerful web engine allows users to connect to a web-based backend to automatically display static or interactive custom content for wayfinding, internal communications, workspace management, and other use cases when the Webex Board Pro is not in use.
    • It can display interactive floor maps and allow for an elevated employee/guest experience highlighting occupancy metrics, environmental conditions, and other workspace insights by using Cisco DNA Spaces.
    • Metrics: Counts people in the room via smart presence detection, enabling analytics for better resource planning
    • Supports Wi-Fi and Bluetooth® - Not available on Non Radio Version**
    • Control peripherals such as lights and blinds through the Room Navigator touch panel
    • Environmental sensors when connected to the touch device to measure humidity, temperature, noise levels and air quality
    • System “wakes up” when someone walks into the room, and recognizes them through their mobile device
    • Webex Assistant enables conference controls via voice commands and other touchless workflows
    • Customizations via macros for digital signage and other workspace applications

    Interfaces

    • 2x Ethernet
    • 1x HDMI input
    • 1x HDMI output
    • 1x USB-C
    • 1x USB-A
    • 1x service port
    • 2x analog microphone inputs
    • 1x analog audio line out
    • 1x power input

    Security features

    • Secure management using HTTPS and SSH protocols
    • End-to-end encryption for calls and meetings on Webex
    • Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
    • Password protection to access administration available on Room Navigator controller
    • Network settings protection

    Device management

    • For cloud deployments, the device is managed in Control Hub, providing a single pane of glass of system status, activation, configuration, metrics, workspace insights, and troubleshooting
    • For on-premises deployments, management via Cisco Unified Communications Manager or Expressway
    • In case of a hybrid deployment, Cisco Edge for Devices allows for linking your on-premises Cisco devices to the Webex Cloud and benefits from specific cloud features such as device management, monitoring, and analytics via Control Hub.


    * Dependent on future software release

    ** The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Cisco Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners.

    Dive deeper.

    Learn more about the Board Pro, Cisco collaboration devices, and how to equip your hybrid teams for success.

    Digital Whiteboarding for Hybrid Teams
    Teams work better when ideas are freely shared. Here’s how digital whiteboarding can help.
    Cisco Board Pro At-a-Glance Brochure
    Learn more about this next-generation collaboration device for hybrid teamwork.
    Cisco Board Pro CAD Drawings
    Download the Cisco Board Pro CAD drawings to support your workspace design and deployment.
    Cisco Board Pro Installation Guide
    Get all the tips you need to quickly set up your Cisco Board Pro installation guide.
    More Than Just a Board—The New Cisco Board Pro
    Learn more about this next-generation collaboration device for hybrid teamwork.
    Cisco Board Series Support Documentation
    Get all supporting documentation, guides, and notices about the Cisco Board Series.


    *Pricing provided is a recommended end-customer starting price for guidance and planning purposes only (not a list price). Actual price may vary by specific offer model/configuration and the country/region. This is not a binding offer from Cisco. Price does not include optional hardware accessories or Cisco Supported Services.

    Get started today.
