Cisco Room Kit EQ

Bring inclusive collaboration
to large spaces.

Watch Video Contact Sales
The Cisco Room Kit EQ show from the front with the Quad Camera video bar and Cisco Codec EQ.
The Cisco Room Kit EQ show from the front with the Quad Camera video bar and Cisco Codec EQ.
The Cisco Room Kit EQ show from the front with the Quad Camera video bar and Cisco Codec EQ.
80 MP
quad-lens camera
triple-screen support
20x
faster AI engine
USB passthrough

Precise. Intuitive. Breathtaking.

The Room Kit EQ is a next-generation video device bundle that seamlessly integrates with up to three external displays. Power your meetings with a modular room kit that includes the AI-powered Cisco Codec EQ, the intelligent Quad Camera video bar, an intuitive touch controller, and room peripheral options.

Coming Soon

Certified Cisco devices for Microsoft Teams Rooms

Enjoy the native Microsoft Teams experience on certified Cisco collaboration devices designed for hybrid work.

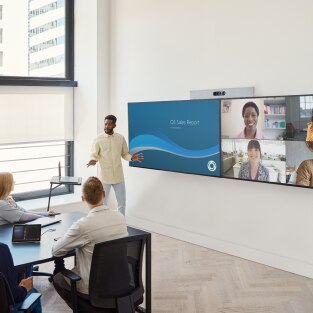

Collaboration on Microsoft Teams between in-person and remote colleagues in a meeting room with the Cisco Room Kit Plus mounted on dual displays.

Your meeting room, under a new lens.

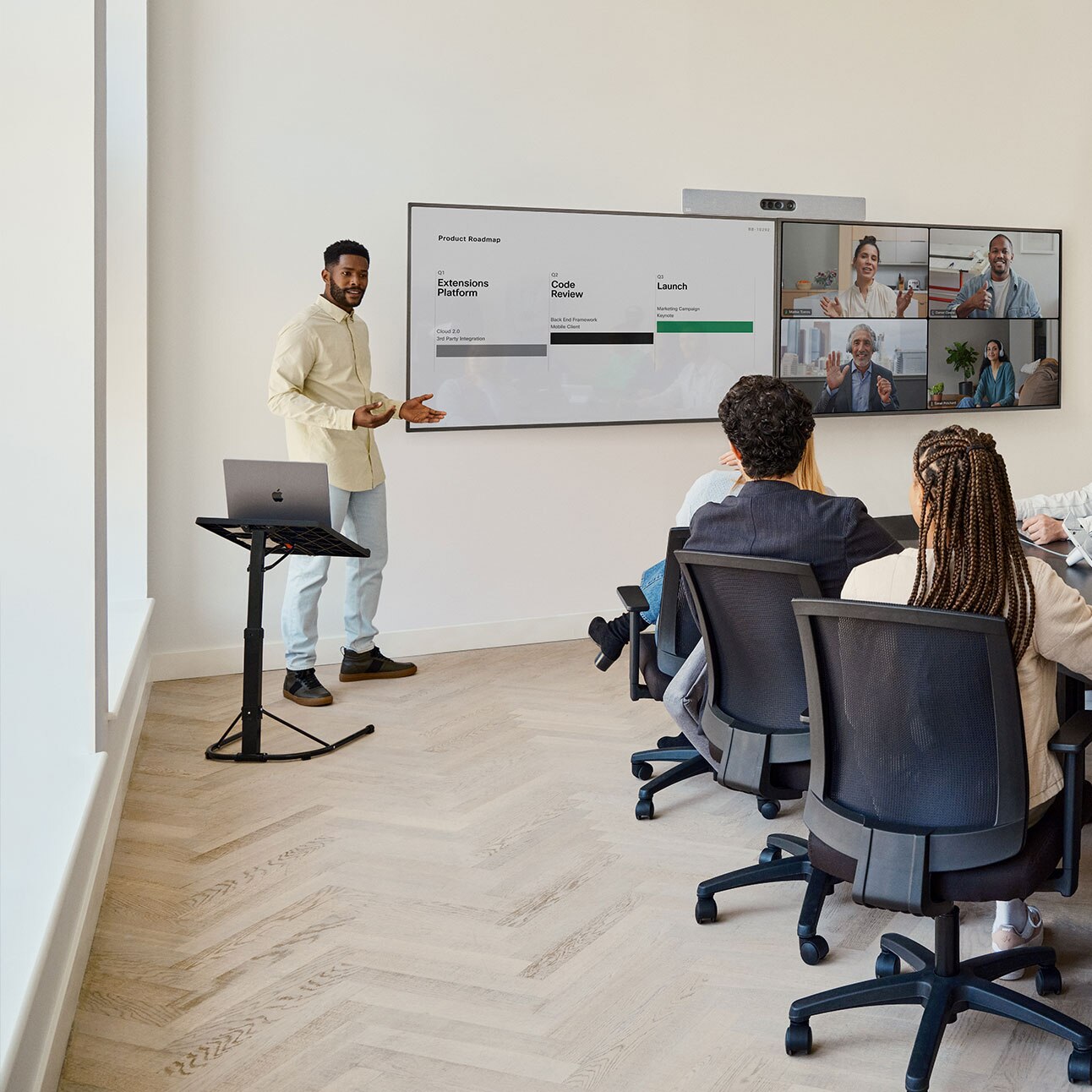

Five people collaborating in a meeting room with a man standing at the front of the room. Room Kit EQ mounted on top of two displays showing remote participants and a presentation.

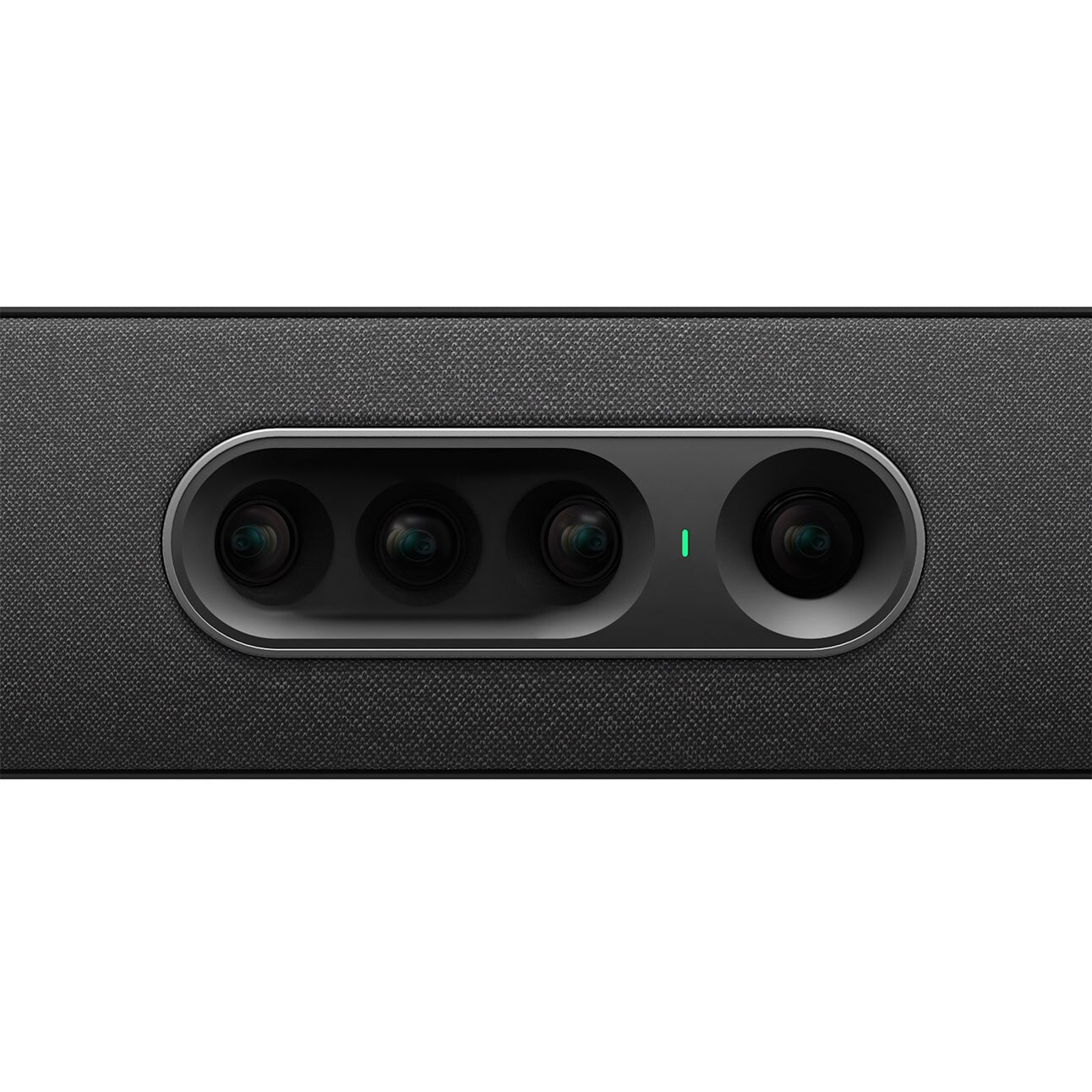

Close up of the Cisco Room Kit EQ Quad Camera showing the four camera lenses and a green light indicating the device is active.

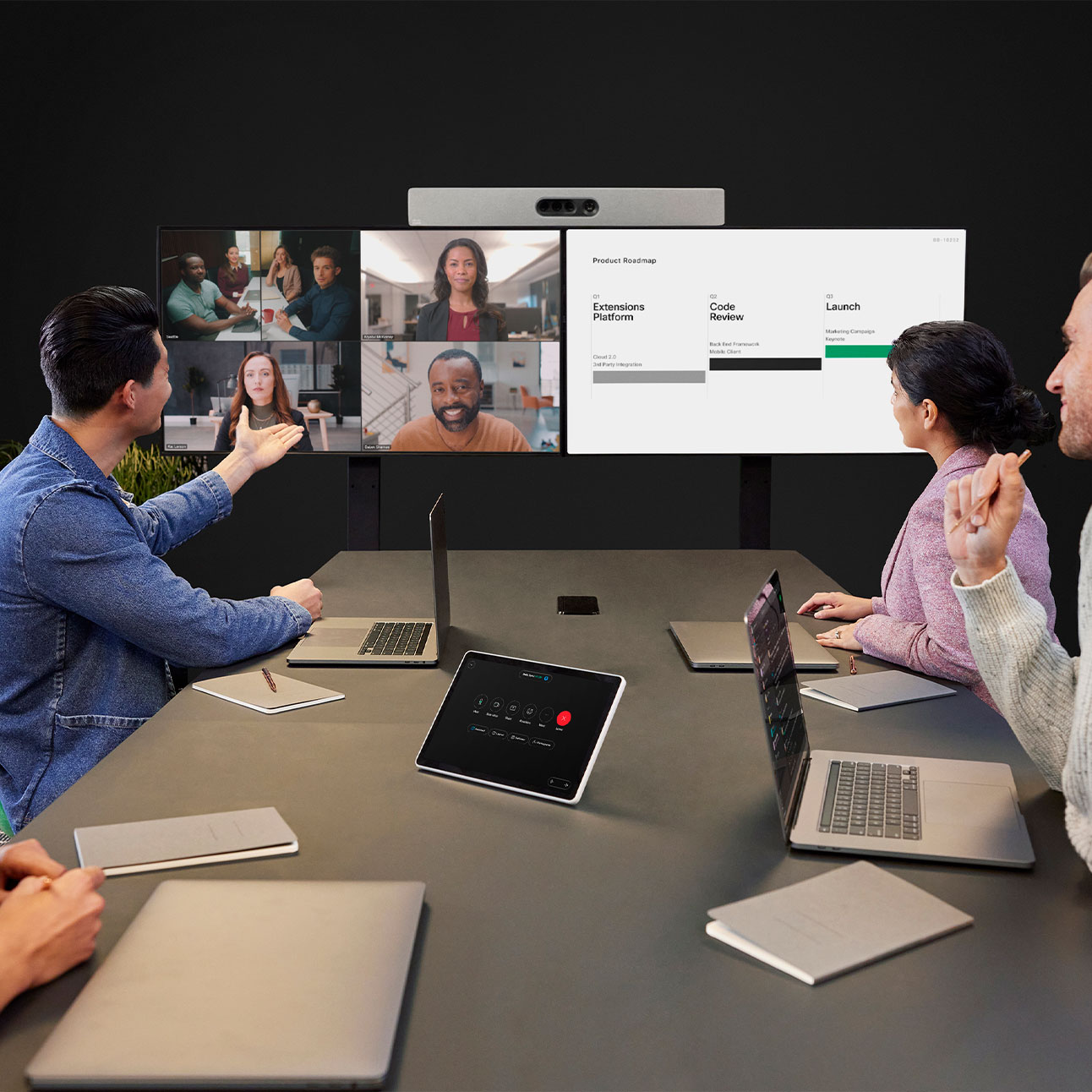

Four people collaborating in meeting room with the Cisco Room Kit EQ mounted on top of two displays.

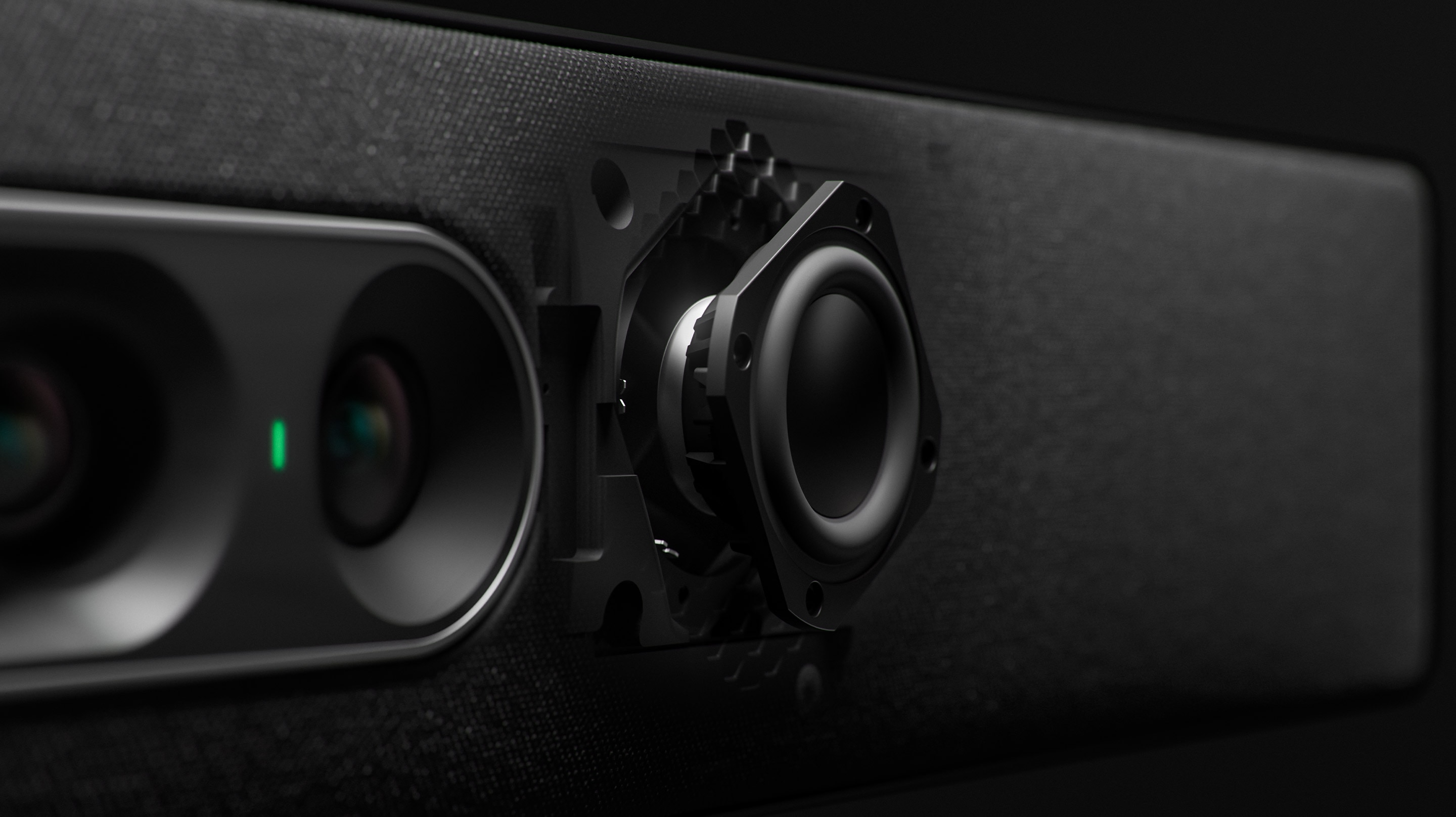

No distraction, just brilliant sound.

Block out distractions with noise removal so remote participants hear everyone loud and clear.
Enjoy full duplex audio powered by the built-in loudspeaker system and external speaker connectivity.
Leverage built-in and external microphones so everyone in the room is clearly heard.

Join any meeting, anytime.

Webex
MIcrosoft Teams
Zoom
Google Meet

A conference room system that levels the playing field.

AI-powered camera and audio intelligence. Flexible configuration options. Native support for RoomOS and Microsoft Teams Rooms. The Room Kit EQ is the most advanced collaboration kit for the conference room.

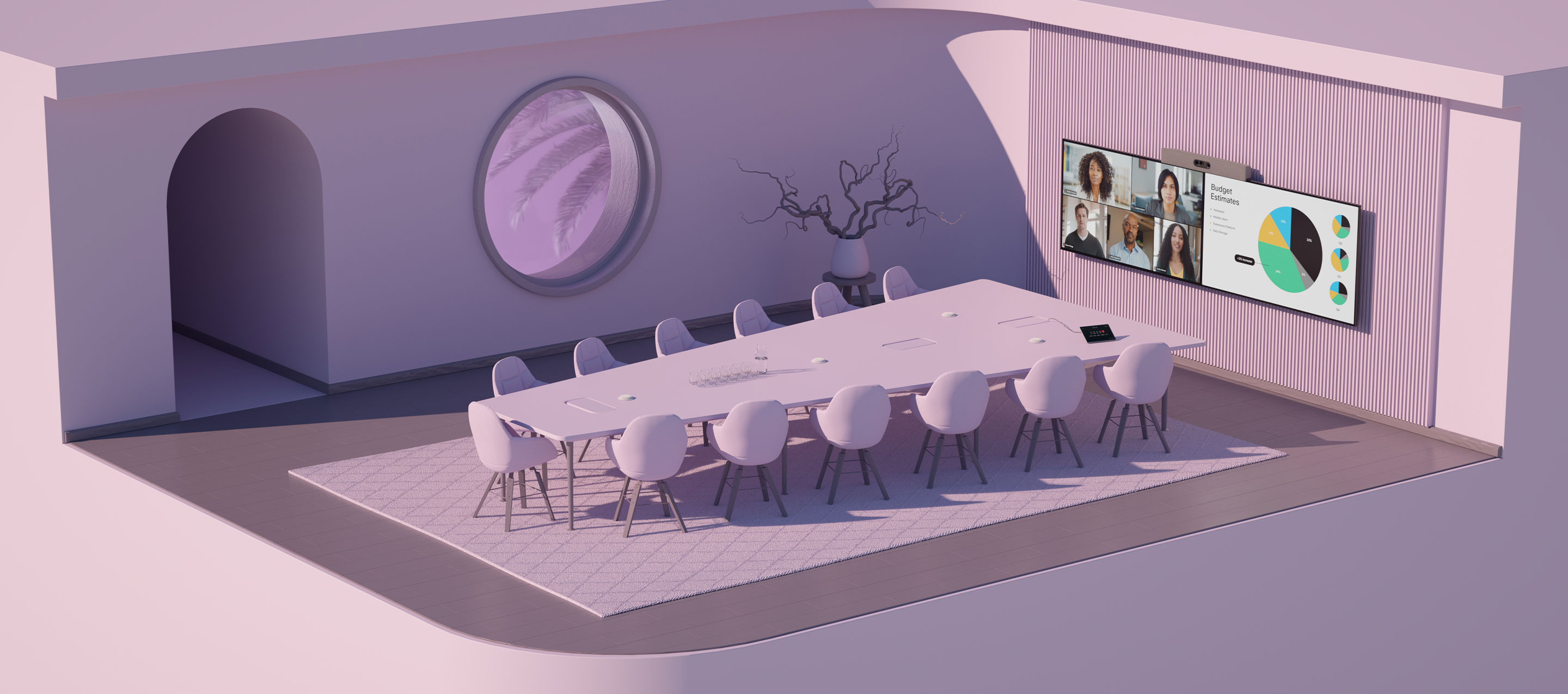

A render of a meeting room with thirteen chairs around table featuring the Cisco Room Navigator on the tabletop and the Cisco Room Kit EQ mounted above two displays showing a video conference.

Connecting the modern conference room.

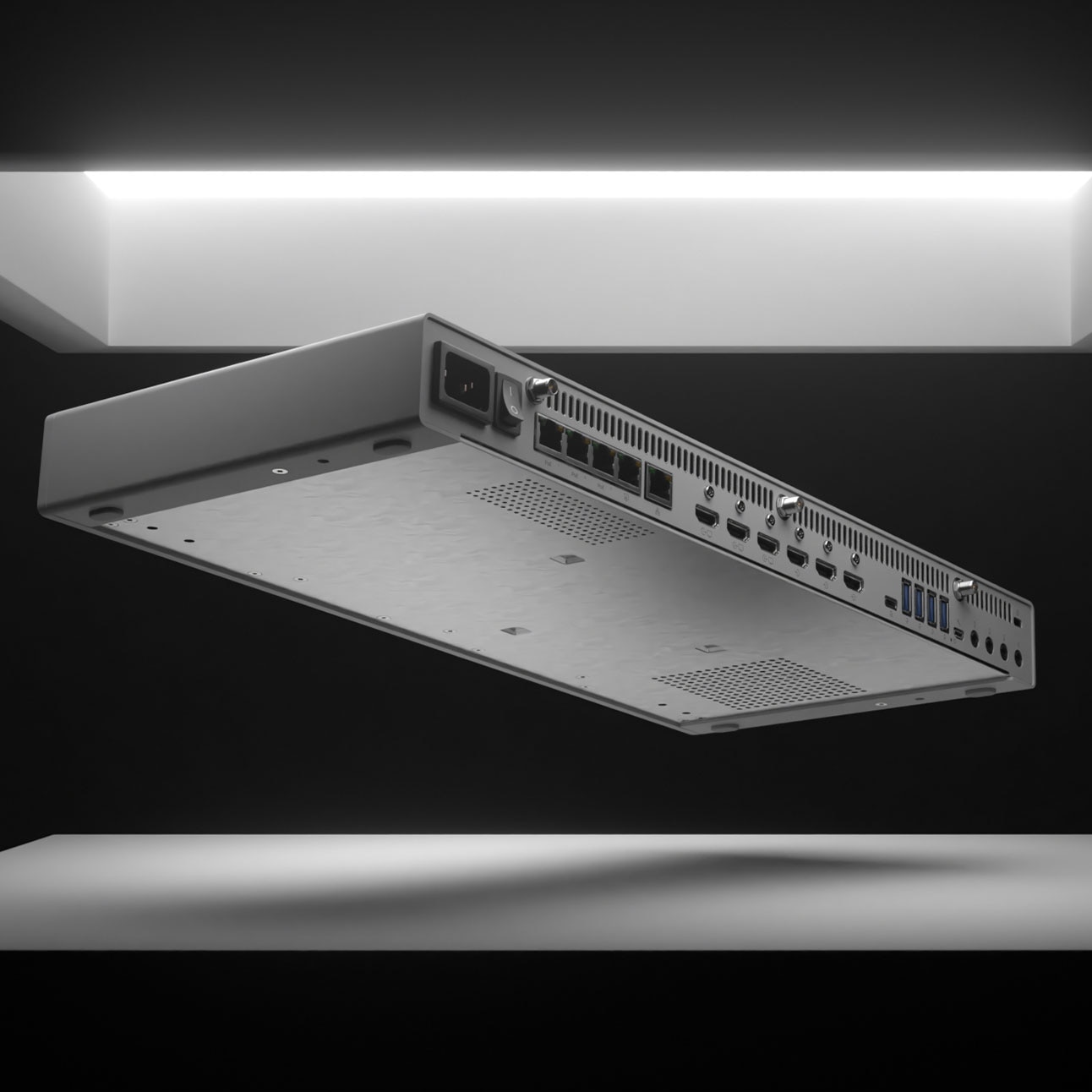

Detail photo of the back of the Cisco Codec EQ showing ports and power button.

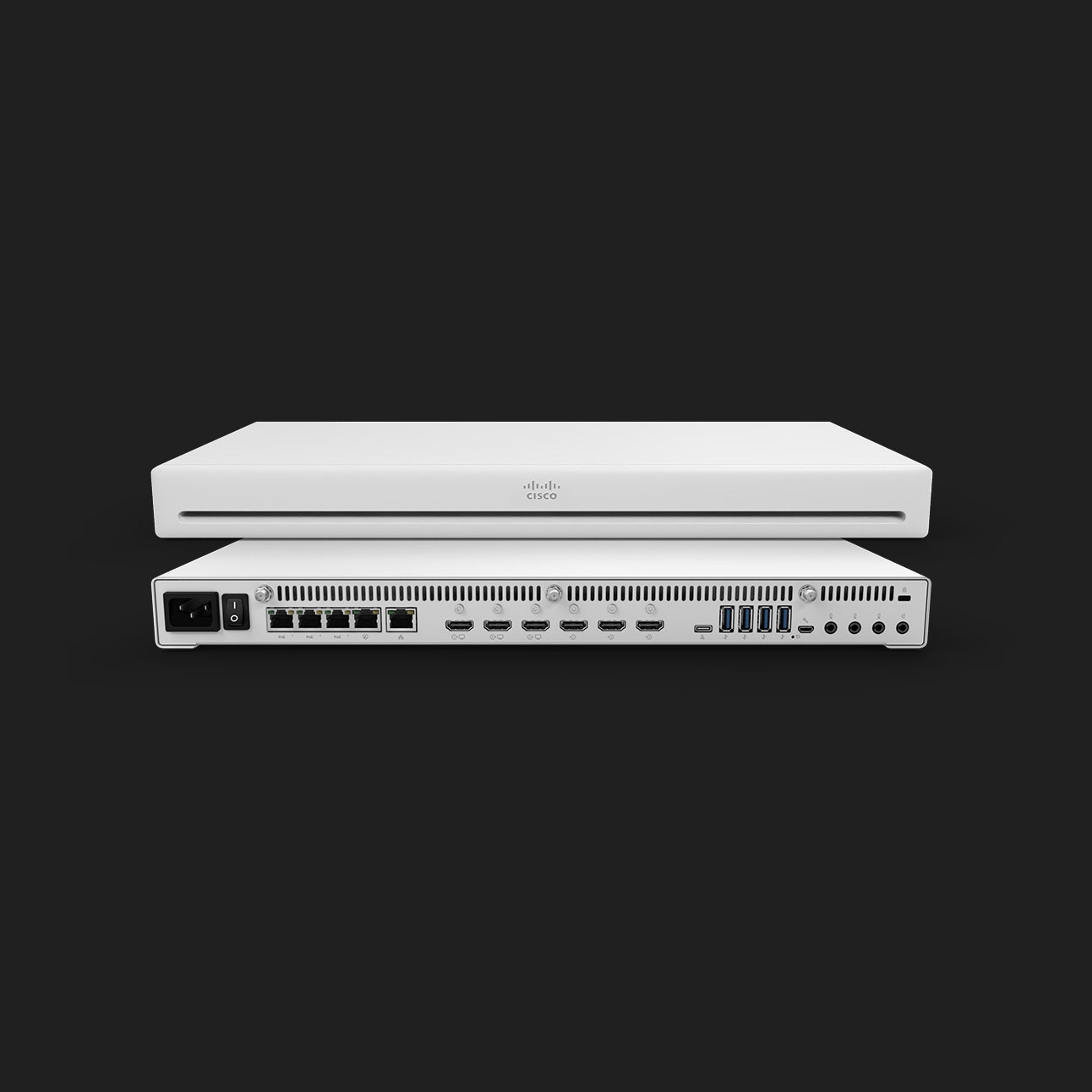

A product detail shot of the front and back of the Cisco Codec EQ.

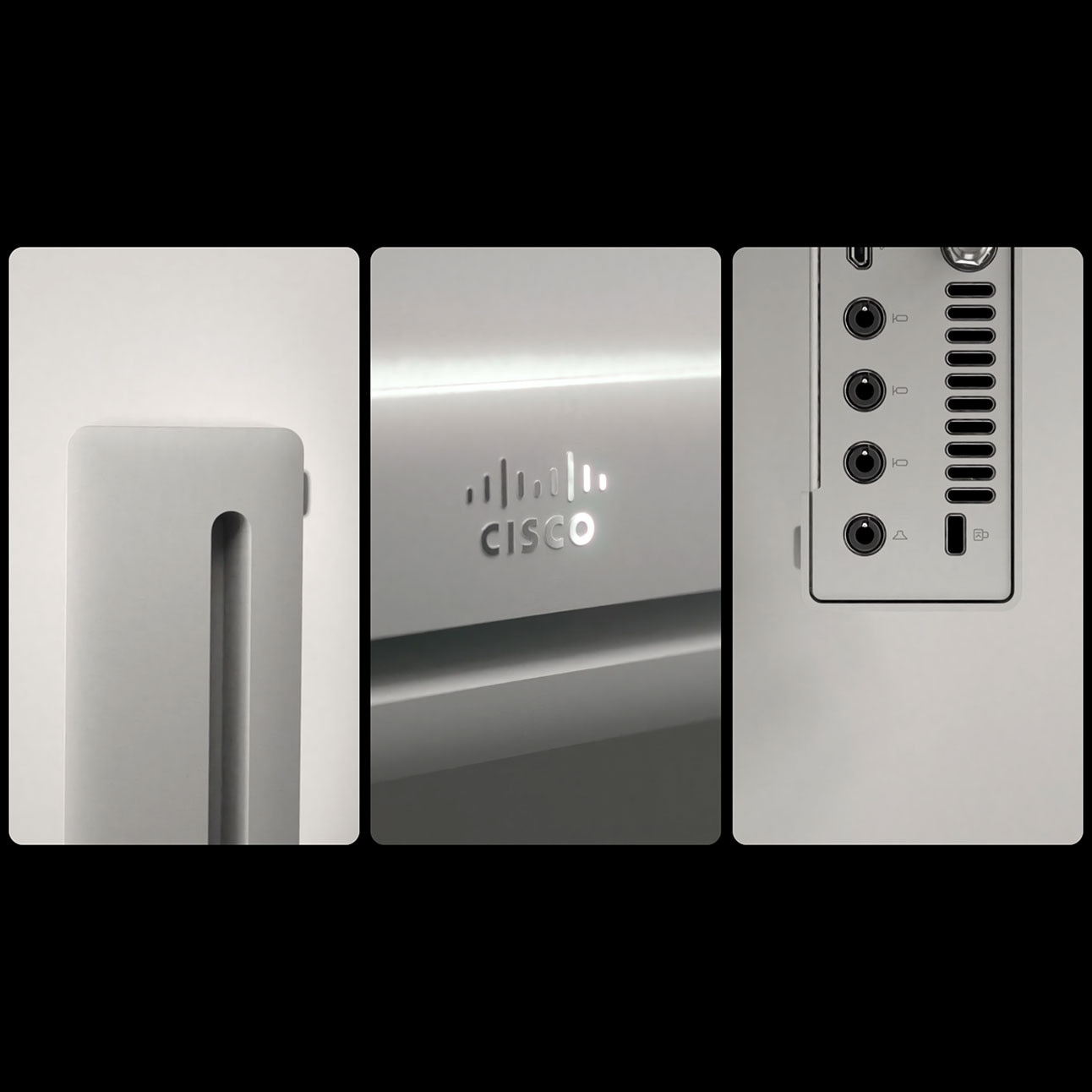

Three product detail images showing various angles of the Cisco Codec EQ including the Cisco logo and device inputs.

Designed for connection.

A large empty workspace with a podium at the front of the room. Room Kit EQ is mounted above two displays showing a presentation and remote participant on Webex.

Seamless BYOD mode

Extend your laptop to 4K displays via USB-C for instant content sharing and video meetings on the platform of your choice.

A stage with a podium in front of a large display with a Room Kit EQ mounted on top. The adjacent wall features a smaller display with the Cisco PTZ 4K Camera mounted to the top.

4K content sharing

Take your presentations to the next level with 4K wireless content sharing via Webex, Miracast, and Apple AirPlay.

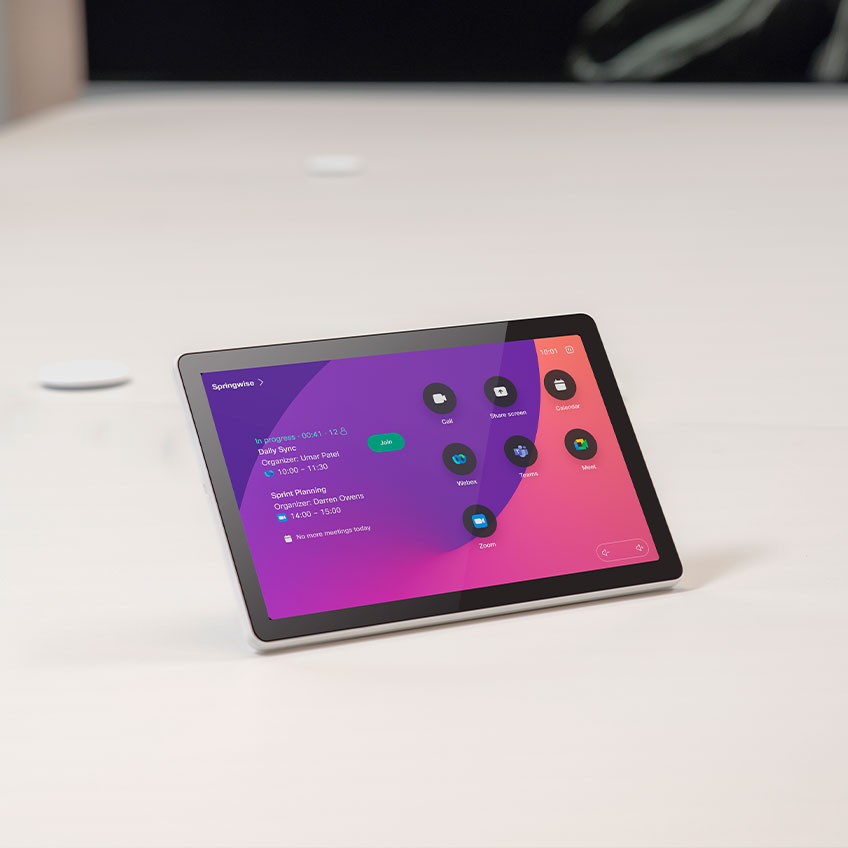

Close up of the Cisco Room Navigator on a table showing upcoming meetings and easy meeting join buttons.

Room controls

Control your meeting, book a room, manage peripherals, and use third-party apps with the award-winning Room Navigator touch controller.

Control your deployment.

Streamlined deployment Easy to deploy, scale, and maintain. Get everything you need in a box to take your meeting space to the next level—either in the cloud, on premises, or as a hybrid solution.
Unified cloud management Unify cloud admin, device management, analytics, and workspace insights in Control Hub to remove IT headaches and provide for better resource planning.
Real-time monitoring Track environmental conditions and occupancy via smart sensors to create a safer and more productive workplace while improving employee wellbeing.

Compare Cisco video bars and room kits.

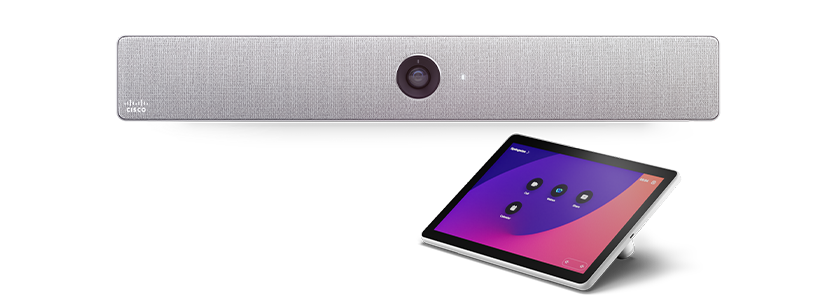

Front facing view of the Cisco Room Kit and Cisco Room Navigator tabletop edition.

Room Kit

Learn More

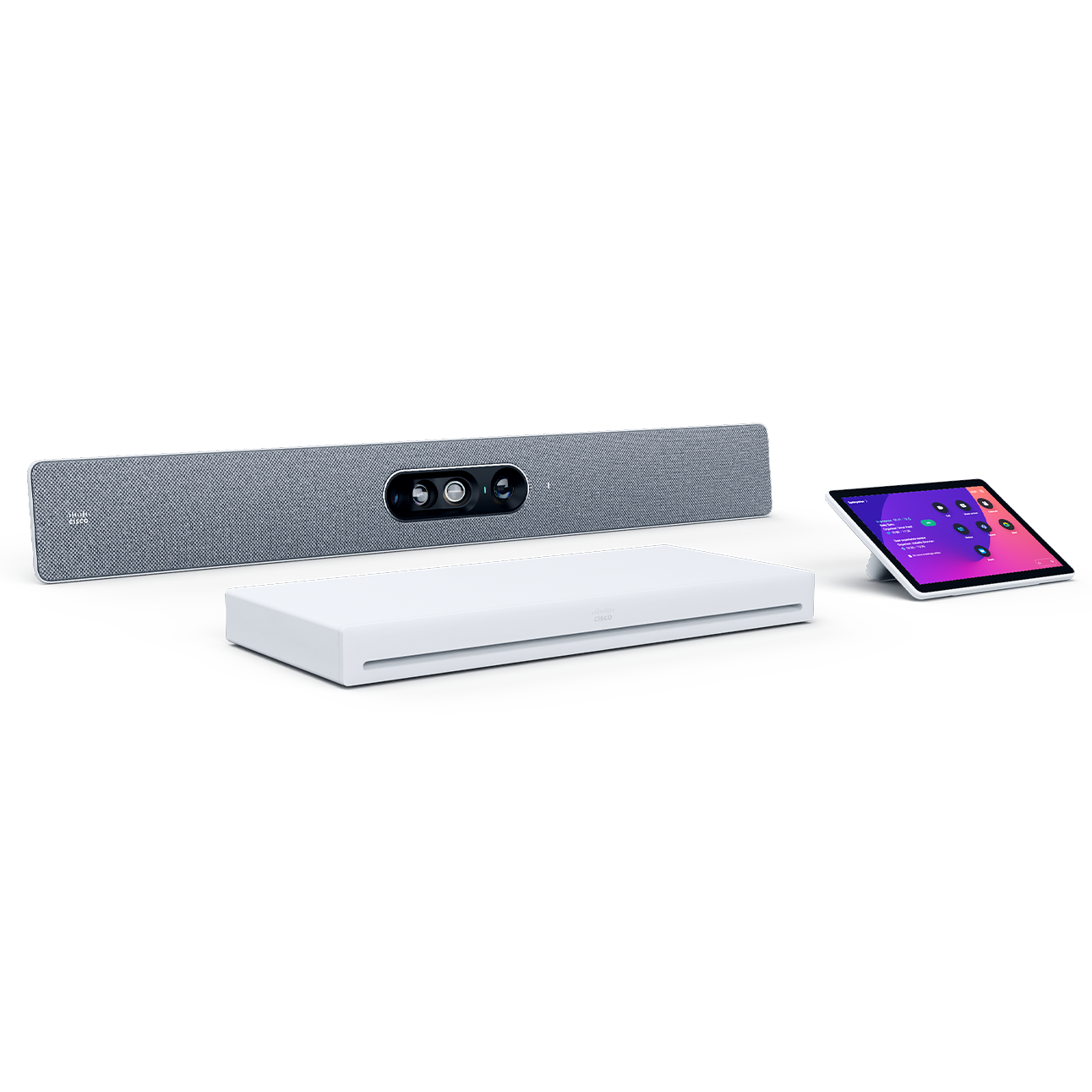

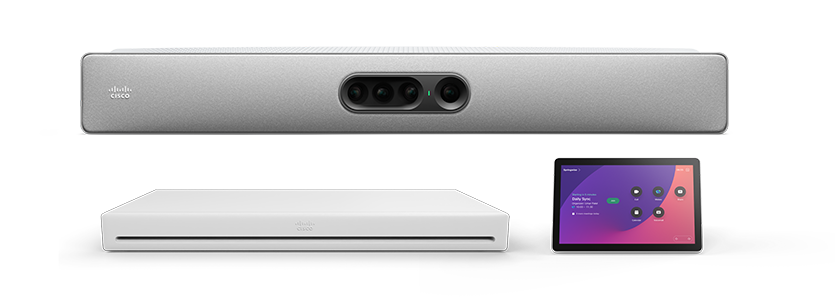

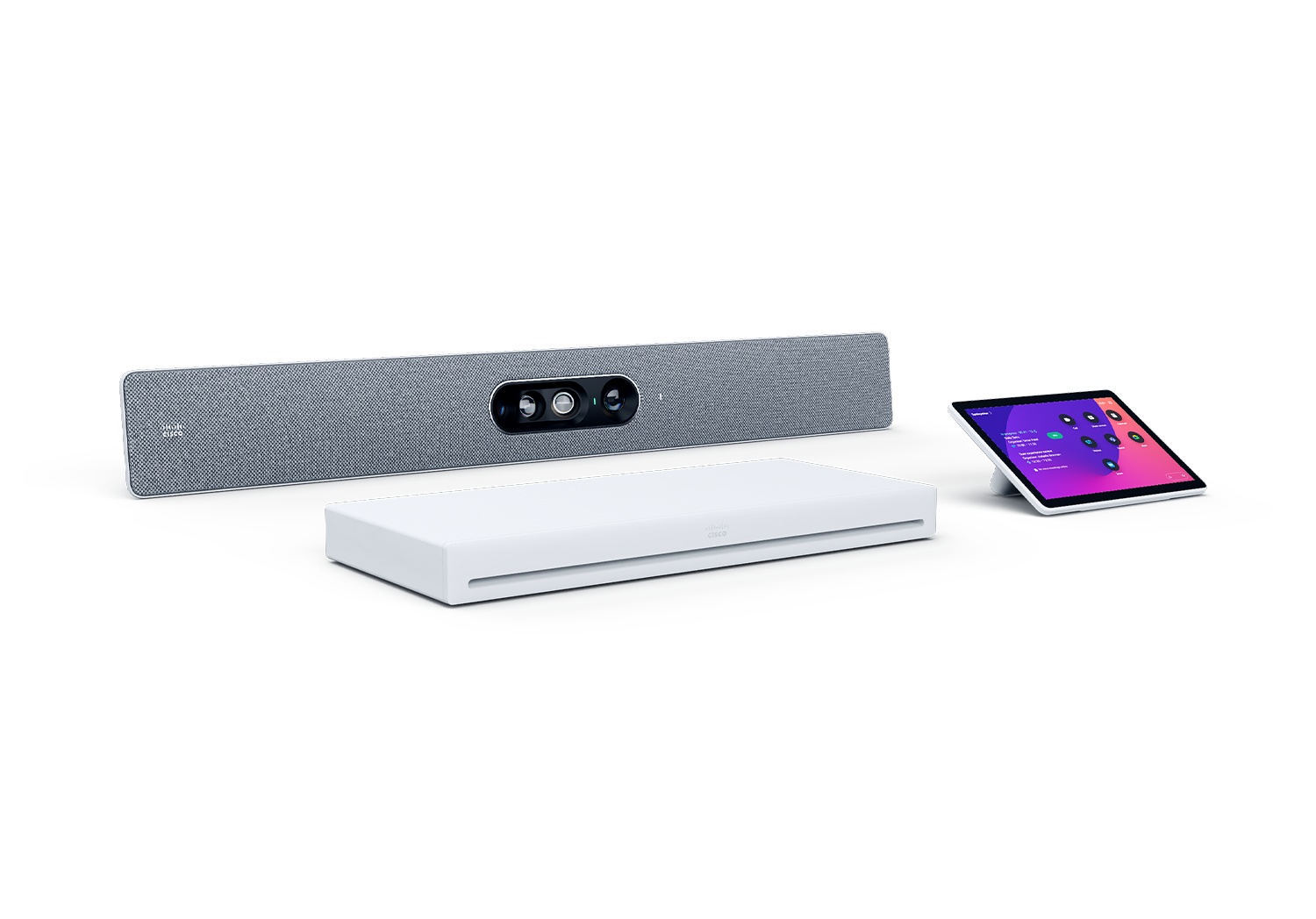

Front-facing view of the Cisco Room Kit EQ including the Quad Camera, Cisco Codec EQ, and Cisco Room Navigator tabletop edition.

Room Kit EQ

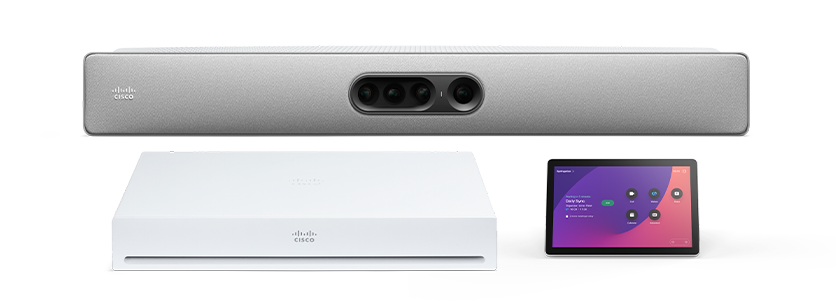

Front-facing view of the Cisco Room Kit Pro including the Cisco Codec Pro, the Quad Camera video bar, and the Cisco Room Navigator tabletop edition.

Room Kit Pro

Learn More
Medium workspaces with up to 8 people

Workspace

Large workspaces with up to 14 people

Workspace

Extra large workspaces and specialist AV scenarios

Workspace

Yes, built-in codec

Codec

Yes, comes with the standalone Codec EQ

Codec

Yes, comes with the standalone Codec Pro

Codec

No native USB passthrough. Can be enabled with certified, third-party HDMI to USB converters

USB passthrough

Yes, single-cable USB-C passthrough

USB passthrough

No native USB passthrough. Can be enabled with certified, third-party HDMI to USB converters

USB passthrough

RoomOS for native Webex meetings and video interoperability

Platform support

RoomOS for native Webex experience and video interop; Microsoft Teams Rooms (coming soon)

Platform support

RoomOS for native Webex experience and video interop; Microsoft Teams Rooms (coming soon)

Platform support

Up to 1920 x 1080 at 60 fps; Up to 3840 x 2160 at 30 fps

Resolution

Up to 1920 x 1080 at 60 fps; Up to 3840 x 2160 at 30 fps

Resolution

Up to 1920 x 1080 at 60 fps; Up to 3840 x 2160 at 30 fps

Resolution

Integrated camera in the video bar

Camera options

Quad Camera, PTZ 4K Camera and other room cameras via PoE and HDMI

Camera options

Quad Camera, PTZ 4K Camera and other room cameras via PoE and HDMI

Camera options

83° horizontal field of view

Camera field of view

83° horizontal FoV (Quad Camera), 70° horizontal FoV (PTZ 4K Camera)

Camera field of view

83° horizontal FoV (Quad Camera), 70° horizontal FoV (PTZ 4K Camera)

Camera field of view

No

Pan-tilt

Pan range: +/- 170°; Tilt range: -20° to +90°(PTZ 4K Camera)

Pan-tilt

Pan range: +/- 170°; Tilt range: -20° to +90°(PTZ 4K Camera)

Pan-tilt

3x zoom

Zoom

5x zoom (Quad Camera), 240x zoom (PTZ 4K Camera)

Zoom

5x zoom (Quad Camera), 240x zoom (PTZ 4K Camera)

Zoom

Yes

Group framing

Yes (Quad Camera)

Group framing

Yes (Quad Camera)

Group framing

Yes

Speaker tracking

Yes (Quad Camera)

Speaker tracking

Yes (Quad Camera)

Speaker tracking

No

Presenter tracking

Yes (PTZ 4K Camera)

Presenter tracking

Yes (PTZ 4K Camera)

Presenter tracking

Yes

Frames camera mode

Yes (Quad Camera)

Frames camera mode

Yes (Quad Camera)

Frames camera mode

No

Multi-camera support

Yes

Multi-camera support

Yes

Multi-camera support

Integrated, 6-point microphone array, 2x audio ports for microphone extension

Microphones

Integrated mic array for speaker tracking (Quad Camera), and multiple audio input sources for external microphones

Microphones

Integrated mic array for speaker tracking (Quad Camera), and multiple audio input sources for microphone extension

Microphones

Yes

ML-based noise suppression

Yes

ML-based noise suppression

Yes

ML-based noise suppression

5-point integrated stereo speaker array

Loudspeakers

Mono loudspeaker system (Quad Camera) with 1x audio out for external speaker

Loudspeakers

Mono loudspeaker system (Quad Camera) with 6x audio out for external speakers

Loudspeakers

No, supports up to 2 screens

Triple-screen support

Yes

Triple-screen support

Yes

Triple-screen support

Yes, via Webex, Miracast and Apple AirPlay

Wireless content sharing

Yes, via Webex, Miracast and Apple AirPlay

Wireless content sharing

Yes, via Webex, Miracast and Apple AirPlay

Wireless content sharing

Yes, supports Room Navigator touch controller and scheduling display

Touch controller

Yes, supports Room Navigator touch controller and scheduling display

Touch controller

Yes, supports Room Navigator touch controller and scheduling display

Touch controller

Control Hub when cloud-registered

Management

Control Hub when cloud-registered

Management

Control Hub when cloud-registered

Management

Width: 27.5 in. (70.0 cm)
Height: 3.5 in. (10.6 cm)
Depth: 2.9 in. (8.8 cm)
Weight: 7 lb. (3.2 kg)

Dimension

Quad Camera:
Width: 37.4 in. (95.0 cm)
Height: 4.7 in. (12.0 cm)
Depth: 4.0 in. (10.3 cm)
Weight: 10.6 lb. (4.8 kg)

Codec EQ:
Width: 18.6 in. (47.3 cm)
Height: 1.7 in. (4.4 cm)
Depth: 8 in. (20.2 cm)
Weight: 5.1 lb. (2.33 kg)

Dimension

Quad Camera:
Width: 37.4 in. (95.0 cm)
Height: 4.7 in. (12.0 cm)
Depth: 4.0 in. (10.3 cm)
Weight: 10.6 lb. (4.8 kg)

Codec Pro:
Width: 17.1 in. (43.6 cm)
Height: 2.6 in. (6.6 cm)
Depth: 9.1 in. (23.1 cm)
Weight: 7.3 lb (3.3 kg)

Dimension

Technical specifications.

The difference is in the details.

Default components

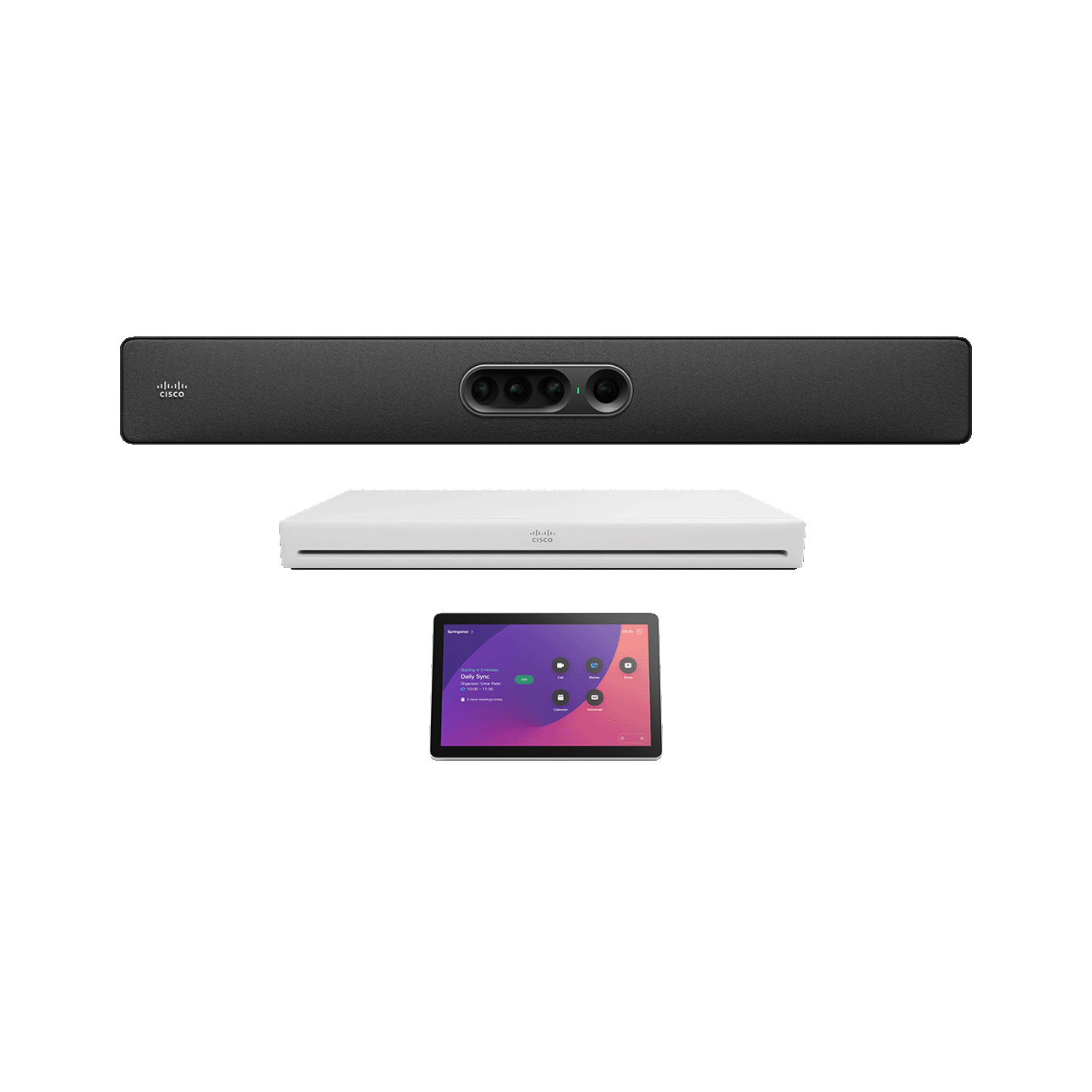

Room Kit EQ:

  • Cisco Codec EQ
  • Cisco Quad Camera (First Light or Carbon Black)
  • Wall mount for Quad Camera
  • Power adapter

Room Kit EQ PTZ 4K:

  • Cisco Codec EQ
  • Cisco PTZ 4K Camera
  • Power adapter

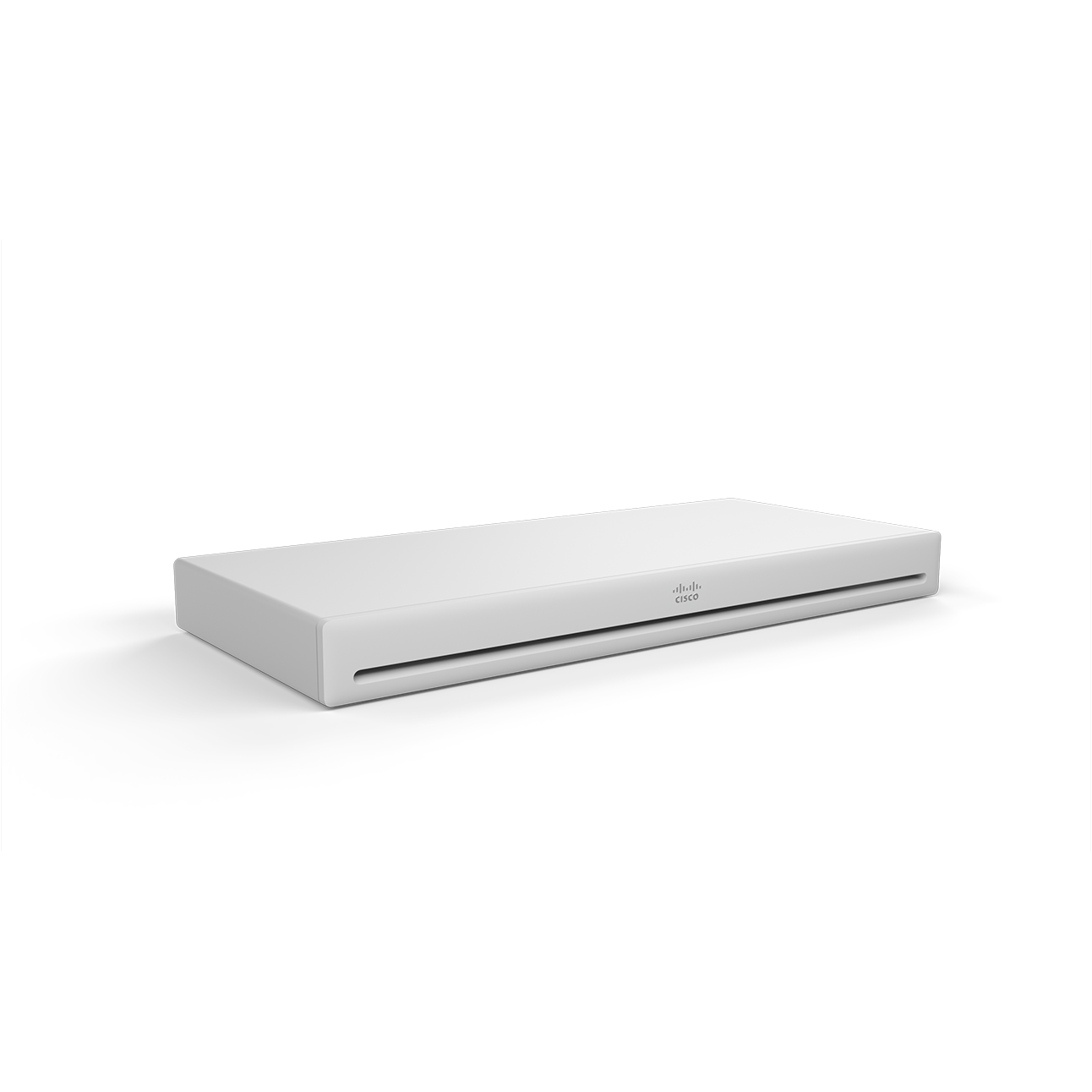

Codec EQ Standalone:

  • Cisco Codec EQ
  • Power adapter

Optional components

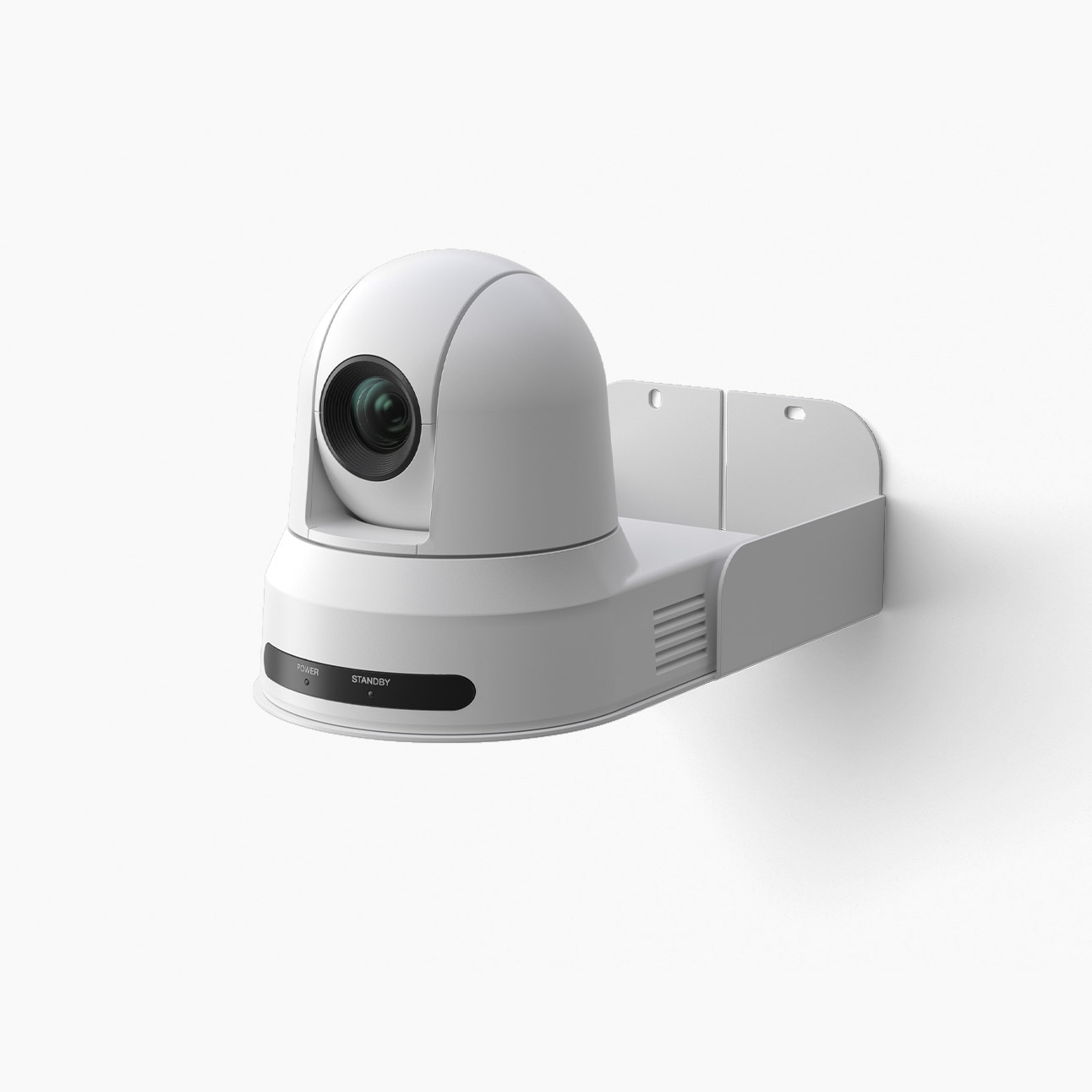

  • Cisco PTZ 4K Camera (also available as separate integrator bundle)

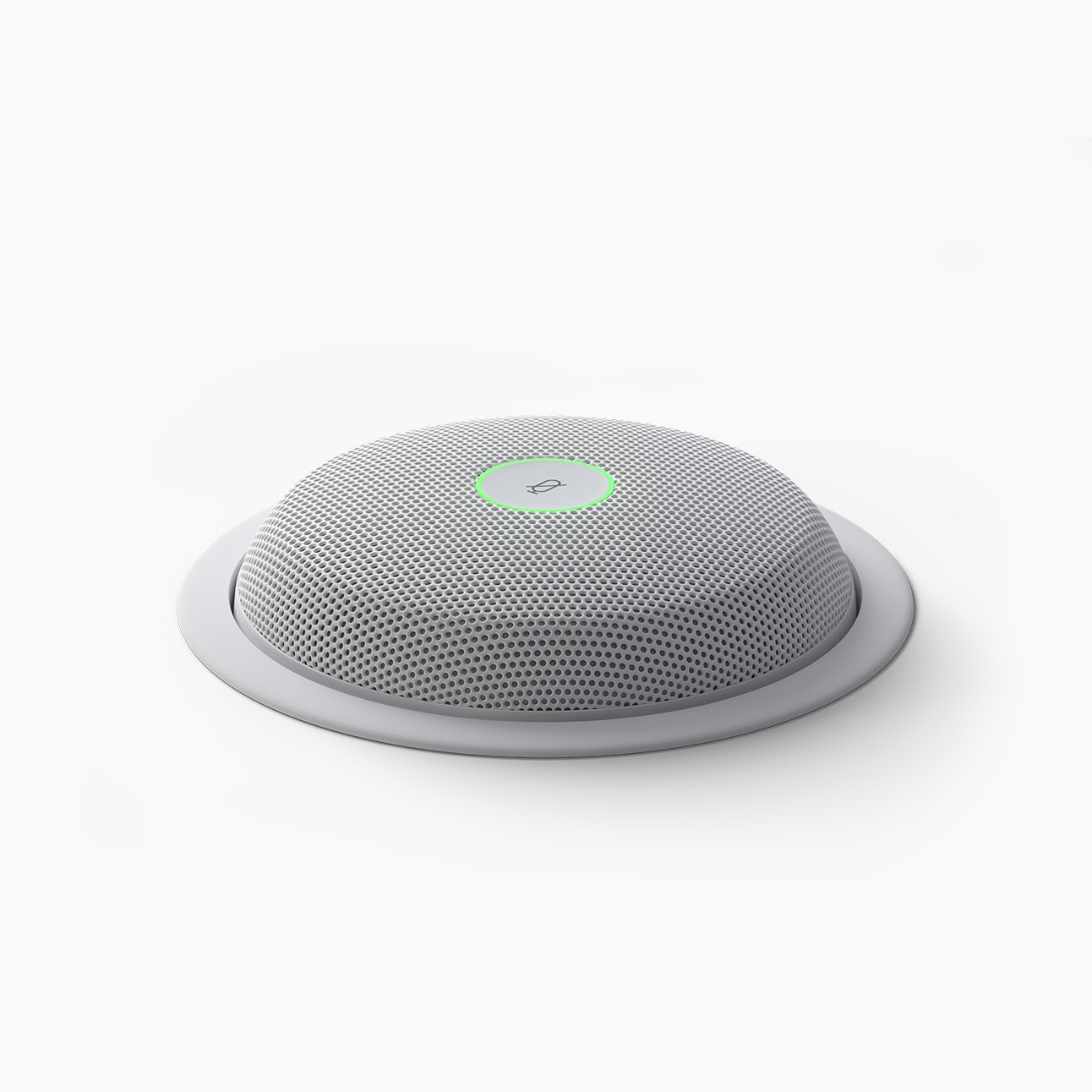

  • Cisco Microphone Array
  • Cisco Table Microphone
  • Cisco Ceiling Microphone
  • Wall mount for Codec EQ
  • Rack ear for Codec EQ
  • 9m USB-C Cable with Laptop Charging

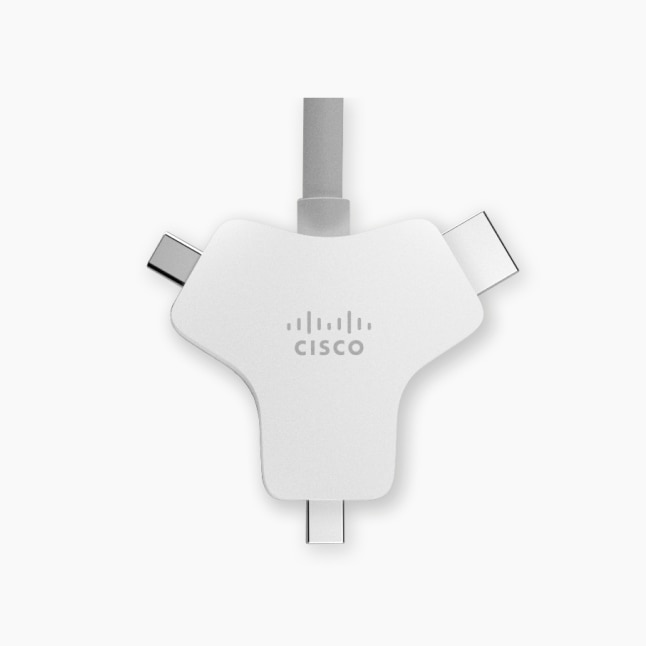

  • Cisco Multi-Head Cable, 4K
  • Cisco Room Navigator (wall-mount)
  • Cisco Room Navigator table-stand touch controller
  • Other cable and peripheral options (see datasheet)

Quad Camera overview

  • 4x 20 MP CMOS image sensors with machine intelligent switching
  • The camera generates frames from the 4 sensors simultaneously to provide a single HD output at 1080p
  • Support up to 60 fps
  • 1/1.7 CMOS
  • 5x zoom
  • f/2.0 aperture
  • 83° horizontal field of view on wide lens
  • 50° horizontal field of view on tele lenses
  • Automatic group framing
  • Speaker tracking
  • Frames camera control for individual cropping of each in-room participant
  • 5056 x 3888 pixel resolution
  • Auto focus, brightness, and white balance
  • Focus distance 1 m to infinity

Video features

  • Main video resolution up to 1920 x 1080 at 30 fps
  • Three HDMI outputs supporting formats up to 3840 x 2160 at 60 fps
  • Three HDMI inputs support up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps
  • One USB-C input supports up to maximum 3840 x 2160 at 30 fps
  • Support for H.263, H.264 and H.265 video standards
  • Supporting available Webex video stream layouts and meeting features, including people focus, grid, prominent, stack and overlay.
  • Supporting Frames intelligent camera control in Webex and third-party meetings
  • When configured for RoomOS, the solution supports meetings on Microsoft Teams, Zoom and Google Meet with third-party video interoperability
  • Native support for Microsoft Teams Rooms (MTR) and the option to join native Webex meetings in MTR mode (coming soon)

Audio features

  • Integrated, 3-element loudspeaker system with high-quality full range driver and dual low frequency drivers, supporting 20kHz audio (Quad Camera)
  • 8-element microphone array for speaker tracking (Quad Camera)
  • Option to connect up to 3 external mics via 3.5mm mini Jack or up to 8 external mics via PoE. (Codec EQ)
  • 1x line out mini-Jack for stereo speakers (Codec EQ).
  • 1x RCA output for subwoofer (Quad Camera)
  • Support for more microphones via Ethernet and USB, loudspeakers and room peripherals via USB (Codec EQ)
  • Acoustic Echo Cancellation (AEC)
  • Active Lip Synchronization
  • AI-Powered, Adaptive Noise Removal
  • Automatic Gain Control (AGC)
  • Full Duplex
  • Full-Band Audio
  • Self-Hear
  • Ultrasound Technology

Presentations

  • Wireless content sharing via the Webex app (up to 3840 x 2160 at 7.5 fps)
  • Wireless content sharing via the Cisco Intelligent Proximity client (up to 3840 x 2160 at 3 fps)
  • Wireless content sharing via Miracast (up to 1920 x 1080 at 60 fps) – Not available on Non radio version.
  • Wireless content sharing via Apple AirPlay
  • Supports triple-screens for video and content
  • Supports dual content sources for local meetings
  • View whiteboard content and annotations shared from a Webex Board Series, Webex Desk Series, or the Webex App; participate in whiteboarding sessions through the Webex App
  • Wired (1x USB-C and 3x HDMI) passthrough for instant content sharing

Room intelligence

  • Cisco Room Navigator touch panel (wall-mount or table-stand) for access to conference controls, room booking, room controls and workplace applications.
  • Metrics: Counts people in the room via smart presence detection, enabling analytics for better resource planning
  • Automatic screen/display integration through HDMI CEC
  • Supports Wi-Fi 6 and Bluetooth®
  • Control peripherals such as lights and blinds through the Room Navigator touch panel
  • Environmental sensors when connected to the touch device to measure humidity, temperature, noise levels and air quality
  • System “wakes up” when someone walks into the room, and recognizes them through their mobile device
  • Webex Assistant enables conference controls via voice commands and other touchless workflows
  • Customizations via macros for digital signage and other workspace applications
  • Simplified meeting-join experience with One Button to Push (OBTP) or via voice commands using Webex Assistant

Security features

  • Secure management using HTTPS and SSH protocols
  • End-to-end encryption for calls and meetings on Webex
  • Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
  • Password protection to access administration available on Room Navigator controller
  • Network settings protection
  • Privacy cover

Interfaces

  • 3x 3.5mm analog audio input for microphones
  • 1x audio line out for speaker
  • 3x HDMI input
  • 3x HDMI output
  • 1x USB-C
  • 4x USB 3.0 type A
  • 1x Ethernet (RJ-45) 10/100/1000 for LAN
  • 4x Ethernet (PoE++) (RJ-45) forfor camera control, touch controller, and PoE peripherals
  • 1 microUSB port
  • Power adapter port
  • Factory reset pinhole
  • Bluetooth® and Bluetooth® Low Energy
  • Wi-Fi 6 (Wi-Fi 6E coming soon)

Dimensions

Quad Camera:

  • Width: 37.4 in. (95.0 cm)
  • Height: 4.7 in. (12.0 cm)
  • Depth: 4.0 in. (10.3 cm)
  • Weight: 10.6 lb. (4.8 kg)

Codec EQ:

  • Width: 18.6 in. (47.3 cm)
  • Height: 1.7 in. (4.4 cm)
  • Depth: 8 in. (20.2 cm)
  • Weight: 5.1 lb. (2.33 kg)

Device management

  • For cloud deployments, the device is managed in Control Hub, providing a single pane of glass of system status, activation, configuration, metrics, workspace insights, and troubleshooting
  • For on-premises deployments, management via Cisco Unified Communications Manager or Expressway
  • In case of a hybrid deployment, Webex Edge for Devices allows for linking your on-premises Webex devices to the Webex Cloud and benefits from specific cloud features such as device management, monitoring, and analytics via Control Hub.

Reimagine your workspace.

Jump into an immersive workspace experience and tour the latest innovations powering hybrid work.

More from Cisco.

Browse our devices to elevate your hybrid work experience.

Dive deeper.

Cisco Room Kit EQ At-a-Glance

Bring inclusive, multi-platform video conferencing, advanced connectivity, and rich content experiences to conference rooms and large workspaces.

Cisco Room Kit Series At-a-Glance

Explore a family of flexible video bars and collaboration kits to bring more intelligence and usability to your small-to-large meeting spaces.

Enabling flexible workspaces with Cisco Room Kits

Learn how Room Kits help power hybrid work by enabling flexible environments that promote collaboration, at scale.

The data behind video meeting fatigue and how to combat it

Learn more about the causes and consequences of virtual meeting fatigue and explore how collaboration culture and the right technology can make a difference.

Preparing for the hybrid workplace with Cisco devices

Support your Support your hybrid workplace transformation with seamless, intuitive experiences powered by purpose-built collaboration devices.

As this offer is highly customized to specific end user requirements, pricing is provided upon request. Actual price will vary by specific offer model/configuration and the country/region.
