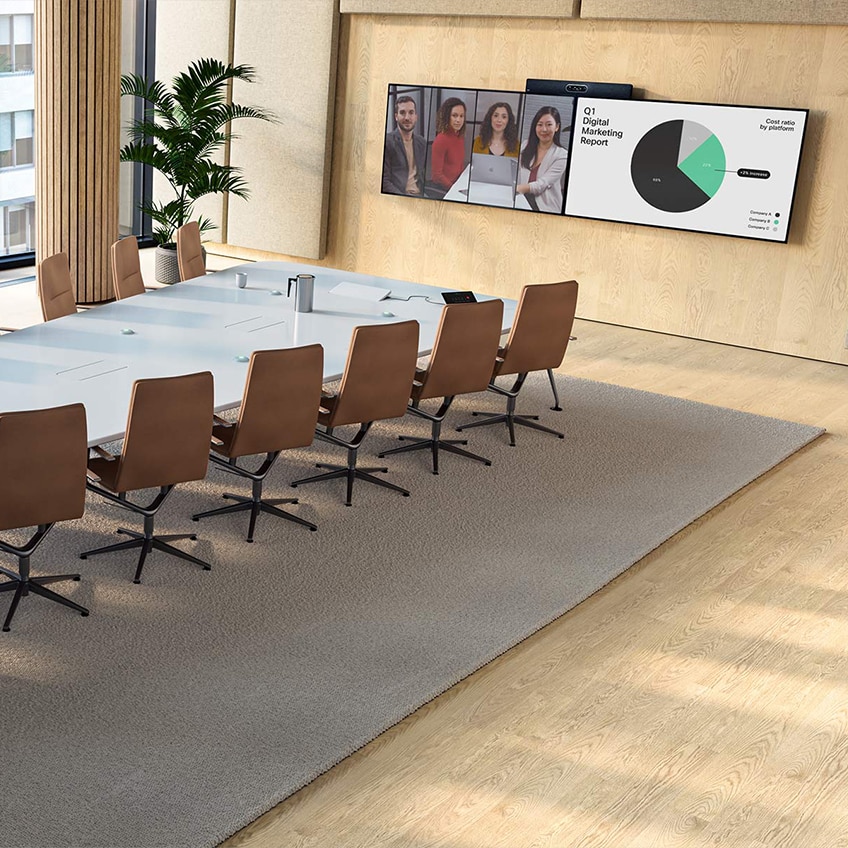

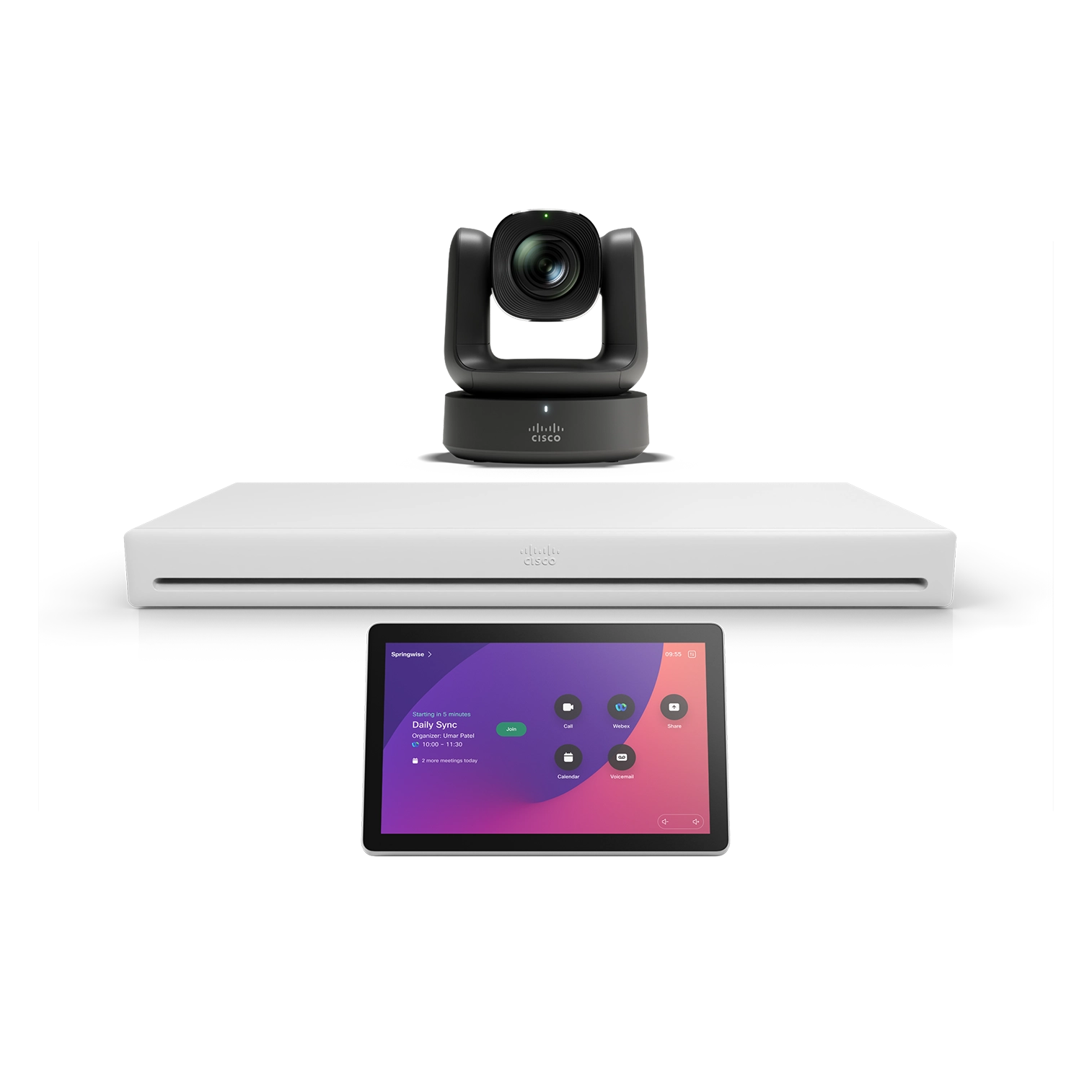

Cisco Room Kit EQ
Bring inclusive collaboration to large spaces.
  • image

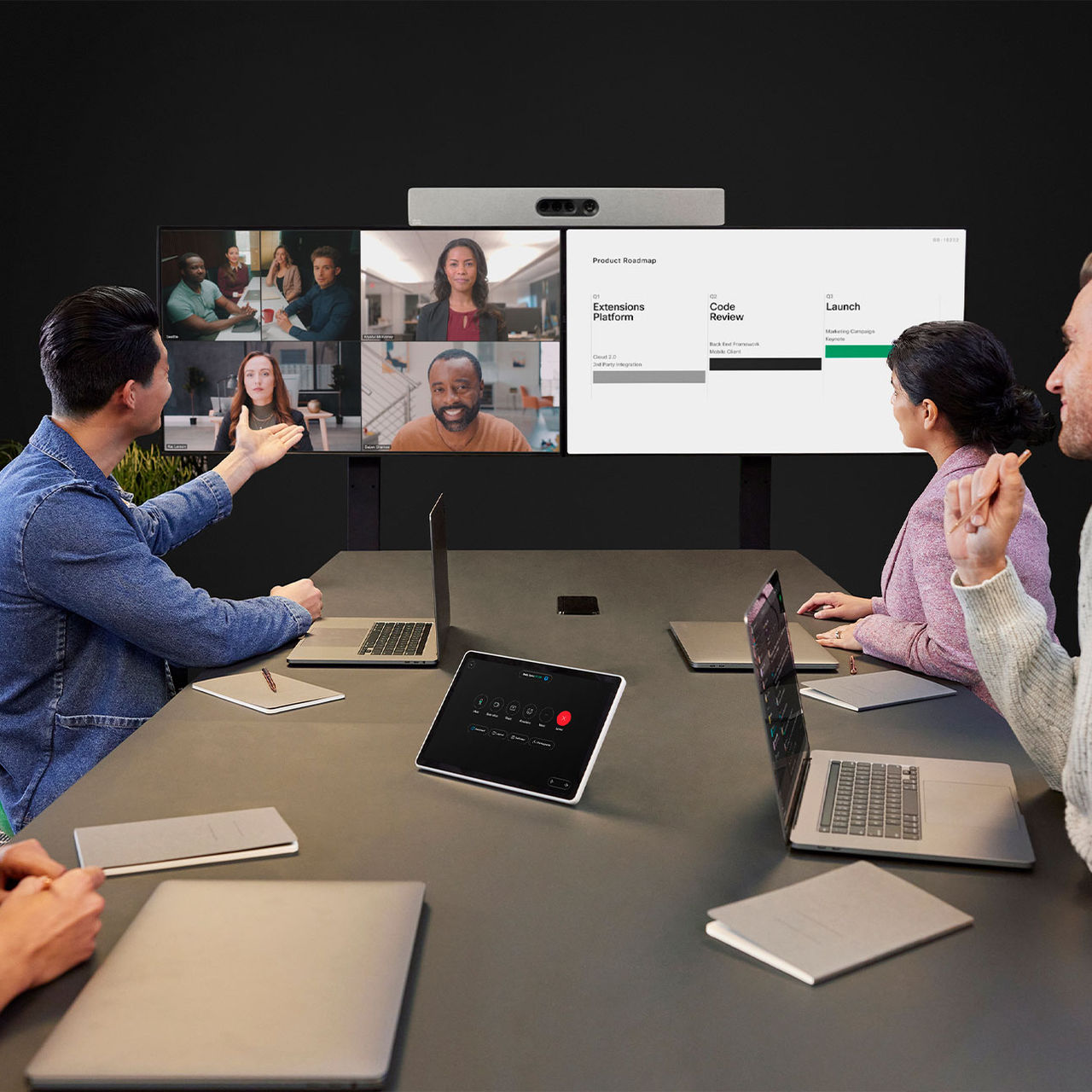

    Goodbye video fatigue. Hello productivity.

    High-quality video conferencing on any platform, vibrant presentations, and next-generation room intelligence for your large workspaces.

  • image

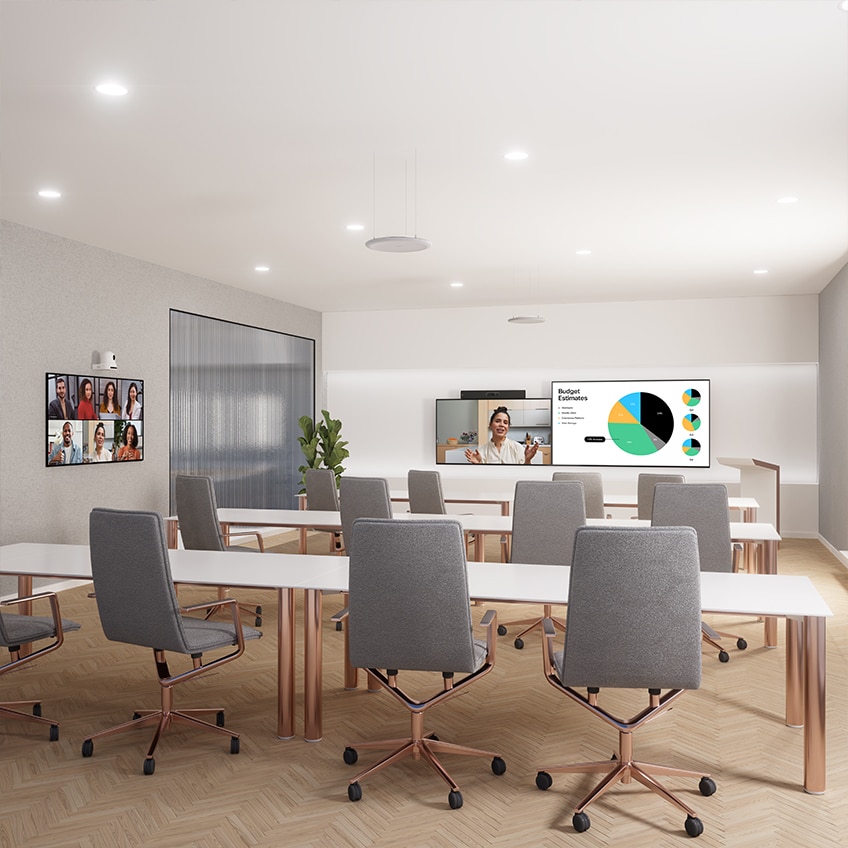

    Put an end to exclusion. Meet as equals.

    Turn your meeting rooms into collaboration hubs where ideas flourish and everyone has a seat at the table.

  • image

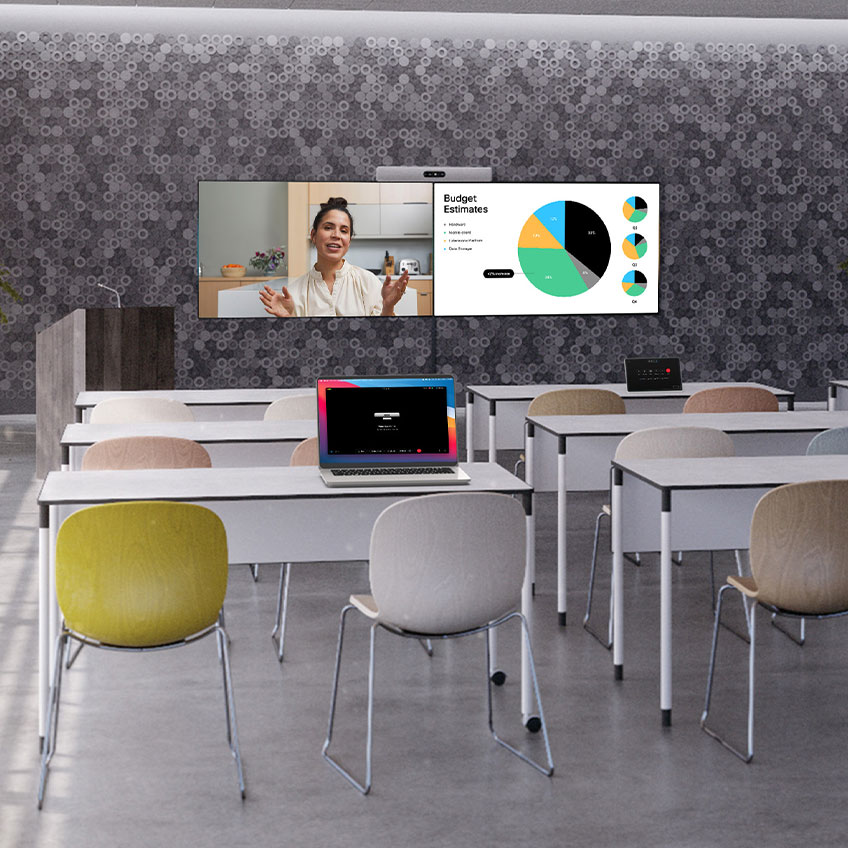

    No more clunky setup. Just engaging meetings.

    Bring simplicity and elegance back into collaboration with unique software experiences and human-centric design that blends into your environment.

  • uca awards
    80 MP
    quad-lens camera
    triple-screen support
    20x
    faster AI engine
    USB passthrough

    Precise. Intuitive. Breathtaking.

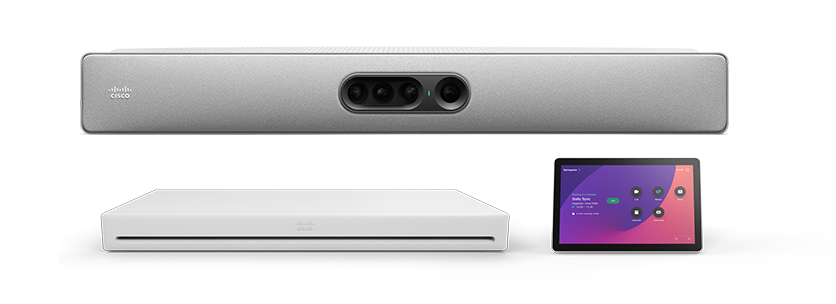

    The Room Kit EQ is a next-generation video device bundle that seamlessly integrates with up to three external displays. Power your meetings with a modular room kit that includes the AI-powered Cisco Codec EQ, the intelligent Quad Camera video bar, an intuitive touch controller, and room peripheral options.

    Room Kit EQ is certified for Microsoft Teams Rooms.

    Enjoy the native Microsoft Teams experience on certified Cisco collaboration devices designed for hybrid work.

    Your meeting room, under a new lens.
  • image
    Brilliant, inclusive views

    Select from group best overview, prominent speaker view, or optimized image cropping for each participant so everyone is equally framed in the meeting.

    Explore Camera Features
  • image

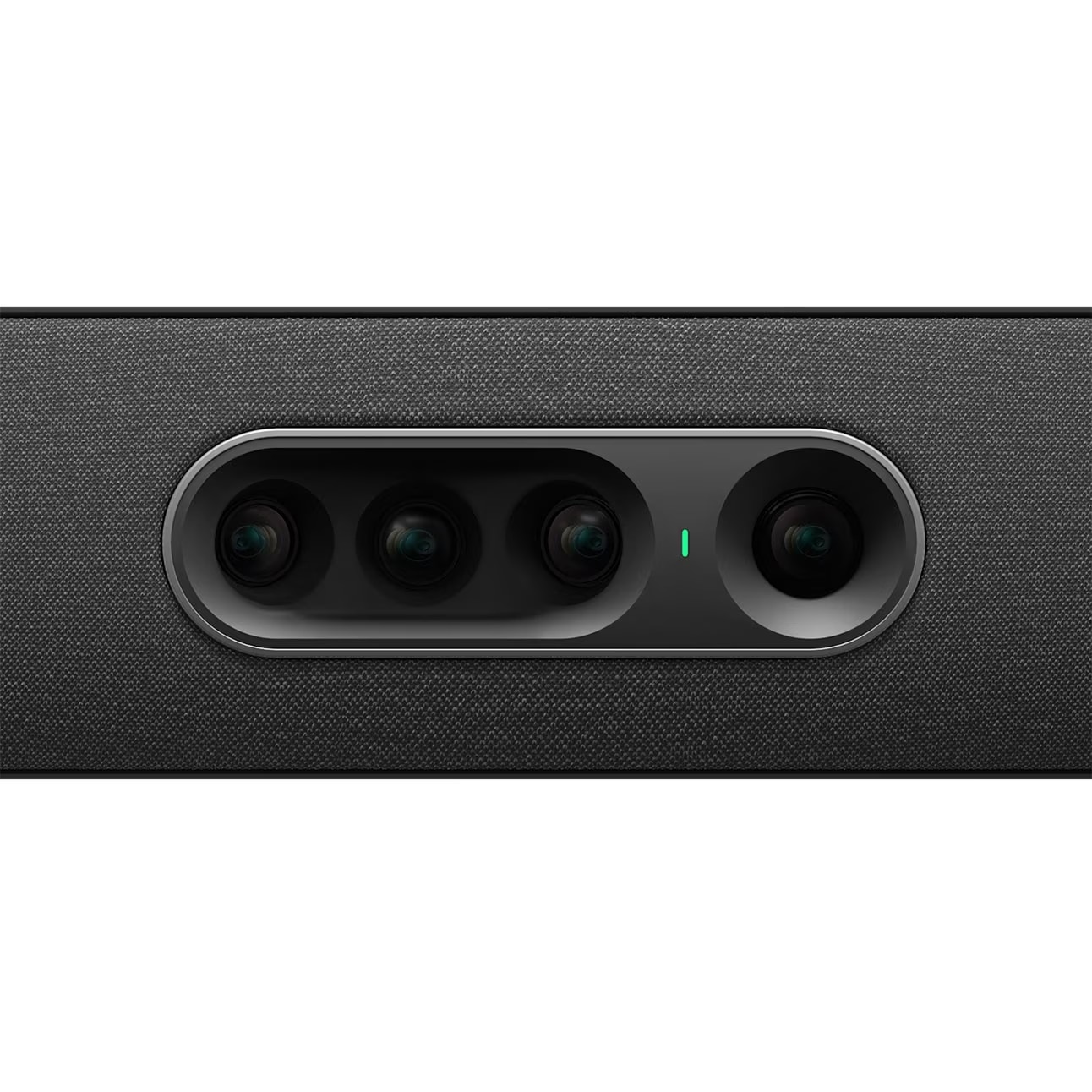

    Multi-lens, UHD camera

    The Quad Camera integrates a main, wide-angle lens and three tele-lenses, combining a UHD image sensors, powerful zoom, and advanced focus to put everyone front and center.

  • image

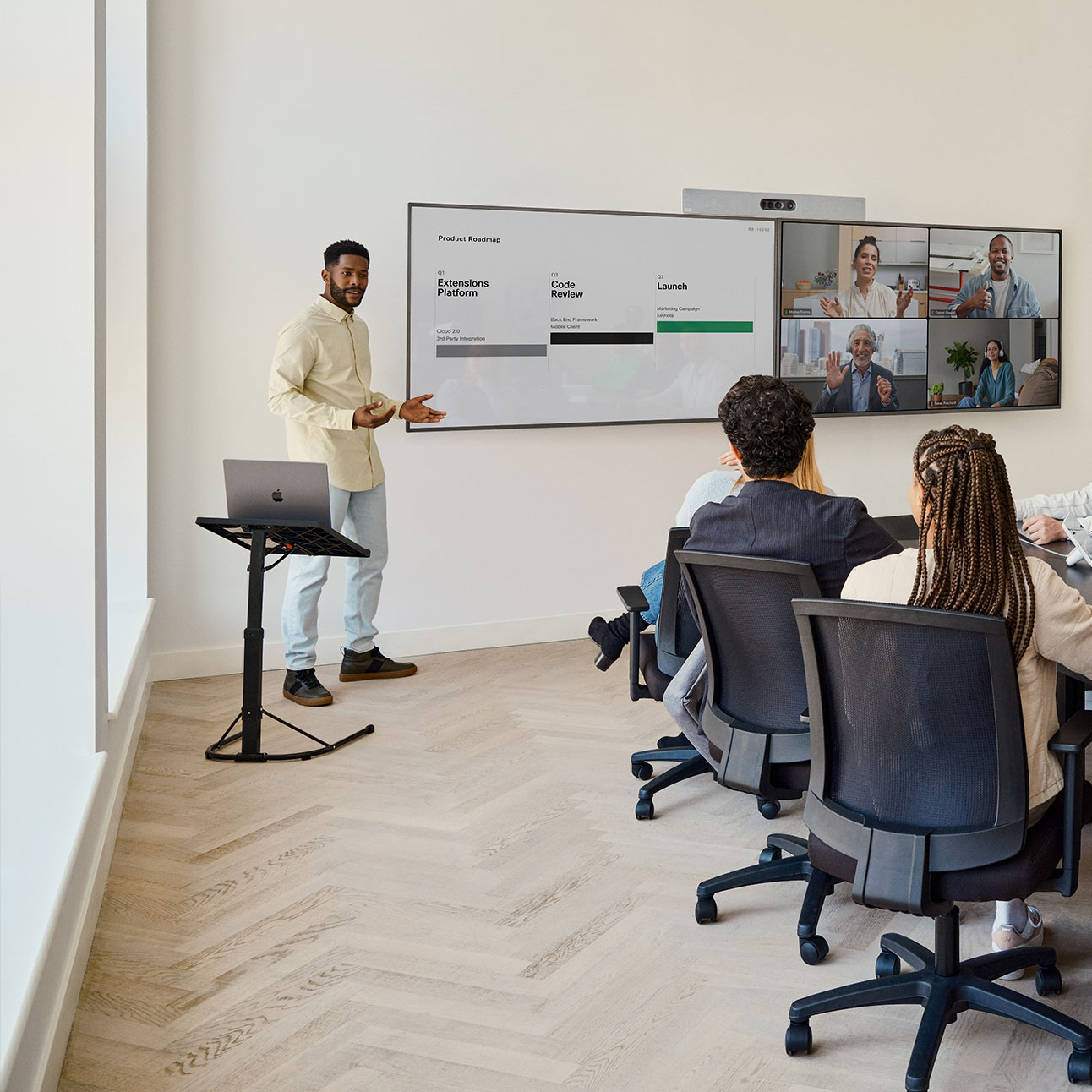

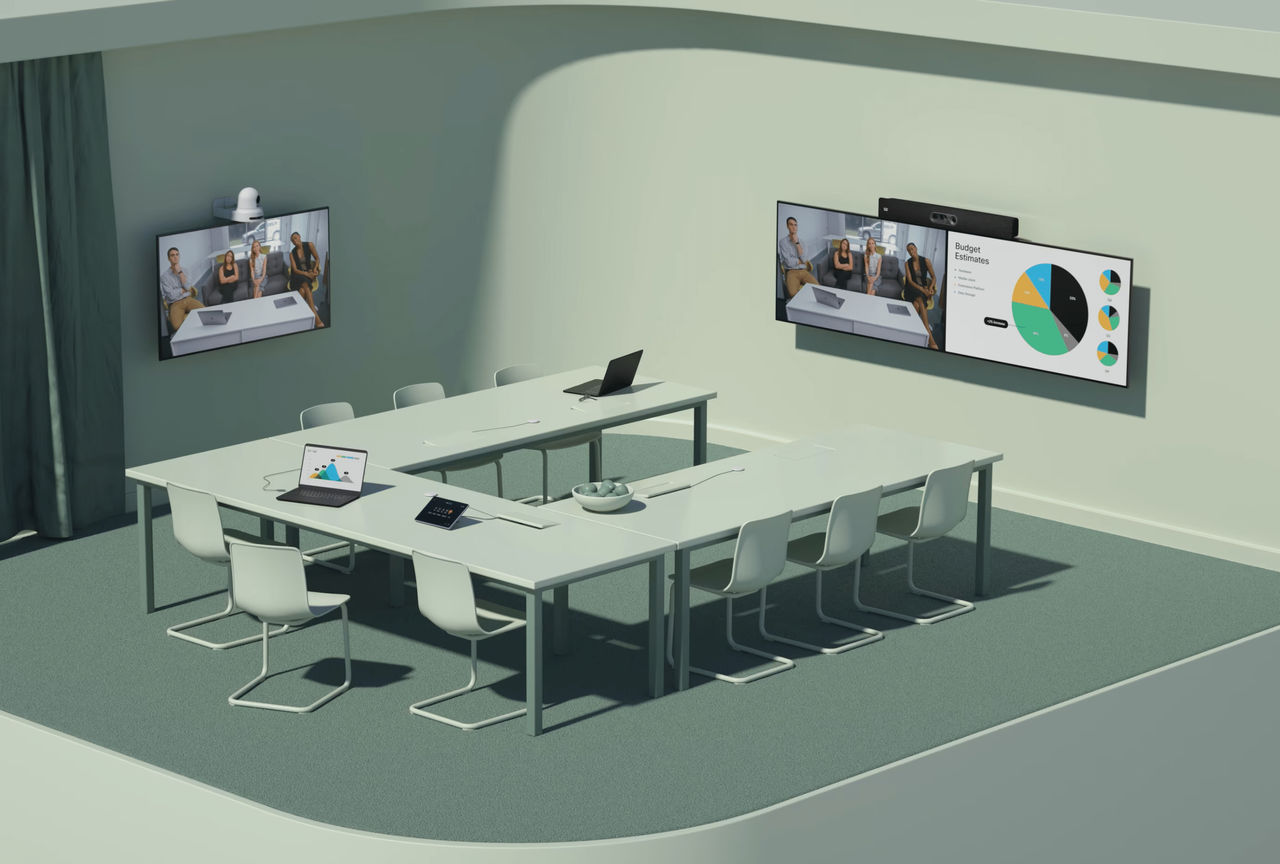

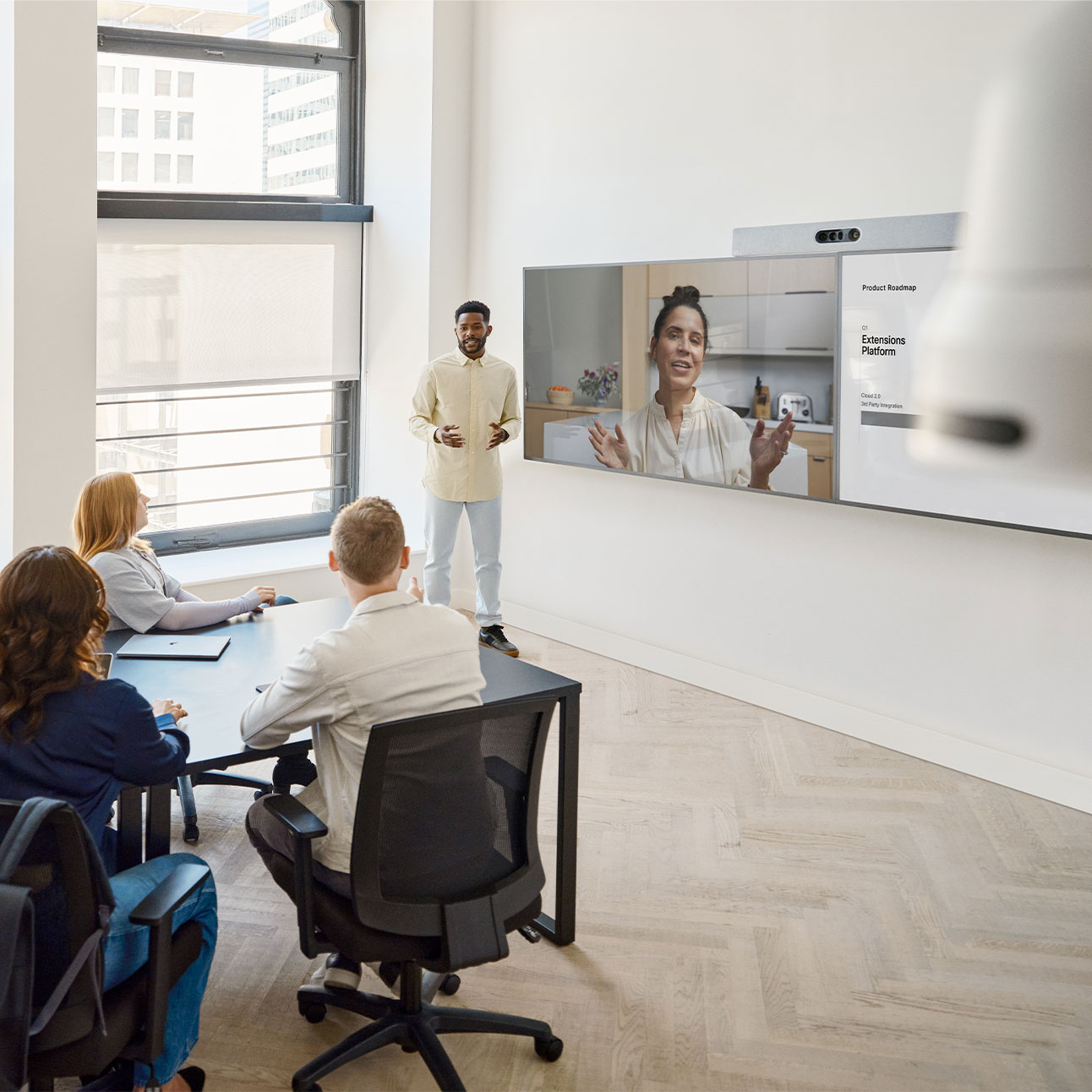

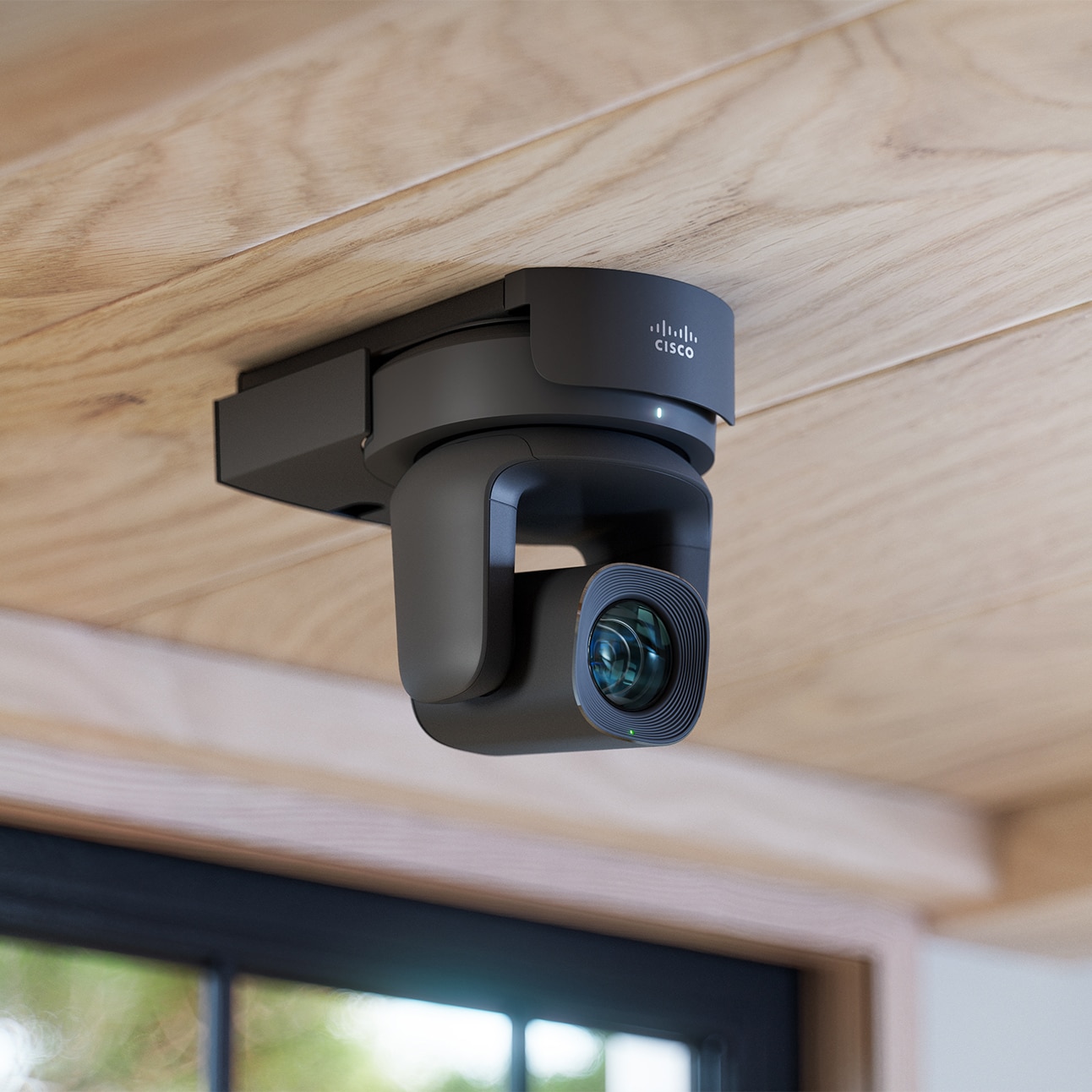

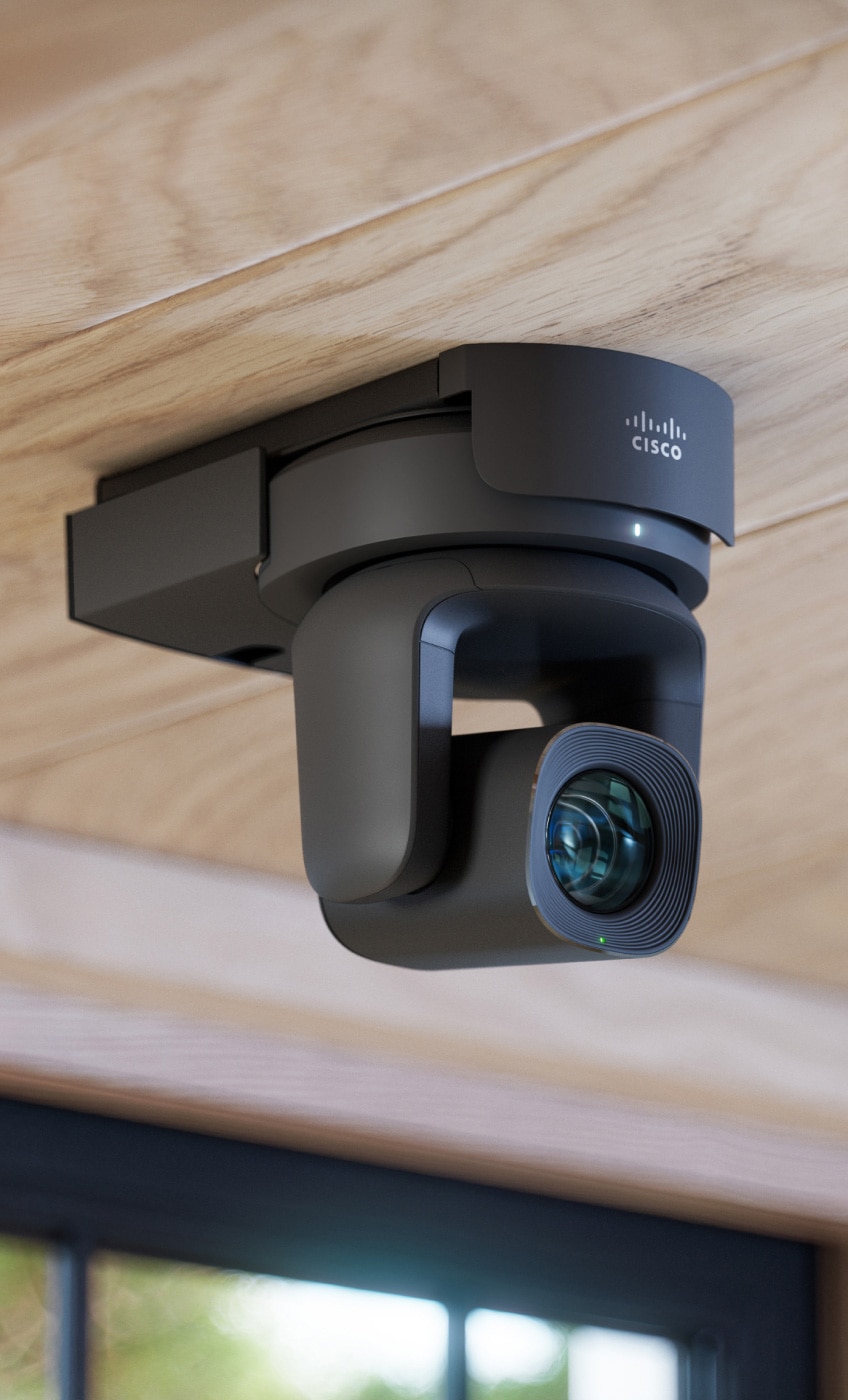

    Smart presenter tracking

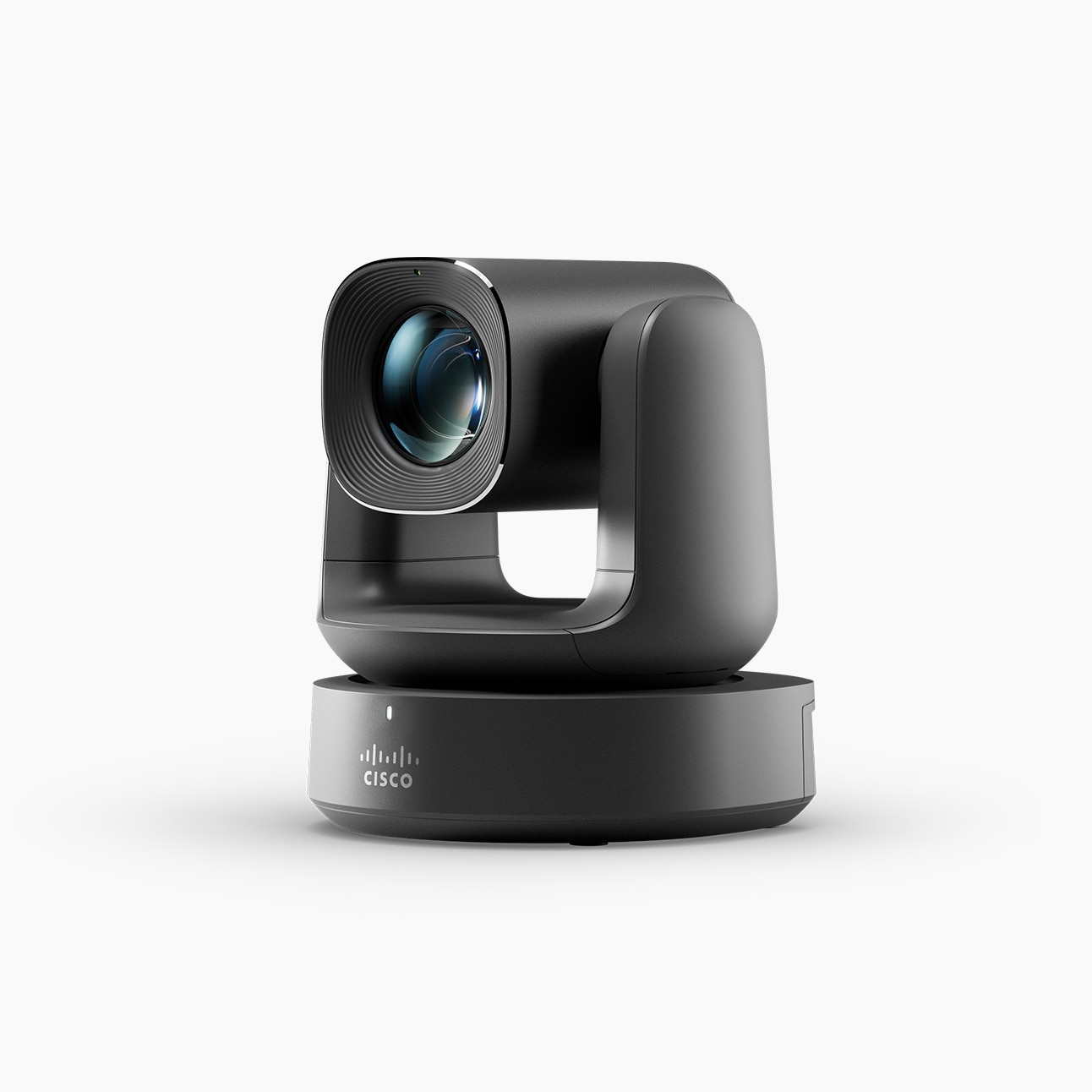

    Combine your setup with the Cisco PTZ 4K Camera for advanced pan-tilt-zoom and presenter tracking for engaging presentations, training sessions, and hybrid events.

  • No distraction, just brilliant sound.
    Block out distractions with noise removal so remote participants hear everyone loud and clear.
    Enjoy full duplex audio powered by the built-in loudspeaker system and external speaker connectivity.
    Leverage built-in and external microphones so everyone in the room is clearly heard.

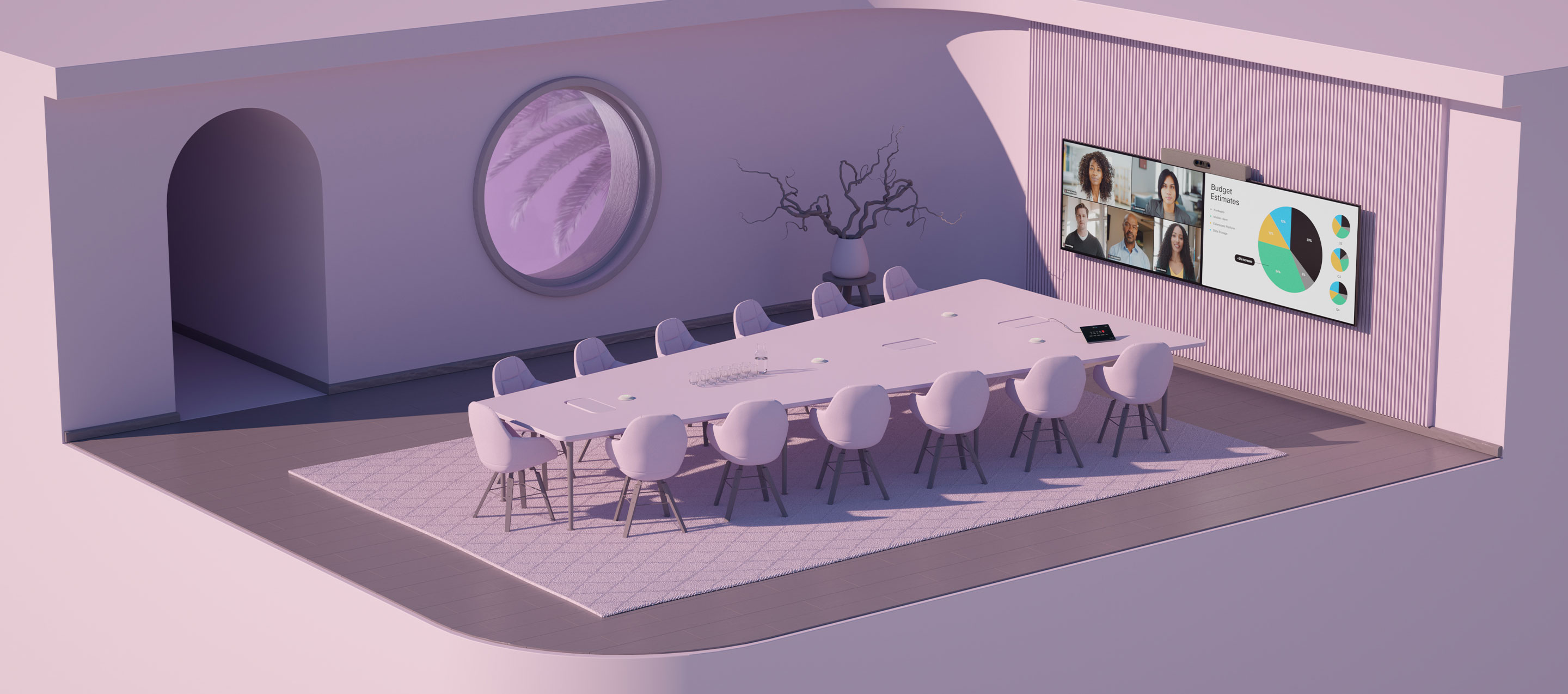

    A conference room system that levels the playing field.

    AI-powered camera and audio intelligence. Flexible configuration options. Native support for RoomOS and Microsoft Teams Rooms. The Room Kit EQ is the most advanced collaboration kit for the conference room.

    Watch Now

    Welcome to the intelligent workplace.



    The Room Kit EQ automatically wakes up as you enter the room, and you can join your meeting in seconds with a single tap or voice command.



    Use AI-powered face recognition to identify meeting participants and presence detection to provide real-time metrics for workspace optimization and in-office wellbeing.

    Connecting the modern conference room.
  • image

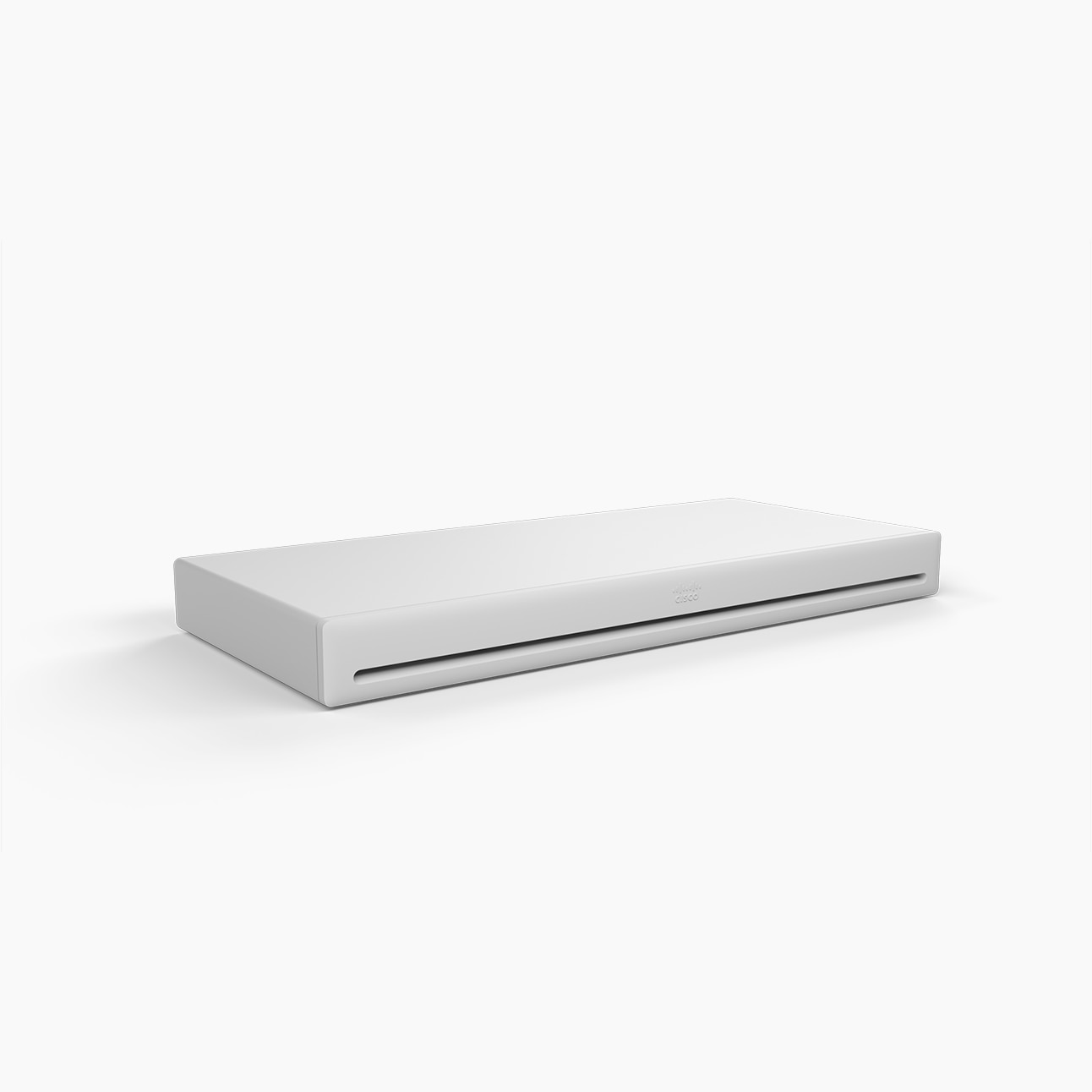

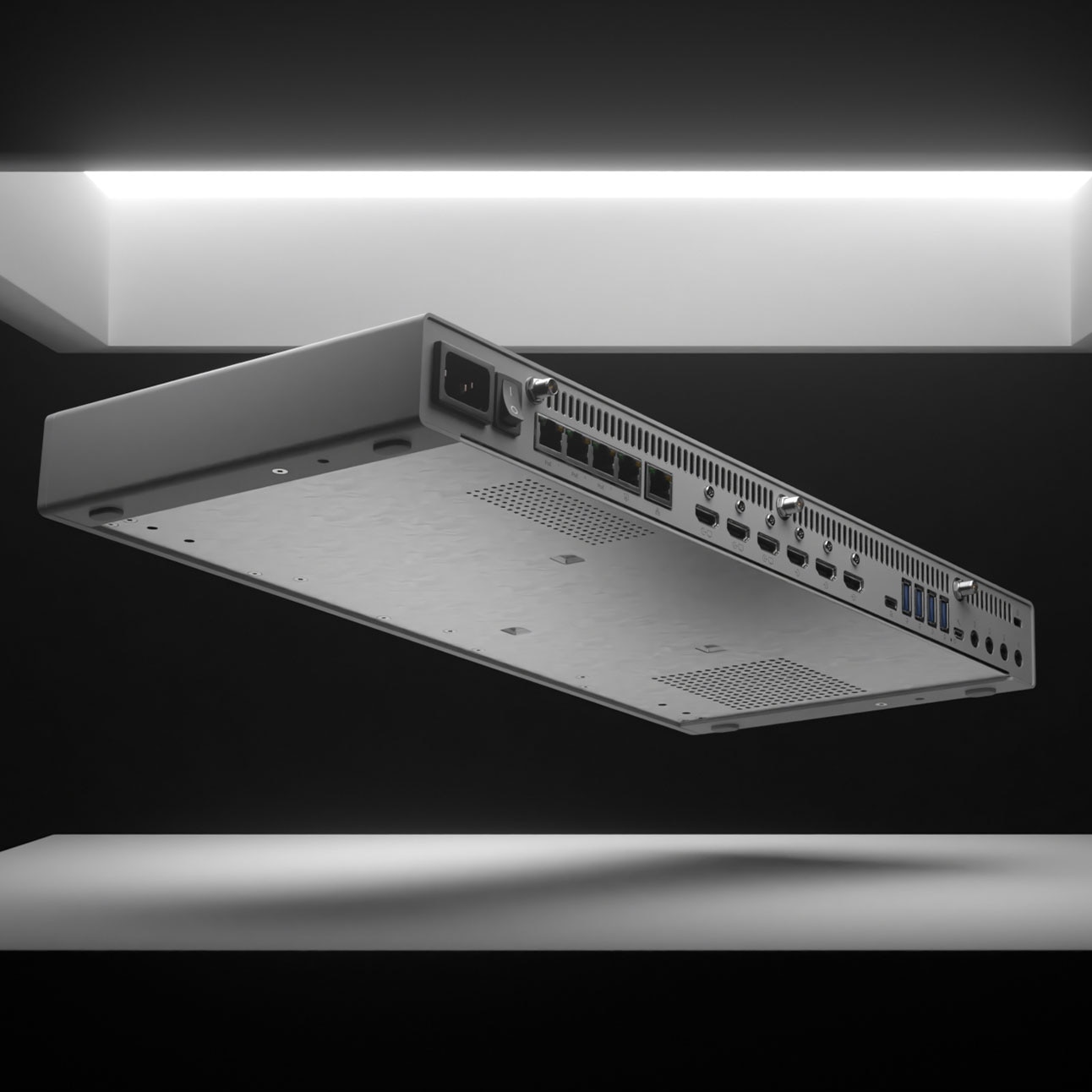

    Mind-blowing power

    The new Cisco Codec EQ is a computing engine with an AI-enabled chipset in its core, bringing striking speed and power for ultra-high performance for your video conferencing system.

  • image

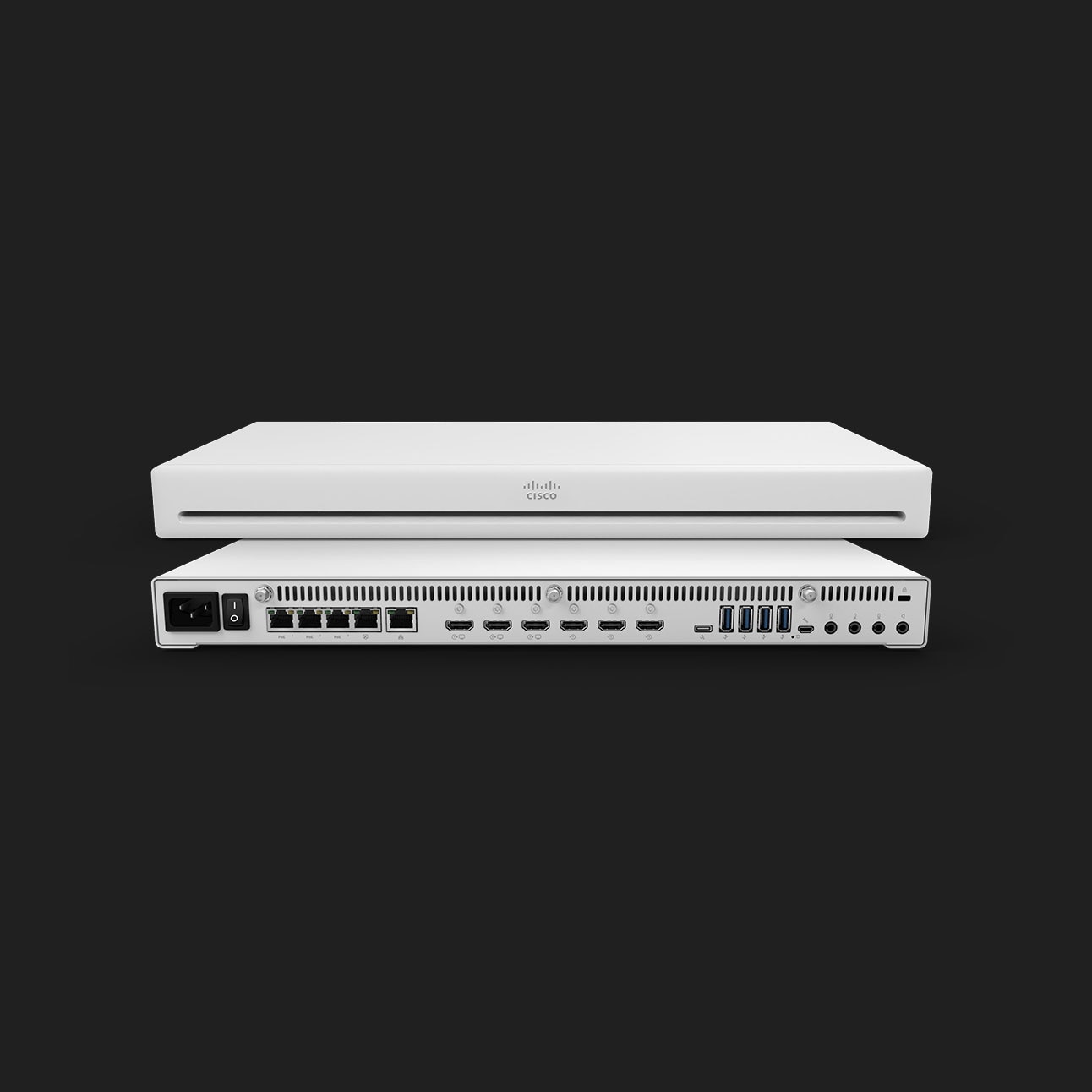

    Enhanced connectivity

    Unleash the ultimate hub for room collaboration in a box that connects external screens, cameras, microphones, touch controllers, and other room accessories.

  • image

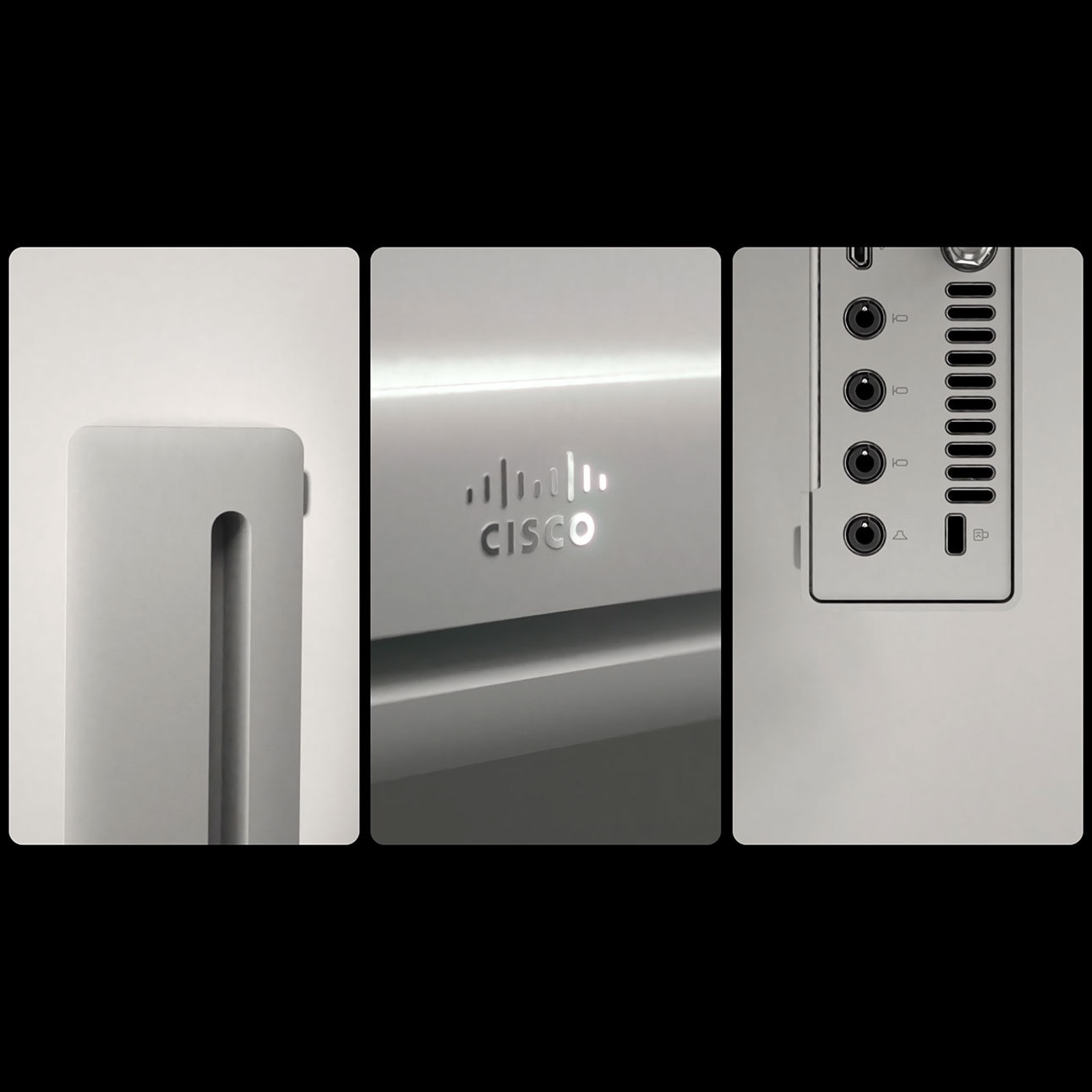

    Sleek design

    Deploy an elegant codec box that powers video meetings from behind the curtains, facilitating smart cable management and flexible mounting options.

  • Better collaboration with Cisco devices.

    The goal is to make the experience for those who are remote as good or even better than being in person. We rigged the meeting rooms with Webex Room Kits from Cisco—and we got extremely good feedback on how these devices help include people from different countries and with different languages. We want to expand on that.

    Read Story

    Collaboration across studios has become much more of a thing. It was not that we didn’t do it before, but now, borders don’t really matter anymore, because we can all collaborate and work remotely and clients also see this.

    Read Story

    [Unlike other multi-vendor solutions], Webex offered a competitively priced, complete solution for schools that met all our criteria. In addition, we were long-time Cisco customers for our telephony and networking equipment, so we trusted the reliability and longevity of Cisco.

    Read Story

    With Webex, you can always be a part of the conversation, whether you're remote or onsite. It gives you that instantaneous collaboration, whether you're here or there, you can still see what's going on.

    Watch Video

    Great learning only happens when the social and emotional side of a student's life is in balance. We needed a technology where the whole purpose was to engage students and learners.

    Watch video
    1/5
    Control your deployment.
    Streamlined deployment
    Easy to deploy, scale, and maintain. Get everything you need in a box to take your meeting space to the next level—either in the cloud, on premises, or as a hybrid solution.
    Unified cloud management

    Unify cloud admin, device management, analytics, and workspace insights in Control Hub to remove IT headaches and improve resource planning.


    Real-time monitoring

    Track environmental conditions and occupancy via smart sensors to create a safer and more productive workplace while enhancing employee wellbeing.

    Compare Cisco video bars and room kits.

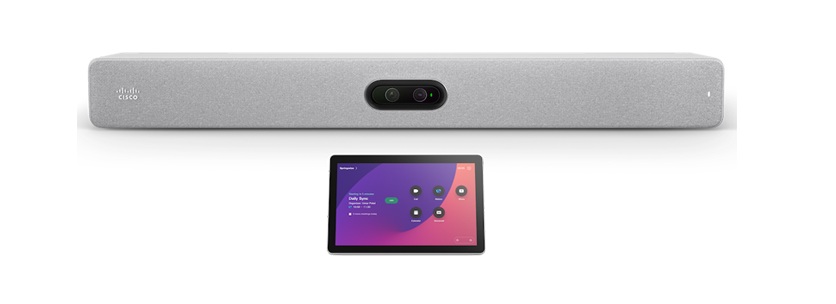

    Room Bar Pro
    Room Bar Pro
    Room Kit EQ
    Room Kit EQ

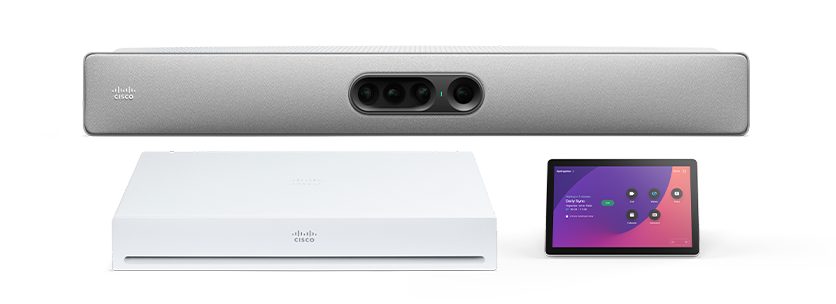

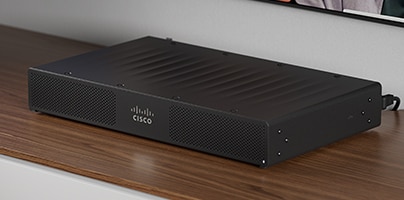

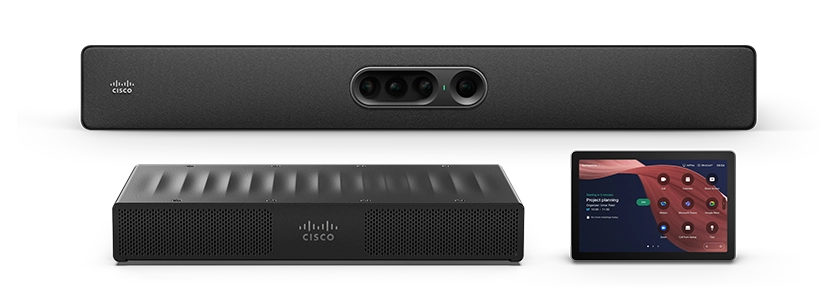

    Room Kit Pro
    Room Kit Pro

    Medium meeting and training rooms

    Workspace

    Large workspaces with up to 14-16 people (extensible with multi-camera scenarios)

    Workspace

    Extra large workspaces and specialist AV scenarios

    Workspace

    Yes, built-in codec with NVIDIA chipset

    Codec

    Yes, comes with the standalone Codec EQ

    Codec

    Yes, comes with the standalone Codec Pro

    Codec

    Yes, single-cable USB-C passthrough and content share

    USB passthrough

    Yes, single-cable USB-C passthrough

    USB passthrough

    No native USB passthrough. Can be enabled with certified, third-party HDMI to USB converters

    USB passthrough

    RoomOS for native Webex meetings and video interoperability; Microsoft Teams Rooms (coming soon)

    Platform support

    RoomOS for native Webex experience and third-party video interop; Microsoft Teams Rooms on Android

    Platform support

    RoomOS for native Webex experience and third-party video interop; Microsoft Teams Rooms on Android

    Platform support

    Up to 1920 x 1080 at 60 fps; Up to 3840 x 2160 at 30 fps

    Resolution

    Up to 1920 x 1080 at 60 fps; Up to 3840 x 2160 at 30 fps

    Resolution

    Up to 1920 x 1080 at 60 fps; Up to 3840 x 2160 at 30 fps

    Resolution

    Integrated dual camera system in the video bar and option to connect with external IP cameras

    Camera options

    Quad Camera, PTZ 4K Camera and other room cameras via PoE and HDMI

    Camera options

    Quad Camera, PTZ 4K Camera and other room cameras via PoE and HDMI

    Camera options

    112° and 70° horizontal field of view

    Camera field of view

    83° horizontal FoV (Quad Camera), 70° horizontal FoV (PTZ 4K Camera)

    Camera field of view

    83° horizontal FoV (Quad Camera),

    70° horizontal FoV (PTZ 4K Camera)

    Camera field of view

    Tilt range: -2° to +20

    Pan-tilt

    Pan range: +/- 170°; Tilt range: -20° to +90°(PTZ 4K Camera)

    Pan-tilt

    Pan range: +/- 170°; Tilt range: -20° to +90°(PTZ 4K Camera)

    Pan-tilt

    5x zoom

    Zoom

    5x zoom (Quad Camera), 240x zoom (PTZ 4K Camera)

    Zoom

    5x zoom (Quad Camera), 240x zoom (PTZ 4K Camera)

    Zoom

    Yes

    Group framing

    Yes (Quad Camera)

    Group framing

    Yes (Quad Camera)

    Group framing

    Yes

    Speaker tracking

    Yes (Quad Camera)

    Speaker tracking

    Yes (Quad Camera)

    Speaker tracking

    Yes, when connected with the PTZ 4K Camera

    Presenter tracking

    Yes (PTZ 4K Camera)

    Presenter tracking

    Yes (PTZ 4K Camera)

    Presenter tracking

    Yes

    Frames camera mode

    Yes (Quad Camera)

    Frames camera mode

    Yes (Quad Camera)Multi-camera support

    Frames camera mode

    Yes

    Multi-camera support

    Yes

    Multi-camera support

    Yes

    Multi-camera support

    16-element microphone array for voice pickup and speaker tracking; microphone extension over IP, USB and analog

    Microphones

    Integrated mic array for speaker tracking (Quad Camera), and multiple audio input sources for external microphones

    Microphones

    Integrated mic array for speaker tracking (Quad Camera), and multiple audio input sources for microphone extension

    Microphones

    Yes

    ML-based noise suppression

    Yes

    ML-based noise suppression

    Yes

    ML-based noise suppression

    Three-channel, stereo loudspeaker system supporting spatial audio

    Loudspeakers

    Mono loudspeaker system (Quad Camera) with 1x audio out for external speaker

    Loudspeakers

    Mono loudspeaker system (Quad Camera) with 6x audio out for external speakers

    Loudspeakers

    Yes

    Triple-screen support

    Yes

    Triple-screen support

    Yes

    Triple-screen support

    Yes, via Webex, Miracast and Apple AirPlay

    Wireless content sharing

    Yes, via Webex, Miracast and Apple AirPlay

    Wireless content sharing

    Yes, via Webex, Miracast and Apple AirPlay

    Wireless content sharing

    Yes, supports Room Navigator touch controller and scheduling display

    Touch controller

    Yes, supports Room Navigator touch controller and scheduling display

    Touch controller

    Yes, supports Room Navigator touch controller and scheduling display

    Touch controller

    Control Hub when cloud-registered

    Management

    Control Hub when cloud-registered

    Management

    Control Hub when cloud-registered

    Management

    Width: 37.8 in. (96 cm)
    Height: 4.3 in. (11 cm)
    Depth: 3.5 in. (9 cm)
    Weight: 9.86 lb. (4.47 kg)

    Dimension

    Quad Camera:
    Width: 37.4 in. (95.0 cm)
    Height: 4.7 in. (12.0 cm)
    Depth: 4.0 in. (10.3 cm)
    Weight: 10.6 lb. (4.8 kg)

    Codec EQ:
    Width: 18.6 in. (47.3 cm)
    Height: 1.7 in. (4.4 cm)
    Depth: 8 in. (20.2 cm)
    Weight: 5.1 lb. (2.33 kg)

    Dimension

    Quad Camera:
    Width: 37.4 in. (95.0 cm)
    Height: 4.7 in. (12.0 cm)
    Depth: 4.0 in. (10.3 cm)
    Weight: 10.6 lb. (4.8 kg)

    Codec Pro:
    Width: 17.1 in. (43.6 cm)
    Height: 2.6 in. (6.6 cm)
    Depth: 9.1 in. (23.1 cm)
    Weight: 7.3 lb (3.3 kg)

    Dimension

    Designed for a sustainable future.

    We’ve designed the Cisco Room Kit EQ to support the circular economy and help you achieve your sustainability goals. Goodbye to foam-based packaging and redundant plastic containers, say hello to post-consumer recycled (PCR) plastic in the cosmetic parts. The video bar and other components of the kit were designed for easy disassembly, repair, refurbishing, and recycling to reduce the environmental impact of the solution.

    Technical specifications.

    The difference is in the details.

    Default components

    Room Kit EQ:

    • Cisco Codec EQ
    • Cisco Quad Camera (First Light or Carbon Black)
    • Wall mount for Quad Camera
    • Power adapter

    Room Kit EQ PTZ 4K:

    • Cisco Codec EQ
    • Cisco PTZ 4K Camera
    • Power adapter

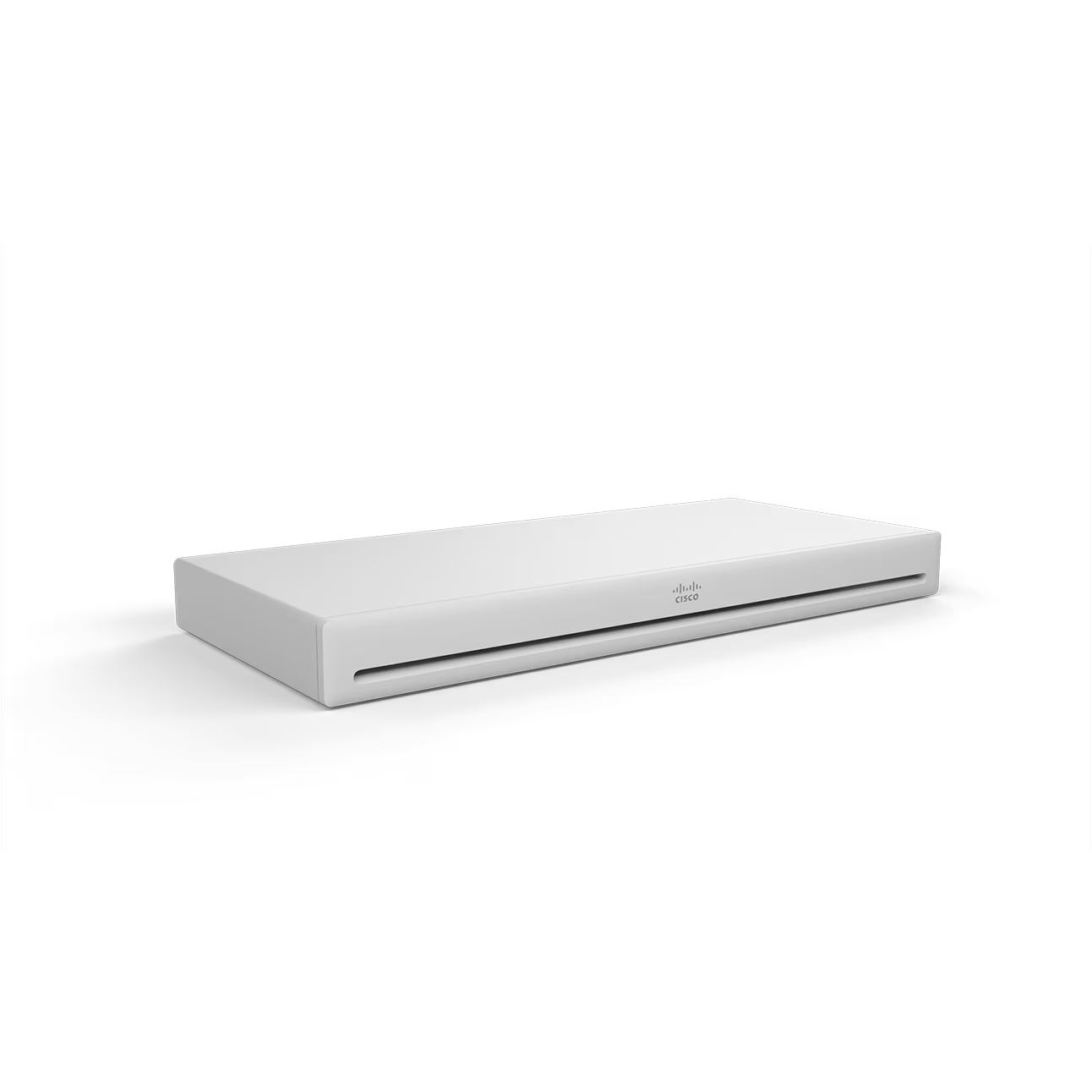

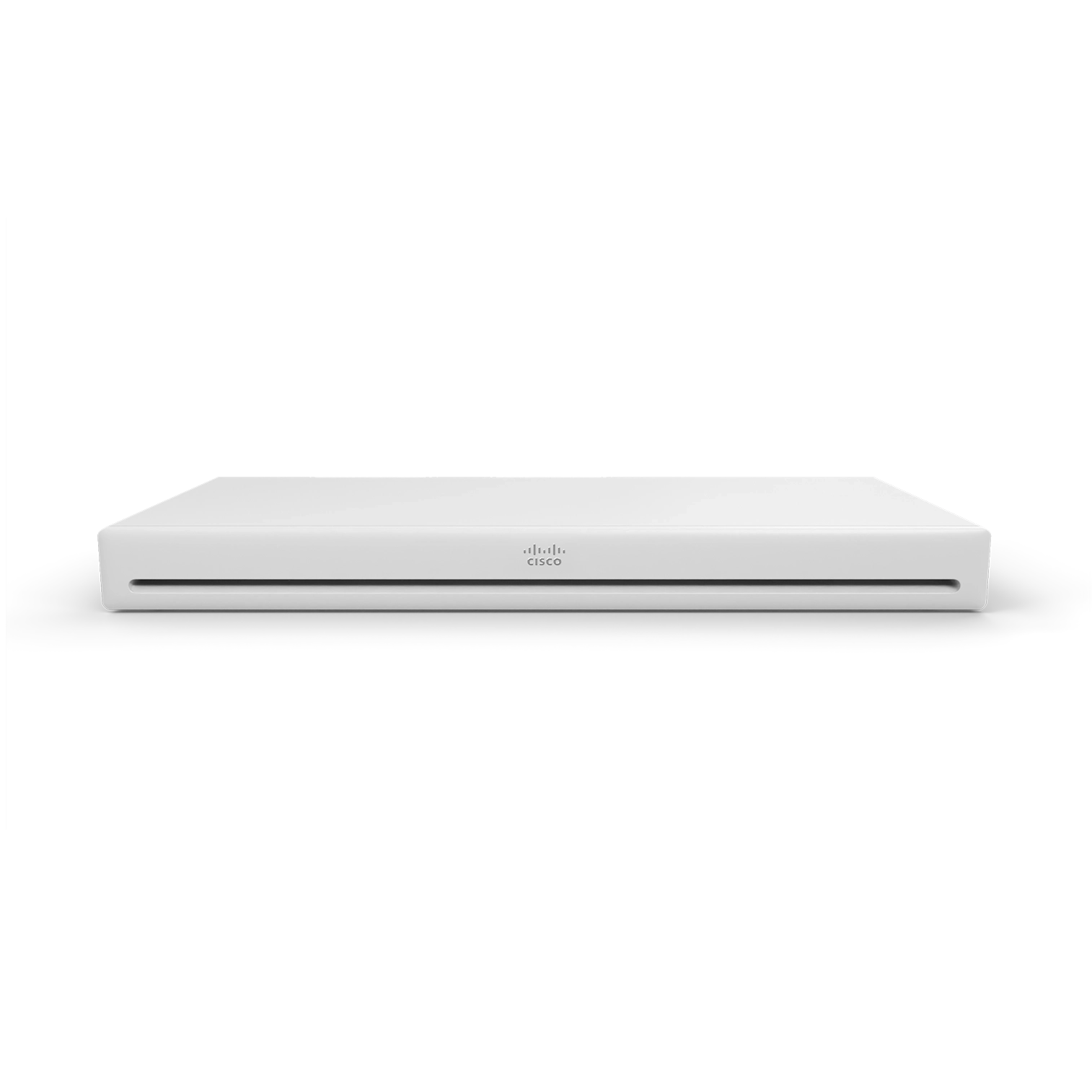

    Codec EQ Standalone:

    • Cisco Codec EQ
    • Power adapter

    Optional components

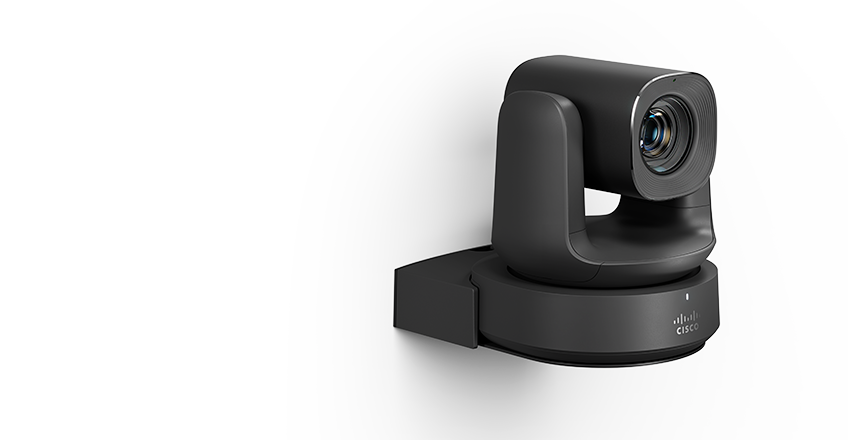

    • Cisco PTZ 4K Camera (also available as separate integrator bundle)

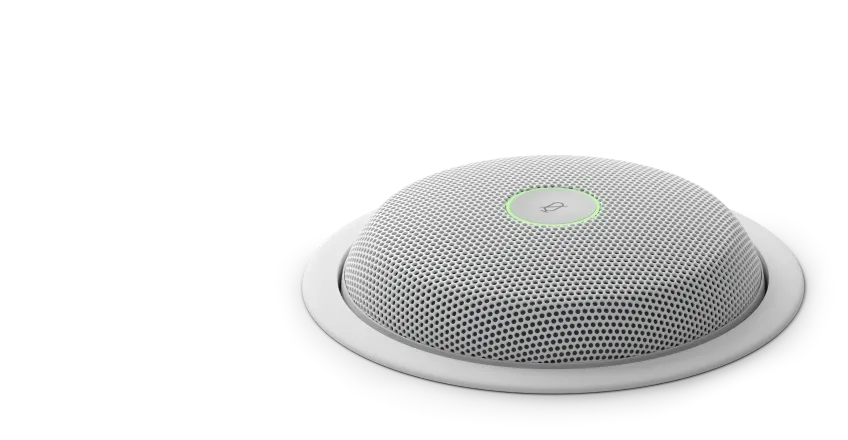

    • Cisco Table Microphone Pro
    • Cisco Table Microphone

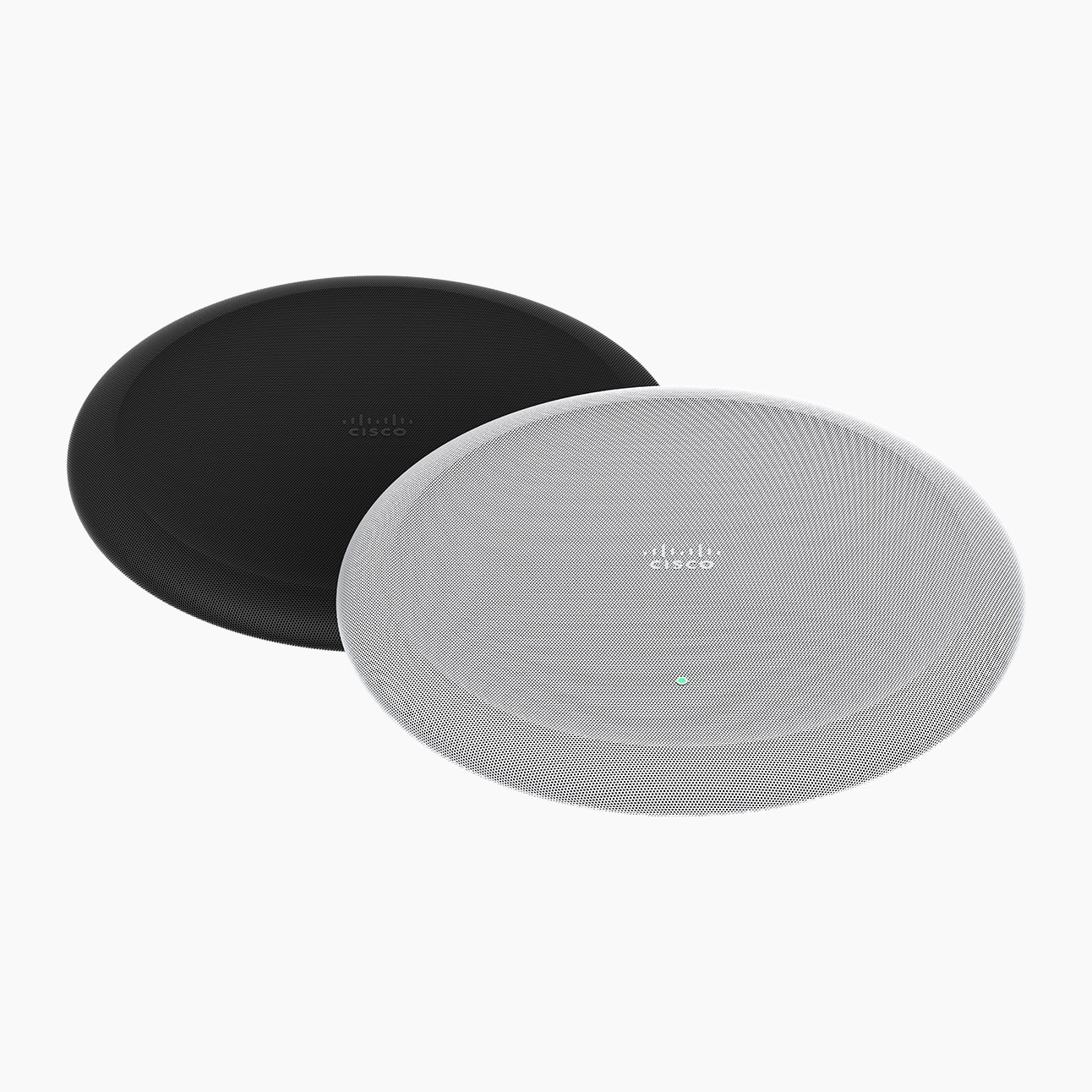

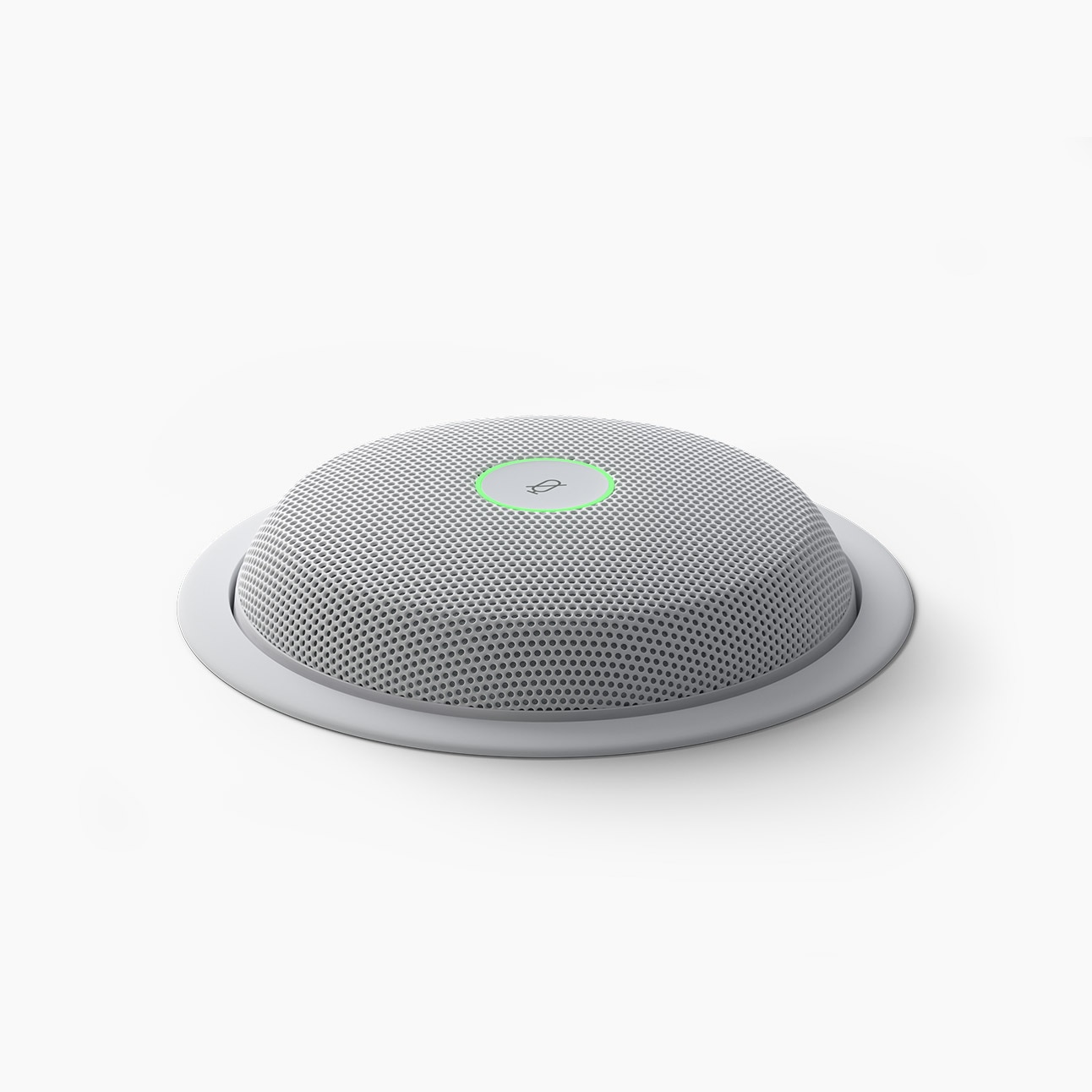

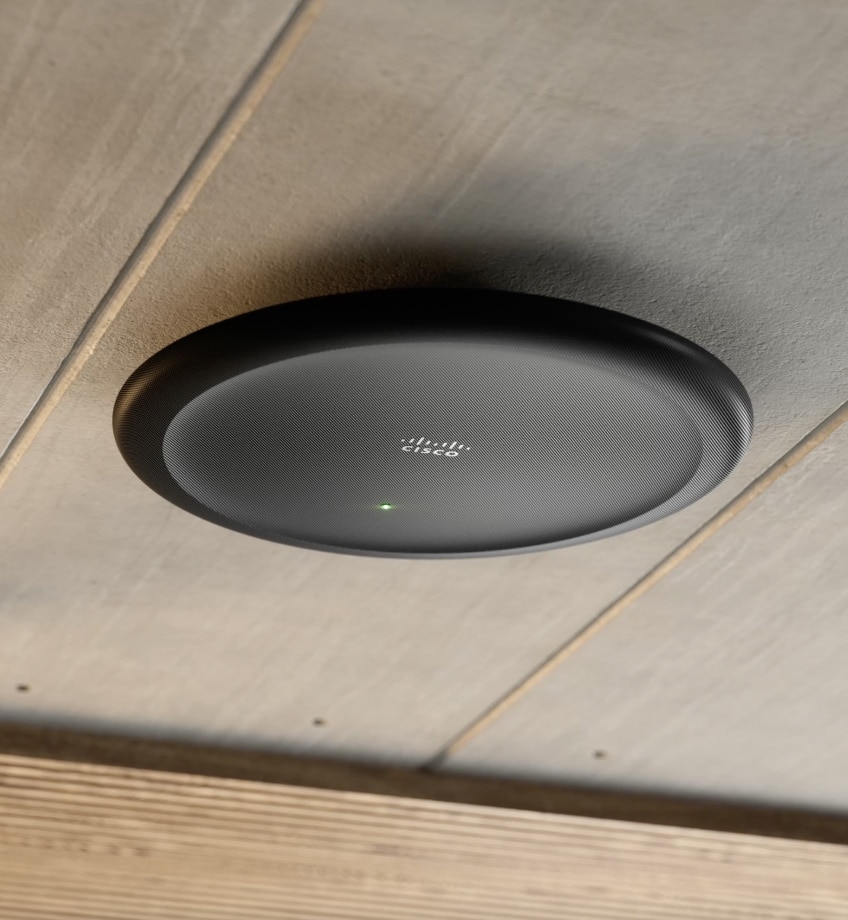

    • Cisco Ceiling Microphone
    • Wall mount for Codec EQ
    • Rack ear for Codec EQ
    • 9m USB-C Cable with Laptop Charging

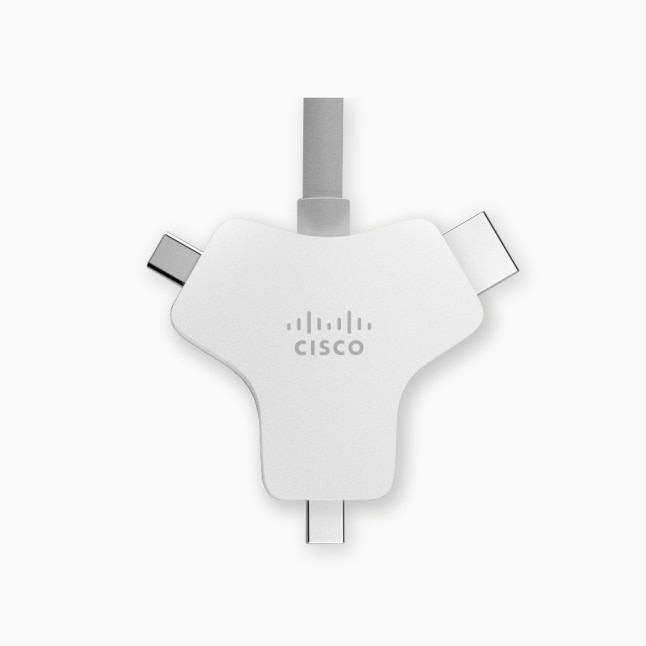

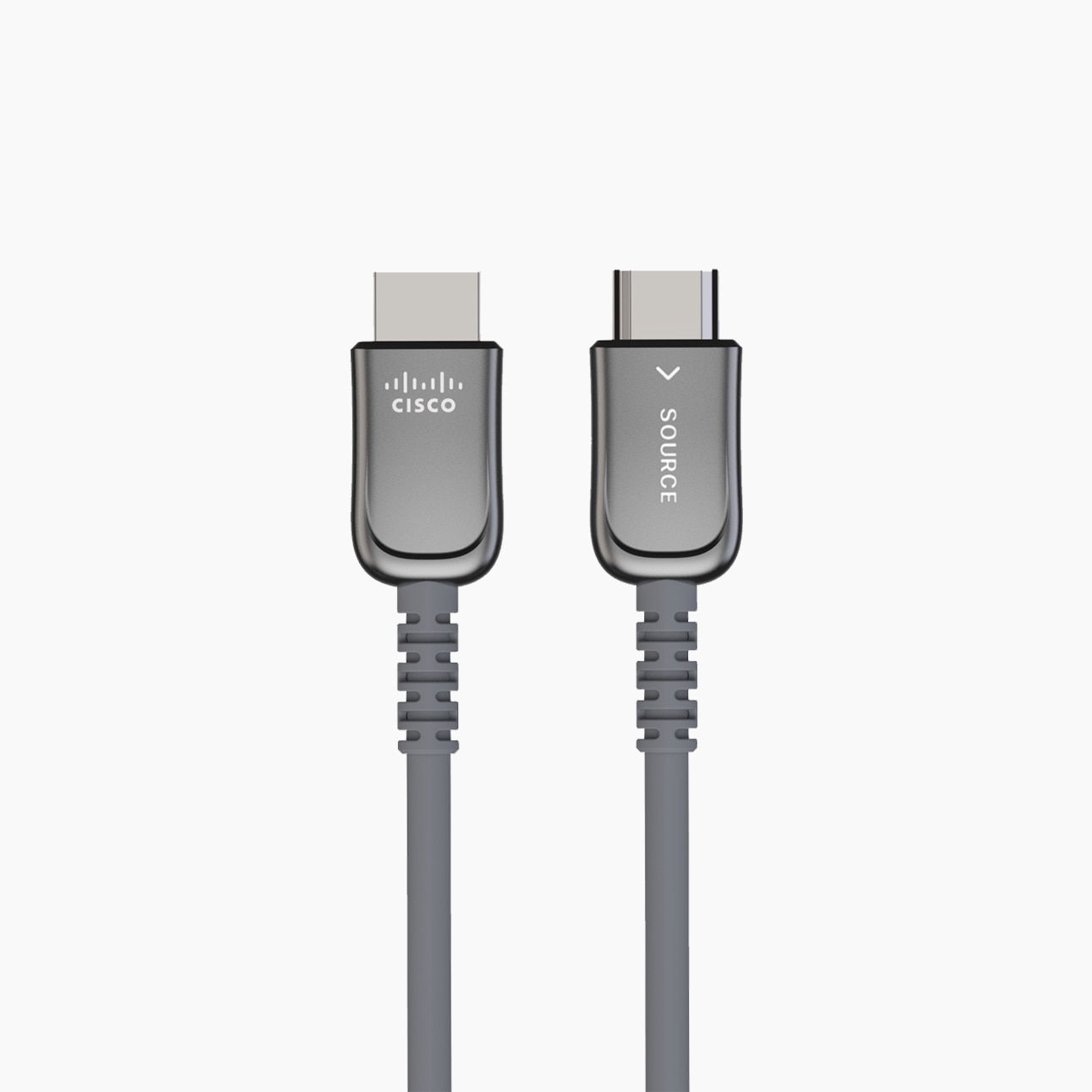

    • Cisco Multi-Head Cable, 4K

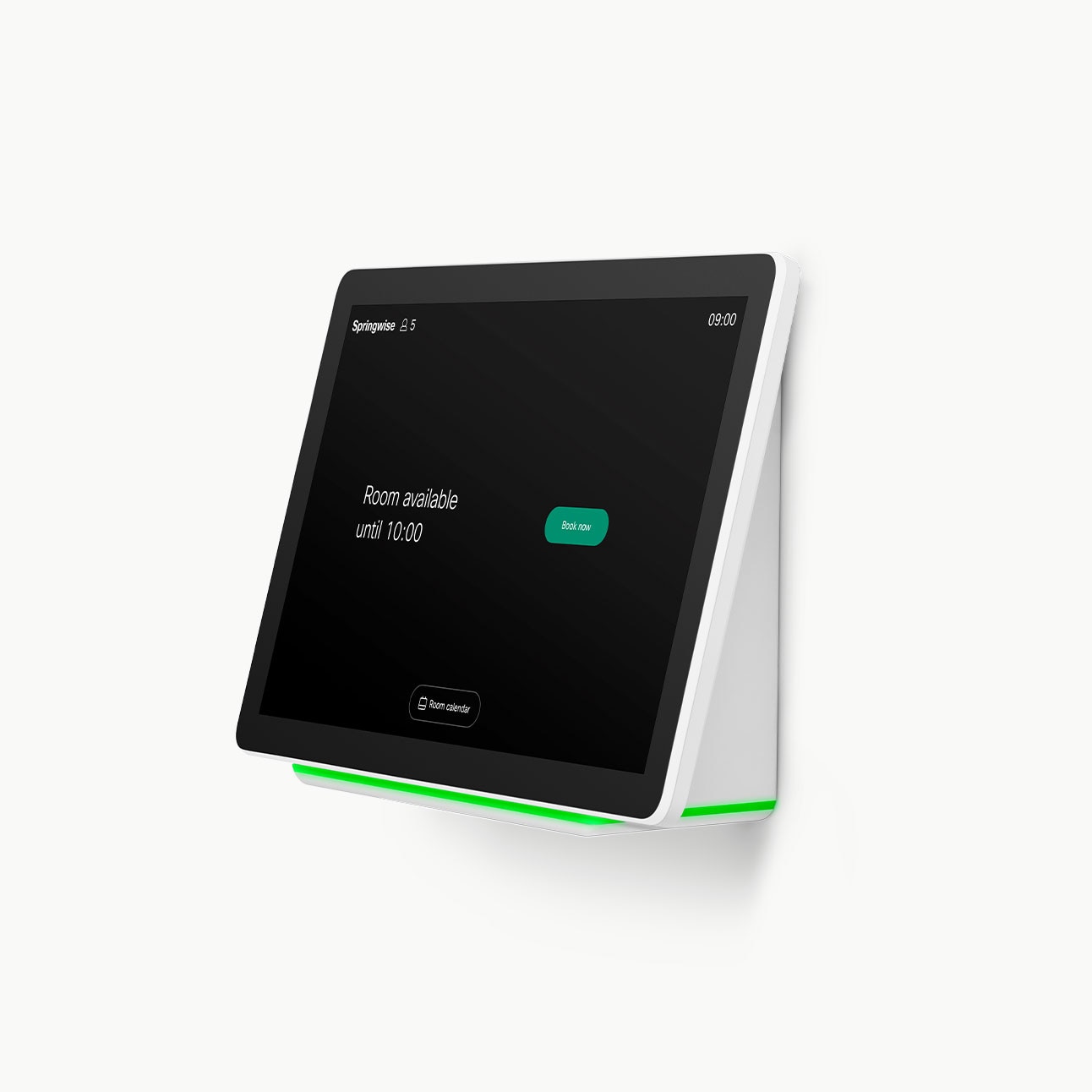

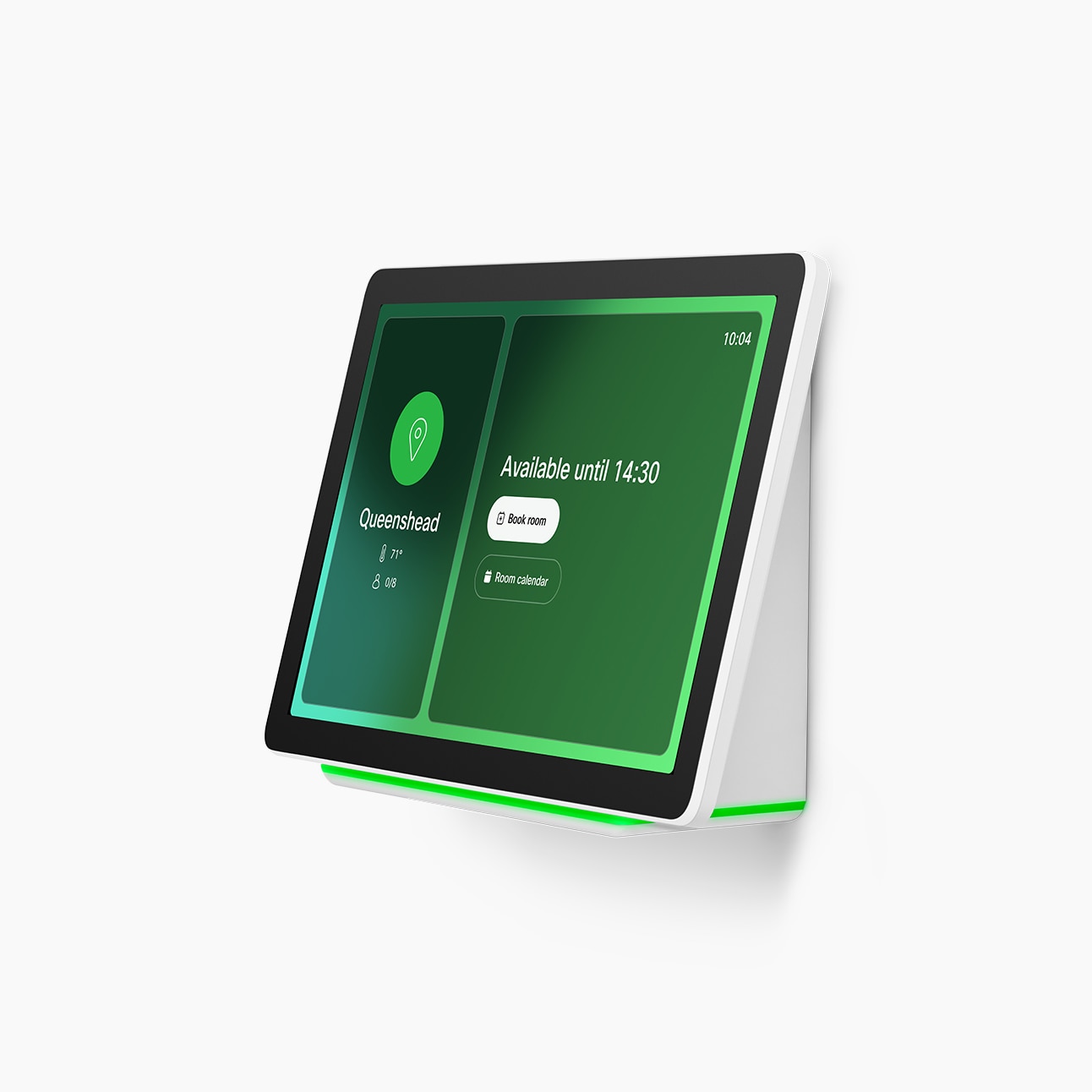

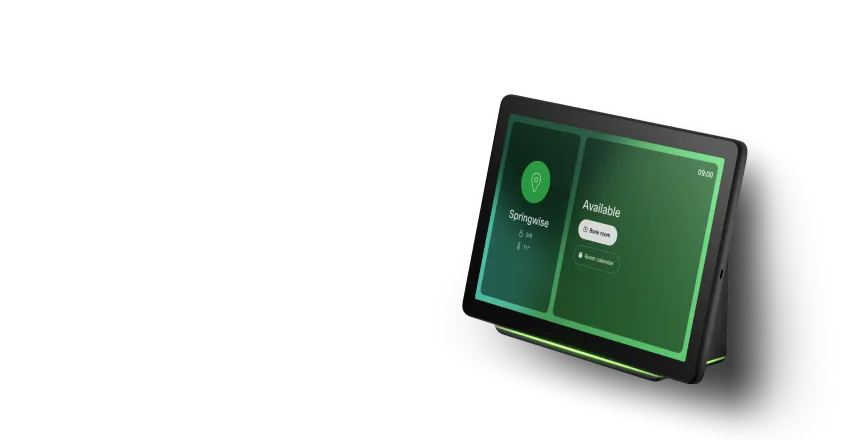

    • Cisco Room Navigator (wall-mount)

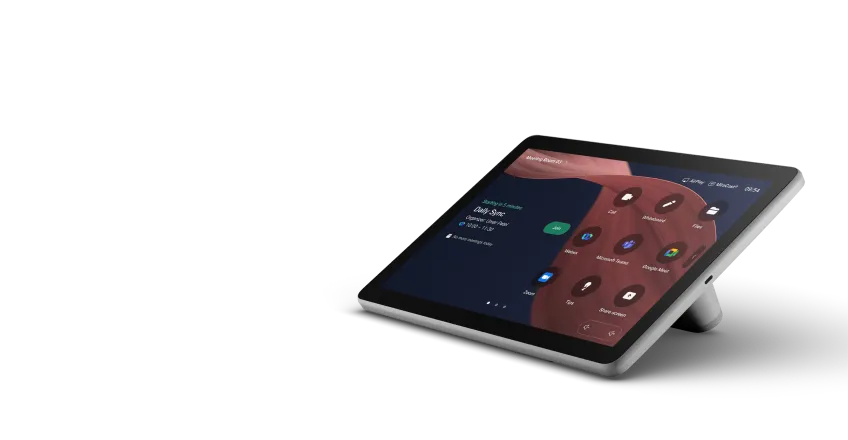

    • Cisco Room Navigator table-stand touch controller
    • Other cable and peripheral options (see datasheet)

    Quad Camera overview

    • 4x 20 MP CMOS image sensors with machine intelligent switching
    • The camera generates frames from the 4 sensors simultaneously to provide a single HD output at 1080p
    • Support up to 60 fps
    • 1/1.7 CMOS
    • 5x zoom
    • f/2.0 aperture
    • 83° horizontal field of view on wide lens
    • 50° horizontal field of view on tele lenses
    • Automatic group framing
    • Speaker tracking
    • Frames camera control for individual cropping of each in-room participant
    • 5056 x 3888 pixel resolution
    • Auto focus, brightness, and white balance
    • Focus distance 1 m to infinity

    Video features

    • Main video resolution up to 1920 x 1080 at 30 fps
    • Three HDMI outputs supporting formats up to 3840 x 2160 at 60 fps
    • Three HDMI inputs support up to maximum 3840 x 2160 at 30 fps, including 1920 x 1080 at 60 fps
    • One USB-C input supports up to maximum 3840 x 2160 at 30 fps
    • Support for H.263, H.264 and H.265 video standards
    • Supporting available Webex video stream layouts and meeting features, including people focus, grid, prominent, stack and overlay.
    • Supporting Frames intelligent camera control in Webex and third-party meetings
    • When configured for RoomOS, the solution supports meetings on Microsoft Teams, Zoom and Google Meet with third-party video interoperability
    • Native support for Microsoft Teams Rooms (MTR) and the option to join native Webex meetings in MTR mode

    Audio features

    • Integrated, 3-element loudspeaker system with high-quality full range driver and dual low frequency drivers, supporting 20kHz audio (Quad Camera)
    • 8-element microphone array for speaker tracking (Quad Camera)
    • Option to connect up to 3 external mics via 3.5mm mini Jack or up to 8 external mics via PoE. (Codec EQ)
    • 1x line out mini-Jack for stereo speakers (Codec EQ).
    • 1x RCA output for subwoofer (Quad Camera)
    • Support for more microphones via Ethernet and USB, loudspeakers and room peripherals via USB (Codec EQ)
    • Acoustic Echo Cancellation (AEC)
    • Active Lip Synchronization
    • AI-Powered, Adaptive Noise Removal
    • Automatic Gain Control (AGC)
    • Full Duplex
    • Full-Band Audio
    • Self-Hear
    • Ultrasound Technology

    Presentations

    • Wireless content sharing via the Webex app (up to 3840 x 2160 at 7.5 fps)
    • Wireless content sharing via the Cisco Intelligent Proximity client (up to 3840 x 2160 at 3 fps)
    • Wireless content sharing via Miracast (up to 1920 x 1080 at 60 fps) – Not available on Non radio version.
    • Wireless content sharing via Apple AirPlay
    • Supports triple-screens for video and content
    • Supports dual content sources for local meetings
    • View whiteboard content and annotations shared from a Webex Board Series, Webex Desk Series, or the Webex App; participate in whiteboarding sessions through the Webex App
    • Wired (1x USB-C and 3x HDMI) passthrough for instant content sharing

    Room intelligence

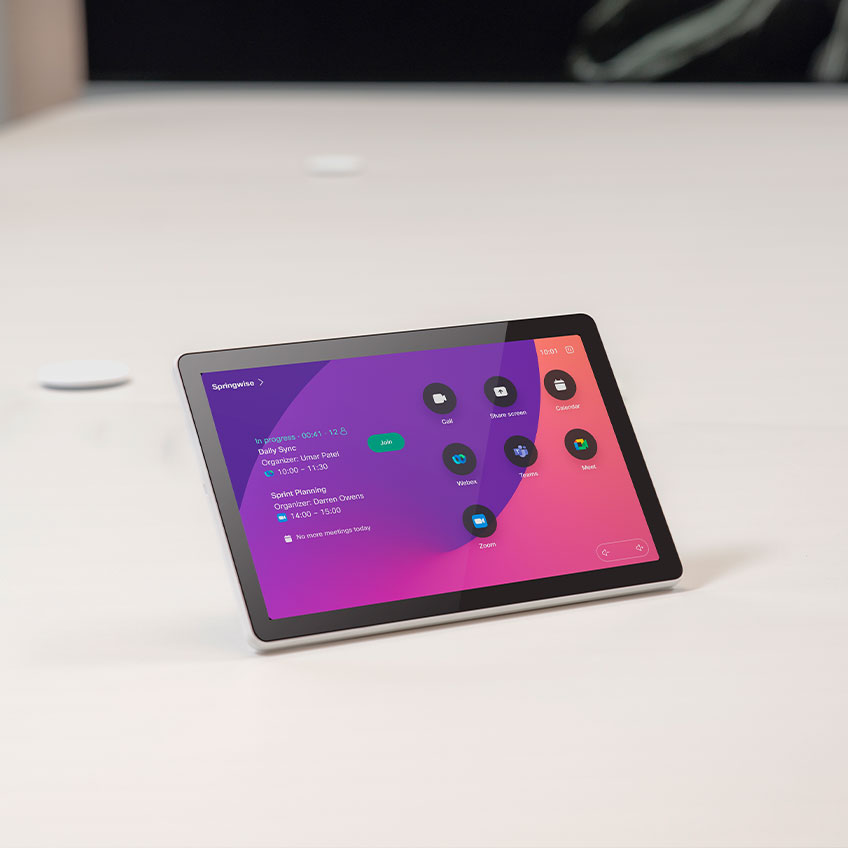

    • Cisco Room Navigator touch panel (wall-mount or table-stand) for access to conference controls, room booking, room controls and workplace applications.
    • Metrics: Counts people in the room via smart presence detection, enabling analytics for better resource planning
    • Automatic screen/display integration through HDMI CEC
    • Supports Wi-Fi 6 and Bluetooth®
    • Control peripherals such as lights and blinds through the Room Navigator touch panel
    • Environmental sensors when connected to the touch device to measure humidity, temperature, noise levels and air quality
    • System “wakes up” when someone walks into the room, and recognizes them through their mobile device
    • Webex Assistant enables conference controls via voice commands and other touchless workflows
    • Customizations via macros for digital signage and other workspace applications
    • Simplified meeting-join experience with One Button to Push (OBTP) or via voice commands using Webex Assistant

    Security features

    • Secure management using HTTPS and SSH protocols
    • End-to-end encryption for calls and meetings on Webex
    • Standards-based media encryption on all back-ends (Secure Real-time Transport Protocol [SRTP], using AES-128-GCM or AES-256-GCM)
    • Password protection to access administration available on Room Navigator controller
    • Network settings protection
    • Privacy cover

    Interfaces

    • 3x 3.5mm analog audio input for microphones
    • 1x audio line out for speaker
    • 3x HDMI input
    • 3x HDMI output
    • 1x USB-C
    • 4x USB 3.0 type A
    • 1x Ethernet (RJ-45) 10/100/1000 for LAN
    • 4x Ethernet (PoE++) (RJ-45) forfor camera control, touch controller, and PoE peripherals
    • 1 microUSB port
    • Power adapter port
    • Factory reset pinhole
    • Bluetooth® and Bluetooth® Low Energy
    • Wi-Fi 6 (Wi-Fi 6E coming soon)

    Dimensions

    Quad Camera:

    • Width: 37.4 in. (95.0 cm)
    • Height: 4.7 in. (12.0 cm)
    • Depth: 4.0 in. (10.3 cm)
    • Weight: 10.6 lb. (4.8 kg)

    Codec EQ:

    • Width: 18.6 in. (47.3 cm)
    • Height: 1.7 in. (4.4 cm)
    • Depth: 8 in. (20.2 cm)
    • Weight: 5.1 lb. (2.33 kg)

    Device management

    • For cloud deployments, the device is managed in Control Hub, providing a single pane of glass of system status, activation, configuration, metrics, workspace insights, and troubleshooting
    • For on-premises deployments, management via Cisco Unified Communications Manager or Expressway
    • In case of a hybrid deployment, Webex Edge for Devices allows for linking your on-premises Webex devices to the Webex Cloud and benefits from specific cloud features such as device management, monitoring, and analytics via Control Hub.

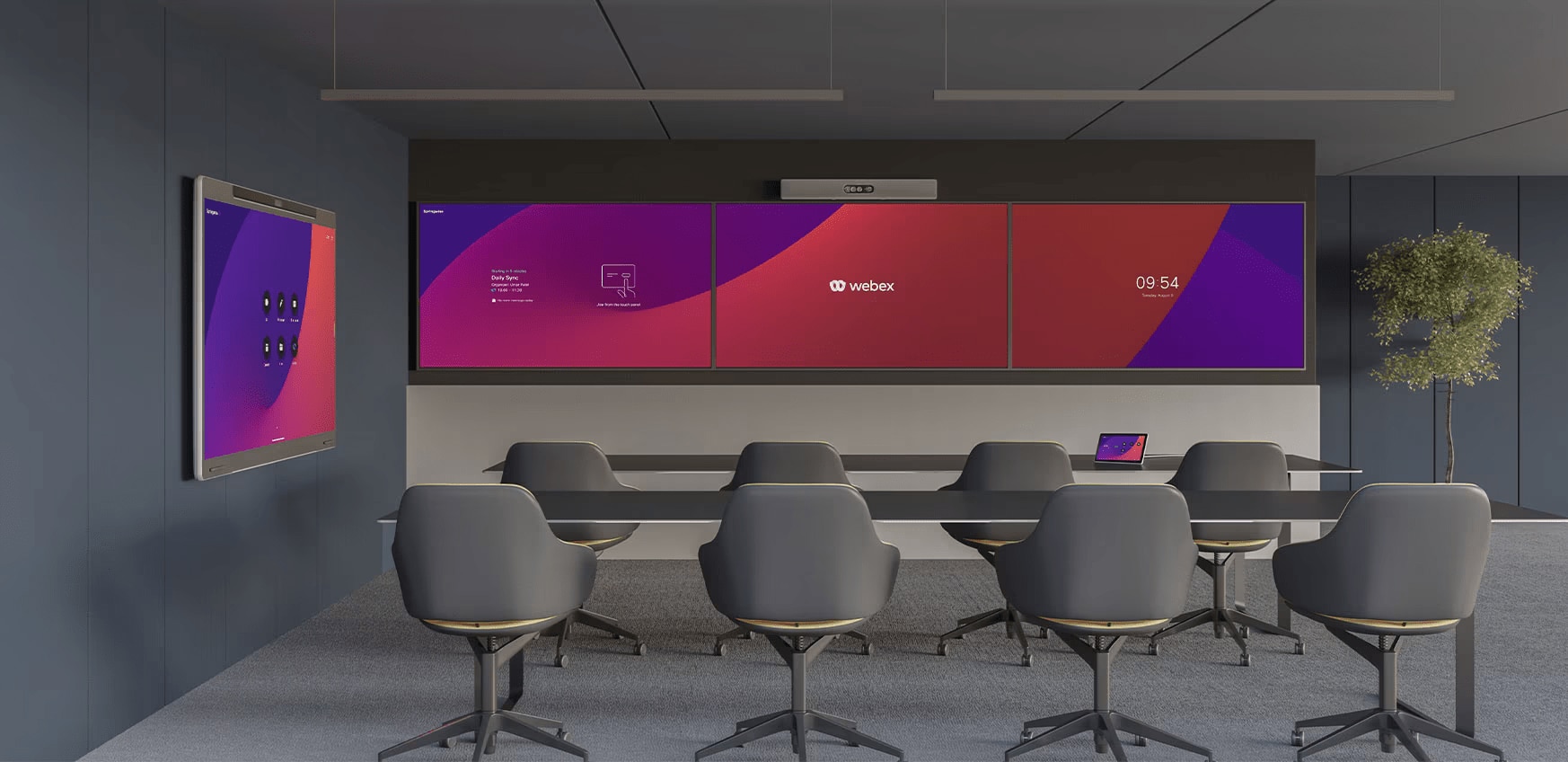

    Reimagine your workspace.

    Jump into an immersive workspace experience and tour the latest innovations powering hybrid work.

    Dive deeper.
    Cisco Room Kit EQ At-a-Glance
    Bring inclusive, multi-platform video conferencing, advanced connectivity, and rich content experiences to conference rooms and large workspaces.
    Cisco Room Kit Series At-a-Glance
    Explore a family of flexible video bars and collaboration kits to bring more intelligence and usability to your small-to-large meeting spaces.
    Enabling flexible workspaces with Cisco Room Kits
    Learn how Room Kits help power hybrid work by enabling flexible environments that promote collaboration, at scale.
    The data behind video meeting fatigue and how to combat it
    Learn more about the causes and consequences of virtual meeting fatigue and explore how collaboration culture and the right technology can make a difference.
    Preparing for the hybrid workplace with Cisco devices
    Support your Support your hybrid workplace transformation with seamless, intuitive experiences powered by purpose-built collaboration devices.


    * As this offer is highly customized to specific end user requirements, pricing is provided upon request. Actual price will vary by specific offer model/configuration and the country/region.

    Get started today.
